概览

简介

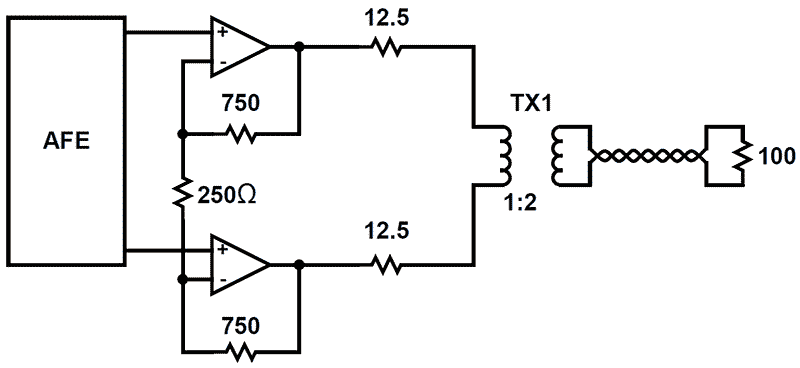

The ISL1571 is a dual operational amplifier designed for PLC line driving in Orthogonal Frequency-Division Multiplexing (OFDM) and Spread Spectrum Communication (SSC) based solutions. This device features a high drive capability of 750mA while consuming only 6mA of supply current per amplifier and operating from a single 4. 5V to 12V supply. The driver achieves a typical distortion of -80dBc, at 150kHz into a 25Ω load. The ISL1571 is available in the thermally-enhanced 16 Ld QFN or 10 Ld HMSOP package and is specified for operation across the full -40°C to +85°C temperature range. The ISL1571 has control pins BIAS0 and BIAS1 for controlling the bias and enable/disable of the outputs. These controls allow for lowering the power to fit the performance/power ratio for the application. The ISL1571 is ideal for line driving applications following the Homeplug 1. 0, Homeplug AV and UPA standard based PLC.

特性

  • 21dBm output power capability
  • Drives up to 750mA from a +12V supply
  • 20VP-P differential output drive into 21Ω
  • Very low noise floor
  • -75dBc typical driver output distortion at 4MHz
  • -80dBc typical driver output distortion at 10MHz
  • -79dBc typical driver output distortion at 17MHz
  • Low quiescent current of 6mA per amplifier
  • Supply range
    • ISL1571IUEZ: 4.5V to 12V
    • ISL1571IRZ ±2.25V to ±6V: 4.5V to 12V
  • 250MHz bandwidth
  • Thermal shutdown
  • Pb-free (RoHS compliant)

产品对比

应用

应用

  • Homeplug 10
  • Homeplug AV
  • UPA digital home standard

文档

类型 文档标题 日期
数据手册 PDF 615 KB
产品变更通告 PDF 169 KB
Product Advisory PDF 363 KB
产品变更通告 PDF 98 KB
产品变更通告 PDF 135 KB
产品变更通告 PDF 180 KB
产品变更通告 PDF 117 KB
7 items

设计和开发

开发板与套件

开发板与套件

模型
