Renesas 的 ALVC（高级低电压 CMOS）逻辑器件系列是专用于低压应用的高性能总线接口组件。 ALVC 系列与具有类似名称的行业标准组件完全兼容，专为 3.3V 和 2.5V 操作而设计。Renesas 可提供具有 16 位或 32 位两种总线宽度的三态缓冲器、驱动器、锁存器和收发器。

Renesas 的 ALVC 系列共有三个基本选项可供选择：高驱动、平衡驱动和总线保持。

  • 高驱动 (+/-24mA) ALVC 零件适合重负载。
  • 平衡驱动ALVC 零件使用内部串联电阻控制输出波形的上升沿和下降沿，并通过控制输出沿速率提供卓越的低噪声性能，可在不牺牲速度性能的情况下实现所有输出信号的局部串联端接。 在大多数应用中不需要其他线路端接。 对称驱动功能将利用类似边沿速率驱动高和低传输线，解决大部分线路平衡和端接问题。
  • 总线保持ALVC 零件可在总线被禁用或没有活动驱动器时保持总线的最后活跃状态。

储存器和逻辑器件

产品选型表

    Processing table
    器件号
    Function
    Pkg. Code
    Temp. Range
    Bus Width (bits)
    Core Voltage (V)
    Output Type
    Speed Grade
    105°C Max. Case Temp.
    74ALVC16245
    3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs    		 Transceiver PAG48 -40 to 85°C 16 3.3 3-state Standard

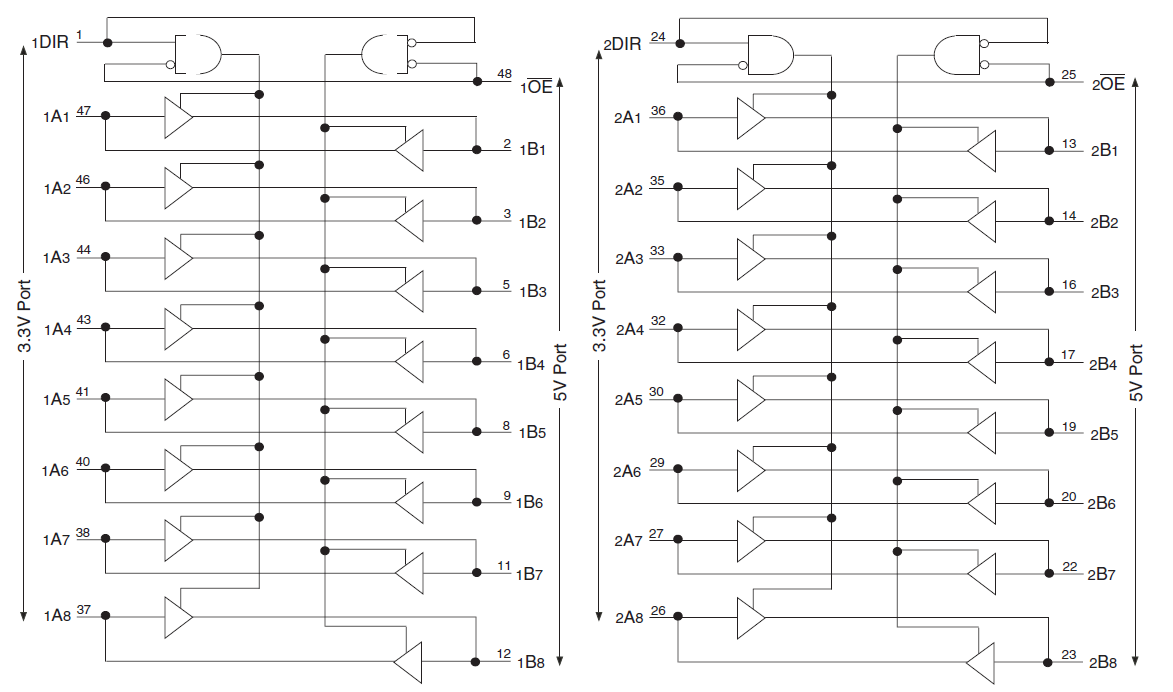

    74ALVC164245
    3.3V CMOS 16-Bit 3.3V TO 5.0V Level Shifting Transceiver with 3-State Outputs    		 Transceiver PAG48, PVG48 -40 to 85°C 16 3.3 3-state Standard

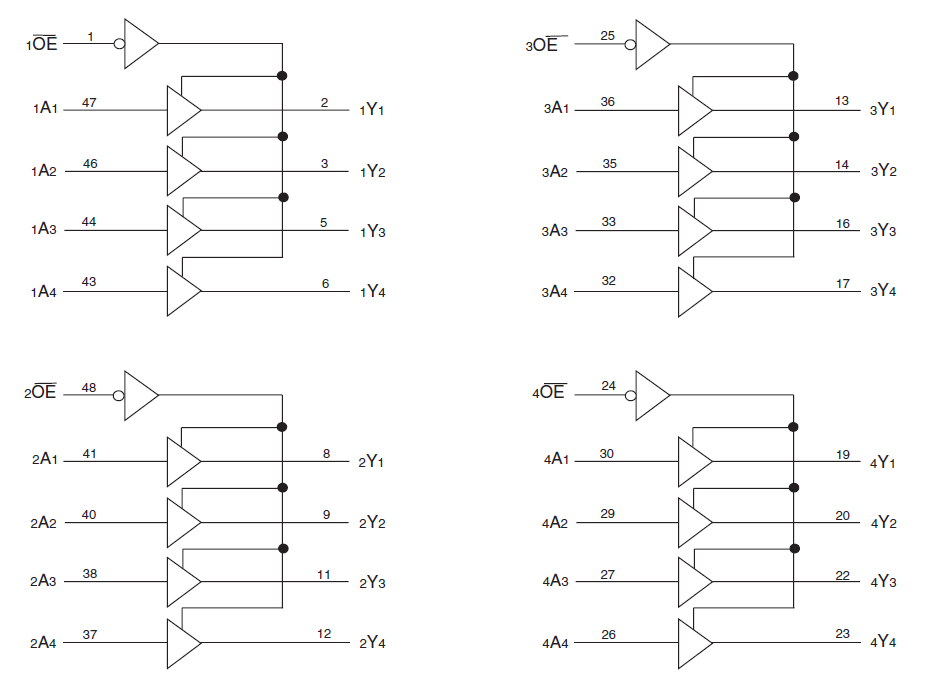

    74ALVCH162244
    3.3V CMOS 16-Bit Buffer/Driver with 3-State Outputs and Bus-Hold    		 Buffer/Driver PAG48 -40 to 85°C 16 3.3 3-state Standard

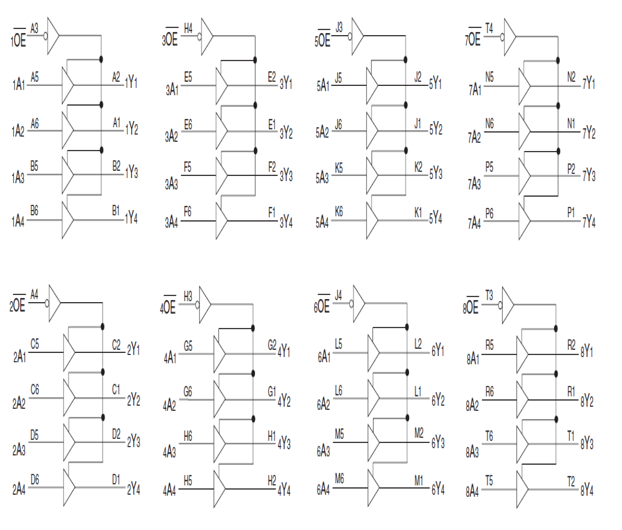

    74ALVCH32244
    3.3V CMOS 32-Bit Buffer/Driver with 3-State Outputs and Bus-Hold    		 Buffer/Driver BFG96 -40 to 85°C 32 3.3 3-state Standard

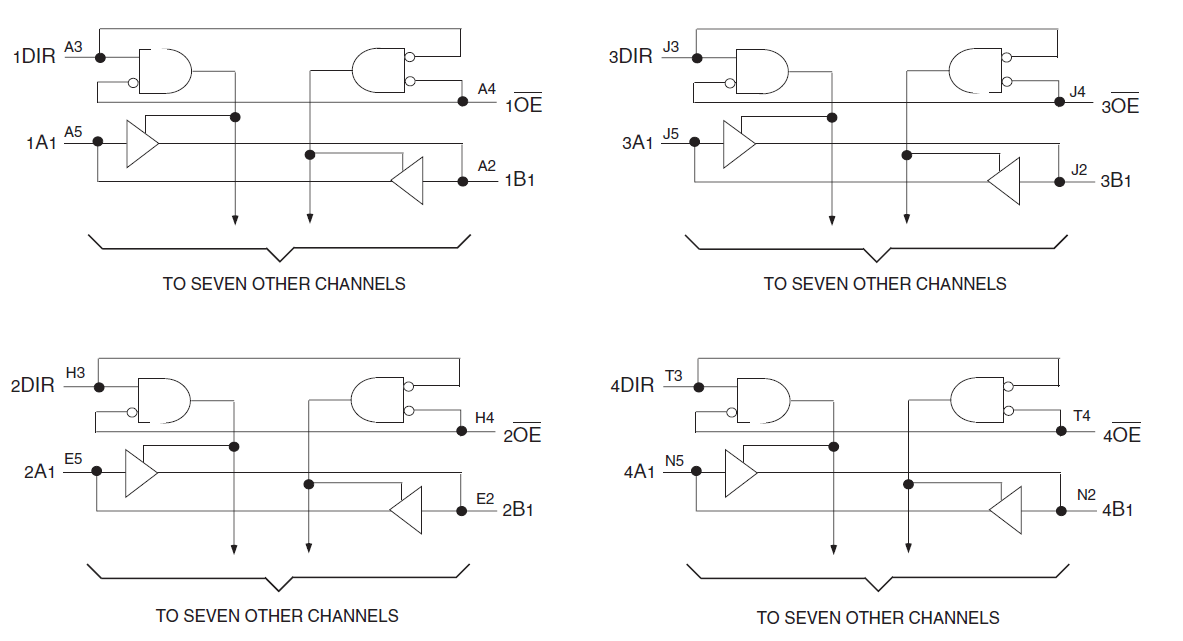

    74ALVCH32245
    3.3V CMOS 32-Bit Bus Transceiver with 3-State Outputs and Bus-Hold    		 Transceiver BFG96 -40 to 85°C 32 3.3 3-state Standard
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
