RL78 8/16-bit microcontrollers (MCUs) greatly improve power efficiency with industry-leading low power consumption at 37.5μA/MHz consumption during normal operation and 0.355μA during clock operation. Built-in features such as a high-precision (±1%) high-speed on-chip oscillator, background operation data flash capable of 1 million rewrites, temperature sensor, and interface ports for multiple power supplies help reduce system costs and size.

Learn More About RL78 MCUs

Find RL78 MCUs by Solution

Design With RL78

产品长期供应计划 (PLP)

Renesas offers the Product Longevity Program (PLP) to help customers select the most appropriate part for applications that require long life cycles.

Renesas PLP Badge

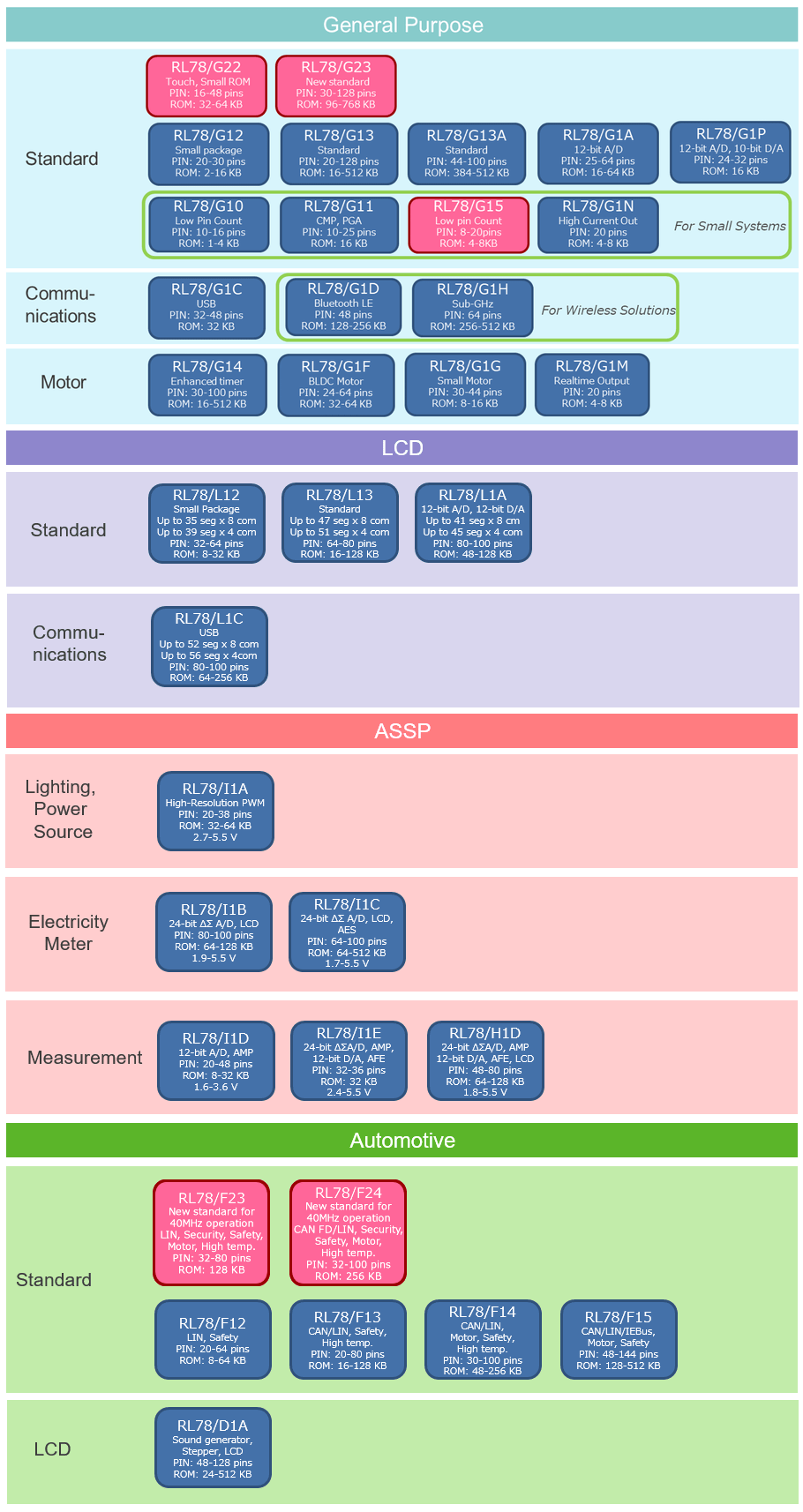

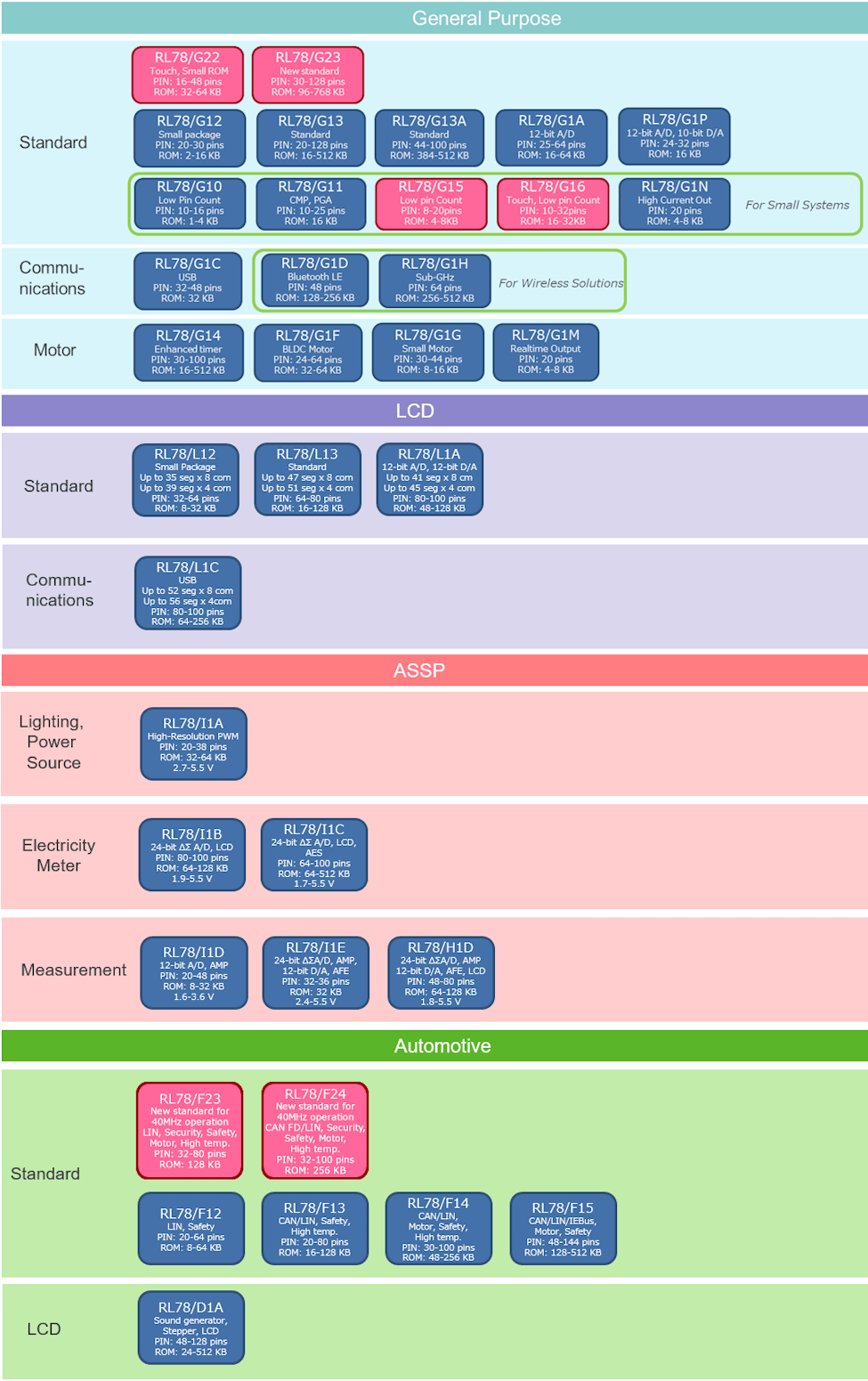

Portfolio

RL78 Family PortfolioRL78/F15RL78/F14RL78/F13RL78/F12RL78/F24RL78/F23RL78/I1CRL78/I1BRL78/H1DRL78/I1ERL78/I1DRL78/I1ARL78/L1CRL78/L1ARL78/L13RL78/G22RL78/G23RL78/G12RL78/G13RL78/G13ARL78/G1ARL78/G1PRL78/G10RL78/G1DRL78/G11RL78/G15RL78/G16RL78/G1NRL78/G1CRL78/G1HRL78/G1MRL78/G24RL78/G1GRL78/G1FRL78/G14RL78/L12RL78/D1A

产品选型表

    Processing table
    PLP
    Bit Size
    CPU
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    Lead Count (#)
    Supply Voltage (V)
    Operating Freq (Max) (MHz)
    RTC
    LVD
    DMA
    I/O Ports
    Timer
    ADC
    DAC
    Ethernet
    USB
    UART (#)
    SPI (#)
    I2C (#)
    CAN (ch)
    LIN (#)
    Human Machine Interface
    Pkg. Type
    Temp. Range
    器件号
    RL78/D1A
    Microcontrollers for Automotive Low-end Instrument Clusters    		 N/A 16 RL78 24, 32, 48, 64, 96, 128, 256, 384, 512 8 24, 20, 16, 2, 3, 4, 6, 8 48, 64, 80, 100, 128 2.7 - 5.5 24, 32 是的 是的 Yes 38, 54, 68, 84, 112 16-bit x 24-ch 10-bit x 5-ch, 10-bit x 8-ch, 10-bit x 9-ch, 10-bit x 11-ch No 2, 3 0 1 1, 2 2
    LCD Segment Count x 27, LCD Segment Count x 39 and more...
    		 LQFP -40 to 85°C, -40 to 105°C
    RL78/F12
    Microcontrollers with Low Consumption Current for Automotive Applications    		 N/A 16 RL78 8, 16, 24, 32, 48, 64 4 1, 0.5, 1.5, 2, 3, 4 20, 30, 32, 48, 64 2.7 - 5.5, 1.8 - 5.5 32 是的 是的 Yes 16, 26, 28, 44, 58 16-bit x 8-ch 10-bit x 4-ch, 10-bit x 8-ch, 10-bit x 10-ch, 10-bit x 12-ch No 3, 5 0 1, 3 1, 2 HWQFN, LQFP, LSSOP -40 to 85°C, -40 to 125°C
    RL78/F13
    Microcontrollers with Low Consumption Current for Automotive Applications    		 N/A 16 RL78 16, 32, 48, 64, 96, 128 4 1, 2, 3, 4, 6, 8 20, 30, 32, 48, 64, 80 2.7 - 5.5 24, 32 是的 是的 Yes 13, 23, 25, 38, 52, 68 16-bit x 11-ch, 16-bit x 15-ch
    10-bit x 4-ch, 10-bit x 8-ch, 10-bit x 10-ch, 10-bit x 12-ch and more...
    		 No 2, 3 2, 3, 4 2, 3, 4, 5 1 1 HVQFN, LFQFP, LQFP, LSSOP -40 to 105°C, -40 to 125°C, -40 to 150°C
    RL78/F14
    Microcontrollers with Low Consumption Current for Automotive Applications    		 N/A 16 RL78 48, 64, 96, 128, 192, 256 4, 8 4, 8, 10, 16, 6, 20 30, 32, 48, 64, 80, 100 2.7 - 5.5 24, 32 是的 是的 Yes 23, 25, 38, 52, 68, 86 16-bit x 15-ch, 16-bit x 19-ch
    10-bit x 10-ch, 10-bit x 12-ch, 10-bit x 15-ch, 10-bit x 18-ch and more...
    		 8-bit x 1-ch No 3, 4 2, 3, 4 3, 4, 5 1 1, 2 HVQFN, LQFP, LSSOP -40 to 105°C, -40 to 125°C, -40 to 150°C
    RL78/F15
    Microcontrollers with Enhanced CAN / LIN / IEBus and Memory Lineup for Automotive Applications    		 N/A 16 RL78 128, 192, 256, 384, 512 16, 8 26, 32, 16, 20, 10 48, 64, 80, 100, 144 2.7 - 5.5 24, 32 是的 是的 Yes 38, 52, 68, 86, 130 16-bit x 19-ch, 16-bit x 27-ch 10-bit x 18-ch, 10-bit x 20-ch, 10-bit x 25-ch, 10-bit x 31-ch 8-bit x 1-ch No 2, 3 3, 4 5 2 2, 3 HVQFN, LQFP -40 to 105°C, -40 to 125°C
    RL78/F23
    Next Gen. Actuator and Sensor Microcontroller    		 N/A 16 RL78 128 8 12 32, 48, 64, 80 2.7 - 5.5 40 是的 是的 Yes 25, 38, 52, 68 16-bit x 15-ch 12-bit x 10-ch, 12-bit x 19-ch, 12-bit x 24-ch, 12-bit x 25-ch No No 0 HWQFN, LFQFP -40 to 105°C, -40 to 125°C, -40 to 150°C
    RL78/F24
    Next Gen. Actuator and Sensor Microcontroller    		 N/A 16 RL78 256 16 24 32, 48, 64, 80, 100 2.7 - 5.5 40 是的 是的 Yes 25, 38, 52, 68, 86 16-bit x 19-ch
    12-bit x 10-ch, 12-bit x 19-ch, 12-bit x 24-ch, 12-bit x 25-ch and more...
    		 8-bit x 1-ch No 3, 4 3, 4 4, 5 1 2 HWQFN, LFQFP -40 to 105°C, -40 to 125°C, -40 to 150°C
    RL78/G10
    Low Power, Low Pin Count Microcontrollers for General Purpose Applications    		 2033 12月, 2036 3月 8 RL78 1, 2, 4 0 0.125, 0.25, 0.5 10, 16 2 - 5.5 20 否 否 No 8, 14 12-bit x 1-ch, 16-bit x 2-ch, 16-bit x 4-ch 10-bit x 4-ch, 10-bit x 7-ch No 1 0 1, 2 0 LSSOP, SSOP -40 to 85°C

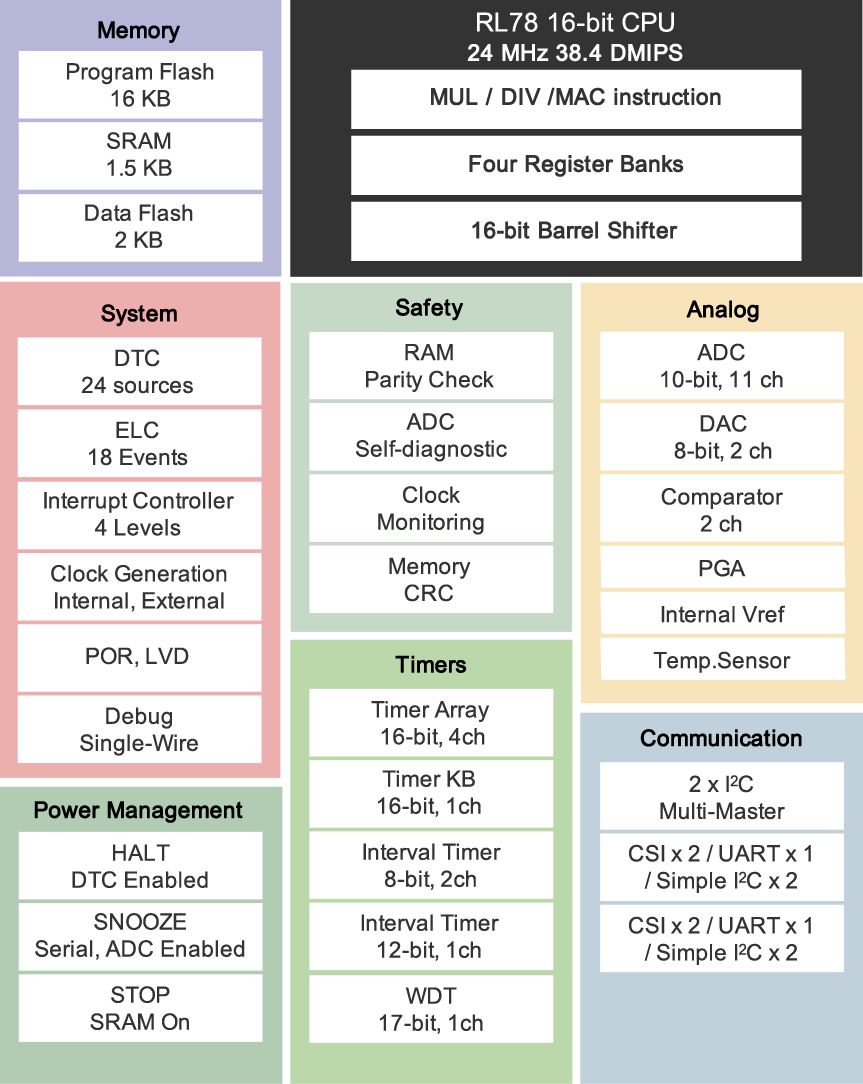

    RL78/G11
    Low Power, Low Pin Count Microcontrollers for General Purpose Applications    		 2035 12月 16 RL78 16 2 1.5 10, 16, 20, 24, 25 1.6 - 5.5 24 是的 是的 No 7, 13, 17, 21 8-bit x 2-ch, 12-bit x 1-ch, 16-bit x 5-ch 10-bit x 3-ch, 10-bit x 8-ch, 10-bit x 10-ch, 10-bit x 11-ch 8-bit x 1-ch, 8-bit x 2-ch No 1, 2 0 0, 2, 5, 6 0 0, 1 HWQFN, LSSOP, SSOP, TSSOP, WFLGA -40 to 85°C, -40 to 105°C
    RL78/G12
    Compact, Low Power Microcontrollers for General Purpose Applications Ideal for Sub-MCUs    		 2033 12月, 2035 12月, 2036 3月 16 RL78 2, 4, 8, 12, 16 2, 0 0.5, 0.75, 0.25, 1.5, 1, 2 20, 24, 30 1.8 - 5.5, 2.4 - 5.5 24 是的 是的 No, Yes 18, 22, 26 12-bit x 1-ch, 16-bit x 4-ch, 16-bit x 8-ch 10-bit x 8-ch, 10-bit x 11-ch No 1, 3 0 1, 3, 4 0 0 HWQFN, LSSOP, TSSOP -40 to 85°C, -40 to 105°C
    RL78/G13
    Low Power, High Function Microcontrollers for General Purpose Applications    		 2027 12月, 2028 12月, 2033 12月, 2034 12月, 2035 12月, 2036 3月 16 RL78 16, 32, 48, 64, 96, 128, 192, 256, 384, 512 0, 4, 8 4, 2, 3, 8, 16, 20, 12, 24, 32 20, 24, 25, 30, 32, 36, 40, 44, 48, 52, 64, 80, 100, 128 1.6 - 5.5, 2.4 - 5.5 32 是的 是的 Yes 16, 20, 21, 26, 28, 32, 36, 40, 44, 48, 58, 74, 92, 120 8-bit x 4-ch, 12-bit x 1-ch, 16-bit x 8-ch, 16-bit x 12-ch, 16-bit x 16-ch
    10-bit x 6-ch, 10-bit x 8-ch, 10-bit x 9-ch, 10-bit x 10-ch and more...
    		 No 2, 3, 4 0 2, 3, 4, 5, 6, 7, 10 0, 1 HWQFN, LFQFP, LQFP, LSSOP, TSSOP, VFBGA, WFLGA -40 to 85°C, -40 to 105°C

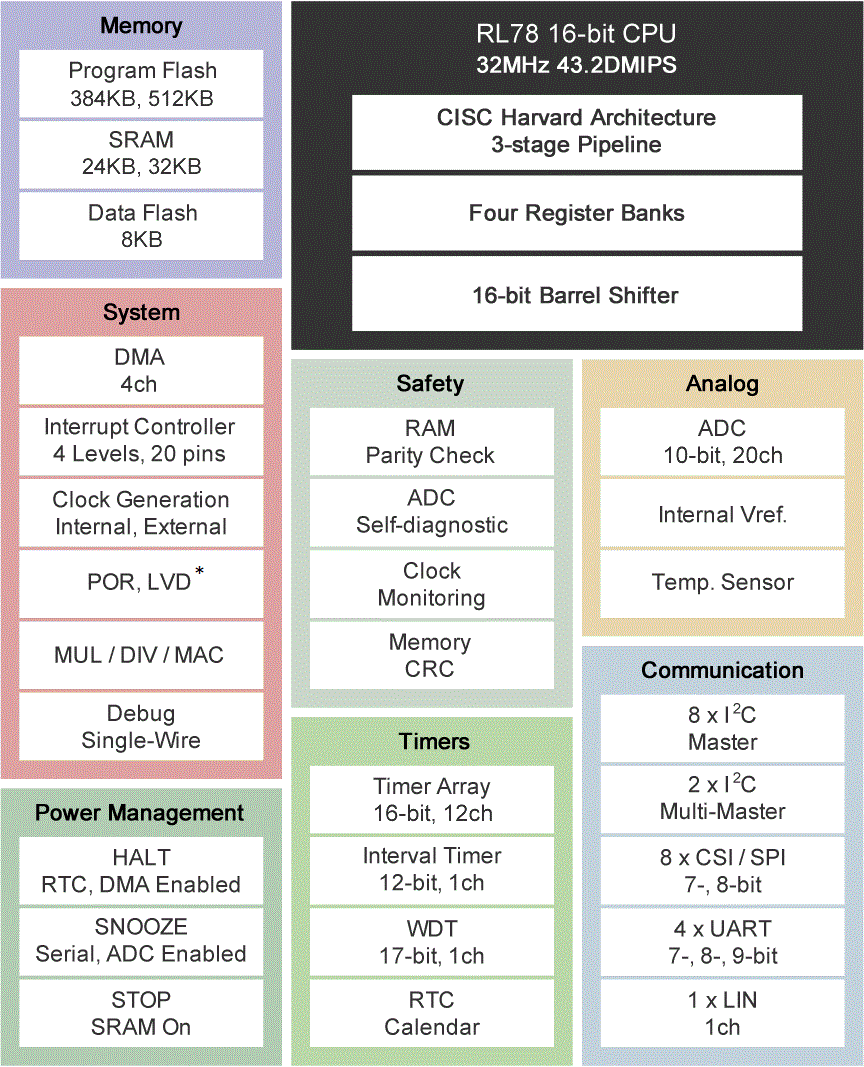

    RL78/G13A
    Low Power, Lower Operating Current Microcontrollers for General Purpose Applications    		 N/A 16 RL78 384, 512 8 24, 32 44, 48, 64, 100 1.6 - 5.5, 2.4 - 5.5 32 是的 是的 Yes 40, 44, 58, 92 12-bit x 1-ch, 12-bit x 1-cht, 16-bit x 8-ch, 16-bit x 12-ch 10-bit x 10-ch, 10-bit x 12-ch, 10-bit x 20-ch No 3 0 1 0 1 LFQFP, LQFP -40 to 85°C, -40 to 105°C

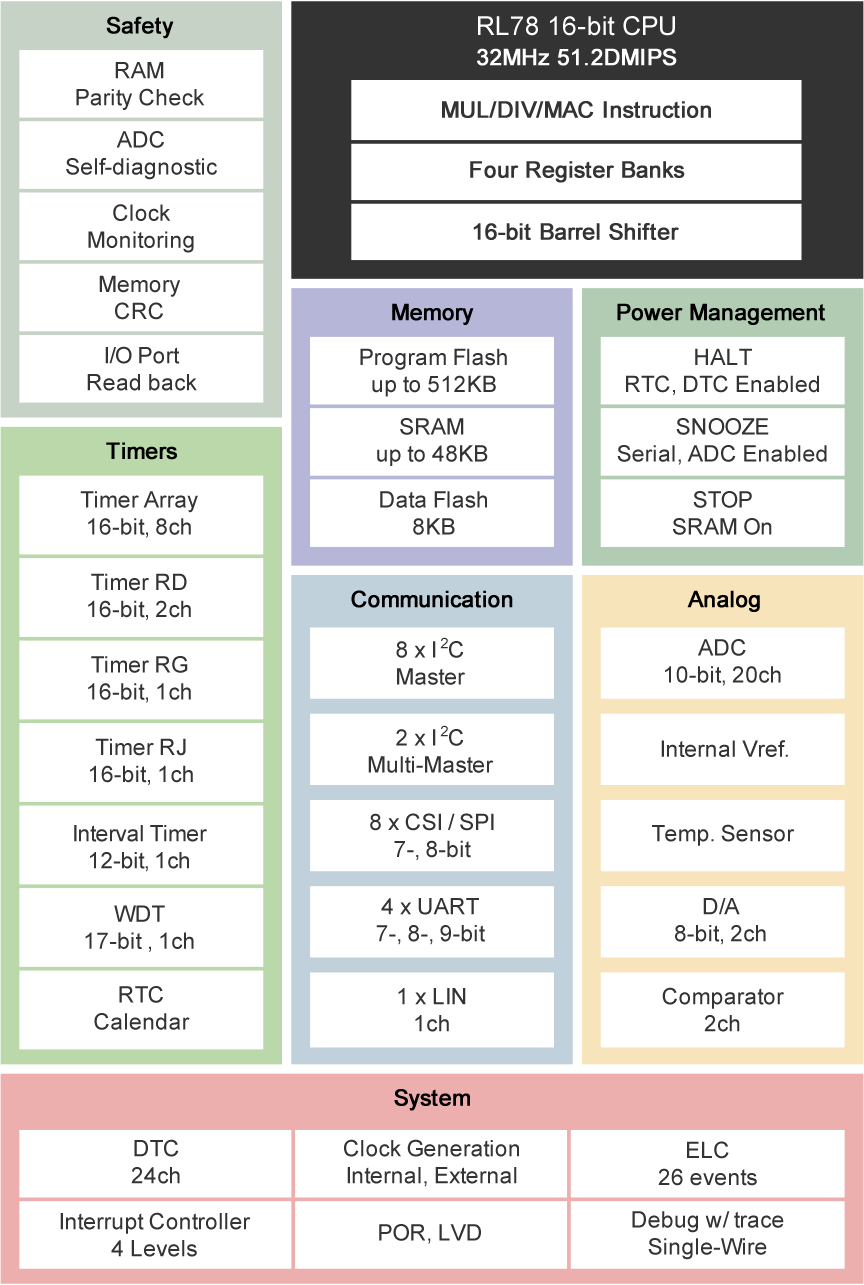

    RL78/G14
    Low Power, High Function, General Purpose Microcontrollers for Motor Control, Industrial and Metering Applications    		 2028 12月, 2033 12月, 2034 12月, 2035 12月, 2036 3月 16 RL78 16, 32, 48, 64, 96, 128, 192, 256, 384, 512 8, 4 16, 2.5, 4, 5.5, 12, 20, 24, 32, 48 30, 32, 36, 40, 44, 48, 52, 64, 80, 100 1.6 - 5.5 32 是的 是的 No, Yes 26, 28, 32, 36, 40, 44, 48, 58, 74, 92 12-bit x 1-ch, 16-bit x 8-ch, 16-bit x 12-ch
    10-bit x 8-ch, 10-bit x 9-ch, 10-bit x 10-ch, 10-bit x 12-ch and more...
    		 8-bit x 1-ch, 8-bit x 2-ch No 3, 4 0 4, 5, 6, 7, 10 1 HWQFN, LQFP, LSSOP, WFLGA -40 to 85°C, -40 to 105°C
    RL78/G15
    这是一种小型小引脚通用微控制器，具有丰富的外围功能    		 N/A 16 RL78 4, 8 1 1 8, 10, 16, 20 2.4 - 5.5 16 否 是的 No 6, 8, 14, 18 12-bit x 1-ch, 16-bit x 8-ch
    10-bit/8-bit x 3-ch, 10-bit/8-bit x 4-ch, 10-bit/8-bit x 7-ch and more...
    		 8-bit x 2-ch, No No USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 1 1, 2 2, 3 0
    LCD Segment Count x 240, LCD Segment Count x 304 and more...
    		 HWQFN, LSSOP, SSOP, WDFN -40 to 85°C, -40 to 105°C, -40 to 125°C
    RL78/G16
    这款微型小引脚通用微控制器配备电容式传感器单元，特别适合家用电器和高温环境操作要求    		 N/A 16 RL78 16, 32 1 2 10, 16, 20, 24, 32 2.4 - 5.5 16 否, 是的 是的 No 8, 14, 18, 22, 30 12-bit x 1-ch, 16-bit x 8-ch 10-bit/8-bit x 4-ch, 10-bit/8-bit x 7-ch, 10-bit/8-bit x 11-ch No No 1, 2, 3 1, 2, 3 2, 3, 4 0
    Capacitive Sensing Unit 3ch, Capacitive Sensing Unit 7ch and more...
    		 HWQFN, LQFP, LSSOP, SSOP -40 to 85℃, -40 to 105℃, -40 to 125°C
    RL78/G1A
    Low Power, General Purpose Microcontrollers with Built-in High-resolution A/D Converter    		 2027 12月, 2028 12月, 2034 12月, 2035 12月 16 RL78 16, 32, 48, 64 4 4, 2, 3 25, 32, 48, 64 1.6 - 3.6, 2.4 - 3.6 32 是的 是的 Yes 19, 26, 42, 56 8-bit x 4-ch, 12-bit x 1-ch, 16-bit x 8-ch 12-bit x 13-ch, 12-bit x 18-ch, 12-bit x 24-ch, 12-bit x 28-ch No 2, 3 0 3, 4, 6, 7 0, 1 HWQFN, LQFP, VFBGA, WFLGA -40 to 85°C, -40 to 105°C

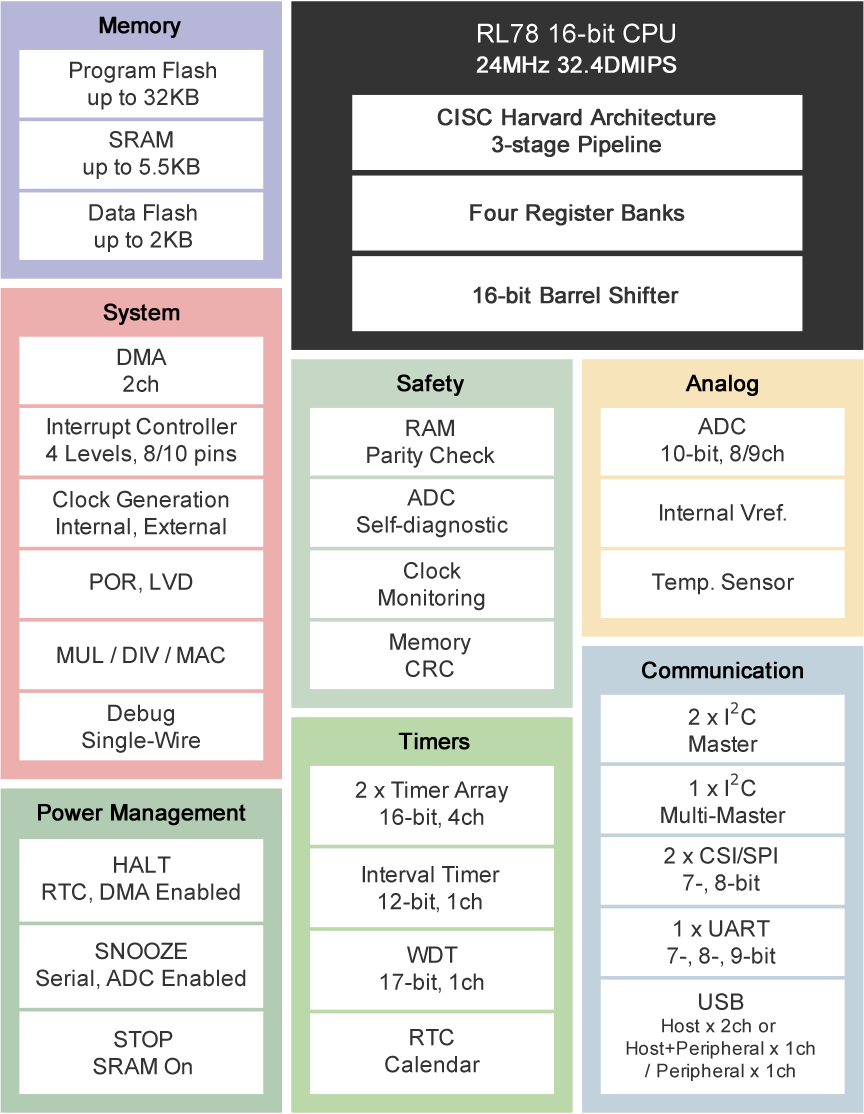

    RL78/G1C
    Compact, Low Power Microcontrollers Supporting USB Communications and Rapid Charging    		 2033 12月, 2034 12月, 2035 12月 16 RL78 32 2 5.5 32, 48 2.4 - 5.5 24 是的 是的 Yes 22, 38 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 8-ch, 10-bit x 9-ch No
    USB Endpoints x 5, USB Host, USB Peripheral and more...
    		 1 0 3 0 HWQFN, LQFP -40 to 85°C, -40 to 105°C
    RL78/G1D
    Bluetooth® Low Energy Microcontrollers for Smart Connectivity    		 2026 3月 16 RL78 128, 192, 256 8 12, 16, 20 48 1.6 - 3.6 32 是的 是的 Yes 24, 32 12-bit x 1-ch, 16-bit x 8-ch 10-bit x 8-ch No 2 0 3 0 HWQFN -25 to 75°C, -40 to 85°C
    RL78/G1F
    Multifunctional Microcontrollers with Enhanced Functionality for Sensorless BLDC Motor Control    		 2028 12月, 2033 12月, 2034 12月, 2035 12月 16 RL78 32, 64 4 5.5 24, 32, 36, 48, 64 1.6 - 5.5, 2.4 - 5.5 32 是的 是的 No 20, 28, 31, 44, 58 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 8-ch, 10-bit x 13-ch, 10-bit x 15-ch, 10-bit x 17-ch 8-bit x 1-ch, 8-bit x 2-ch No 3 0 4, 6, 7 1 HWQFN, LFQFP, LQFP, WFLGA -40 to 85°C, -40 to 105°C
    RL78/G1G
    Microcontrollers for Brushless DC Motor with Built-in Comparator    		 2033 12月 16 RL78 8, 16 0 1.5 30, 32, 44 2.7 - 5.5 24 是的 是的 No 26, 28, 40 12-bit x 1-ch, 16-bit x 7-ch 10-bit x 8-ch, 10-bit x 12-ch No 2 0 1 0 LQFP, LSSOP -40 to 85°C
    RL78/G1H
    Lowest Power Sub-GHz Wireless Communication Microcontrollers    		 2033 12月 16 RL78 256, 384, 512 8 48, 24, 32 32, 64 1.8 - 3.6 32 是的 是的 No 41 12-bit x 1-ch, 16-bit x 9-ch 10-bit x 6-ch No 2 0 2 0 HVQFN, HVQFN32 -40 to 85°C
    RL78/G1M
    8-bit General-purpose Microcontroller Equipped with Real-time Output Terminals for Motor Drive    		 N/A 8 RL78 4, 8 0 1, 0.5 20 2 - 5.5 20 是的 是的 No 18 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 8-ch No 1 0 0 0 0 TSSOP -40 to 85°C

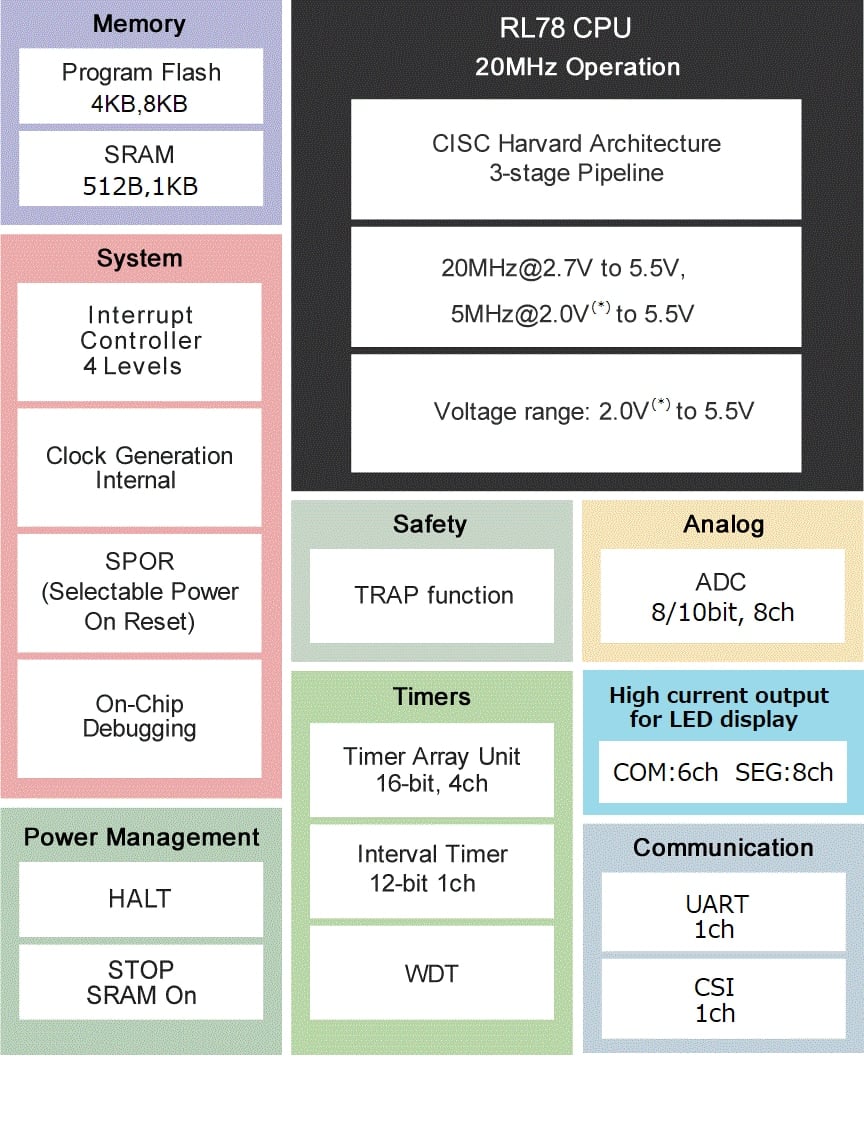

    RL78/G1N
    8-bit General-purpose Microcontroller Equipped with Large Current Output Terminals for LED Drive    		 N/A 8 RL78 4, 8 0 1, 0.5 20 2 - 5.5 20 是的 是的 No 18 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 8-ch No 1 0 0 0 0 TSSOP -40 to 85°C
    RL78/G1P
    具有 12 位 A/D 转换器和 10 位 D/A 转换器的小型引脚通用微控制器    		 2033 12月, 2035 12月 16 RL78 16 2 1.5 24, 32 2.7 - 3.6 32 是的 是的 Yes 20, 28 16-bit x 4-ch 12-bit x 6-ch, 12-bit x 8-ch 10-bit x 2-ch No 1 0 0, 1 0 0 HWQFN, LQFP -40 to 85°C
    RL78/G22
    具卓越低功耗性能和丰富电容式触摸通道的通用微控制器    		 2037 12月 16 RL78 32, 64 2 4 16, 20, 24, 25, 30, 32, 36, 40, 44, 48 1.6 - 5.5 32 是的 是的 Yes 12, 16, 20, 21, 26, 28, 32, 36, 40, 44 16-bit x 8-ch, 32-bit x 1-ch
    10-bit/8-bit x 3-ch, 10-bit/8-bit x 6-ch, 10-bit/8-bit x 8-ch and more...
    		 No No 1, 2, 3 1, 2, 3, 4, 5 2, 3, 4, 5, 6 0
    Capacitive Sensing Unit 5ch, Capacitive Sensing Unit 9ch and more...
    		 HWQFN, LFQFP, LQFP, LSSOP, WFLGA -40 to 85°C, -40 to 105°C
    RL78/G23
    新一代RL78微控制器，外围功能得到进一步扩展，低功耗性能也有所提升    		 2033 12月, 2034 12月, 2037 12月 16 RL78 96, 128, 192, 256, 384, 512, 768 8 16, 12, 48, 32, 24, 20 30, 32, 36, 40, 44, 48, 52, 64, 80, 100, 128 1.6 - 5.5 32 是的 是的 Yes 26, 28, 32, 36, 40, 44, 48, 58, 74, 92, 120
    16-bit x 8-ch, 16-bit x 12-ch, 16-bit x 16-ch, 32-bit x 1-ch and more...
    12-bit x 8-ch, 12-bit x 9-ch, 12-bit x 10-ch, 12-bit x 12-ch and more...
    		 8-bit x 2-ch No 3, 4 3, 4, 5, 6, 8 4, 5, 6, 7, 8, 10 0
    Capacitive Sensing Unit 2ch, Capacitive Sensing Unit 3ch and more...
    		 HWQFN, LFQFP, LQFP, LSSOP, WFLGA -40 to 85°C, -40 to 105°C
    RL78/G24
    新一代RL78通用微控制器，除了具有RL78史上最强大的处理性能，还具备升级的模拟功能和丰富的定时器功能    		 N/A 16 RL78 128 4 12 20, 24, 25, 30, 32, 40, 44, 48, 52, 64 1.6 - 5.5 48 是的 是的 No 16, 20, 21, 26, 28, 36, 40, 44, 48, 58 16-bit x 11-ch, 16-bit x 12-ch, 32-bit interval x 1-ch
    12-bit/10-bit/8-bit x 12-ch, 12-bit/10-bit/8-bit x 13-ch and more...
    		 8-bit/10-bit x 2~3-ch No 0 HWQFN, LFQFP, LQFP, LSSOP, WFLGA -40 to 85°C, -40 to 105°C, -40 to 125°C
    RL78/H1D
    Microcontrollers for Sensing Transducers in Healthcare Devices and Optimized for Blood Pressure Monitors    		 N/A 16 RL78 64, 96, 128 4 5.5, 8 48, 64, 80 2.4 - 5.5, 1.8 - 5.5 24 是的 是的 No 29, 36, 53, 63 8-bit x 2-ch, 8-bit x 6-ch, 12-bit x 1-ch, 16-bit x 9-ch, 16-bit x 13-ch 10-bit x 3-ch 8-bit x 1-ch, 12-bit x 1-ch No 3, 4 1 1 1 Display Function, LCD Segment Count x 27, LCD Segment Count x 36 LFQFP, LQFP, TFBGA -40 to 85°C
    RL78/I1A
    Microcontrollers that Output High-resolution PWM for Fine Dimming and Toning of Led Lighting    		 2031 3月 16 RL78 32, 64 4 2, 4 20, 30, 38 2.7 - 5.5 32 否, 是的 是的 Yes 16, 26, 34 12-bit x 1-ch, 16-bit x 11-ch 10-bit x 6-ch, 10-bit x 11-ch No 2, 3 0 1 1 LSSOP, SSOP -40 to 105°C, -40 to 125°C
    RL78/I1B
    Low Power Microcontrollers with 24-bit ΔΣ A/D Converter, RTC Backup and High-accuracy Oscillator Ideal for Electricity Meter Market    		 2034 12月 16 RL78 64, 128 0 8, 6 80, 100 1.9 - 5.5 24 是的 是的 No 53, 69 8-bit x 4-ch, 12-bit x 1-ch, 16-bit x 8-ch
    10-bit x 4-ch, 10-bit x 6-ch, 24-bit x 3-ch (Delta-Sigma) and more...
    		 No 3 1 2 1 LCD Segment Count x 240, LCD Segment Count x 304 LQFP -40 to 85°C
    RL78/I1C
    Ultra-low Power Microcontrollers for High-end Smart Electricity Meter Market    		 2034 12月 16 RL78 64, 128, 256, 512 2 6, 8, 16, 32 64, 80, 100 1.7 - 5.5, 1.6 - 5.5 24, 32 是的 是的 No 35, 52, 60, 68, 76
    8-bit x 4-ch, 8-bit x 8-ch, 12-bit Interval Timer x 1-ch and more...
    10-bit x 4-ch, 10-bit x 6-ch, 12-bit x 4-ch, 12-bit x 6-ch and more...
    		 No 3, 4 0 3, 4 1 LCD Segment Count x 120, LCD Segment Count x 240, LCD Segment Count x 304 LFQFP, LQFP -40 to 85°C
    RL78/I1D
    Microcontrollers Suitable for Applications such as Detectors and Sensors Requiring Low Power and Analog Integration    		 2033 12月, 2034 12月, 2035 12月 16 RL78 8, 16, 32 2 3, 2, 0.7 20, 24, 30, 32, 48 1.6 - 3.6 24 否, 是的 是的 No 14, 18, 24, 26, 42 12-bit x 1-ch, 16-bit x 4-ch 12-bit x 6-ch, 12-bit x 12-ch, 12-bit x 17-ch No 1 0, 1 1, 2 0 HVQFN, HWQFN, LQFP, LSSOP, TSSOP -40 to 105°C
    RL78/I1E
    High-precision Analog Microcontroller with Configurable AFE    		 N/A 16 RL78 32 4 8 32, 36 2.4 - 5.5 32 是的 是的 No 10, 14 16-bit x 8-ch 10-bit x 8-ch, 10-bit x 10-ch 12-bit x 1-ch No 2 0 2 0 HVQFN, TFBGA -40 to 105°C, -40 to 125°C
    RL78/L12
    Compact LCD Microcontrollers with Low Power Consumption, Suitable for Small Appliances and Healthcare Devices    		 2033 12月, 2034 12月, 2035 12月, 2036 3月 16 RL78 8, 16, 32 2 1.5, 1 32, 44, 48, 52, 64 1.6 - 5.5 24 是的 是的 Yes 20, 29, 33, 37, 47 12-bit x 1-ch, 16-bit x 8-ch 10-bit x 4-ch, 10-bit x 7-ch, 10-bit x 9-ch, 10-bit x 10-ch No 1 0 1 1
    LCD Segment Count x 52, LCD Segment Count x 144 and more...
    		 HWQFN, LFQFP, LQFP -40 to 85°C, -40 to 105°C
    RL78/L13
    Standard LCD Microcontrollers with Low Power Consumption, Suitable for LCD Display of Home Appliances or Measurement Devices    		 2033 12月, 2034 12月, 2036 3月 16 RL78 16, 32, 48, 64, 96, 128 4 8, 4, 2, 1.5, 1, 6 64, 80 2.4 - 5.5, 1.6 - 5.5 24 是的 是的 Yes 49, 65 12-bit x 1-ch, 16-bit x 8-ch 10-bit x 9-ch, 10-bit x 12-ch No 3, 4 2 2 1 LCD Segment Count x 256, LCD Segment Count x 376 LQFP -40 to 85°C, -40 to 105°C
    RL78/L1A
    Ultra-low Power Microcontrollers with Embedded LCD and Enhanced Analog Peripherals    		 2034 12月 16 RL78 48, 64, 96, 128 8 5.5 80, 100 1.8 - 3.6 24 是的 是的 No 59, 79 8-bit x 2-ch, 12-bit x 1-ch, 16-bit x 8-ch 12-bit x 10-ch, 12-bit x 14-ch 12-bit x 2-ch No 4 1 5 1 LCD Segment Count x 224, LCD Segment Count x 328 LFQFP, LQFP -40 to 85°C
    RL78/L1C
    High-function LCD Microcontrollers with USB 2.0/Rapid Charging Support for Sensor Modules and Healthcare Devices    		 2028 12月, 2034 12月, 2036 3月 16 RL78 64, 96, 128, 192, 256 8 8, 12, 16, 10 80, 85, 100 1.6 - 3.6 24 是的 是的 No 59, 77 16-bit x 8-ch 12-bit x 9-ch, 12-bit x 13-ch 8-bit x 2-ch No USB Endpoints x 5, USB Peripheral, USB Ports (ch) x 1 4 4 5 1 LCD Segment Count x 320, LCD Segment Count x 416 LQFP, VFLGA -40 to 85°C, -40 to 105°C
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
