微控制器和微处理器

RH850 32位汽车微控制器（MCU）系列中众多可扩展的产品提供了高性能和极低的功耗以及最新的和先进的汽车应用所需的丰富功能安全和嵌入式安全功能。

RH850系列在业界首先采用瑞萨电子40纳米工艺，具有强大的功能和特性以及合理的定价。 该系列产品提供了一系列 CPU 内核结构（单、多、锁步及其组合）以支持高性能和高可靠性要求。

产品组合

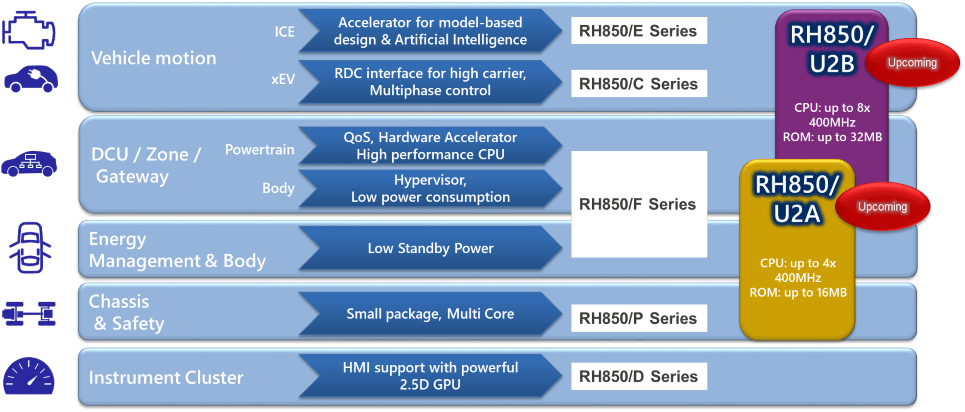

RH850 Automotive MCU Roadmap

产品选型表

    Processing table
    Number of core (Main + Checker)
    Operating Freq (Max) (MHz)
    RAM (KB)
    Program Memory (KB)
    Data Flash (KB)
    Pkg. Type
    Temp. Range
    ADC
    24-Bit Sigma-Delta A/D Converter (ch) (#)
    I / O Supply (V)
    Standby Mode
    CAN (ch)
    Ethernet
    FlexRay (ch) (#)
    SPI (#)
    LIN (#)
    I2C (#)
    SENT (ch) (#)
    PSI5 (ch) (#)
    PSI5S (ch) (#)
    Timer
    CPU
    Advanced Features
    Bit Size
    DMA
    Family Name
    Human Machine Interface
    I/O Ports
    LVD
    Lead Count (#)
    器件号

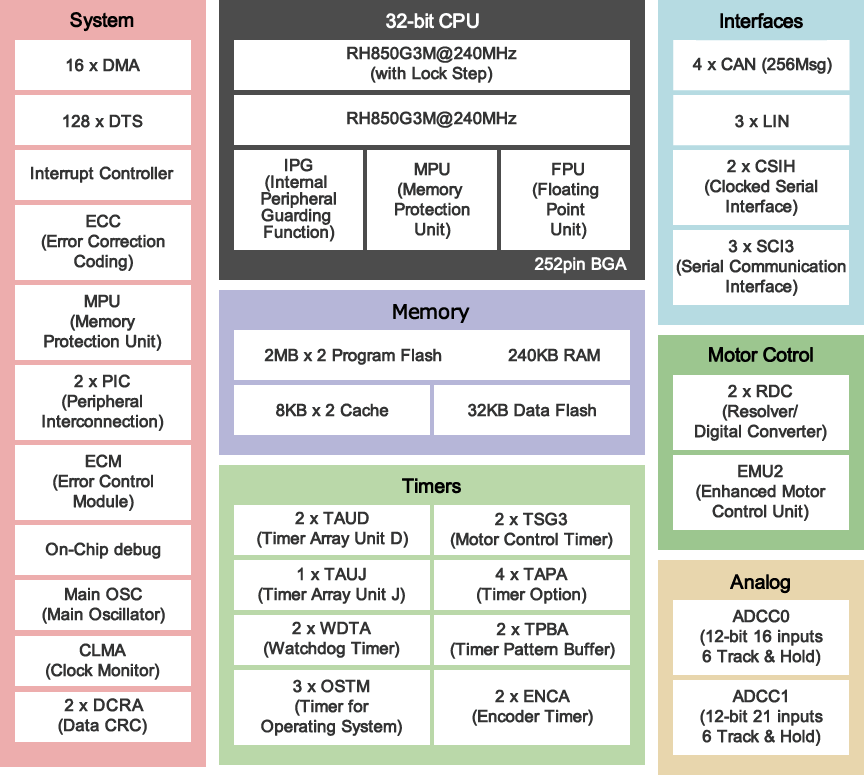

    RH850/C1H
    Dual-core, High-end In-vehicle Microcomputers for HEV/EV Motor Control    		 2 + 1 240 240 4096 32 BGA252 -40 to 150°C 37 5 否 4 No 2 3 16-bit x 32-ch, 32-bit x 4-ch G3M Dual Core 32 Yes RH850 87 否 252
    RH850/C1M
    High-end In-vehicle Microcomputers for HEV/EV Motor Control    		 1 + 1 240 128 2048 32 QFP144 -40 to 150°C 25 5 否 4 No 2 16-bit x 32-ch, 32-bit x 4-ch G3M Single Core 32 Yes RH850 66 否 144

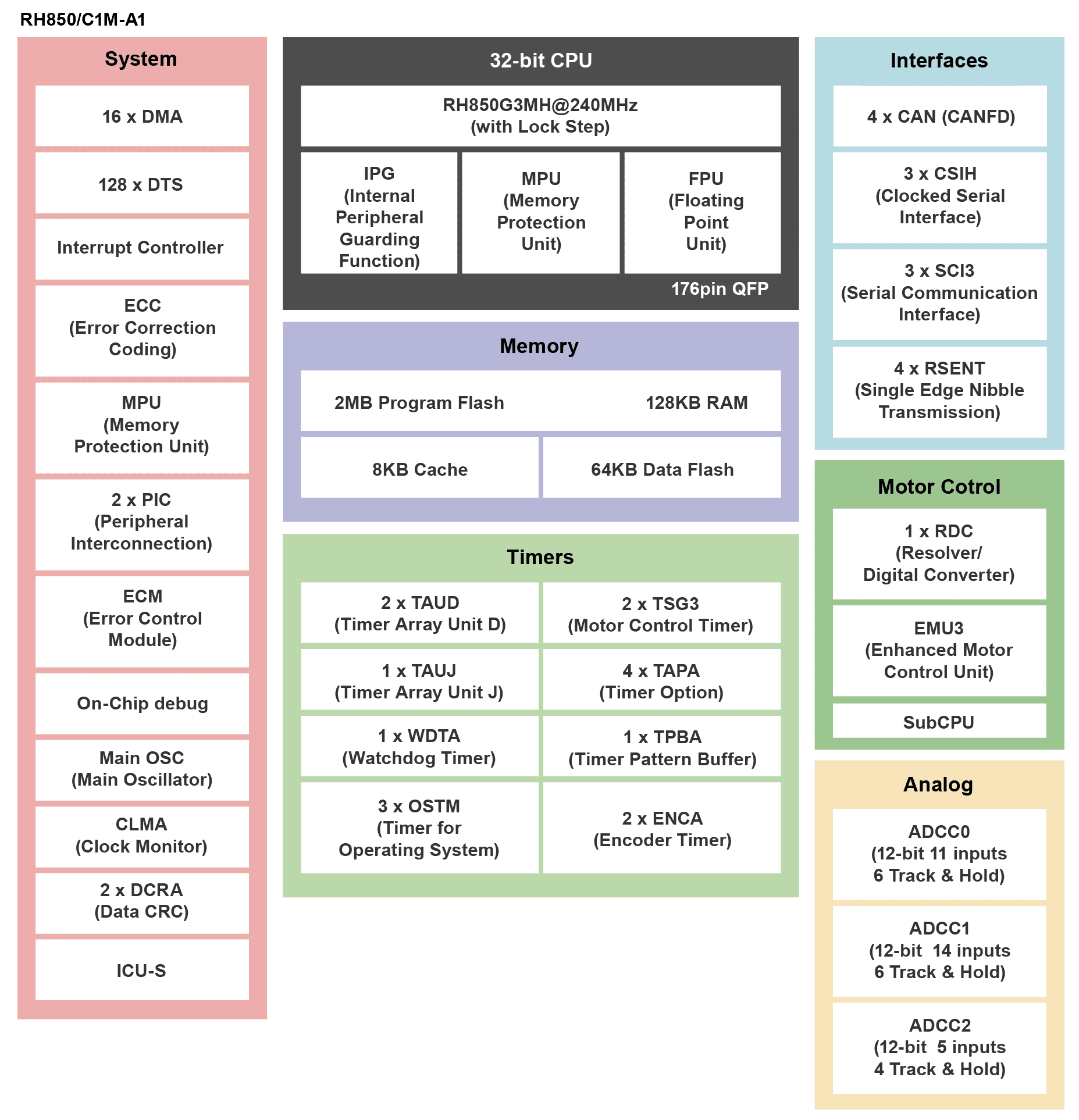

    RH850/C1M-Ax
    微控制器采用 G3MH CPU 内核，是 HEV / EV 电机控制的理想之选    		 1 + 1, 2 + 1 240, 320 256, 128 2048, 4096 64 BGA252, QFP176 -40 to 105°C, -40 to 150°C 30, 48 5 否 4 No 3 3 4 16-bit x 32-ch, 16-bit x 64-ch, 32-bit x 4-ch, 32-bit x 8-ch G3MH
    CAN-FD, EMU3*1ch(with sub CPU), EMU3*2ch(with SubCPU) and more...
    		 32 Yes RH850 81, 99 否 176, 252
    RH850/D1L
    High-end Automotive Microcontrollers for Instrument Cluster Supporting Simple Gauge System or Small 2D Drawing    		 1 + 0 120 272, 672 2048, 4096 64 QFP144, QFP176 -40 to 150°C 16 3.3, 5.0 否 3 No 6 4 2 16-bit x 48-ch, 32-bit x 7-ch G3M HMI 32 Yes RH850 Display Function 103, 126 否 144, 176
    RH850/D1M
    High-end Automotive Microcontrollers for Instrument Cluster Supporting Basic or Low-level 2D Drawing    		 1 + 0 160, 200, 240 2115.2, 3702.4, 2985.6 3840, 4096, 5120 64 BGA272, BGA376, BGA484, QFP176 -40 to 150°C 16, 20 3.3, 5.0 否 3 Yes 6 4 2 16-bit x 48-ch, 32-bit x 7-ch G3M HMI 32 Yes RH850 Display Function 126, 127, 159, 199 否 176, 272, 376, 484
    RH850/D1S

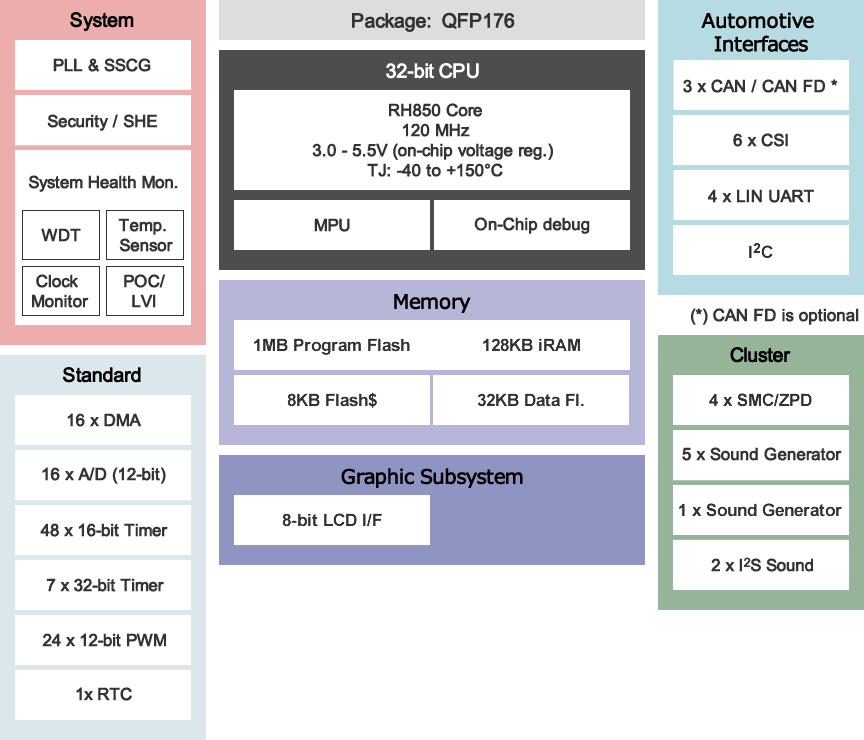

    High-end Automotive Microcontrollers for Instrument Cluster Supporting Simple gauge system    		 1 + 0 120 144 1048 32 QFP144 -40 to 150°C 16 否 3 No 6 4 3 16-bit x 48-ch, 32-bit x 7-ch G3M 32 RH850 否 176
    RH850/E1L
    Safe and Secure High-end Microcontroller for Powertrain    		 1 + 1 160, 240 160, 192 2048 64 BGA252, FBGA, QFP144, QFP176 -40 to 150°C 30, 36 5 否 4 No 3 1 16-bit x 28-ch, 32-bit x 75-ch G3M Engine Control, Transmission 32 Yes RH850 74, 101 否 144, 176, 252
    RH850/E1M-S2
    Automotive Microcontrollers for Engine Control    		 1 + 1 240, 320 352 4096 64 BGA252, BGA304, FBGA -40 to 150°C 48 5 否 4 No 2 4 1 6 16-bit x 28-ch, 32-bit x 112-ch G3MH Engine Control, Transmission 32 Yes RH850 130, 155 否 252, 304
    RH850/E2H
    Next Generation of Automotive Powertrain Microcontroller    		 4 + 2 400 1152 12288 256 BGA373, BGA468 -40 to 150°C 80, 96 否 6 Yes 2 8 6 20 1 16-bit x 40-ch, 32-bit x 154-ch G4MH Engine Control, Transmission 32 RH850 否 373, 468
    RH850/E2M
    Next-Gen Automotive Powertrain Microcontrollers    		 2 + 2 400 768 8192 192 BGA292, BGA373 -40 to 150°C 52, 80 否 5 Yes 2 6 6 17 1 16-bit x 36-ch, 32-bit x 114-ch G4MH Engine Control, Transmission 32 RH850 否 292, 373
    RH850/E2UH
    Next Generation of Automotive Powertrain Microcontroller    		 6 + 4 400 2048 16384 256 BGA373, BGA468 -40 to 150°C 80, 96 否 10 Yes 4 8 6 20 1 1 16-bit x 40-ch, 32-bit x 154-ch G4MH Engine Control, Transmission 32 RH850 否 373, 468
    RH850/F1K
    High-end Automotive Microcontrollers Ideal for Body Applications    		 1 + 0 80, 120 160, 192, 128, 96 768, 1024, 1536, 2048 64 LFQFP100, LFQFP176, QFP100, QFP144, QFP176 -40 to 105°C, -40 to 125°C 36, 48, 60 3.3, 5.0, 3.3, 5 否 6, 7 No 6, 5 12, 16, 7 1 16-bit x 32-ch, 16-bit x 48-ch, 32-bit x 8-ch G3KH CAN/CAN FD 6ch, ICU (Intelligent Cryptographic Unit), LIN 32 Yes RH850 81, 120, 150 否 100, 144, 176
    RH850/F1KH-D8
    High-end Automotive Microcontrollers Ideal for Body Applications    		 2 + 0 240 1024, 896 6144, 8192 256 BGA233, BGA324, QFP176 -40 to 105°C, -40 to 125°C 58, 70 否 8, 12 Yes 2 10 18, 20, 24 2 2 16-bit x 48-ch, 32-bit x 16-ch G3KH
    CAN/CAN FD 12ch, Ethernet 2ch, FlexRay 2ch and more...
    		 32 No RH850 144 否 176
    RH850/F1KM-S1
    High-end Automotive Microcontrollers Ideal for Body Applications    		 1 + 0 120 128, 96, 64 512, 768, 1024 64 LQFP, QFP48, QFP64, QFP80, QFP100 -40 to 105°C, -40 to 125°C 12, 21, 25, 36 3.3, 5.0, 3.3, 5 否 1, 3, 6 No 2, 5, 4 4, 3, 7, 5 2 2 16-bit x 16-ch, 16-bit x 32-ch, 32-bit x 16-ch G3KH CAN/CAN FD 6ch, ICU (Intelligent Cryptographic Unit), LIN 32 Yes RH850 33, 49, 65, 81 否 48, 64, 80, 100
    RH850/F1KM-S2
    高端汽车微控制器是车身应用的理想选择    		 1 + 0 240 256 2048 128 QFP100, QFP144, QFP176 -40 to 105°C 32, 34 3.3, 5 否, 是的 8 No 5, 6 6, 12, 18 2 1, 2 16-bit x 32-ch, 16-bit x 48-ch, 32-bit x 16-ch G3KH CAN/CAN FD 8ch, ICU (Intelligent Cryptographic Unit), LIN, SENT 32 Yes RH850 75, 114, 144 否, 是的 100, 144, 176
    RH850/F1KM-S4
    High-end Automotive Microcontrollers Ideal for Body Applications    		 1 + 0 240 384, 512 3072, 4096 128 BGA233, BGA272, LFQFP100, LFQFP144, QFP100, QFP144, QFP176 -40 to 105°C, -40 to 125°C 32, 46, 58, 70 3.3, 5.0, 3.3, 5 否 8 No, Yes 2 5, 6, 8 6, 12, 18, 20 2 1, 2 16-bit x 32-ch, 16-bit x 48-ch, 32-bit x 16-ch G3KH
    CAN/CAN FD 8ch, Ethernet, FlexRay and more...
    		 32 No, Yes RH850 75, 114, 144, 174, 214 否 100, 144, 176, 233, 272
    RH850/F1L
    High-end In-vehicle Microcomputers for Body Applications    		 1 + 0 80, 96 128, 96, 160, 192, 64, 32, 48 256, 384, 512, 768, 1024, 1536, 2048 32, 64 QFP48, QFP64, QFP80, QFP100, QFP144, QFP176 -40 to 85°C, -40 to 105°C, -40 to 125°C 12, 21, 25, 36, 48, 60, 91 3.3, 5.0 否, 否 1, 3, 4, 6 No 4, 5, 6, 2 5, 7, 12, 16, 3, 4 1
    16-bit x 16-ch, 16-bit x 32-ch, 16-bit x 48-ch, 32-bit x 4-ch and more...
    		 G3K Auto Body 32 Yes RH850 33, 49, 65, 81, 120, 150 否, 是的 48, 64, 80, 100, 144, 176
    RH850/P1H-C
    High-end Automotive Microcomputers for Chassis Control    		 2 + 2 240 1536, 1088 4096, 8192, 10240 192, 128 BGA156, BGA292, FBGA -40 to 150°C 16, 32, 40 3.3 否 3, 4 No 4, 2 4 4, 2 8, 4 G3M Chassis systems 32 No, Yes RH850 131 否 156, 292, 404

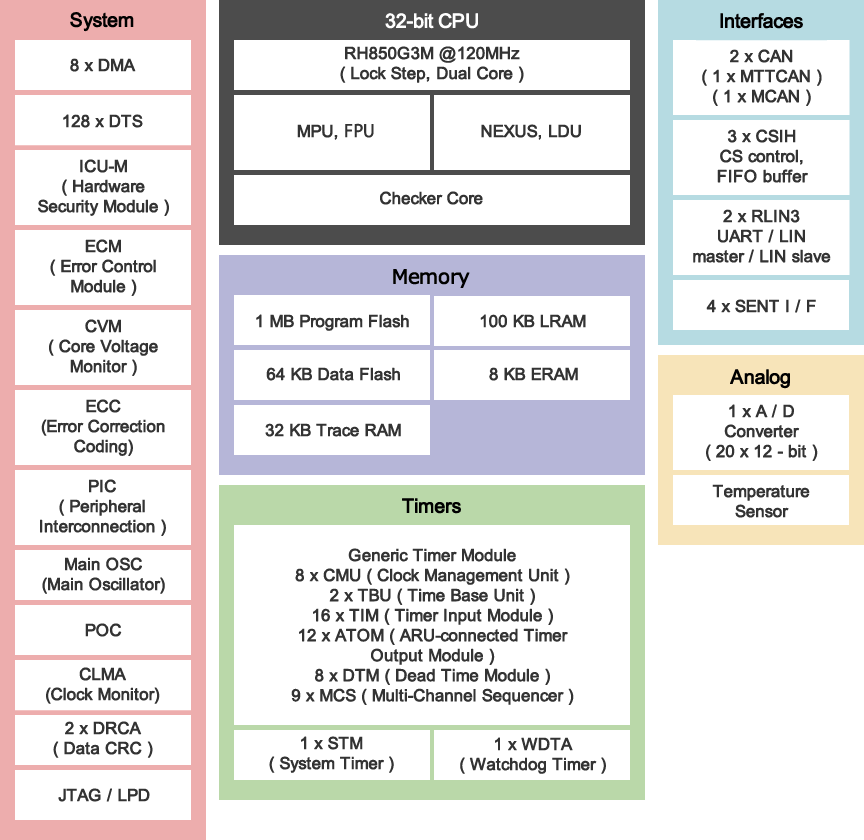

    RH850/P1L-C
    All-in-one Automotive Safety Microcontrollers for Low-end Chassis System    		 1 + 1 120 100, 64 512, 1024 64, 32 QFP80, QFP100, QFP144 -40 to 160°C 8, 12, 20 否 2 No 3 2 4, 3, 2 G3M Chassis systems 32 Yes RH850 49, 63, 87 否 80, 100, 144
    RH850/P1M
    High-end Automotive Microcomputers for Chassis System    		 1 + 1 160 64, 128 512, 1024, 2048 32, 64 QFP100, QFP144 -40 to 150°C 19, 24 否 2, 3 No 2 5 2 5, 6 2 16-bit x 48-ch, 32-bit x 12-ch G3M Chassis systems 32 Yes RH850 52, 86 否 100, 144
    RH850/P1M-C
    High-end Automotive Microcontrollers for In-vehicle Applications Using ISO 26262 Functional Safety Standards    		 1 + 1 240 448 2048 64 BGA156, BGA292, QFP144 -40 to 150°C, -40 to 160°C 16, 20, 24 3.3 否 3 Yes 2 4 2 6, 4 G3M Chassis systems 32 Yes RH850 81, 99 否 144, 292
    RH850/P1M-E
    High-end Automotive Microcontrollers for Electronic Power Steering Systems    		 1 + 1 160 192 1024, 2048 64, 32 QFP100, QFP144 -40 to 150°C 19, 24 否 3 No 2 5 2 5, 6 2 16-bit x 48-ch, 32-bit x 12-ch G3M Chassis systems 32 Yes RH850 50, 86 否 100, 144
    RH850/U2A
    区域/域微控制器系列    		 2 + 2, 4 + 4 400 3584, 1792 8192, 16384 576, 320 BGA292, BGA373, BGA516 -40 to 160°C 79, 94 3.3, 5 是的 16 Yes 2 10, 9, 6 24, 12 2 8 4 2 16-bit x 48-ch, 32-bit x 24-ch, 32-bit x 26-ch G4MH
    CAN/CAN FD 16ch, Ethernet 2ch, FlexRay 2ch and more...
    		 32 Yes RH850 165, 221, 301 是的 292, 373, 516

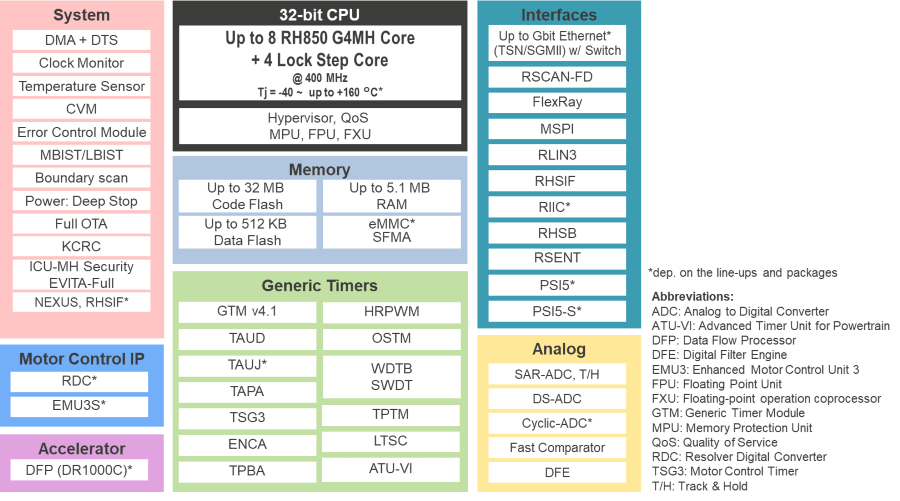

    RH850/U2B
    区域/域和车辆运动微控制器    		 8 + 4 400 5120 32768 512 -40 to 160°C 否 G4MH 32 RH850 否
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题
    类型     		日期
    Security-Conscious Debugging Methods for RH850 Devices (Main-Core Debugging)
    PDF 1.17 MB 日文     		应用文档
    Product Scout Automotive
    PDF 6.61 MB     		手册
    Safety and Security Support Program for Automotive
    PDF 372 KB 日文     		手册
    RH850/U2B 32-bit Zone/Domain and Vehicle Motion Microcontroller
    PDF 2.09 MB     		传单
    RH850 Family Product Part Number Guide
    PDF 261 KB     		指南
    QFN 封装安装手册
    PDF 4.16 MB English(英语) , 日文     		其他
    汽车成功产品组合
    PDF 18.17 MB English(英语)     		手册
    Automotive Image Brochure
    PDF 11.06 MB English(英语) , 日文     		手册
    对于随着E/E架构升级而不断增加功耗的解决方案
    PDF 818 KB English(英语) , 日文     		白皮书
