可编程混合信号、ASIC 与 IP 产品

GreenPAK™ 是一个类型丰富、经济高效的非易失性存储器 (NVM) 可配置硬件产品系列。应用GreenPAK™系列产品，创新人士可以将多个系统功能集成到单个定制电路(芯片)中，从而最大限度减少组件数量、电路板空间和功耗。 通过免费的图形化设计软件：GUI Go Configure Software Hub 和 GreenPAK 开发套件，设计人员只需几分钟就能定制并配置出最佳电路。

访问 GreenPAK 应用页面即可获取超过 250 份应用示例及其对应的设计文件，探索GreenPAK Cookbook，了解采用 GreenPAK 的 90 多种应用电路进而帮助你如何入门GreenPAK设计。 通过我们的图形化设计软件：Go Configure Software Hub 简化设计流程，可将应用示例和 Cookbook 中已有的每份设计文件用于您的设计，或重新开始一份全新设计。 请立即查阅相关信息，为您的项目解锁 GreenPAK 的潜能！

了解有关 GreenPAK 的更多信息

利用 GreenPAK 进行设计

使用案例

IoT Power Charger Original Design
IoT Power Charger Greenpak Benefits

更精简设计：

  • 5 个集成电路
  • 2 个 NMOS 晶体管
  • 14 个无源组件

分类

HVPAK™

充分利用混合信号逻辑和高压 H 桥功能组合的优势

AnalogPAK™

结合 GreenPAK 可配置逻辑创造您专属的模拟电路

GreenPAK™ 汽车用可编程混合信号 IC

将多种系统功能集成至单个 AEC-Q100 认证 IC 上

双电源 GreenPAK™

灵活连接两个独立电压域

具有异步状态机的 GreenPAK™

开发您的专属状态机设计

支持系统内编程的 GreenPAK™

通过对 NVM 进行编程，轻松修改配置或是为器件添加功能

具有负载开关的 GreenPAK™

配置 GreenPAK 的同时可控制驱动大电流电源开关

具有低压差稳压器 (LDO) 的 GreenPAK™

探索“灵活电源岛”概念

产品选型表

    Processing table
    Special Features
    GPIOs (#)
    Nominal VDD
    VDD2 (V)
    ACMP Analog Comparator (#)
    DCMP
    CNT/DLY (Max) (#)
    LUTs (Max) (#)
    DFF (Max) (#)
    Pipe Delay
    # of Programable Delays (#)
    Oscillator Type
    Temperature Sensor (ch) (#)
    Interface
    Memory Type
    Pkg. Dimensions (mm)
    Pkg. Type
    Lead Count (#)
    Temp. Range
    器件号
    SLG46108
    GreenPAK™ Programmable Mixed-Signal Matrix    		 6 1.71-5.5 4 10 4 8-stage 1 RC OSC OTP 1.0 x 1.2 TQFN 8 -40 to +85
    SLG46110
    GreenPAK™ Programmable Mixed-Signal Matrix    		 8 1.71-5.5 2 4 10 4 8-stage 1 RC OSC OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG46116
    GreenPAK™ Programmable Mixed-Signal Matrix with P-FET Power Switch without Discharge    		 P-FET (1.25A, w/o Discharge, Soft-start) 7 1.71-5.5 2 4 10 4 8-stage 1 RC OSC OTP 1.6 x 2.5 TQFN 14 -40 to +85
    SLG46117
    GreenPAK™ Programmable Mixed-Signal Matrix with P-FET Power Switch with Discharge    		 P-FET (1.25A, w/ Discharge, Soft-start) 7 1.71-5.5 2 4 10 4 8-stage 1 RC OSC OTP 1.6 x 2.5 TQFN 14 -40 to +85
    SLG46120
    GreenPAK™ Programmable Mixed-signal Matrix    		 10 1.71-5.5 2 4 16 8 8-stage 1 RC OSC OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG46121
    GreenPAK™ Programmable Mixed-signal Matrix with Dual Supply    		 9 1.71-5.5 1.71 - 5.5 2 4 16 8 8-stage 1 RC OSC OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG46127
    GreenPAK™ Programmable Mixed-signal Matrix with Dual 44 mΩ / 2 A P-FET    		 2x P-FET (44Ω, 2A) 6 1.71-5.5 2 4 10 4 8-stage 1 RC OSC OTP 1.6 x 2.0 MSTQFN 16 -40 to +85
    SLG46140
    GreenPAK™ Programmable Mixed-signal Matrix    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 12 1.71-5.5 2 4 16 6 16-stage 1 RC OSC, LF OSC, Ring OSC SPI OTP 1.6 x 2.0 TQFN 14 -40 to +85
    SLG46169
    GreenPAK™ Programmable Mixed-signal Matrix    		 12 1.71-5.5 2 7 18 6 16-stage 1 RC OSC OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46170
    GreenPAK™ Programmable Mixed-signal Matrix    		 12 1.71-5.5 8 17 6 16-stage 1 RC OSC OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46517
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Two P-FET Power Switches    		 ASM (8 states), 2x P-FET (44Ω, 2A), Pattern Generator 16 1.71-5.5 4 7 17 8 16-stage 1 RC OSC, Ring OSC, Crystal OSC I2C OTP 2.0 x 3.0 MSTQFN 28 -40 to +85
    SLG46533
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 18 1.71-5.5 4 7 25 15 16-stage 1 Conf. OSC, Ring OSC, Crystal OSC 1 I2C OTP 2.0 x 2.2 , 2.0 x 3.0 MSTQFN, TQFN 22, 20 -40 to +85
    SLG46534
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine    		 ASM (8 states), Pattern Generator 12 1.71-5.5 3 7 17 8 16-stage 1 Conf. OSC, RC OSC, Crystal OSC I2C OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46535
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (8 states), Pattern Generator 11 1.71-5.5 1.71 - 5.5 3 7 17 8 16-stage 1 Conf. OSC, Ring OSC, Crystal OSC I2C OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46536
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 12 1.71-5.5 3 7 25 15 16-stage 1 Conf. OSC, Ring OSC, Crystal OSC I2C OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46537
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine    		 ASM (8 states), Pattern Generator 18 1.71-5.5 4 7 17 8 16-stage 1 Conf. OSC, RC OSC, Crystal OSC 1 I2C OTP 2.0 x 2.2 , 2.0 x 3.0 MSTQFN, TQFN 22, 20 -40 to +85
    SLG46538
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (8 states), Pattern Generator 17 1.71-5.5 1.71 - 5.5 4 7 17 8 16-stage 1 Conf. OSC, RC OSC, Crystal OSC 1 I2C OTP 2.0 x 2.2 , 2.0 x 3.0 MSTQFN, TQFN 22, 20 -40 to +85
    SLG46538-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual supply    		 ASM (8 states), Pattern Generator 17 1.71-5.5 1.71 - 5.5 4 7 17 8 16-stage 1 Conf. OSC, RC OSC, Crystal OSC 1 I2C OTP 3.5 x 3.5 TQFN 20 -40 to +125
    SLG46580
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and LDOs    		 ASM (8 states), 4x LDO, RTC 9 2.3-5.5 4 5 15 9 16-stage 1 Conf. OSC, LF OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46582
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and LDOs    		 ASM (8 states), 2x LDO, RTC 9 2.3-5.5 4 5 15 9 16-stage 1 Conf. OSC, LF OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46583
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and LDOs    		 ASM (8 states), LDO, RTC 9 2.3-5.5 4 5 15 9 16-stage 1 Conf. OSC, LF OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46585
    GreenPAK™ Programmable Mixed-Signal Matrix with Asynchronous State Machine, LDOs, and DC/DC Converter    		 ASM (8 states), 4x LDO, DC/DC, RTC 7 2.5-5.5 4 5 16 9 16-stage 1 Conf. OSC, LF OSC 1 I2C OTP 3.0 x 3.0 MSTQFN 29 -40 to +85

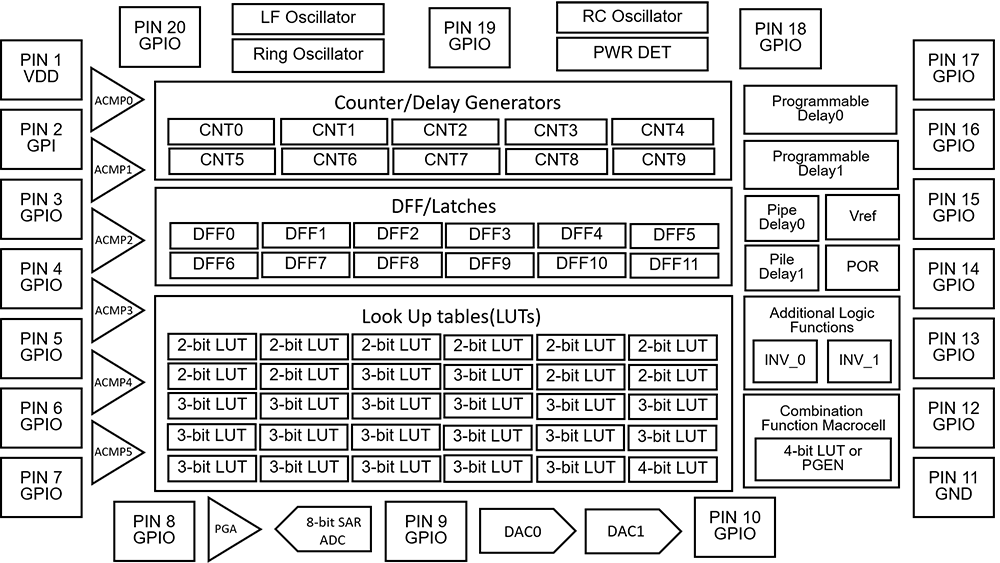

    SLG46620
    GreenPAK™ Programmable Mixed-signal Matrix    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 18 1.71-5.5 6 10 26 12 2x 16-stage 2 RC OSC, LF OSC, Ring OSC SPI OTP 2.0 x 3.0 , 6.4 x 6.5 TQFN, TSSOP 20 -40 to +85
    SLG46620-A
    Automotive GreenPAK Programmable Mixed-signal Matrix    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 18 1.71-3.6 6 3 10 26 12 2x 16-stage 2 RC OSC, LF OSC, Ring OSC SPI OTP 6.5 x 6.4 TSSOP 20 -40 to +125
    SLG46621
    GreenPAK™ Programmable Mixed-signal Matrix with Dual Supply    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 17 1.71-5.5 1.71 - 5.5 6 3 10 26 12 2x 16-stage 2 RC OSC, LF OSC, Ring OSC SPI OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46625-A
    Automotive GreenPAK Programmable Mixed-signal Matrix    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 18 1.71-5 6 3 10 26 12 2x 16-stage 2 RC OSC, LF OSC, Ring OSC SPI OTP 3.5 x 3.5 TQFN 20 -40 to +125
    SLG46721
    GreenPAK™ Programmable Mixed-signal Matrix    		 18 1.71-5.5 4 7 18 6 16-stage 1 RC OSC OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46722
    GreenPAK™ Programmable Mixed-signal Matrix    		 18 1.71-5.5 8 17 6 16-stage 1 RC OSC OTP 2.0 x 3.0 TQFN 20 -40 to +85

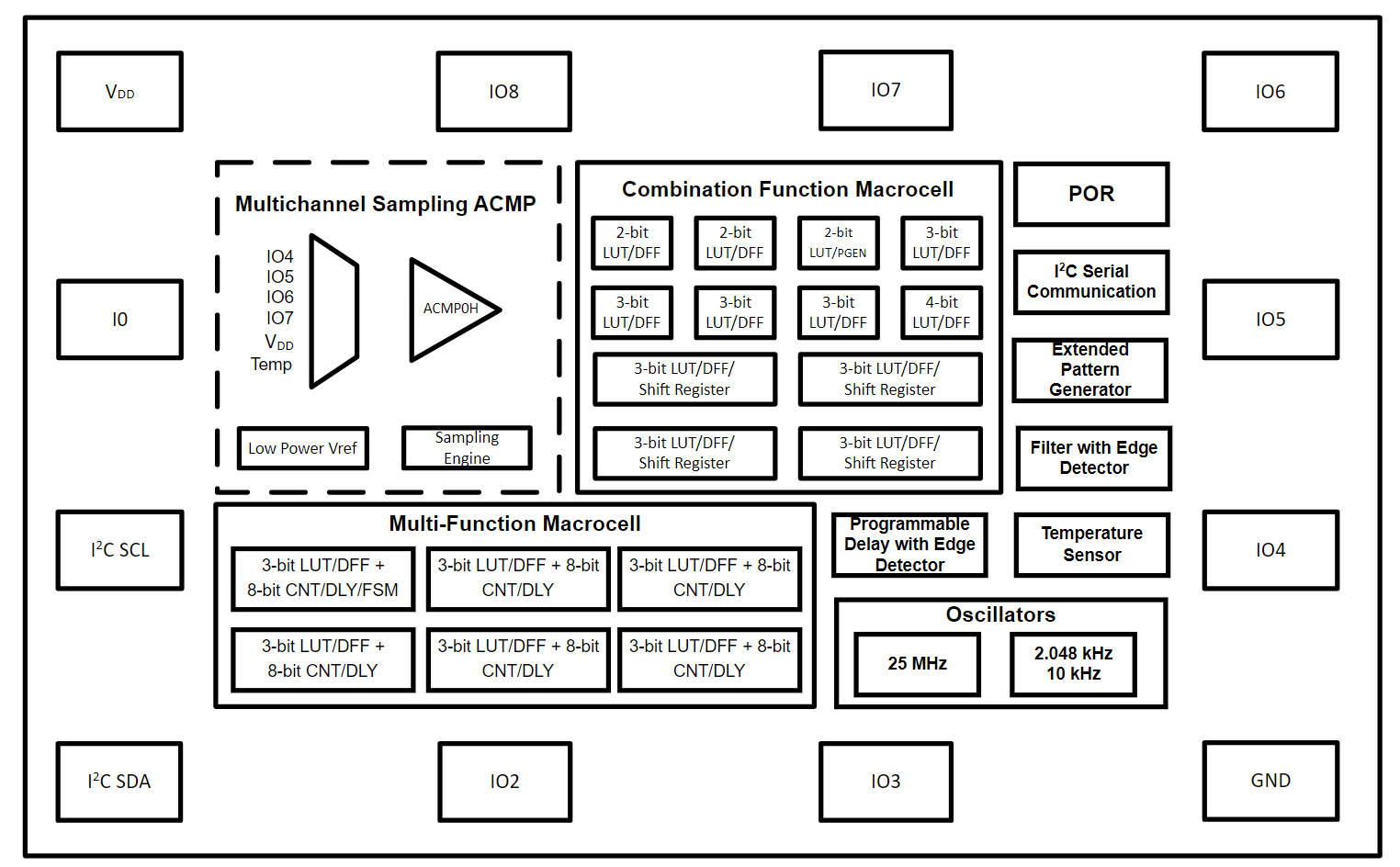

    SLG46811
    GreenPAK™ Programmable Mixed-signal Matrix    		 92 x 8 bit Pattern Generator 10 2.3-5.5 1 6 18 17 4x 8-bit Shift Regs 1 Conf. OSC, Ring OSC 1 I2C OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG46824
    GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability    		 Pattern Generator 17 2.3-5.5 1.71 - 5.5 2 8 19 17 16-stage 1 RC OSC, LF OSC, Ring OSC I2C MTP 2.0 x 3.0 , 6.4 x 6.5 TQFN, TSSOP 20 -40 to +85
    SLG46826
    GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability    		 Pattern Generator 17 2.3-5.5 1.71 - 5.5 4 8 19 17 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C MTP 2.0 x 3.0 , 6.4 x 6.5 TQFN, TSSOP 20 -40 to +85

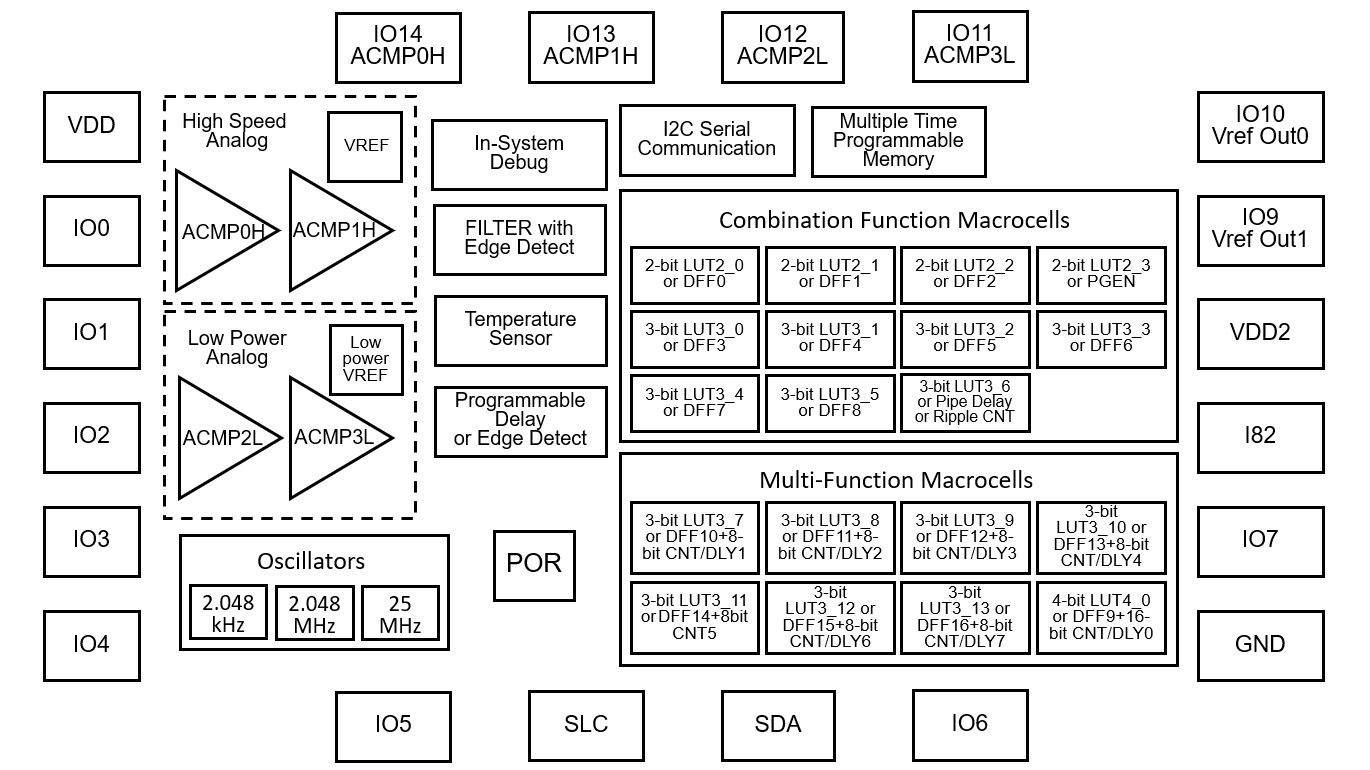

    SLG46827-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability    		 Pattern Generator 17 2.3-5.5 1.71 - 5.5 4 8 19 17 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C MTP 6.5 x 6.4 TSSOP 20 -40 to +125

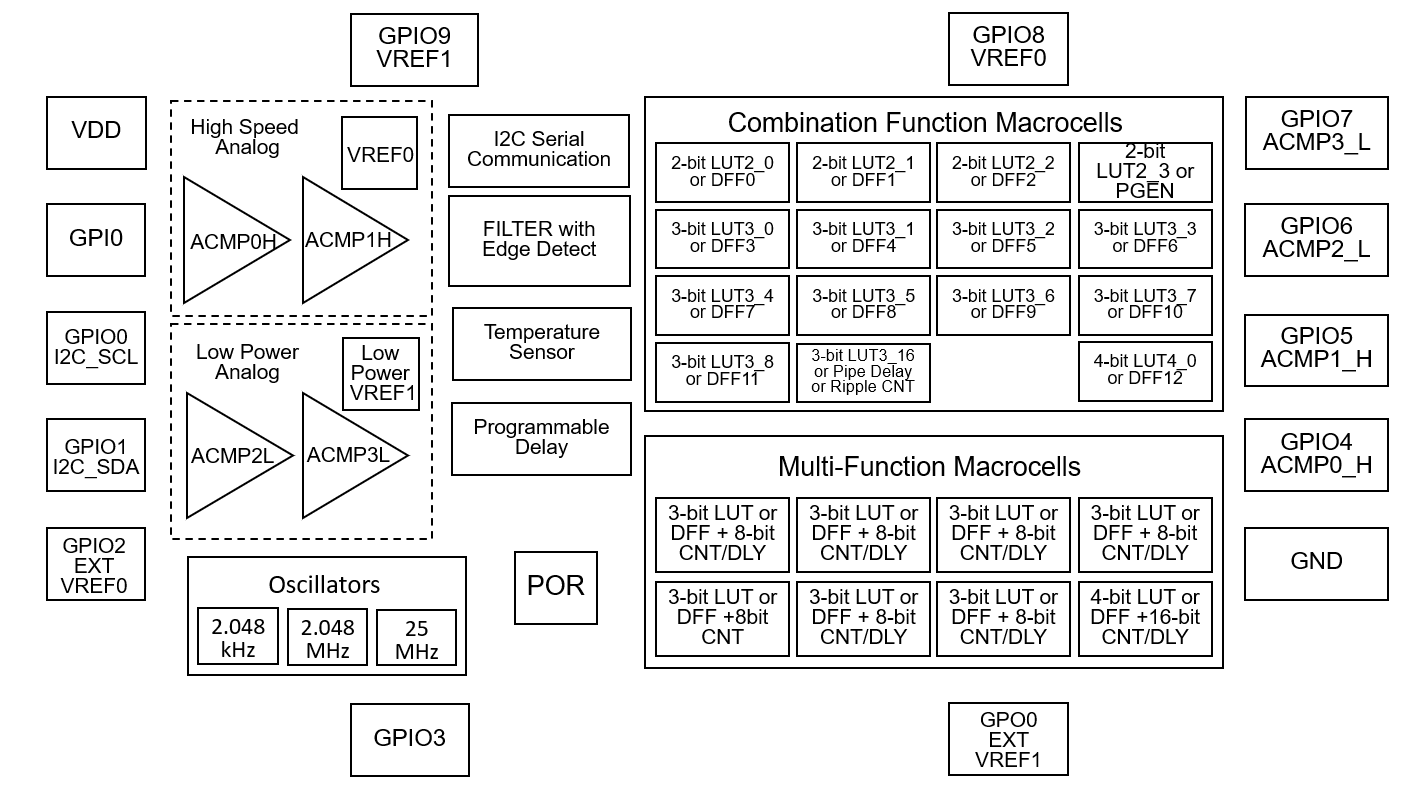

    SLG46855
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 12 2.3-5.5 4 8 23 21 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C OTP 1.6 x 2.0 TQFN 14 -40 to +85
    SLG46855-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 12 2.3-5.5 4 8 23 21 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C OTP 3.0 x 3.0 TQFN 14 -40 to +125
    SLG46857-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 12 2.3-5.5 4 8 23 21 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C OTP 3.0 x 3.0 TQFN 14 -40 to +125
    SLG46867
    GreenPAK™ Programmable Mixed-signal Matrix with Dual Supply    		 2x P-FET (44Ω, 2A), Pattern Generator 10 2.3-5.5 4 8 23 21 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C OTP 1.6 x 3.0 MSTQFN 20 -40 to +85
    SLG46880
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (12 states), Pattern Generator 28 2.3-5.5 2.3 - 5.5 4 5 12 5 16-stage 1 RC OSC, LF OSC, Ring OSC, Crystal OSC 1 I2C OTP 4.0 x 4.0 TQFN 32 -40 to +85
    SLG46880-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (12 states), Pattern Generator 28 2.3-5.5 2.3 - 5.5 4 5 12 5 16-stage 1 RC OSC, LF OSC, Ring OSC, Crystal OSC 1 I2C OTP 5.0 x 5.0 TQFN 32 -40 to +125
    SLG46881
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (12 states), Pattern Generator 28 2.3-5.5 0.95 - 1.98 4 5 12 5 16-stage 1 RC OSC, LF OSC, Ring OSC, Crystal OSC 1 I2C OTP 4.0 x 4.0 TQFN 32 -40 to +85
    SLG47004
    Programmable Mixed-Signal Matrix with In-System Programmability and Advanced Analog Features    		 2x Op Amp or 1x In-Amp, 2x Rheostat, 2x An Switch, 2-Ch Auto-Trim, EEPROM, Pattern Generator 8 2.4-5.5 3 7 20 18 16-stage 1 RC OSC, LF OSC, Ring OSC 1 Absolute Voltage, GPIO, I2C, Switch Output MTP 3.0 x 3.0 TQFN 24 -40 to +85
    SLG47105
    HVPAK™ Programmable Mixed-Signal Matrix with Four Outputs with Operating Voltage up to 13.2 V and up to 2 A Current per Output    		 2x H-/4x Half- Bridge, 2x PWM, 2x CCMP, Int&Diff Amp, Pattern Generator 12 2.3-5.5 3 - 13.2 2 5 17 15 16-stage 1 LF OSC, Ring OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG47115
    HVPAK™ Programmable Mixed-Signal Matrix with Two Outputs with Operating Voltage up to 26.4 V and up to 3 A Current per Output    		 1x H-/2x Half- Bridge, 2x PWM, CCMP, Int&Diff Amp, Pattern Generator 10 2.3-5.5 4.5 - 26.4 2 5 17 15 16-stage 1 LF OSC, Ring OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG47512
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 10 1.0-1.65 2 8 23 22 3x 4-bit; 10x 8-bit; 1x 16-bit Shift Regs 1 LF OSC, Ring OSC 1 I2C OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG47513
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 14 1.0-1.65 2 8 23 22 3x 4-bit; 10x 8-bit; 1x 16-bit Shift Regs 1 LF OSC, Ring OSC 1 I2C OTP 1.6 x 1.6 MSTQFN 16 -40 to +85

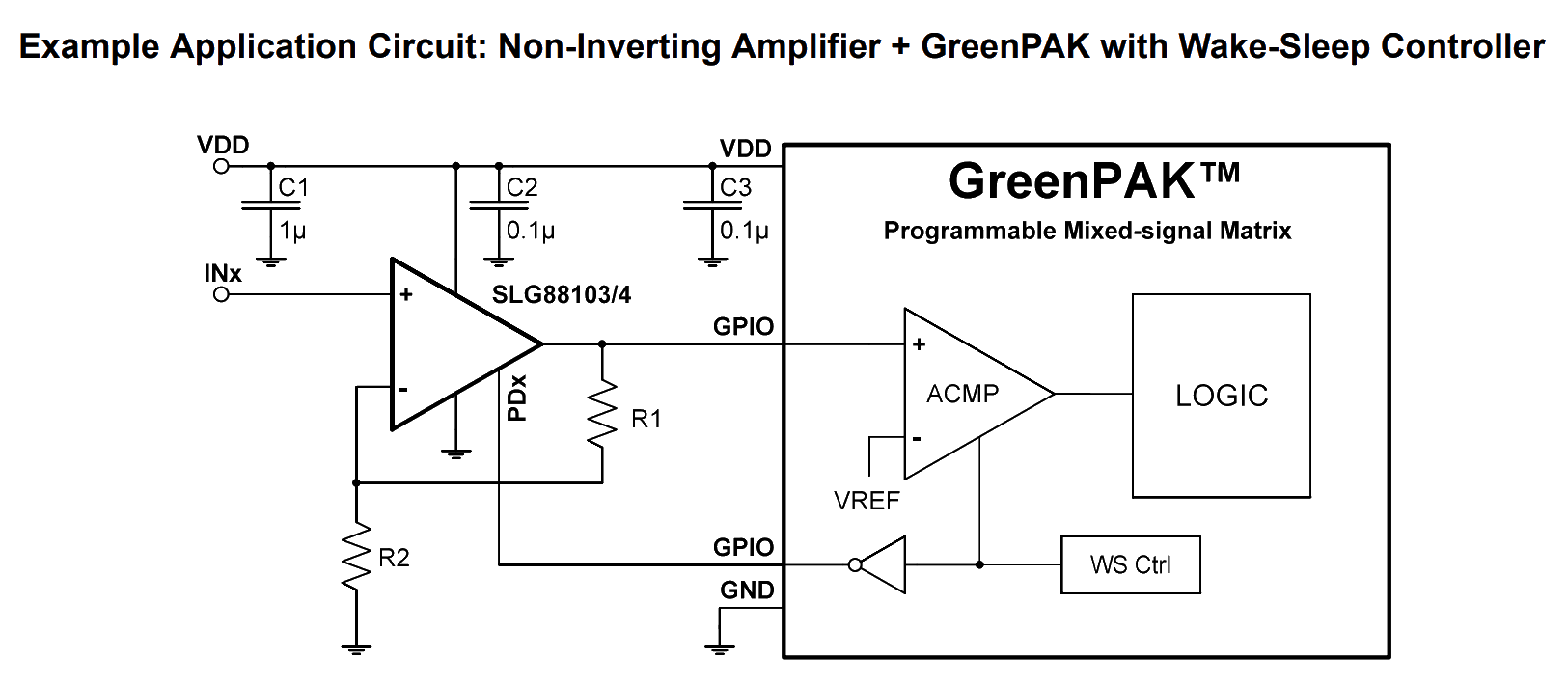

    SLG88103
    Micropower Operational Amplifier for GreenPAK™    		 Op Amp 0 1.8 - 5.0 0 0 0 0 0 2.0 x 2.0 STDFN 10 -40 to +85
    SLG88104
    Micropower Operational Amplifier for GreenPAK™    		 Op Amp 0 1.8 - 5.0 0 0 0 0 0 2.0 x 3.5 STQFN 20 -40 to +85
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
