Programmable Mixed-signal, ASIC & IP Products

Automotive GreenPAK™ is a cost-effective non-volatile memory (NVM) configurable device that allows automotive designers to integrate many system functions into a single AEC-Q100 qualified IC. With GreenPAK, designers can quickly reduce system cost, component count and power consumption as well as supply chain and reliability issues.

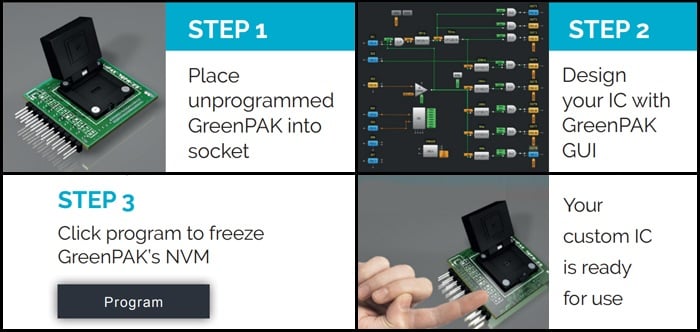

Using the free GUI-based Go Configure Software Hub and the GreenPAK Development Kit, the process of designing custom circuits is free, quick and it requires no programming language. Renesas provides the GreenPAK Application notes library and the GreenPAK Cookbook featuring design examples as well as explanations of features and blocks within the Automotive GreenPAK IC.

Use Case: Voltage monitor & reset for infotainment

GreenPAK Use Case: Voltage monitor & reset for infotainment

Benefits

  • PCB area saving: Combine multiple discrete ICs into one small package
  • Total BOM cost savings: By using fewer components
  • Small-scale custom AEC-Q100 IC without NRE
  • Short lead time: 18 weeks for MP
  • Easy to use, GUI design tool available

产品选型表

    Processing table
    GPIOs (#)
    LUTs (Max) (#)
    DFF (Max) (#)
    DCMP/PWM
    ACMP Analog Comparator (#)
    CNT/DLY (Max) (#)
    # of Programable Delays (#)
    Pipe Delay
    Interface
    Nominal VDD
    Oscillator Type
    Temperature Sensor (ch) (#)
    Pkg. Dimensions (mm)
    Automotive Rating
    Special Features
    器件号
    SLG46538-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual supply    		 17 17 8 4 7 1 16-stage I2C 1.71-5.5 Conf. OSC, RC OSC, Crystal OSC 1 3.5 x 3.5 AEC-Q100 (Grade 1) ASM (8 states), Pattern Generator
    SLG46620-A
    Automotive GreenPAK Programmable Mixed-signal Matrix    		 18 26 12 3 6 10 2 2x 16-stage SPI 1.71-3.6 RC OSC, LF OSC, Ring OSC 6.5 x 6.4 AEC-Q100 (Grade 2) 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator
    SLG46625-A
    Automotive GreenPAK Programmable Mixed-signal Matrix    		 18 26 12 3 6 10 2 2x 16-stage SPI 1.71-5 RC OSC, LF OSC, Ring OSC 3.5 x 3.5 AEC-Q100 (Grade 1) 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator
    SLG46827-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability    		 17 19 17 4 8 1 16-stage I2C 2.3-5.5 RC OSC, LF OSC, Ring OSC 1 6.5 x 6.4 AEC-Q100 (Grade 2) Pattern Generator
    SLG46855-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix    		 12 23 21 4 8 1 16-stage I2C 2.3-5.5 RC OSC, LF OSC, Ring OSC 1 3.0 x 3.0 AEC-Q100 (Grade 2) Pattern Generator
    SLG46857-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix    		 12 23 21 4 8 1 16-stage I2C 2.3-5.5 RC OSC, LF OSC, Ring OSC 1 3.0 x 3.0 AEC-Q100 (Grade 1) Pattern Generator
    SLG46880-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 28 12 5 4 5 1 16-stage I2C 2.3-5.5 RC OSC, LF OSC, Ring OSC, Crystal OSC 1 5.0 x 5.0 AEC-Q100 (Grade 1) ASM (12 states), Pattern Generator
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题
    类型     		日期
    AN-CM-274 Temperature to Frequency Conversion Using GreenPAK
    PDF 907 KB
    相关文件：
    		应用文档
    AN-1114 Brushless DC Motor Control
    PDF 760 KB
    相关文件：
    		应用文档
    AN-1168 Tire Pressure Sensor
    PDF 410 KB
    相关文件：
    		应用文档
    AN-1065 SPI Serial-Parallel Converter
    PDF 248 KB
    相关文件：
    		应用文档
    AN-CM-219 IR Windshield Rain Sensor
    PDF 880 KB
    相关文件：
    		应用文档
    AN-CM-257 Random Pulse Width Modulation for Three-Phase Inverter Applications
    PDF 815 KB
    相关文件：
    		应用文档
    AN-CM-275 Automotive Turn Signal with Animation
    PDF 1.11 MB
    相关文件：
    		应用文档
    GreenPAK™ Programmable Mixed-Signal Matrix Family Overview
    PDF 4.77 MB     		手册
    Automotive Brochure
    PDF 6.56 MB     		手册
    9 items
