HVPAK™ Programmable Mixed-Signal Matrix with Operating Voltage up to 26.4 V and up to 3 A current per output

The HVPAK combines mixed-signal logic and high-voltage H-/Half-bridge functionality in a tiny 2 mm x 3 mm QFN package. One-time programmable (OTP) non-volatile memory (NVM) stores user-defined solutions in the form of interconnections of internal logic, I/O pins, and macrocells.

Get your motor running with HVPAK!

The HVPAK advanced PWM macrocells provide the ability to drive multiple motors with different PWM frequencies and duty cycles. Low idle current consumption in combination with a compact size further extends the field of possible applications. This highly versatile device allows a wide variety of mixed-signal functions to be designed alongside high-voltage capabilities within a tiny and thermally-efficient IC.

Savings

Replace multiple ICs:
motor driver + logic + comparator + voltage monitor + etc.

Safety

Add more hardware protection to increase system reliability

Flexibility

Create a custom motor driving solution or add more functionality into one IC

Application Optimization

Use HVPAK as a standalone load driver or integrate motor control functionality

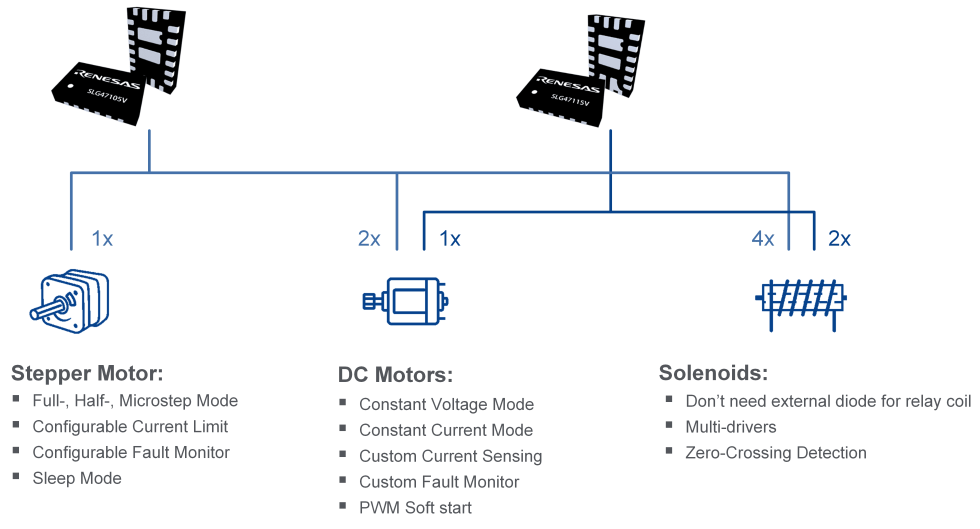

Motor Types: Stepper Motor, DC Motors, Solenoids

Stepper Motor

  • Full-, half-, microstep mode
  • Configurable current limit
  • Configurable fault monitor
  • Sleep mode

DC Motors

  • Constant voltage mode
  • Constant current mode
  • Custom current sensing
  • Custom fault monitor
  • PWM soft start

Solenoids

  • No need for external diode for relay coil
  • Multi-drivers
  • Zero-crossing detection


Check out HVPAK Application Solutions and discover its full potential for your next design!

Programmable Mixed-signal, ASIC & IP Products

产品选型表

    Processing table
    器件号
    Nominal VDD
    VDD2 (V)
    GPIOs (#)
    Special Features
    ACMP Analog Comparator (#)
    DCMP
    CNT/DLY (Max) (#)
    LUTs (Max) (#)
    DFF (Max) (#)
    Pipe Delay
    # of Programable Delays (#)
    Oscillator Type
    Temperature Sensor (ch) (#)
    Interface
    Memory Type
    Pkg. Dimensions (mm)
    Pkg. Type
    Lead Count (#)
    SLG47105
    HVPAK™ Programmable Mixed-Signal Matrix with Four Outputs with Operating Voltage up to 13.2 V and up to 2 A Current per Output    		 2.3-5.5 3 - 13.2 12 2x H-/4x Half- Bridge, 2x PWM, 2x CCMP, Int&Diff Amp, Pattern Generator 2 5 17 15 16-stage 1 LF OSC, Ring OSC 1 I2C OTP 2.0 x 3.0 TQFN 20
    SLG47115
    HVPAK™ Programmable Mixed-Signal Matrix with Two Outputs with Operating Voltage up to 26.4 V and up to 3 A Current per Output    		 2.3-5.5 4.5 - 26.4 10 1x H-/2x Half- Bridge, 2x PWM, CCMP, Int&Diff Amp, Pattern Generator 2 5 17 15 16-stage 1 LF OSC, Ring OSC 1 I2C OTP 2.0 x 3.0 TQFN 20
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
