Renesas 的 2.5/3.3V 和 5V 总线交换机系列被称为 QuickSwitch®。 QuickSwitch（或 Quick Switch）技术旨在通过提供经济有效的性能增强解决方案来满足独特的客户需求。 这些器件可提供低开关限制和高速交换，而且不增加传播延迟、不产生额外地弹噪声或静态功率减少。 Renesas 提供具有不同功能的总线交换机，包括多路复用器、多路解复用器、模拟交换机和 rail-to-rail 交换产品。 这些产品是混合供电式总线间的双向接口以及需要隔离、保护和电压转换的应用的理想选择。 这些交换机可采用八进制、双密度、宽总线配置提供。 Renesas 模拟总线交换机产品是多媒体个人电脑和视频会议功能的理想选择。

Renesas 丰富的总线交换机产品组合包括：

  • 标准总线交换机产品
  • 总线交换产品
  • 多路复用器 (Mux) 产品
  • 多路解复用器 (DeMux) 产品
  • 同步多路复用器/多路解复用器 (Mux/DeMux) 产品

关于总线交换机（包括 QuickSwitch）

总线交换机 IC 是一系列高速、低电阻 CMOS 交换机，用于中继转发一组被称为信号总线的信号。 这些总线交换机 IC 有时被称作双向交换机或模拟交换机，可提供与机械继电器相同的基本功能，但是不含运动部件，并可提供更优性能。

器件的控制输入是在正负电源电压之间交换的数字信号——正电压更高将打开器件，负电压更高将关闭器件。

总线交换机的重要参数包括：

  • 导通电阻：接通时的电阻。 Renesas 的总线交换机旨在提供超低导通电阻（低至 5 欧姆），对系统架构几乎是透明的。
  • 总线宽度：单一器件中的交换机通道的数量。 Renesas 可提供具有多达 32 个信号路径的交换机 IC，能够尽可能减少 PCB 面积需求并精简物料清单。
  • 核心电压：向器件供电所需的电源电压。 Renesas 的总线交换机可提供 2.5/3.3 V 和 5 V 选项，具体取决于系统电源的可用性。

储存器和逻辑器件

分类

3.3V CBTLV 双密度（通用总线交换机）

3.3V、低电压、双密度的通用总线交换机

3.3V CBTLV （通用总线交换机）

3.3V、低电压的通用总线交换机

3.3V QuickSwitch（高带宽总线交换机）

3.3V 高带宽 (QuickSwitch) 总线交换机

5.0V QuickSwitch

5.0V 高带宽 (QuickSwitch) 总线交换机

模拟多路复用器和多路解复用器

高速 CMOS 模拟多路复用器和多路解复用器产品

模拟开关

配有多达 10 通道的低 RDS(on) 模拟交换机

产品选型表

    Processing table
    器件号
    Function
    Pkg. Code
    Temp. Range
    Bus Width (bits)
    Core Voltage (V)
    On Resistance (Ω)
    Speed Grade
    105°C Max. Case Temp.
    74CBTLV16245
    Low-Voltage 16-Bit Bus Switch    		 Bus Switch PAG48 -40 to 85°C 16 3.3 5 Standard

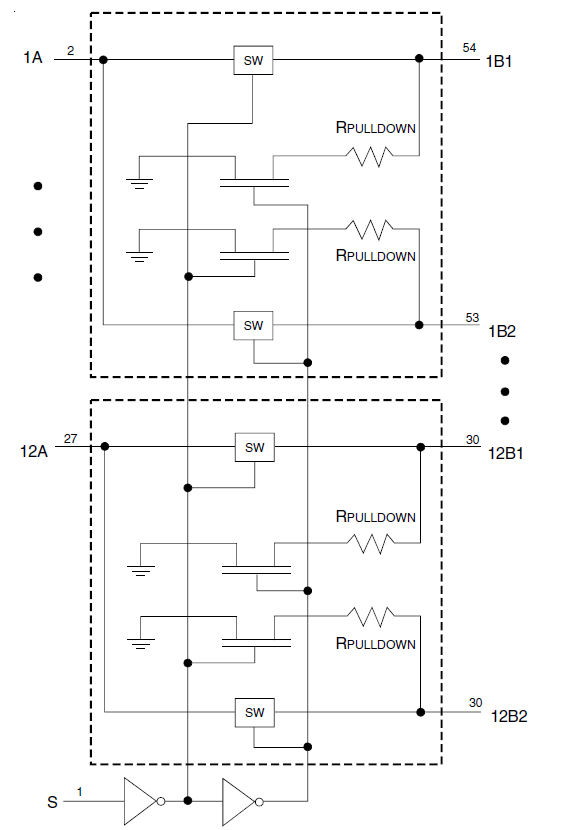

    74CBTLV16292
    Low-Voltage 12-Bit 1:2 Mux / Demux Bus Switch with Internal Pull Down Resistors    		 Mux/Demux Bus Switch PAG56 -40 to 85°C 24 3.3 5 Standard
    74CBTLV3125
    Low-Voltage Quadruple Bus Switch    		 Bus Switch PCG16, PGG14 -40 to 85°C 4 3.3 5 Standard
    74CBTLV3244
    Low-Voltage Octal Bus Switch    		 Bus Switch PGG20 -40 to 85°C 8 3.3 5 Standard
    74CBTLV3245
    Low-Voltage Octal Bus Switch    		 Bus Switch PGG20 -40 to 85°C 8 3.3 5 Standard

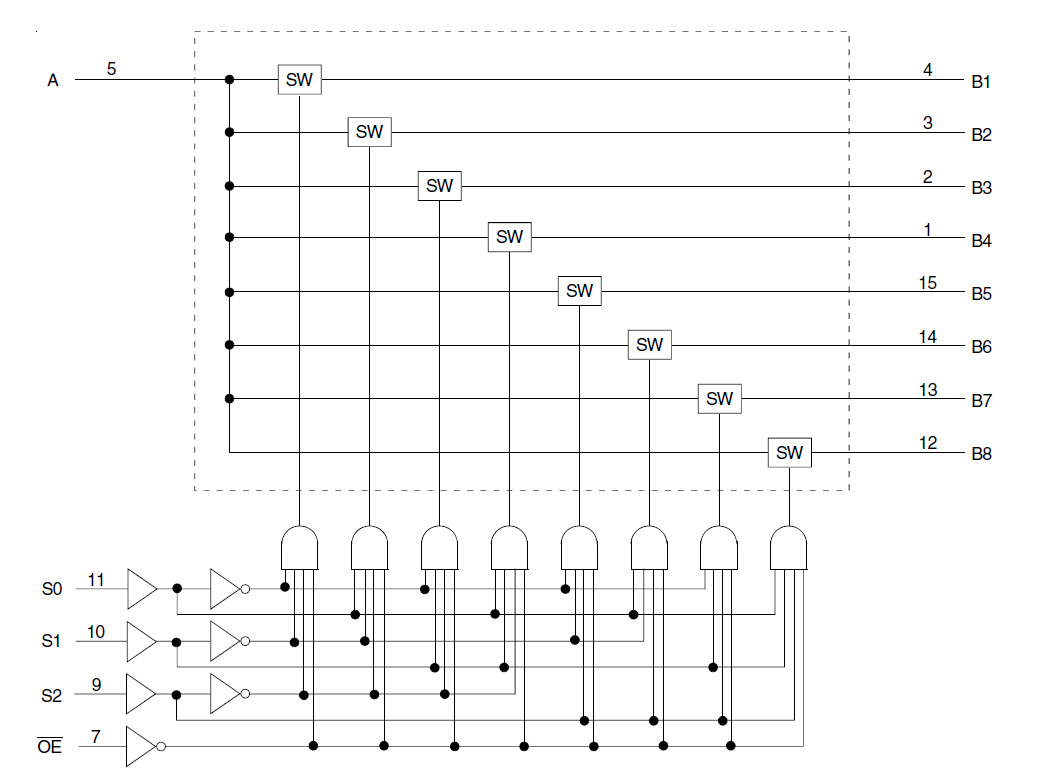

    74CBTLV3251
    Low-Voltage 8:1 Multiplexer/Demultiplexer    		 Multiplexer/Demultiplexer PGG16 -40 to 85°C 8 3.3 5 Standard
    74CBTLV3253
    Low-Voltage Dual 1-of-4 Multiplexer/Demultiplexer    		 Multiplexer/Demultiplexer PCG16, PGG16 -40 to 85°C 8 3.3 5 Standard
    74CBTLV3257
    Low-Voltage Quad 2:1 Mux/Demux Bus Switch    		 Mux/Demux Bus Switch PCG16, PGG16 -40 to 85°C 8 3.3 5 Standard
    74CBTLV3384
    Low-Voltage 10-Bit Bus Switch    		 Bus Switch PCG24, PGG24 -40 to 85°C 10 3.3 5 Standard
    74CBTLV3861
    Low-Voltage 10-Bit Bus Switch    		 Bus Switch PCG24, PGG24 -40 to 85°C 10 3.3 5 Standard

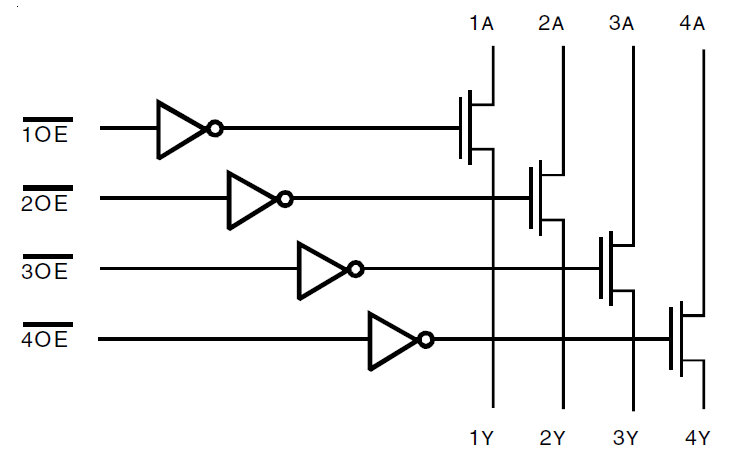

    QS3125
    High-Speed CMOS Quadruple Bus Switch with IndiviDual Active Low Enables    		 Bus Switch PCG16 -40 to 85°C 4 5 5 Standard
    QS3126
    High-Speed CMOS Quadruple Bus Switch with IndiviDual Active High Enables    		 Bus Switch PCG16 -40 to 85°C 4 5 5 Standard
    QS32390
    High-Speed CMOS QuickSwitch 16:8 Multiplexer    		 16:8 Multiplexer PCG28 -40 to 85°C 16 5 28 Standard
    QS3244
    High-Speed CMOS QuickSwitch 8-Bit Bus Switch    		 244 Switch PCG20, PGG20, PSG20 -40 to 85°C 8 5 5 Standard
    QS3245
    High-Speed CMOS QuickSwitch 8-Bit Bus Switch    		 245 Switch PCG20, PSG20 -40 to 85°C 8 5 5 Standard
    QS3251
    High-Speed CMOS QuickSwitch 8:1 Mux/Demux    		 8:1 Mux/Demux DCG16, PCG16 -40 to 85°C 8 5 5 Standard

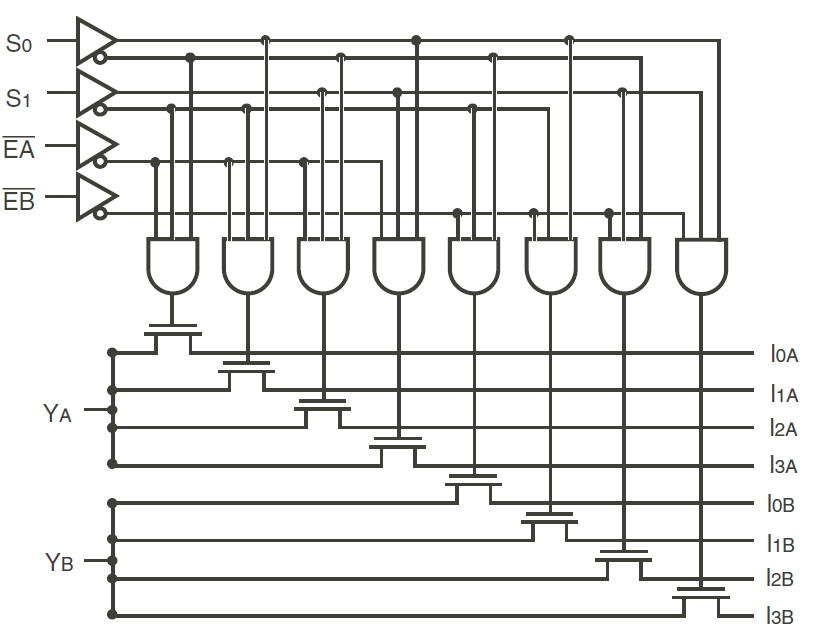

    QS3253
    High-Speed CMOS QuickSwitch Dual 4:1 Mux/Demux    		 2x4:1 Mux/Demux DCG16, PCG16 -40 to 85°C 8 5 5 Standard
    QS3257
    High-Speed CMOS QuickSwitch Quad 2:1 Mux/Demux    		 4x2:1 Mux/Demux DCG16, PCG16 -40 to 85°C 8 5 5 Standard
    QS3306A
    High-Speed CMOS Dual Bus Switch with IndiviDual Active Low Enables    		 Dual Bus Switch DCG8 -40 to 85°C 2 5 5 Standard
    QS3383
    10-Bit Bus Exchange Switch    		 Bus Switch/Exchange PCG24 -40 to 85°C 10 5 5 Standard
    QS3384
    High-Speed CMOS 10-Bit Bus Switch    		 Bus Switch PCG24, PGG24 -40 to 85°C 10 5 5 Standard
    QS3390
    High-Speed CMOS QuickSwitch 16:8 Multiplexer    		 16:8 Multiplexer PCG28 -40 to 85°C 16 5 5 Standard
    QS3861
    High-Speed CMOS 10-Bit Bus Switch with Flow-Thru Pinout    		 Bus Switch (Flow-through) PCG24, PGG24 -40 to 85°C 10 5 5 Standard

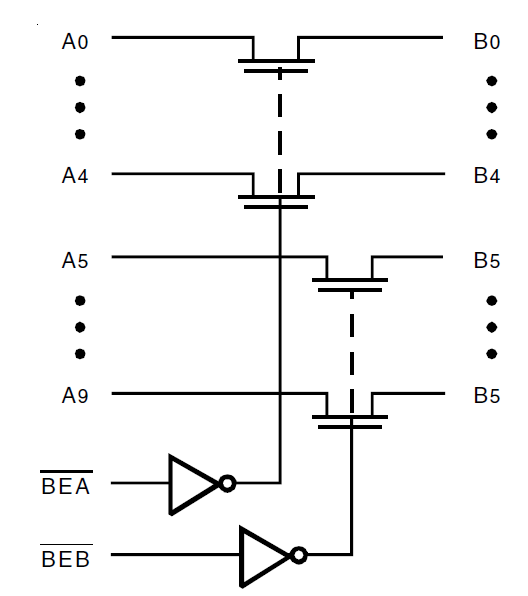

    QS3L384
    QuickSwitch High-Speed Low Power CMOS 10-Bit Bus Switch    		 Bus Switch PGG24 -40 to 85°C 10 5 5 Standard

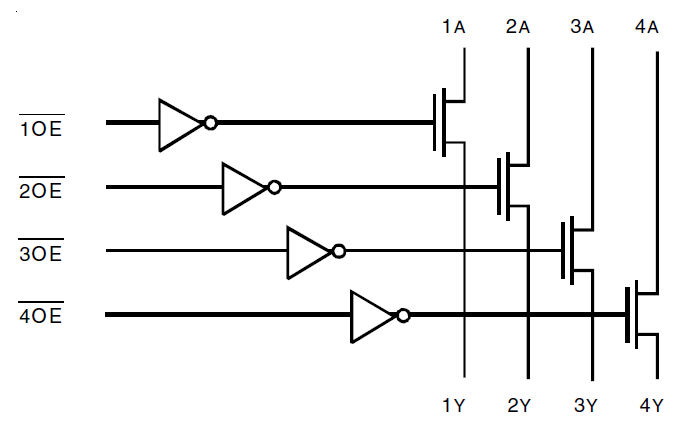

    QS3VH125
    QuickSwitch 3.3V Quad Active Low Switch for Hot Swap Applications    		 Bus Switch DCG14, PCG16 -40 to 85°C 4 3.3 5 Standard
    QS3VH126
    QuickSwitch Products 3.3V Quad Active High Switch for hot Swap Applications    		 Bus Switch PCG16 -40 to 85°C 4 3.3 5 Standard
    QS3VH16210
    2.5V / 3.3V 20-Bit, 2-Port High Bandwidth Bus Switch    		 2-Port Bus Switch PAG48 -40 to 85°C 20 3.3 5 Standard
    QS3VH16211
    2.5V / 3.3V 24-Bit High Bandwidth Bus Switch    		 Bus Switch PAG56 -40 to 85°C 24 3.3 5 Standard

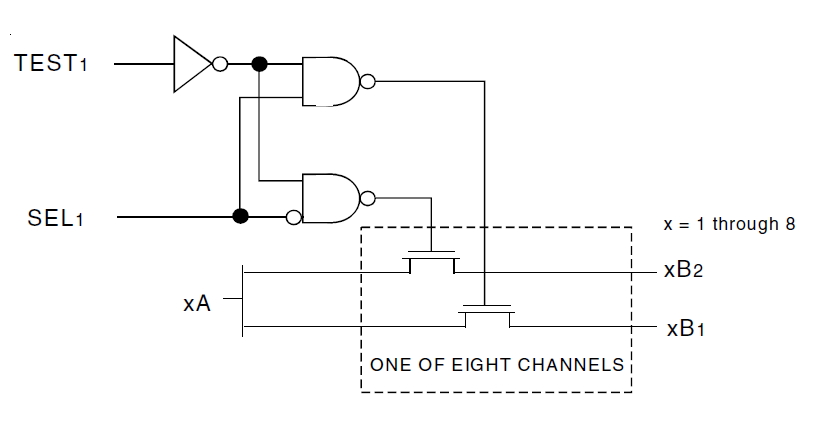

    QS3VH16233
    2.5V / 3.3V 32:16 Mux / Demux High Bandwidth Bus Switch    		 32:16 Mux/Demux PAG56 -40 to 85°C 32 3.3 5 Standard
    QS3VH16244
    2.5V / 3.3V 16-Bit High Bandwidth Bus Switch    		 Bus Switch PAG48 -40 to 85°C 16 3.3 5 Standard
    QS3VH16245
    2.5V / 3.3V 16-Bit High Bandwidth Bus Switch    		 Bus Switch PAG48 -40 to 85°C 16 3.3 5 Standard
    QS3VH16861
    2.5V/3.3V 20-Bit Flow-Through Pin Out, High Bandwidth Bus Switch    		 Bus Switch (Flow-through) PAG48 -40 to 85°C 20 3.3 5 Standard
    QS3VH244
    2.5V/3.3V 8-Bit High Bandwidth Bus Switch    		 244 Switch PCG20, PGG20 -40 to 85°C 8 3.3 5 Standard
    QS3VH245
    QuickSwitch Products 3.3V 8-Bit Bus Switch for Hot Swap Applications    		 245 Switch PCG20, PGG20, PSG20 -40 to 85°C 8 3.3 5 Standard
    QS3VH251
    2.5V/3.3V 8:1 Mux/Demux High Bandwidth Bus Switch    		 8:1 Mux/Demux PCG16, PGG16 -40 to 85°C 8 3.3 5 Standard

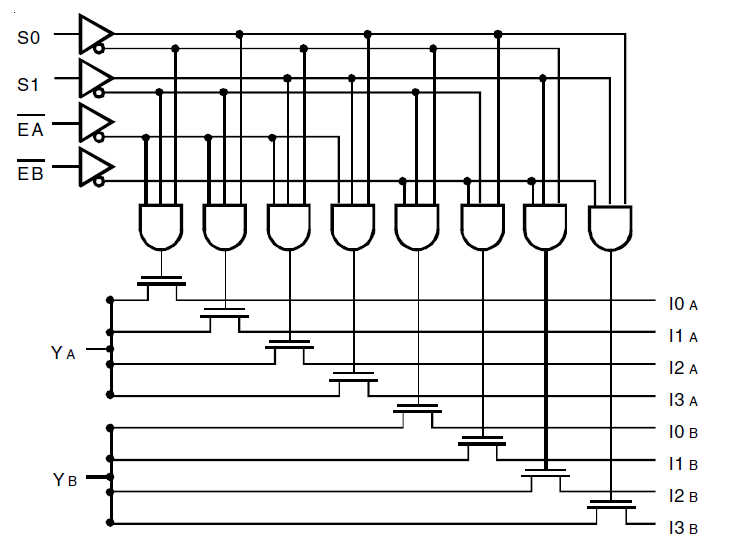

    QS3VH253
    2.5V/3.3V Dual 4:1 Mux/Demux High Bandwidth Bus Switch    		 2x4:1 Mux/Demux PCG16, PGG16 -40 to 85°C 8 3.3 5 Standard
    QS3VH257
    3.3V Quad 2:1 Mux/Demux for Hot Swap Applications    		 4x2:1 Mux/Demux DCG16, PCG16, PGG16 -40 to 85°C 8 3.3 5 Standard
    QS3VH2861
    2.5V/3.3V 10-Bit Flow-Through Pin Out, High Bandwidth Switch    		 Bus Switch w/Series Resister PCG24 -40 to 85°C 10 3.3 5 Standard
    QS3VH384
    2.5V/3.3V 10-Bit High Bandwidth Bus Switch    		 Bus Switch PCG24, PGG24 -40 to 85°C 10 3.3 5 Standard
    QS3VH861
    2.5V/3.3V 10-Bit Flow-Through Pin Out, High Bandwidth Switch for Hot Swap Applications (HotSwitch)    		 Bus Switch (Flow-through) PCG24 -40 to 85°C 10 3.3 5 Standard
    QS3VH862
    QuickSwitch Products 2.5V/3.3V 10-Bit High and Low Enable, High Bandwidth Bus Switch    		 Bus Switch w/Enable PCG24 -40 to 85°C 10 3.3 5 Standard
    QS4A105
    8-Channel Analog Switch    		 Analog Switch PCG20 -40 to 85°C 8 5 5 Standard
    QS4A205
    4-Channel 2:1 Analog Mux/Demux    		 Analog Mux/Demux PCG16 -40 to 85°C 8 5 5 Standard
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
