采用 Arm Cortex-M 内核的 RA 系列 32 位 MCU

提供有保障的安全、互联且智能的物联网

灵活的 Renesas Advanced (RA) 32 位 MCU 是采用 Arm® Cortex®-M33、-M23、-M4 和 -M85 处理器内核,并经过 PSA 认证的、行业领先的 32 位 MCU。RA 可提供更为强大的嵌入式安全功能、卓越的 CoreMark® 性能和超低的运行功率,相比竞争对手的 Arm Cortex-M MCU 具有重大优势。PSA 认证可为客户提供信心和保障,帮助其快速部署安全的物联网端点和边缘设备,以及适用于工业 4.0 的智能工厂设备。

图像
Renesas RA Family Partner Ecosystem

瑞萨电子 RA 系列的合作伙伴生态系统

瑞萨电子正在建立一个全面的合作伙伴生态系统,以提供一系列软件和硬件构建模块,这些软件与硬件构建块通过 RA MCU 开箱即用。瑞萨 RA 生态系统将有助于加速物联网应用的开发,包括保障、安全、连接、人机界面等核心技术。

图像
RA Flexible Software Package

灵活软件包 (FSP)

瑞萨电子 RA 灵活配置软件包 (FSP) 使用瑞萨电子 RA 系列的 Arm 微控制器 (MCU),提供快捷多样的方式来构建安全互联的物联网 (IoT) 设备。RA FSP 提供量产级的外围驱动器,以充分利用 RA FSP 生态系统。

图像

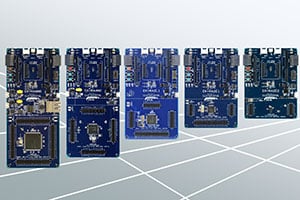

RA Kits

MCU Evaluation Kits

Effortlessly evaluate different features of RA MCUs while enjoying an unparalleled innovation experience. Shorten the learning curve and take your products to market faster.

按解决方案查找 RA MCU

瑞萨 RA MCU 基础知识

这本分步指南将向您介绍灵活配置软件包 (FSP) 和RA 开发工具的基础知识,并指导您使用 EK-RA6M4 评估套件从头开始创建项目。

产品长期供应计划 (PLP)

瑞萨电子产品长期供货计划 (PLP) 可帮助客户为需要长寿命周期的应用选择最合适的器件。参与计划的 RA 产品家族MCU,有效期最长可达 15 年。

图像
Renesas Product Longevity Program (PLP) 15 Years

瑞萨电子 RA 产品家族 MCU

SeriesGroups

RA8

Over 240MHz



RA8E2

480MHz Cortex-M85, 1MB Flash, TrustZone, USB‑FS, GLCDC, 2D Drawing Engine, OSPI, CAN FD



RA8D1

480MHz Cortex-M85, ~2MB Flash, GLCDC, MIPI-DSI, 2D Drawing Engine, USB‑HS, Ethernet, CAN FD, OSPI, Camera I/F, RSIP-E51A

RA8M1

480MHz Cortex-M85, 2MB Flash, USB‑HS, Ethernet, OSPI, CAN FD, RSIP-E51A

RA8E1

360MHz Cortex-M85, 1MB Flash, TrustZone, USB‑FS, Ethernet, OSPI, CAN FD, Camera I/F



RA8T1

480MHz Cortex-M85, ~2MB Flash, PWM, Ethernet, USB‑FS, CAN FD, RSIP-E51A

RA6

Up to 240MHz

RA6M3

120MHz Cortex-M4, ~2MB Flash, Ethernet, USB‑HS, CAN, Graphics, JPEG, TFT LCD, SCE7

RA6M5

200MHz Cortex-M33, ~2MB Flash, TrustZone, Ethernet, USB‑HS, CAN FD, OSPI, SCE9

RA6E2

200MHz Cortex-M33, ~256KB Flash, USB‑FS, CAN FD, I3C



RA6T3

200MHz Cortex-M33, 256KB Flash, PWM, PGA, CMP, TFU, CAN FD, USB‑FS

RA6M2

120MHz Cortex-M4, ~1MB Flash, Ethernet, USB‑FS, CAN, SCE7

RA6M4

200MHz Cortex-M33, ~1MB Flash, TrustZone, Ethernet, USB‑FS, CAN, OSPI, SCE9

RA6E1

200MHz Cortex-M33, ~1MB Flash, TrustZone, Ethernet, USB‑FS, CAN



RA6T2

240MHz Cortex-M33, 512KB Flash, PWM, PGA, Motor Accelerator, CAN FD, SCE5

RA6M1

120MHz Cortex-M4, 512KB Flash, USB‑FS, CAN, SCE7



RA6T1

120MHz Cortex-M4, ~512KB Flash, PWM, PGA, CMP, SCE7

RA4

Up to 100MHz



RA4M3

100MHz Cortex-M33, ~1MB Flash, TrustZone, USB‑FS, CAN, SCE9

RA4E2

100MHz Cortex-M33, 128KB Flash, USB‑FS, CAN FD, I3C



RA4W1

48MHz Cortex-M4, 512KB Flash, Bluetooth, USB‑FS, CAN, Segment LCD, CTSU Touch Sensing

RA4T1

100MHz Cortex-M33, ~256KB Flash, PWM, PGA, CMP, TFU, CAN FD

RA4M1

48MHz Cortex-M4, 256KB Flash, USB‑FS, CAN, Segment LCD, CTSU Touch Sensing, 14bit SAR ADC, SCE5

RA4M2

100MHz Cortex-M33, ~512KB Flash, TrustZone, USB‑FS, CAN, SCE9

RA4E1

100MHz Cortex-M33, ~512KB Flash, TrustZone, USB‑FS, CAN



RA2

Up to 60MHz



RA2E3

48MHz Cortex-M23, ~64KB Flash, 32‑48pin, 5V

RA2A2

48MHz Cortex-M23, 512KB Flash, 24bit SD-ADC, 12bit SAR ADC, Segment LCD, 5V




RA2L1

48MHz Cortex-M23, ~256KB Flash, CAN, CTSU2 Touch Sensing

RA2E2

48MHz Cortex-M23, ~64KB Flash, I3C, WLCSP, 125degC

RA2A1

48MHz Cortex-M23, 256KB Flash, USB‑FS, CAN, CTSU Touch Sensing, 24bit SD-ADC, 16bit SAR ADC




RA2E1

48MHz Cortex-M23, ~128KB Flash, CTSU Touch Sensing, WLCSP



RA0

Up to 32MHz



RA0E1

32MHz Cortex-M23, ~64KB Flash, 16‑32pin, 5V


 Mainstream Line / Low PowerEntry LineRich AnalogWirelessMotor Control

产品选择器: 采用 Arm Cortex-M 内核的 RA 系列 32 位 MCU

通过我们的参数化产品选择工具探索我们的产品目录。比较各种参数的规格,找到适合您设计的零件。

产品选择器
