电源管理

瑞萨电子的专有调制方案和算法可让高度集成型升降压控制器实现电池供电设备所需的高可靠性能。 我们的双向升降压控制器不需要额外的感测电路，可为客户提供强大的功能集，以保持电池健康和出色的电源利用率。

产品选型表

    Processing table
    PLP
    Topology [Rail 1]
    Outputs (#)
    Input Voltage (Min) (V)
    Input Voltage (Max) (V)
    Output Voltage (Min) (V)
    Output Voltage (Max) (V)
    IQ
    Switching Frequency Range (Typical) (kHz)
    Output Per Driver UGATE Source|Sink
    Output Per Driver LGATE Source|Sink
    SYNCH Capability
    Parallelable
    Bi-direction
    Control Type
    Temp. Range
    Lead Count (#)
    Pkg. Type
    Simulation Model Available
    器件号
    ISL81401
    40V Bidirectional 4- Switch Synchronous Buck-Boost Controller    		 N/A Buck-Boost 1 4.5 40 0.8 40 50 µA 600 2|3 2|3 是的 是的 是的 Current Mode -40 to 125°C 32 QFN
    ISL81401A
    40V Unidirectional 4-Switch Synchronous Buck-Boost Controller    		 2033 12月 Buck-Boost 1 4.5 40 0.8 40 50 µA 600 2|3 2|3 是的 否 否 Current Mode -40 to 125°C 32 QFN

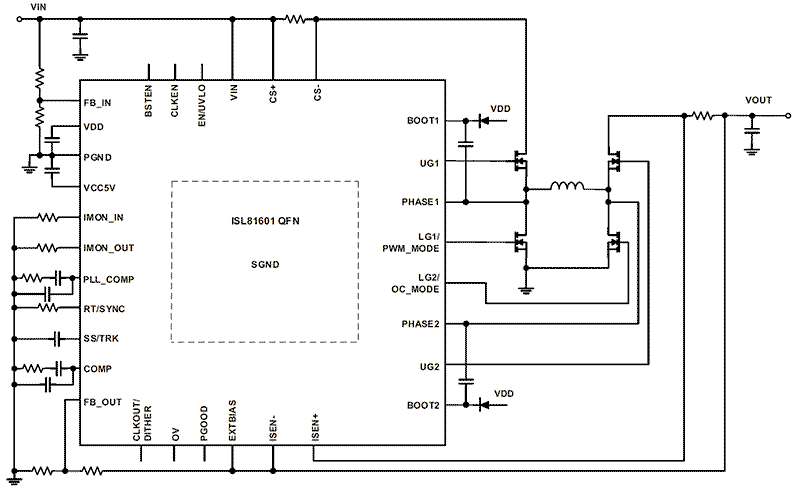

    ISL81601
    60V Bidirectional 4-Switch Synchronous Buck-Boost Controller    		 2033 12月 Buck-Boost 1 4.5 60 0.8 60 50 µA 600 2|3 2|3 是的 是的 是的 Current Mode -40 to 125°C 32, 38 QFN, TSSOP-EP iSim
    ISL81801
    80V 双向 4 开关同步降压-升压控制器    		 2033 12月 Buck-Boost 1 4.5 80 0.8 80 45 µA 600 2|3 2|3 是的 是的 是的 Current Mode -40 to 125°C 38, 32 TQFN, TSSOP-EP

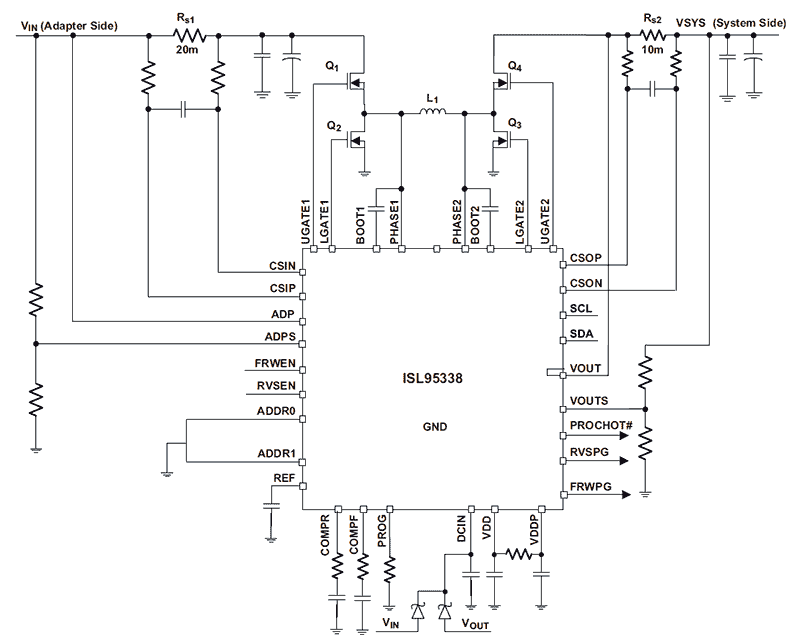

    ISL95338
    Bidirectional Buck-Boost Voltage Regulator    		 N/A Buck-Boost 1 3.8 24 2 24 130 µA (forward) 620 否 否 是的 R3 modulator 32 TQFN
    RAA489800
    Bidirectional Buck-Boost Voltage Regulator    		 N/A Buck-Boost 1 3.8 23 2 21 120 uA (forward) 620 - 1000 否 否 是的 Hysteretic Mode 32 TQFN
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    类型 文档标题 日期
    手册
    Industrial Power Management Brochure
    PDF 5.51 MB 日文
    白皮书
    使用真正的双向升降压控制器造就强大的备用电池系统实现高达99%的效率
    PDF 764 KB English(英语) , 日文
    白皮书
    双向DC/DC转换器的设计考虑因素
    PDF 820 KB English(英语) , 日文
    白皮书
    USB Power Delivery改变现有格局
    PDF 773 KB English(英语) , 日文
    白皮书
    解密USB-C升压-降压电池充电
    PDF 609 KB English(英语)
    白皮书
    Inside a New Architecture for USB Type-C Applications
    PDF 320 KB
    应用文档
    AN1681: Grounding Techniques
    PDF 509 KB
    应用文档
    AN1684: Nonideality of Ground
    PDF 397 KB
    8 items
    High-Performance 80V Buck-Boost and Dual-Phase Controllers

    A brief overview of the highest-performance 80V DC/DC controllers and why they are the best solutions for data center servers, 48V telecom and rugged industrial equipment designs that require extra voltage margin.

    Video List
    High-Performance 80V Buck-Boost and Dual-Phase Controllers
    High Voltage Buck Boost Controller
