Processing table

	PLP	Series Name	Main CPU	Operating Freq (Max) (MHz)	Bit Size	Sub CPU	RAM (KB)	DRAM I/F	3D GPU	Accelerator	PCI Express (generation and ch)	CAN (ch)	Ethernet	USB	I/O Ports	Pkg. Type	Lead Count (#)	Temp. Range	Data Flash (KB)	RTC	DMA	Timer	ADC	Human Machine Interface	Security & Encryption	Supply Voltage (V)	CPU	Price (USD) \| 1ku	Application	105°C Max. Case Temp.
(29) 推荐产品 (0) 衍生产品	最大值 The duration date of a product in the Product Longevity Program (PLP). 最小值 The duration date of a product in the Product Longevity Program (PLP).	RZ/A RZ/G RZ/N RZ/T RZ/V	Cortex-A7 Cortex-A7 x 2 Cortex-A9 x 1 Cortex-A53 x 2 Cortex-A55 x 1 Cortex-A55 x 1 + Cortex-M33 x 1 Cortex-A55 x 1 + Cortex-M33 x 2 Cortex-A55 x 2 Cortex-A55 x 2 + Cortex-M33 x 1 Cortex-A55 x 4 Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 Cortex-A57 x 2 + Cortex-A53 x 4 + Cortex-R7 x 1 Cortex-A57 x 2 + Cortex-R7 x 1 Cortex-A57 x 4 + Cortex-A53 x 4 + Cortex-R7 x 1 Cortex-M3 Cortex-R4F Cortex-R52 x 1 Cortex-R52 x 2 RISC-V (AX45MP Single)	最大值 Operating frequency range. 最小值 Operating frequency range.	最大值 Number of bits supported by the device. 最小值 Number of bits supported by the device.	- Cortex-M3 Cortex-M33 Cortex-R7 Cortex-R8 x 2, Cortex-M33 Cortex-R52 x 2 No	最大值 Random access memory size. 最小值 Random access memory size.	- DDR3L-1333 DDR3L-1856 (32-bit) DDR3L/OctaRAM DDR4-1600 DDR4-1600 (16-bit) HyperRAM (8-bit) LPDDR4-1600 (16-bit) LPDDR4-3200 LPDDR4-3200 (32-bit) LPDDR4-3200 (32-bit) x 2 LPDDR4X-3200 (32-bit) OctaRAM OctaRAM (8-bit) SDRAM SDRAM/OctaRAM/HyperRAM	- 2D Graphics Engine Arm Mali-G31 Mali-G31 No PowerVR GE7800 PowerVR GE8300 PowerVR GX6250 PowerVR GX6650	- DRP DRP-AI DRP-AI3 No R-IN Engine Video Codec	- No PCIe (Rev.2.0 1Lane) x 1 ch PCIe (Rev.2.0 1Lane) x 2 ch PCIe (Rev.2.0 2Lane) x 1 ch PCIe (Rev.3.0 4Lane) x 1 ch PCIe (Rev.3.1 2Lane) x 1 ch	最大值 Number of controller area netowork (CAN) interface channels. 最小值 Number of controller area netowork (CAN) interface channels.	10/100M/1G x 1 ch 10/100M/1G x 1/2 ch 10/100M/1G x 2 ch 10/100M/1G x 2ch 10/100M/1G x 3 ch 10/100M/1G x 4 ch 10/100M/1G x 5 ch 10/100M x 1 ch 10/100M x 2 ch	USB2.0 x 1 ch (1H/F/OTG) USB2.0 x 2 ch (1H. 1H/F) USB2.0 x 2 ch (1H. 1H/F/OTG) USB2.0 x 2 ch (1H. 1H/F/OTG) USB2.0 ×1 ch (H/F) USB2.0 ×2 ch (1H. 1H/F/OTG) USB2.0 × 2 ch (H/F) USB2.0 ×2 ch (H/F) USB2.0 ×2 ch (H/F/OTG) USB3.0 x 1 ch (DRD) USB3.0 x 1 ch (DRD) USB3.0 ×1 ch (DRD) USB3.1 Gen1 x 1 ch (H/F) USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG )	最大值 Number of input/output ports. 最小值 Number of input/output ports.	FBGA FC-BGA LFBGA LFQFP LQFP PBGA	最大值最小值	-40 to +110°C -40 to +125°C -40 to 85°C Ta = -40 to 85°C Tj= -40 to 103°C Tj = -40 to 125°C Tj= -40 to 125°C	最大值 Data Flash memory size. 最小值 Data Flash memory size.	否是	Yes	16-bit x 4-ch 16-bit x 5-ch 16-bit x 6-ch 16-bit x 8-ch 16-bit x 12-ch 16-bit x 24-ch 32-bit x 1-ch 32-bit x 2-ch 32-bit x 4-ch 32-bit x 8-ch 32-bit x 9-ch 32-bit x 11-ch 32-bit x 15-ch 32-bit x 16-ch 32-bit x 18-ch 32-bit x 32-ch 32-bit x 56-ch	- 0 12-bit x 2-ch 12-bit x 8-ch 12-bit x 12-ch 12-bit x 16-ch 12-bit x 20-ch 12-bit x 24-ch 12bit x 8-ch 12bit x 14-ch	- Display Function No Video In Video in	AES Arm TrustZone ECC GHASH Hash JTAG authentication No OTFD RSA RSAECC SHA-1 SHA-224 SHA-256 Secure boot Secure boot,AES,Hash,RSA,JTAG authentication,TRNG TRNG	最大值 Power supply voltage or voltage range of the device. 最小值 Power supply voltage or voltage range of the device.	Cortex-A7 x 1 + Cortex-M3 x 1 Cortex-A7 x 2 + Cortex-M3 x 1 Cortex-A9 x 1 Cortex-A53 x 2 Cortex-A55 x 1 Cortex-A55 x 1 + Cortex-M33 x 1 Cortex-A55 x 1 + Cortex-M33 x 2 Cortex-A55 x1 + Cortex-R52 x2 Cortex-A55 x 2 + Cortex-M33 x 1 Cortex-A55 x2 + Cortex-R52 x2 Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1 Cortex-A55 x4 + Cortex-R52 x2 Cortex-A57 x 2 + Cortex-A53 x 4 + Cortex-R7 x 1 Cortex-A57 x 2 + Cortex-R7 x 1 Cortex-A57 x 4 + Cortex-A53 x 4 + Cortex-R7 x 1 Cortex-M3 x 1 Cortex-R4F x 1 Cortex-R4F x 1 + Cortex-M3 x 1 Cortex-R52 x 1 Cortex-R52 x 2 RISC-V (AX45MP Single)	最大值 Price estimate for 1,000 units; pricing is subject to change. 最小值 Price estimate for 1,000 units; pricing is subject to change.	Motor Control
器件号	Logical Operator	Logical Operator	Logical Operator			Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator		Logical Operator		Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator		Logical Operator	Logical Operator
RZ/A1H PDF RTOS MPU with 10MB of On-chip RAM	2031 Mar	RZ/A	Cortex-A9 x 1	400	32	No	10240	SDRAM	No	No	No	5	10/100M x 1 ch	USB2.0 × 2 ch (H/F)	139, 171	FBGA, LFBGA, LQFP	256, 324	Ta = -40 to 85°C	0	是	Yes	16-bit x 5-ch, 32-bit x 2-ch	12-bit x 8-ch	Display Function	No	3 - 3.6	Cortex-A9 x 1	21.75
RZ/A1L PDF RTOS MPU with 3MB of On-chip RAM	2031 Mar	RZ/A	Cortex-A9 x 1	400	32	No	3072	SDRAM	No	No	No	2	10/100M x 1 ch	USB2.0 × 2 ch (H/F)	100, 122	LFBGA, LFQFP, LQFP	176, 208	Ta = -40 to 85°C	0	是	Yes	16-bit x 5-ch, 32-bit x 2-ch	12-bit x 8-ch	Display Function	No	3 - 3.6	Cortex-A9 x 1	9.962
RZ/A1LC PDF RTOS MPU with 2MB of On-chip RAM	N/A	RZ/A	Cortex-A9 x 1	400	32	No	2048	SDRAM	No	No	No	2	10/100M x 1 ch	USB2.0 × 2 ch (H/F)	100	LFBGA	176	Ta = -40 to 85°C	0	是	Yes	16-bit x 5-ch, 32-bit x 2-ch	12-bit x 8-ch	Display Function	No	3 - 3.6	Cortex-A9 x 1	7.378
RZ/A1LU PDF RTOS MPU with 3MB of On-chip RAM	N/A	RZ/A	Cortex-A9 x 1	400	32	No	3072	SDRAM	No	No	No	2	10/100M x 1 ch	USB2.0 × 2 ch (H/F)	100, 122	FBGA, LFBGA, LFQFP, LQFP	176, 208, 233	Ta = -40 to 85°C	0	是	Yes	16-bit x 5-ch, 32-bit x 2-ch	12-bit x 8-ch	Display Function	No	3 - 3.6	Cortex-A9 x 1	9.978
RZ/A1M PDF RTOS MPU with 5MB of On-chip RAM	2031 Mar	RZ/A	Cortex-A9 x 1	400	32	No	5120	SDRAM	No	No	No	5	10/100M x 1 ch	USB2.0 × 2 ch (H/F)	139, 171	FBGA, LFBGA, LQFP	256, 324	Ta = -40 to 85°C	0	是	Yes	16-bit x 5-ch, 32-bit x 2-ch	12-bit x 8-ch	Display Function	No	3 - 3.6	Cortex-A9 x 1	17.12
RZ/A2M PDF 带有动态可配置处理器 (DRP) 技术，基于嵌入式人工智能的高速图像处理的微处理器	2031 Mar	RZ/A	Cortex-A9 x 1	528	32	No	4096	SDRAM/OctaRAM/HyperRAM	No	DRP, No	No	2	10/100M x 2 ch	USB2.0 ×2 ch (H/F/OTG)	70, 115, 151	FBGA, LFBGA	176, 256, 272, 324	Ta = -40 to 85°C	0	是	Yes	16-bit x 5-ch, 16-bit x 8-ch, 32-bit x 8-ch, 32-bit x 9-ch, 32-bit x 11-ch	12-bit x 8-ch	Display Function	AES, Hash, No, RSA, Secure boot, TRNG	3 - 3.6	Cortex-A9 x 1	13.39
RZ/A3UL PDF 功能强大的 1GHz 64 位 MPU 在 RTOS 的支持下能够实现高清 HMI 和快速启动	2032 Oct	RZ/A	Cortex-A55 x 1	1000	64	No	128	DDR3L/OctaRAM, OctaRAM	No	No	No	2	10/100M/1G x 1/2 ch	USB2.0 x 2 ch (1H. 1H/F/OTG)	82	LFBGA	361	Ta = -40 to 85°C	0	否	Yes	16-bit x 8-ch	12-bit x 2-ch	Display Function	No	2.97 - 3.63	Cortex-A55 x 1	8.46
RZ/Five PDF 配备 RISC-V CPU 内核 (Andes AX45MP Single) (1.0 GHz) 和 2 个千兆以太网接口的通用微处理器	2033 May	RZ/G	RISC-V (AX45MP Single)	1000	64	No	128	DDR3L-1333, DDR4-1600 (16-bit)	No	No	No	2	10/100M/1G x 1 ch, 10/100M/1G x 1/2 ch	USB2.0 x 2 ch (1H. 1H/F/OTG)	65, 114	LFBGA	266, 361	-40 to 85°C	0	否	Yes	16-bit x 8-ch	12-bit x 2-ch	-	AES, ECC, Hash, No, RSA, Secure boot, TRNG	2.97 - 3.63	RISC-V (AX45MP Single)	8.012
RZ/G2E PDF Ultra-High Performance Microprocessors with Dual-Core Arm Cortex-A53 (1.2GHz) CPUs, with 3D Graphics and Video Codec Engine	N/A	RZ/G	Cortex-A53 x 2	1200	64	Cortex-R7	128	DDR3L-1856 (32-bit)	PowerVR GE8300	Video Codec	PCIe (Rev.2.0 1Lane) x 1 ch	0	10/100M x 1 ch	USB2.0 ×1 ch (H/F), USB3.0 ×1 ch (DRD)	132	FC-BGA	552	-40 to 85°C	0	否	Yes	16-bit x 4-ch, 32-bit x 15-ch	-	Display Function	AES, Arm TrustZone, Hash, RSA, Secure boot, TRNG	3 - 3.6	Cortex-A53 x 2	25.04
RZ/G2H PDF Ultra-High Performance Microprocessors with Quad-Core Arm Cortex-A57 and Quad-Core Arm Cortex-A53 CPUs, with 3D Graphics and 4K Video Encoder/Decoder	N/A	RZ/G	Cortex-A57 x 4 + Cortex-A53 x 4 + Cortex-R7 x 1	1500	64	Cortex-R7	384	LPDDR4-3200 (32-bit) x 2	PowerVR GX6650	Video Codec	PCIe (Rev.2.0 1Lane) x 2 ch	2	10/100M x 1 ch	USB2.0 ×2 ch (1H. 1H/F/OTG), USB3.0 ×1 ch (DRD)	156	FC-BGA	1022	-40 to 85°C	0	否	Yes	16-bit x 4-ch, 32-bit x 15-ch	-	Display Function	AES, Arm TrustZone, Hash, RSA, Secure boot, TRNG	3.1 - 3.5	Cortex-A57 x 4 + Cortex-A53 x 4 + Cortex-R7 x 1	141.59
RZ/G2L PDF 通用 MPU，配备双核 Arm Cortex-A55 CPU 和单核 Cortex-M33 CPU，具有 3D 图形和视频编解码器	2032 Jul	RZ/G	Cortex-A55 x 1 + Cortex-M33 x 1, Cortex-A55 x 2 + Cortex-M33 x 1	1200	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	No	2	10/100M/1G x 2 ch	USB2.0 ×2 ch (1H. 1H/F/OTG)	123	LFBGA	456, 551	-40 to 85°C	0	否	Yes	16-bit x 8-ch, 32-bit x 1-ch	12-bit x 8-ch	Display Function	AES, Arm TrustZone, ECC, Hash, No, RSA, Secure boot, TRNG	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1, Cortex-A55 x 2 + Cortex-M33 x 1	11.81

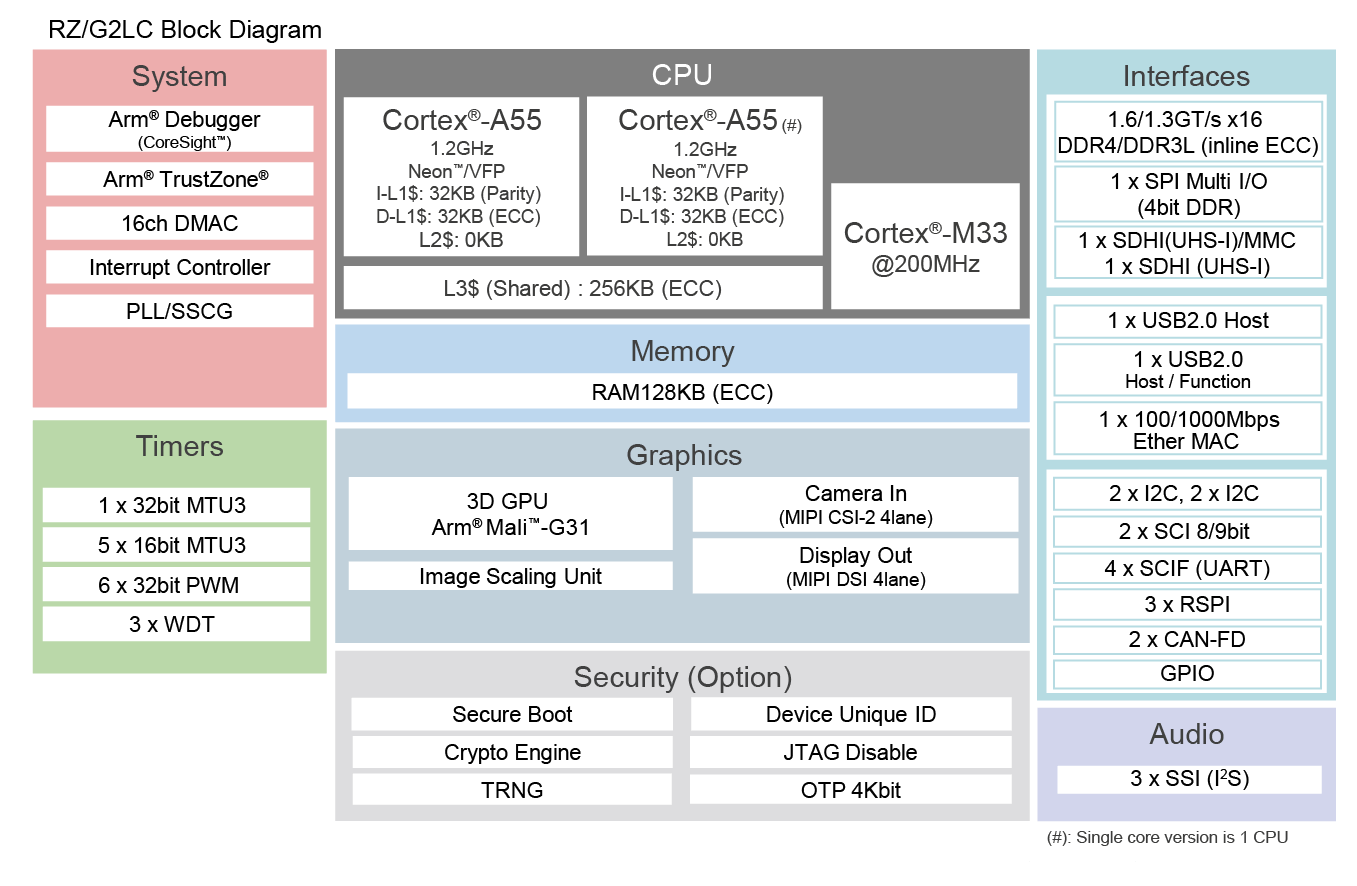

RZ/G2LC PDF 配备双核 Arm® Cortex®-A55 (1.2 GHz) CPU 和单核 Arm® Cortex®-M33 (200 MHz) CPU、3D 图形加速引擎的通用微处理器	2032 Jul	RZ/G	Cortex-A55 x 1 + Cortex-M33 x 1, Cortex-A55 x 2 + Cortex-M33 x 1	1200	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	No	No	2	10/100M/1G x 1 ch, 10/100M/1G x 2 ch	USB2.0 ×2 ch (1H. 1H/F/OTG)	57	LFBGA	361	-40 to 85°C	0	否	Yes	16-bit x 5-ch, 32-bit x 1-ch	-	Display Function	AES, Arm TrustZone, ECC, Hash, No, RSA, Secure boot, TRNG	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1, Cortex-A55 x 2 + Cortex-M33 x 1	10.64

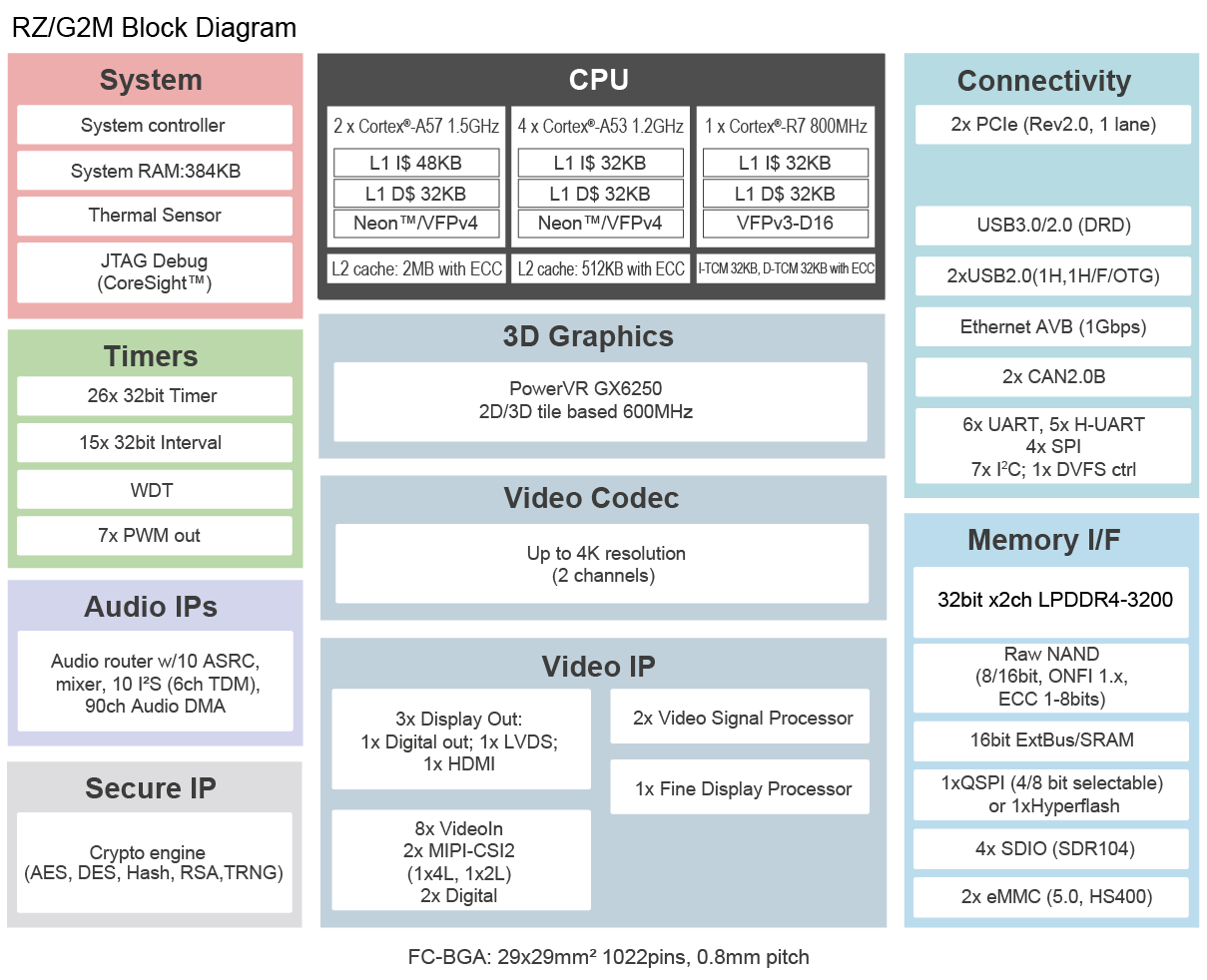

RZ/G2M PDF Ultra-High Performance Microprocessors with Arm Cortex-A57 and Arm Cortex-A53 CPUs, with 3D Graphics and 4K Video Encoder/Decoder	N/A	RZ/G	Cortex-A57 x 2 + Cortex-A53 x 4 + Cortex-R7 x 1	1500	64	Cortex-R7	384	LPDDR4-3200 (32-bit) x 2	PowerVR GX6250	Video Codec	PCIe (Rev.2.0 1Lane) x 2 ch	2	10/100M/1G x 1 ch	USB2.0 x 2 ch (1H. 1H/F/OTG), USB3.0 x 1 ch (DRD)	156	FC-BGA	1022	-40 to 85°C	0	否	Yes	16-bit x 4-ch, 32-bit x 15-ch	-	Display Function	AES, Arm TrustZone, Hash, RSA, Secure boot, TRNG	3.1 - 3.5	Cortex-A57 x 2 + Cortex-A53 x 4 + Cortex-R7 x 1	62.55

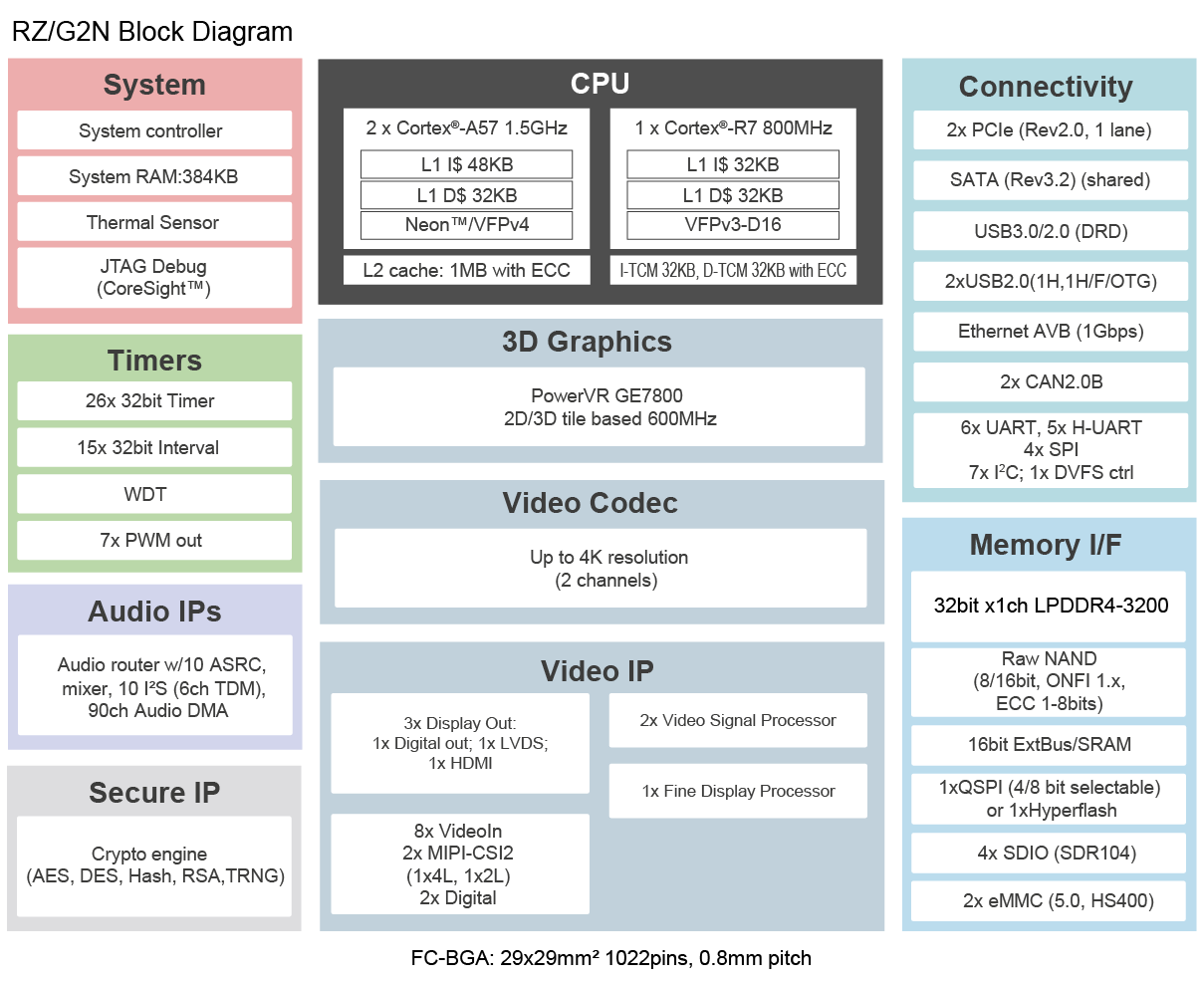

RZ/G2N PDF Ultra-High Performance Microprocessors with Dual-Core Arm Cortex-A57 (1.5GHz) CPUs, with 3D Graphics and 4K Video Encoder/Decoder	N/A	RZ/G	Cortex-A57 x 2 + Cortex-R7 x 1	1500	64	Cortex-R7	384	LPDDR4-3200 (32-bit)	PowerVR GE7800	Video Codec	PCIe (Rev.2.0 1Lane) x 2 ch	2	10/100M/1G x 1 ch	USB2.0 x 2 ch (1H. 1H/F/OTG), USB3.0 x 1 ch (DRD)	156	FC-BGA	1022	-40 to 85°C	0	否	Yes	16-bit x 4-ch, 32-bit x 15-ch	-	Display Function	AES, Arm TrustZone, Hash, RSA, Secure boot, TRNG	3.1 - 3.5	Cortex-A57 x 2 + Cortex-R7 x 1	48.46

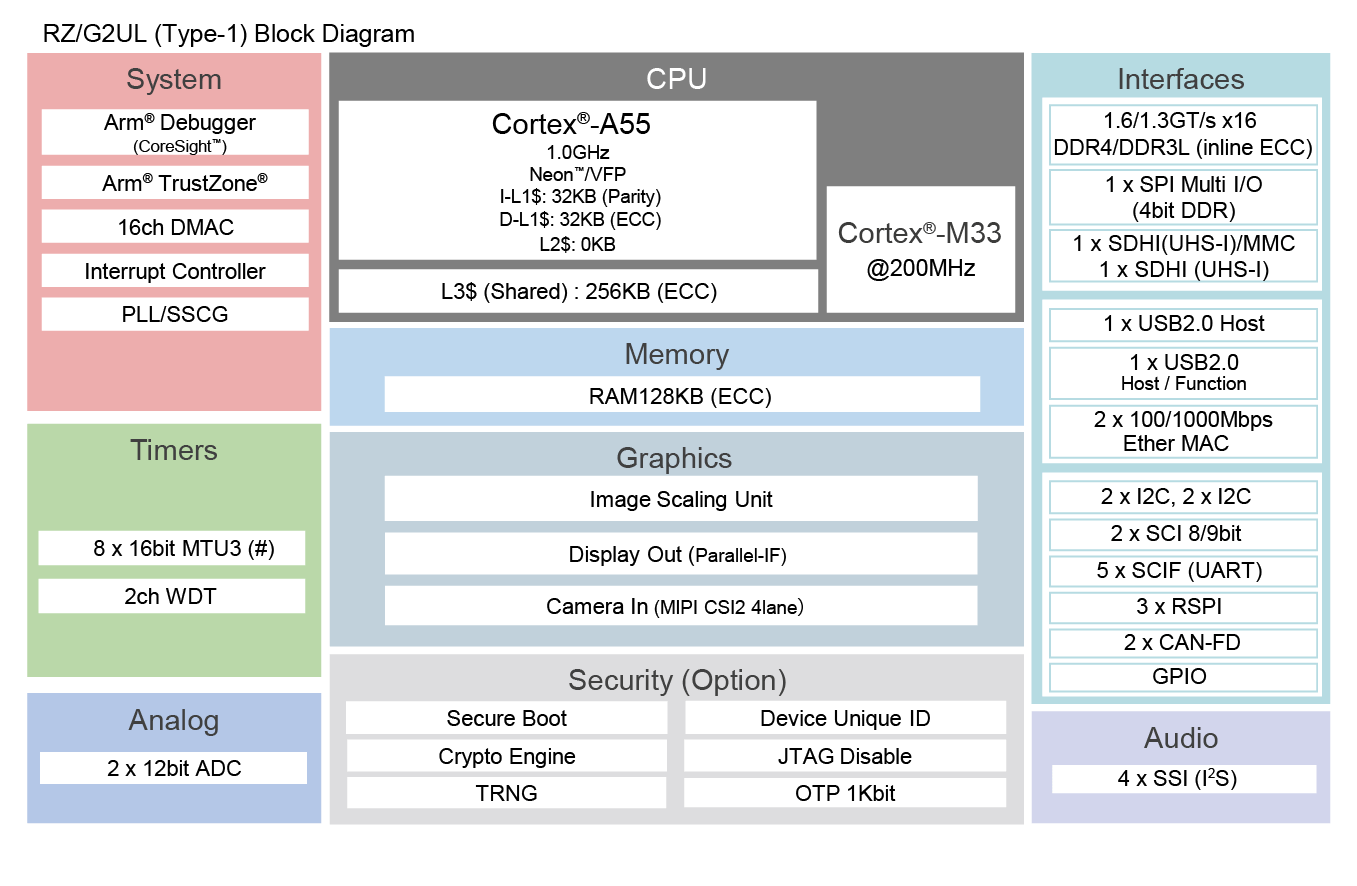

RZ/G2UL PDF 通用型微处理器，配备单核 Arm Cortex-A55（1.0GHz）CPU 和单核 Arm Cortex-M33（200MHz）CPU，带双通道千兆以太网	2032 Oct	RZ/G	Cortex-A55 x 1 + Cortex-M33 x 1	1000	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	No	No	No	2	10/100M/1G x 1 ch, 10/100M/1G x 2 ch	USB2.0 x 2 ch (1H. 1H/F/OTG)	57, 82	LFBGA	361	-40 to 85°C	0	否	Yes	16-bit x 5-ch, 16-bit x 8-ch	-, 12-bit x 2-ch	-, Display Function	AES, Arm TrustZone, ECC, Hash, No, RSA, Secure boot, TRNG	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1	8.761

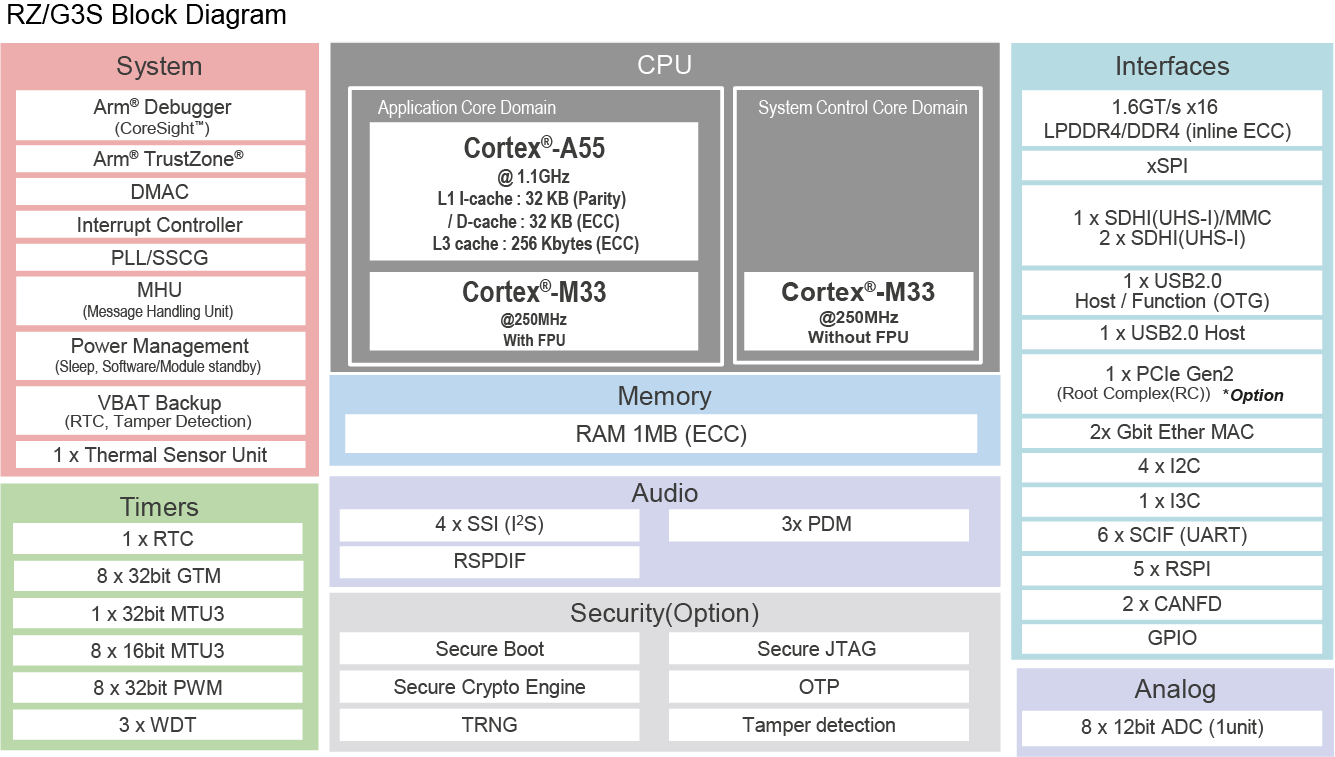

RZ/G3S PDF 通用微处理器，采用单核 Arm Cortex-A55 (1.1 GHz) CPU 和双核 Cortex-M33 (250 MHz) CPU，支持低功耗模式和 PCI Express	N/A	RZ/G	Cortex-A55 x 1 + Cortex-M33 x 1, Cortex-A55 x 1 + Cortex-M33 x 2	1100	64	Cortex-M33	1024	DDR4-1600, LPDDR4-1600 (16-bit)	No	No	No, PCIe (Rev.2.0 1Lane) x 1 ch	2	10/100M/1G x 2 ch	USB2.0 ×2 ch (1H. 1H/F/OTG)	82	PBGA	359, 361	Ta = -40 to 85°C	0	是	Yes	16-bit x 8-ch, 32-bit x 1-ch	12-bit x 8-ch	-	AES, Arm TrustZone, ECC, Hash, No, RSA, Secure boot, TRNG	3 - 3.6	Cortex-A55 x 1 + Cortex-M33 x 1, Cortex-A55 x 1 + Cortex-M33 x 2	12

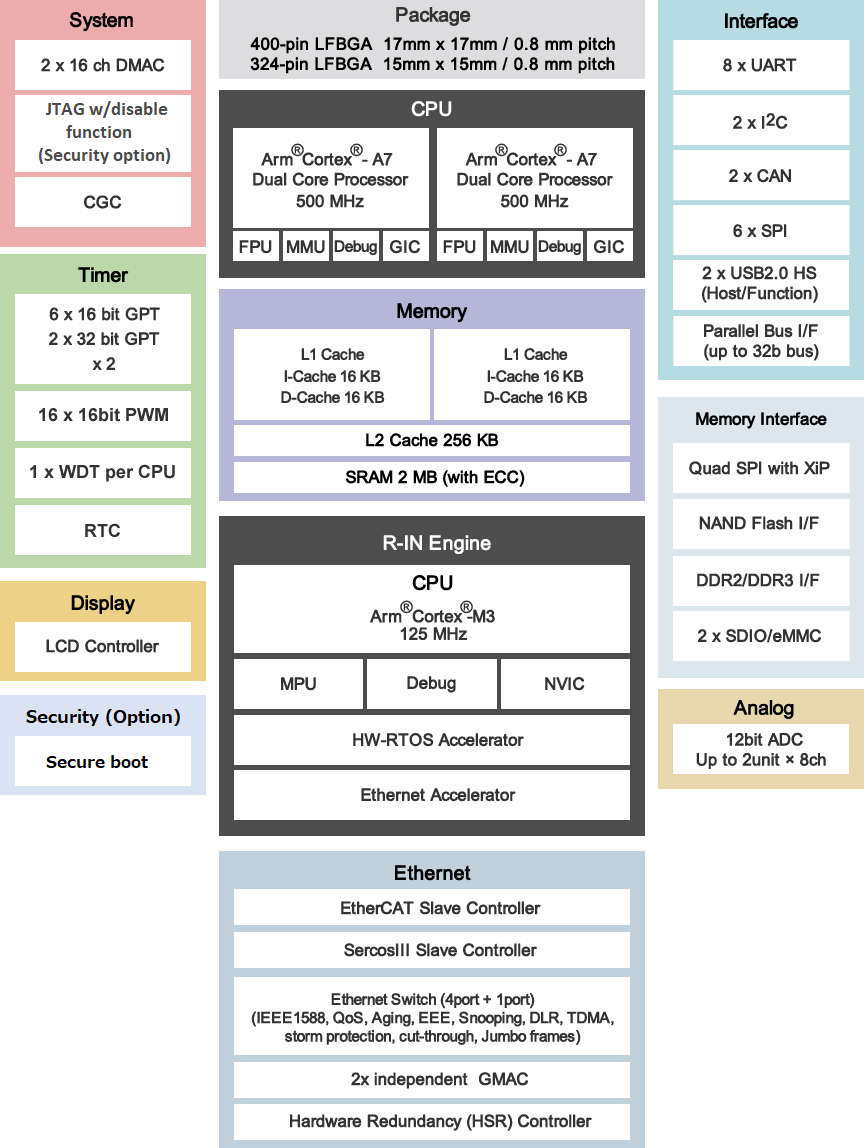

RZ/N1D PDF Microprocessors Featuring 5 Ethernet Ports and Latest Redundancy Protocol for Industrial Network Master Devices	2030 May	RZ/N	Cortex-A7 x 2	500	32	Cortex-M3	2048	-	-	R-IN Engine	-	2	10/100M/1G x 5 ch	USB2.0 x 2 ch (1H. 1H/F)	132, 170	LFBGA	324, 400	-40 to +110°C	0	否	Yes	16-bit x 12-ch, 32-bit x 4-ch	12-bit x 8-ch, 12-bit x 16-ch	Display Function	No	3 - 3.6	Cortex-A7 x 2 + Cortex-M3 x 1	18.75
RZ/N1L PDF Microprocessors with Dedicated Protocol H/W (EtherCAT/Sercos III) + R-IN Engine Covering Major Industrial Protocols	2030 May	RZ/N	Cortex-M3	125	32	Cortex-M3	6144	-	-	R-IN Engine	-	2	10/100M/1G x 3 ch	USB2.0 x 2 ch (1H. 1H/F)	95	LFBGA	196	-40 to +110°C	0	否	Yes	16-bit x 12-ch, 32-bit x 4-ch	12-bit x 8-ch	-	No	3 - 3.6	Cortex-M3 x 1
RZ/N1S PDF Microprocessors Optimized for Small PLC and HMI; Reduces Peripheral Components and Adaptable for Gateway, Sensor Hub	2030 May	RZ/N	Cortex-A7	500	32	Cortex-M3	6144	-	-	R-IN Engine	-	2	10/100M/1G x 5 ch	USB2.0 x 2 ch (1H. 1H/F)	95, 160	LFBGA	196, 324	-40 to +110°C	0	否	Yes	16-bit x 12-ch, 32-bit x 4-ch	12-bit x 8-ch	Display Function	No	3 - 3.6	Cortex-A7 x 1 + Cortex-M3 x 1	17.5

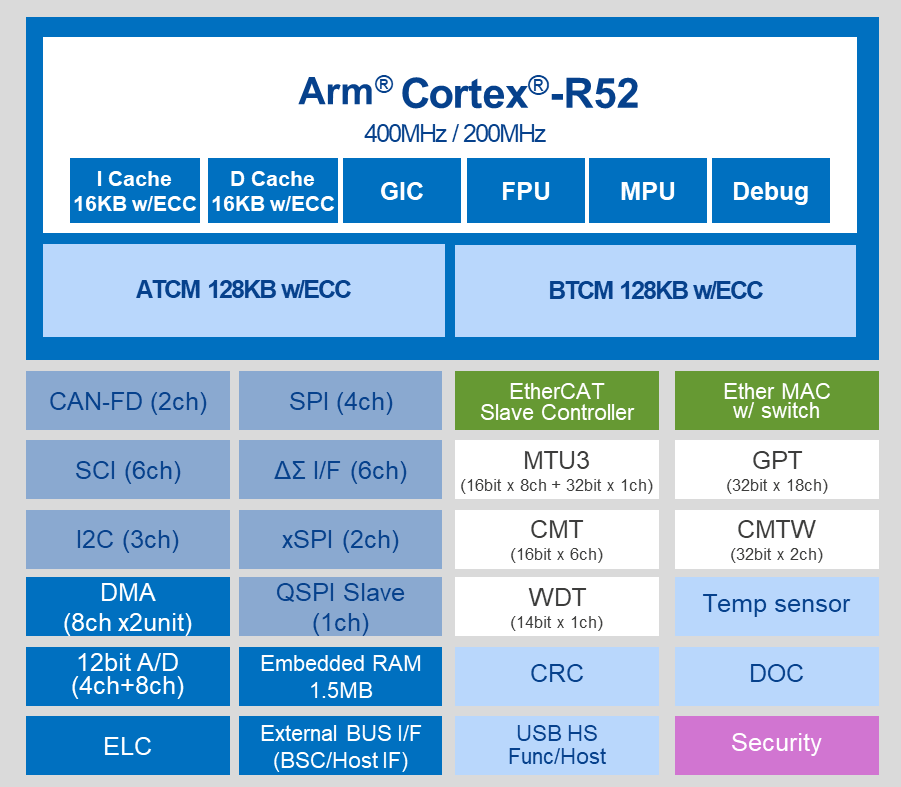

RZ/N2L PDF 集成TSN三端口千兆以太网交换机, 能够在各种工业应用中轻松实现工业以太网和TSN	2032 Oct	RZ/N	Cortex-R52 x 1	400	32	-	1536	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 2 ch, 10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	71, 135	LFBGA	121, 225	-40 to +125°C	0	是	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 12-ch	-	No	3.135 - 3.465	Cortex-R52 x 1	9.525
RZ/T1 PDF 一个芯片实现工业设备实时控制和联网的微处理器	2032 Dec	RZ/T	Cortex-R4F	300, 450, 600	32	-, Cortex-M3	544, 1568	-	-	-, R-IN Engine	-	2	10/100M x 2 ch	USB2.0 ×2 ch (H/F)	209	FBGA	320	-40 to +125°C	0	否	Yes	16-bit x 24-ch, 32-bit x 1-ch	12-bit x 8-ch, 12-bit x 24-ch	-	No	3 - 3.6	Cortex-R4F x 1, Cortex-R4F x 1 + Cortex-M3 x 1	15.5	Motor Control
RZ/T2H PDF 先进的高端 MPU，集成了强大的应用处理功能和高精度实时控制性能，高达 9 轴电机控制	N/A	RZ/T	Cortex-A55 x 1, Cortex-A55 x 2, Cortex-A55 x 4	1200	64	Cortex-R52 x 2	2048	LPDDR4-3200 (32-bit)	-	-	PCIe (Rev.3.1 2Lane) x 1 ch	2	10/100M/1G x 4 ch	USB2.0 x 1 ch (1H/F/OTG)	287	FBGA	729	Tj = -40 to 125°C	0	是	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 1-ch, 32-bit x 2-ch, 32-bit x 56-ch	12bit x 14-ch	Display Function	No, Secure boot,AES,Hash,RSA,JTAG authentication,TRNG	3.135 - 3.465	Cortex-A55 x1 + Cortex-R52 x2, Cortex-A55 x2 + Cortex-R52 x2 and more...	52.42	Motor Control
RZ/T2L PDF 通过 EtherCAT 实现高速、高精度实时控制的高性能 MPU	2033 Sep	RZ/T	Cortex-R52 x 1	800	32		1024	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-			2	10/100M/1G x 1 ch	USB2.0 x 1 ch (1H/F/OTG)	111	LFBGA	196	-40 to +125°C	0	是	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 8-ch		No	3.135 - 3.465	Cortex-R52 x 1	12.06	Motor Control
RZ/T2M PDF 高性能、多功能 MPU 可实现工业 AC Servo 和控制器的高速处理和高精度控制	2032 Aug	RZ/T	Cortex-R52 x 1, Cortex-R52 x 2	800	32	-	1536, 2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	2	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	71, 119, 135, 194	LFBGA, LFQFP	128, 176, 225, 320	-40 to +125°C	0	否	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 8-ch, 12-bit x 12-ch, 12-bit x 24-ch	-	No	3.135 - 3.465	Cortex-R52 x 1, Cortex-R52 x 2	14.51	Motor Control
RZ/T2ME PDF 高性能和优化的实时响应MPU，具有 OTFD 和安全功能，适用于工业设备	N/A	RZ/T	Cortex-R52 x 2	800	32	-	2048	HyperRAM (8-bit), OctaRAM (8-bit), SDRAM	-	-	-	0	10/100M/1G x 3 ch	USB2.0 x 1 ch (1H/F/OTG)	135, 194	LFBGA	225, 320	-40 to +125°C	0	否	Yes	16-bit x 6-ch, 16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 18-ch	12-bit x 12-ch, 12-bit x 24-ch	-	AES, Hash, JTAG authentication, OTFD, RSA, Secure boot, TRNG	3.135 - 3.465	Cortex-R52 x 2
RZ/V2H PDF 四核视觉 AI MPU，采用 DRP-AI3 加速器和高性能实时处理器	N/A	RZ/V	Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1	1800	64	Cortex-R8 x 2, Cortex-M33	6144	LPDDR4-3200, LPDDR4X-3200 (32-bit)	-, Mali-G31, No	DRP-AI3	PCIe (Rev.3.0 4Lane) x 1 ch	0	10/100M/1G x 2ch	USB3.2 Gen2x1 x 2 ch (2H) USB2.0 x 2 ch(1H. 1H/F/OTG )	86	FC-BGA	1368	Tj= -40 to 125°C	0	是	Yes	32-bit x 8-ch, 32-bit x 16-ch	12bit x 8-ch	Display Function, Video in	AES, GHASH, No, RSAECC, SHA-1, SHA-224, SHA-256, TRNG	3.135 - 3.465	Cortex-A55 x 4 + Cortex-R8 x 2 + Cortex-M33 x 1	70.19

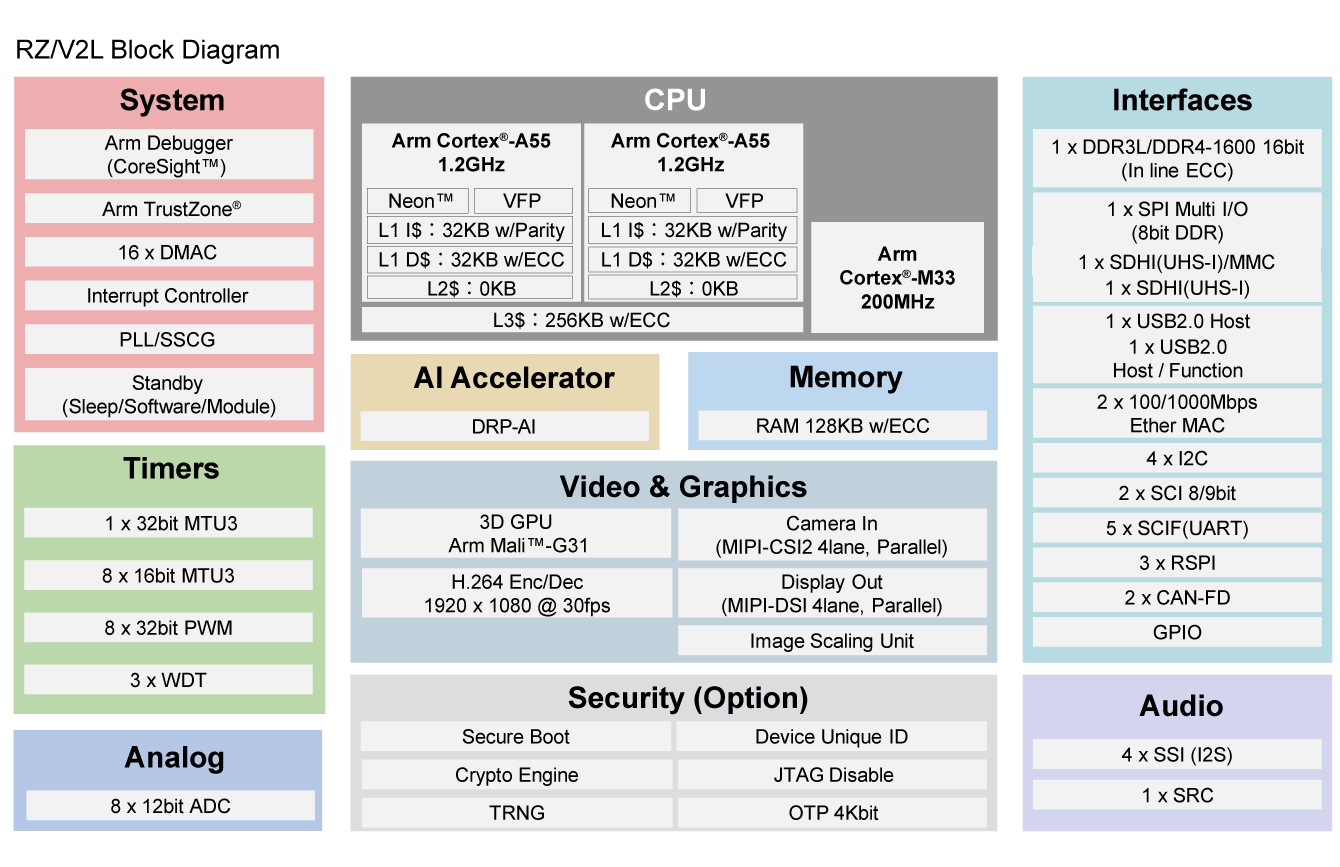

RZ/V2L PDF 配备瑞萨电子独创的 AI 加速器“DRP-AI”、1.2GHz 双核 Arm Cortex-A55 CPU、3D 图形和视频编解码器引擎的通用微处理器	2032 Jul	RZ/V	Cortex-A55 x 1 + Cortex-M33 x 1, Cortex-A55 x 2 + Cortex-M33 x 1	1200	64	Cortex-M33	128	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	DRP-AI	No	0	10/100M/1G x 2 ch	USB2.0 x 2 ch (1H. 1H/F/OTG)	123	LFBGA	456, 551	Tj= -40 to 125°C	0	否	Yes	16-bit x 8-ch, 32-bit x 2-ch, 32-bit x 8-ch	12-bit x 8-ch	Display Function, Video In	No	2.97 - 3.63	Cortex-A55 x 1 + Cortex-M33 x 1, Cortex-A55 x 2 + Cortex-M33 x 1	17.96
RZ/V2M PDF 人工智能加速器（DRP-AI），4K兼容的图像信号处理器（ISP），用于实时人类和物体识别的视觉-AI ASSP	N/A	RZ/V	Cortex-A53 x 2	996	64	No	1200	LPDDR4-3200 (32-bit)	2D Graphics Engine	DRP-AI	PCIe (Rev.2.0 2Lane) x 1 ch	0	10/100M/1G x 1 ch	USB3.1 Gen1 x 1 ch (H/F)	177	FC-BGA	841	Tj= -40 to 103°C	0	否	Yes	32-bit x 32-ch	12-bit x 20-ch	Display Function	No	3.135 - 3.465	Cortex-A53 x 2	45.82
RZ/V2MA PDF Vision AI MPU With Renesas DRP-AI High-efficiency AI Accelerator and OpenCV Image Processing Accelerator Enabling Real-time Object Recognition	N/A	RZ/V	Cortex-A53 x 2	996	64	No	1200	LPDDR4-3200 (32-bit)	No	DRP-AI	PCIe (Rev.2.0 2Lane) x 1 ch	0	10/100M/1G x 1 ch	USB3.1 Gen1 x 1 ch (H/F)	177	FC-BGA	841	Tj= -40 to 103°C	0	否	Yes	32-bit x 32-ch	0	No	No	3.135 - 3.465	Cortex-A53 x 2

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product
