Processing table

	PLP	Carrier Type	CPU	Operating Freq (Max) (MHz)	Program Memory (KB)	Data Flash (KB)	RAM (KB)	ECC SRAM	Lead Count (#)	Pkg. Type	Pkg. Dimensions (mm)	Pitch (mm)	I/O Ports	Supply Voltage (V)	Temp. Range	External Memory Bus (bit)	Floating Point Unit	DMAC or DTC	External Interrupt Pins (#)	USB FS (host ch/device ch)	USB HS (host ch/device ch)	Ethernet (ch)	CAN (ch)	CAN-FD (ch)	SCI or UART (ch)	SPI (ch)	I2C (#)	I3C (ch)	LIN (#)	SSI (ch)	QSPI Interface (#)	OSPI (ch)	SDHI (ch)	Capacitive Touch Sensing Unit (ch)	Graphics LCD Controller	Camera I/F (Parallel)	Segment LCD Controller	Wireless	IrDA	PWM Output (pin#)	32-Bit Timer (ch)	16-bit High Res Timer (ch)	16-bit Enhanced Timer (ch)	16-Bit Timer (ch) (#)	8-Bit Timer (ch)	Asynchronous General Purpose Timer (ch)	Watchdog Timer (ch)	24-Bit Sigma-Delta A/D Converter (ch)	16-Bit A/D Converter (ch)	14-Bit A/D Converter (ch)	12-Bit A/D Converter (ch)	10-Bit A/D Converter (ch)	12-Bit D/A Converter (ch)	8-Bit D/A Converter (ch)	High-Speed Analog Comparator (ch)	Low-Power Analog Comparator (ch)	PGA (ch)	OPAMP (ch) (#)	Temperature Sensor (ch) (#)	RTC	LVD or PVD	Security & Encryption	Power-On Reset	Sub-clock (32.768 kHz)	On-chip Oscillator	Debug Interface	Replacement Product	Replacement Remark	Price (USD) \| 1ku	Application	105°C Max. Case Temp.
(29) 推荐产品 (0) 衍生产品	最大值 The duration date of a product in the Product Longevity Program (PLP). 最小值 The duration date of a product in the Product Longevity Program (PLP).	Bulk (Tray) Full Carton (Tray) Full Tray (Tray) Magazine Tape & Reel	Arm Cortex-M4 Arm Cortex-M23 Arm Cortex-M33 Arm Cortex-M85	32 48 100 120 200 240 360 400 480	16 32 64 128 256 384 512 768 1024 1536 2048	最大值 Data Flash memory size. 最小值 Data Flash memory size.	最大值 Random access memory size. 最小值 Random access memory size.	否是	16 20 24 25 32 36 40 48 56 64 80 100 144 145 176 224	BGA HWQFN LFQFP LQFP LSSOP QFN TFLGA VFBGA WFLGA WLCSP	2 x 2 x 0.5 2 x 2 x 0.55 3 x 3 x 0.8 4 x 4 x 0.8 4 x 4 x 0.76 4 x 4 x 0.99 4 x 4 x 1.29 5 x 5 x 0.8 5 x 5 x 1.4 5 x 5 x 1.29 6 x 4 x 1.45 6 x 6 x 0.8 6 x 6 x 1.38 7 x 7 x 0.8 7 x 7 x 0.9 7 x 7 x 1.05 7 x 7 x 1.7 7 x 7 x 1.29 8 x 8 x 0.8 10 x 10 x 1.7 12 x 12 x 1.7 13 x 13 x 1.4 13 x 13 x 1.47 14 x 14 x 1.4 14 x 14 x 1.7 20 x 20 x 1.7 24 x 24 x 1.4 24 x 24 x 1.7	0.4 0.5 0.8 0.65	12 13 16 17 20 21 22 25 26 28 29 30 33 34 35 36 37 40 42 43 44 45 46 49 51 52 53 56 59 69 70 71 76 77 78 84 85 106 110 119 128 133 165 174	1.6 - 5.5 1.8 - 3.6 1.68 - 3.6 2.7 - 3.6	Ta = -40 to 85°C Ta = -40 to 105°C Ta = -40 to 125°C Tj = -40 to 105°C Tj = -40 to 125°C	8 8,16 8,16,32 No	Double/Single/Half No Single	DMAC&DTC DTC	最大值最小值	( 0 / 0 ) ( 0 / 1 ) ( 1 / 1 )	( 0 / 0 ) ( 1 / 1 )	最大值最小值	最大值 Number of controller area netowork (CAN) interface channels. 最小值 Number of controller area netowork (CAN) interface channels.	最大值最小值	最大值最小值	最大值最小值	最大值 Number of I2C channels. 最小值 Number of I2C channels.	最大值最小值	最大值 Number of local interconnect network (LIN) channels. 最小值 Number of local interconnect network (LIN) channels.	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	No RGB888	8-bit 16-bit No	No Yes	Bluetooth 5.0 No	否是	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	否是	是	AES Arm TrustZone DOTF DSA ECC MAC RSA SHA224/SHA256 SHA384/SHA512 SPA/DPA Protection Secure Boot TRNG Tamper Detection Unique ID	是	否是	是	JTAG/SWD SWD	R7FA2A1AB3CFJ#BA0 R7FA2A1AB3CFM#BA0 R7FA2E1A52DFJ#BA0 R7FA2E1A52DFL#BA0 R7FA2E1A52DNE#BA0 R7FA2E1A52DNH#BA0 R7FA2E1A53CFJ#BA0 R7FA2E1A53CFL#BA0 R7FA2E1A53CNE#BA0 R7FA2E1A53CNH#BA0 R7FA2E1A72DFJ#BA0 R7FA2E1A72DFK#BA0 R7FA2E1A72DFL#BA0 R7FA2E1A72DFM#BA0 R7FA2E1A72DNE#BA0 R7FA2E1A72DNH#BA0 R7FA2E1A73CFJ#BA0 R7FA2E1A73CFK#BA0 R7FA2E1A73CFL#BA0 R7FA2E1A73CFM#BA0 R7FA2E1A73CNE#BA0 R7FA2E1A73CNH#BA0 R7FA2E1A92DFJ#BA0 R7FA2E1A92DFK#BA0 R7FA2E1A92DFL#BA0 R7FA2E1A92DFM#BA0 R7FA2E1A92DNE#BA0 R7FA2E1A92DNH#BA0 R7FA2E1A93CFJ#BA0 R7FA2E1A93CFK#BA0 R7FA2E1A93CFL#BA0 R7FA2E1A93CFM#BA0 R7FA2E1A93CNE#BA0 R7FA2E1A93CNH#BA0 R7FA2E2A32DNJ#BA1 R7FA2E2A32DNK#BA1 R7FA2E2A33CNJ#BA1 R7FA2E2A33CNK#BA1 R7FA2E2A34CNJ#BA1 R7FA2E2A34CNK#BA1 R7FA2E2A52DNJ#BA1 R7FA2E2A52DNK#BA1 R7FA2E2A53CNJ#BA1 R7FA2E2A53CNK#BA1 R7FA2E2A54CNJ#BA1 R7FA2E2A54CNK#BA1 R7FA2E2A72DNJ#BA1 R7FA2E2A72DNK#BA1 R7FA2E2A73CNJ#BA1 R7FA2E2A73CNK#BA1 R7FA2E2A74CNJ#BA1 R7FA2E2A74CNK#BA1 R7FA2E3052DFJ#BA0 R7FA2E3052DFL#BA0 R7FA2E3052DNE#BA0 R7FA2E3052DNH#BA0 R7FA2E3053CFJ#BA0 R7FA2E3053CFL#BA0 R7FA2E3053CNE#BA0 R7FA2E3053CNH#BA0 R7FA2E3072DFJ#BA0 R7FA2E3072DFL#BA0 R7FA2E3072DNE#BA0 R7FA2E3072DNH#BA0 R7FA2E3073CFJ#BA0 R7FA2E3073CNE#BA0 R7FA2E3073CNH#BA0 R7FA2L1A92DFL#BA0 R7FA2L1A92DFM#BA0 R7FA2L1A92DFN#BA0 R7FA2L1A92DFP#BA0 R7FA2L1A92DNE#BA0 R7FA2L1A93CFL#BA0 R7FA2L1A93CFM#BA0 R7FA2L1A93CFN#BA0 R7FA2L1A93CFP#BA0 R7FA2L1A93CNE#BA0 R7FA2L1AB2DFL#BA0 R7FA2L1AB2DFM#BA0 R7FA2L1AB2DFN#BA0 R7FA2L1AB2DFP#BA0 R7FA2L1AB2DNE#BA0 R7FA2L1AB3CFL#BA0 R7FA2L1AB3CFM#BA0 R7FA2L1AB3CFN#BA0 R7FA2L1AB3CFP#BA0 R7FA2L1AB3CNE#BA0 R7FA6T2AB3CFL#BA1 R7FA6T2AB3CFM#BA1 R7FA6T2AB3CFP#BA1 R7FA6T2AD3CFL#BA1 R7FA6T2AD3CFM#BA1 R7FA6T2AD3CFP#BA1 R7FA6T2BB3CFL#BA1 R7FA6T2BB3CFM#BA1 R7FA6T2BB3CFP#AA1 R7FA6T2BB3CFP#BA1 R7FA6T2BD3CFL#BA1 R7FA6T2BD3CFM#BA1 R7FA6T2BD3CFP#AA1 R7FA6T2BD3CFP#BA1	#AA1 is a compatible product that guarantees 16-bit ADC #BA1 is a compatible product that guarantees 16-bit ADC Switch to full carton products	最大值 Price estimate for 1,000 units; pricing is subject to change. 最小值 Price estimate for 1,000 units; pricing is subject to change.	Asset tracking Beacons Connected health Industrial Motor Control Smart appliances mesh
器件号	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator			Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator														Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator																					Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator

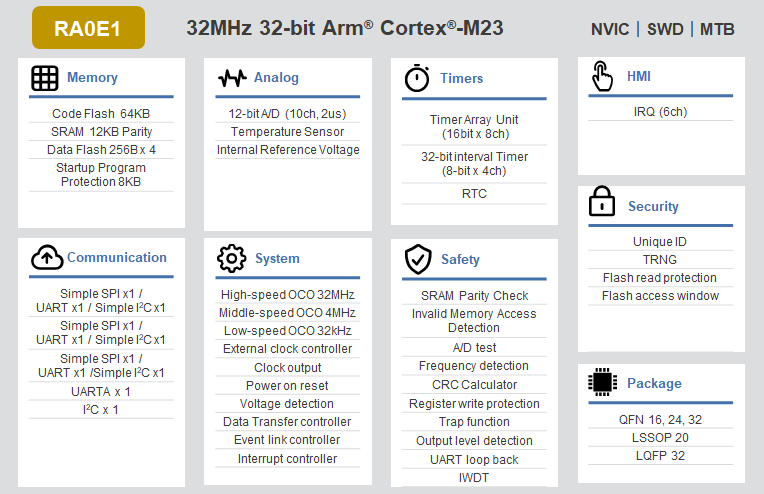

RA0E1 PDF 32MHz Arm Cortex-M23 入门级、超低功耗通用微控制器	2037 Dec	Bulk (Tray), Full Carton (Tray), Full Tray (Tray), Magazine, Tape & Reel	Arm Cortex-M23	32	32, 64	1	12	否	16, 20, 24, 32	HWQFN, LQFP, LSSOP	3 x 3 x 0.8, 4 x 4 x 0.8, 5 x 5 x 0.8, 6 x 4 x 1.45, 7 x 7 x 1.7	0.5, 0.8, 0.65	13, 17, 21, 29	1.6 - 5.5	Ta = -40 to 105°C	No	No	DTC	6	( 0 / 0 )	( 0 / 0 )	0	0	0	2, 3	0	0	0	0	0	0	0	0	0	No	No	No	No	否	7	0	0	0	8	0	0, 1	1	0	0	0	5, 6, 8, 10	0	0	0	0	0	0	0	1	是	是	TRNG, Unique ID	是	是	是	SWD			0.6845
RA2A1 PDF 带有 48MHz Arm Cortex-M23 并集成有 24 位 Sigma-Delta ADC 的 32 位微控制器	2033 Oct, 2037 Dec	Bulk (Tray), Full Carton (Tray), Full Tray (Tray), Tape & Reel	Arm Cortex-M23	48	256	8	32	是	32, 36, 40, 48, 64	BGA, HWQFN, LFQFP, LQFP	5 x 5 x 1.4, 6 x 6 x 0.8, 7 x 7 x 0.8, 7 x 7 x 1.7, 10 x 10 x 1.7	0.5, 0.8	20, 22, 25, 33, 49	1.6 - 5.5	Ta = -40 to 85°C, Ta = -40 to 105°C	No	No	DTC	8	( 0 / 0 ), ( 0 / 1 )	( 0 / 0 )	0	1	0	3	1, 2	2	0	0	0	0	0	0	9, 11, 16, 26	No	No	No	No	否	8, 11, 14	1	0	0	3, 4, 6	0	2	2	2, 4, 6, 8	5, 8, 12, 17	0	0	0	1	2	1	2	0	1, 2, 3	1	是	是	AES, TRNG, Unique ID	是	否, 是	是	SWD	R7FA2A1AB3CFJ#BA0, R7FA2A1AB3CFM#BA0	Switch to full carton products	3.15
RA2A2 PDF 具有丰富外设的 48MHz Arm Cortex-M23 超低功耗通用微控制器	2037 Dec	Bulk (Tray), Full Carton (Tray), Full Tray (Tray), Tape & Reel	Arm Cortex-M23	48	512	8	48	是	64, 80, 100	LFQFP, LQFP	10 x 10 x 1.7, 12 x 12 x 1.7, 14 x 14 x 1.7	0.5	43, 59, 71, 77	1.6 - 5.5	Ta = -40 to 105°C	No	No	DTC	12, 13	( 0 / 0 )	( 0 / 0 )	0	0	0	4, 5	1	1, 2	0	0	0	0	0	0	0	No	No	Yes	No	否	9, 11, 12	0	0	0	5, 6	0	8	2	4, 7	0	0	2, 4	0	0	0	0	0	4, 7	0	1	是	是	AES, TRNG, Unique ID	是	是	是	SWD			3.932
RA2E1 PDF 48MHz Arm Cortex-M23 入门级通用微控制器	2037 Dec	Bulk (Tray), Full Carton (Tray), Full Tray (Tray), Tape & Reel	Arm Cortex-M23	48	32, 64, 128	4	16	否, 是	25, 32, 36, 48, 64	HWQFN, LFQFP, LQFP, QFN, VFBGA, WFLGA, WLCSP	2 x 2 x 0.5, 4 x 4 x 0.76, 4 x 4 x 0.99, 5 x 5 x 0.8 and more...	0.4, 0.5, 0.8	21, 26, 30, 40, 56	1.6 - 5.5	Ta = -40 to 85°C, Ta = -40 to 105°C	No	No	DTC	4, 6, 7, 8	( 0 / 0 )	( 0 / 0 )	0	0	0	3, 4	1	1	0	0	0	0	0	0	10, 11, 14, 20, 30	No	No	No	No	否	9, 10, 11, 14	1	0	0	6	0	2	2	0	0	0	8, 10, 12, 13	0	0	0	0	2	0	0	1	是	是	AES, TRNG, Unique ID	是	否, 是	是	SWD	R7FA2E1A52DFJ#BA0, R7FA2E1A52DFL#BA0, R7FA2E1A52DNE#BA0 and more...	Switch to full carton products	0.8614
RA2E2 PDF 48MHz Arm Cortex-M23 超低功耗通用微控制器	2037 Dec	Bulk (Tray), Full Carton (Tray), Full Tray (Tray), Tape & Reel	Arm Cortex-M23	48	16, 32, 64	2	8	否	16, 20, 24	HWQFN, QFN, WLCSP	2 x 2 x 0.55, 4 x 4 x 0.8	0.4, 0.5	12, 16, 20	1.6 - 5.5	Ta = -40 to 85°C, Ta = -40 to 105°C, Ta = -40 to 125°C	No	No	DTC	8	( 0 / 0 )	( 0 / 0 )	0	0	0	1	1	0	1	0	0	0	0	0	0	No	No	No	No	否	10, 11, 12	0	0	0	6	0	2	2	0	0	0	4, 7, 8	0	0	0	0	0	0	0	1	否	是	AES, TRNG, Unique ID	是	否	是	SWD	R7FA2E2A32DNJ#BA1, R7FA2E2A32DNK#BA1, R7FA2E2A33CNJ#BA1 and more...	Switch to full carton products	0.7408
RA2E3 PDF 48MHz Arm Cortex-M23 入门级、超低功耗通用微控制器	2037 Dec	Bulk (Tray), Full Carton (Tray), Full Tray (Tray), Tape & Reel	Arm Cortex-M23	48	32, 64	2	16	否	32, 48	HWQFN, LFQFP, LQFP, QFN	5 x 5 x 0.8, 7 x 7 x 0.8, 7 x 7 x 1.7	0.5, 0.8	26, 40	1.6 - 5.5	Ta = -40 to 85°C, Ta = -40 to 105°C	No	No	DTC	4, 8	( 0 / 0 )	( 0 / 0 )	0	0	0	3, 4	1	1	0	0	0	0	0	0	0	No	No	No	No	否	9, 14	1	0	0	6	0	2	2	0	0	0	10, 13	0	0	0	0	0	0	0	1	是	是	Unique ID	是	是	是	SWD	R7FA2E3052DFJ#BA0, R7FA2E3052DFL#BA0, R7FA2E3052DNE#BA0 and more...	Switch to full carton products	1.298

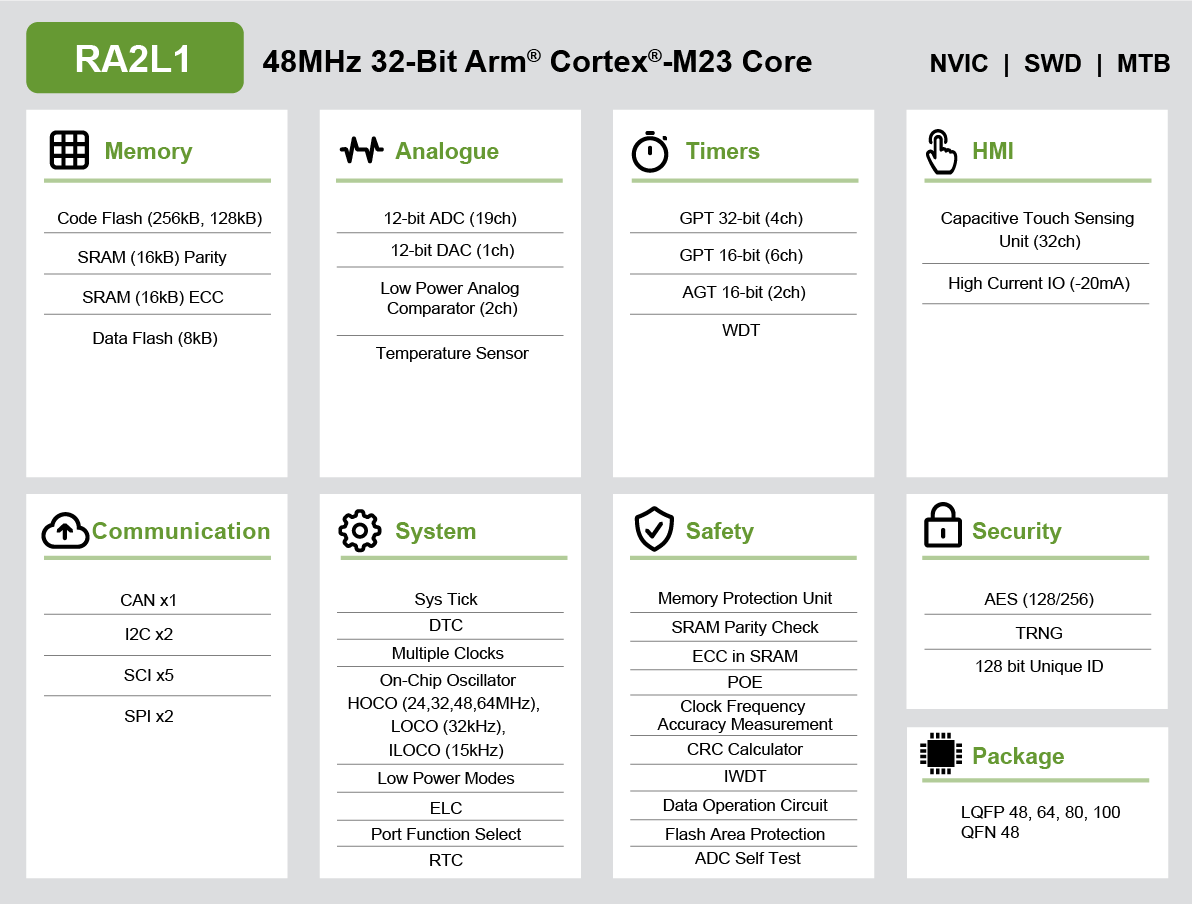

RA2L1 PDF 48MHz Arm Cortex-M23 超低功耗通用微控制器	2037 Dec	Bulk (Tray), Full Carton (Tray), Full Tray (Tray), Tape & Reel	Arm Cortex-M23	48	128, 256	8	32	是	48, 64, 80, 100	HWQFN, LFQFP, LQFP, QFN	7 x 7 x 0.8, 7 x 7 x 1.7, 10 x 10 x 1.7, 12 x 12 x 1.7, 14 x 14 x 1.7	0.5	37, 53, 69, 85	1.6 - 5.5	Ta = -40 to 85°C, Ta = -40 to 105°C	No	No	DTC	8	( 0 / 0 )	( 0 / 0 )	0	1	0	5	2	2	0	0	0	0	0	0	20, 30, 32	No	No	No	No	否	13, 20	4	0	0	3, 6	0	2	2	0	0	0	9, 13, 17, 19	0	1	0	0	2	0	0	1	是	是	AES, TRNG, Unique ID	是	是	是	SWD	R7FA2L1A92DFL#BA0, R7FA2L1A92DFM#BA0, R7FA2L1A92DFN#BA0 and more...	Switch to full carton products	1.425
RA4E1 PDF 入门级产品 100MHz Arm Cortex-M33，达到低功耗和优化功能集成的平衡	2034 Mar, 2037 Dec, 2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M33	100	256, 512	8	128	是	48, 64	HWQFN, LFQFP, LQFP	7 x 7 x 0.8, 10 x 10 x 1.7	0.5	30, 44	2.7 - 3.6	Ta = -40 to 85°C	No	Single	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	0	1	0	4	1	1	0	0	0	0	0	0	0	No	No	No	No	否	8	2	0	0	2	0	5	2	0	0	0	7, 9	0	1	0	0	0	0	0	0	是	是	Arm TrustZone, TRNG, Unique ID	是	是	是	JTAG/SWD			2.046
RA4E2 PDF 入门级的100MHz Arm® Cortex®-M33通用微控制器	2034 Mar, 2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray)	Arm Cortex-M33	100	128	4	40	是	32, 36, 48, 64	BGA, HWQFN, LFQFP	4 x 4 x 1.29, 5 x 5 x 0.8, 5 x 5 x 1.29, 7 x 7 x 0.8, 10 x 10 x 1.7	0.5	16, 20, 29, 45	2.7 - 3.6	Ta = -40 to 85°C, Ta = -40 to 105°C	No	Single	DMAC&DTC	15	( 0 / 0 ), ( 0 / 1 )	( 0 / 0 )	0	0	1	2	2	0	1	0	1	0	0	0	0	No	No	No	No	否	8	0	0	4	4	0	2	2	0	0	0	4, 5, 8, 12	0	1	0	0	0	0	0	1	是	是	Arm TrustZone, TRNG, Unique ID	是	是	是	SWD			1.689

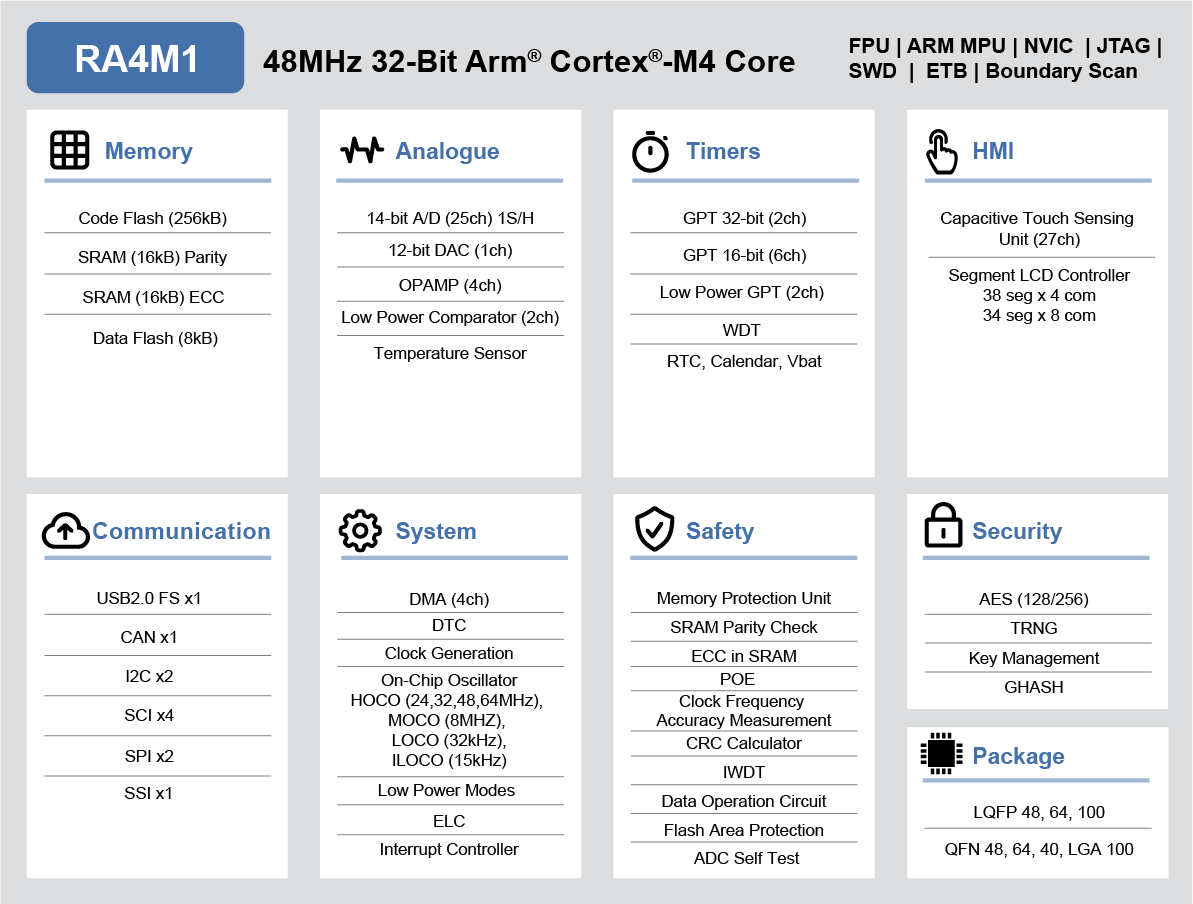

RA4M1 PDF 适用于 HMI 的 32 位微控制器，带有 48MHz Arm Cortex-M4 以及 LCD 控制器和电容式触控	2038 Dec, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M4	48	256	8	32	是	40, 48, 64, 100	HWQFN, LFQFP, QFN, TFLGA	6 x 6 x 0.8, 7 x 7 x 0.8, 7 x 7 x 1.05, 7 x 7 x 1.7 and more...	0.4, 0.5, 0.65	28, 36, 52, 84	1.6 - 5.5	Ta = -40 to 85°C, Ta = -40 to 105°C	No	Single	DMAC&DTC	15	( 1 / 1 )	( 0 / 0 )	0	1	0	4	1, 2	2	0	0	0, 1	0	0	0	10, 15, 24, 27	No	No	No, Yes	No	否	10, 12, 16	2	0	0	2, 4, 6	0	0, 2	2	0	0	11, 14, 18, 25	0	0	1	2	0	1, 2	0	0, 1, 3, 4	1	是	是	AES, TRNG, Unique ID	是	是	是	JTAG/SWD			2.8
RA4M2 PDF 100MHz Arm Cortex-M33 TrustZone，具有高集成度和低功耗	2034 Mar, 2037 Dec, 2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M33	100	256, 384, 512	8	128	是	48, 64, 100	HWQFN, LFQFP	7 x 7 x 0.8, 7 x 7 x 1.7, 10 x 10 x 1.7, 14 x 14 x 1.7	0.5	30, 44, 78	2.7 - 3.6	Ta = -40 to 105°C	No	Single	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	0	1	0	6	1	1, 2	0	0	0, 1	1	0	0, 1	4, 7, 12	No	No	No	No	否	16	4	0	0	4	0	6	2	0	0	0	7, 9, 13	0	2	0	0	0	0	0	1	是	是	AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG and more...	是	是	是	JTAG/SWD			2.137

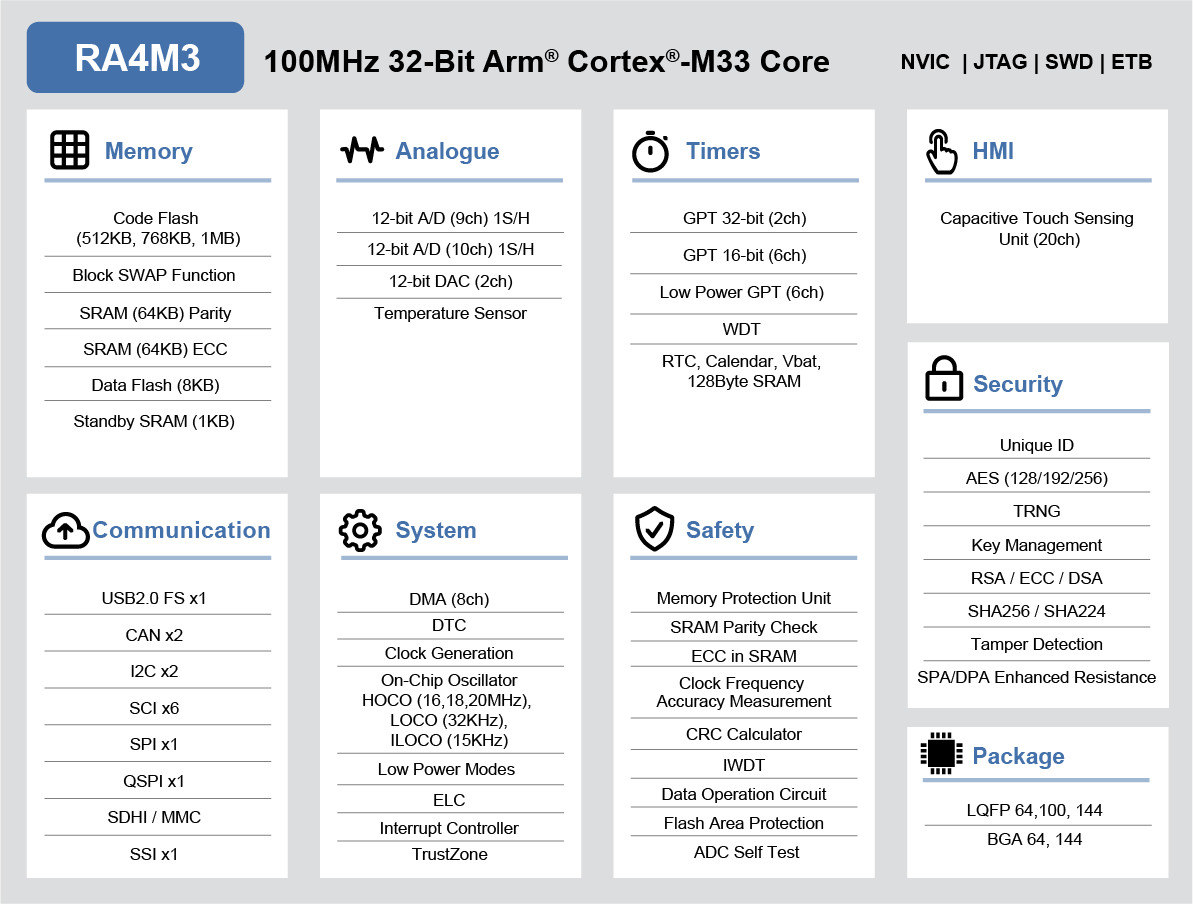

RA4M3 PDF 100MHz Arm Cortex-M33 TrustZone，具有高集成度和丰富的连接性	2034 Mar, 2037 Dec, 2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M33	100	512, 768, 1024	8	128	是	64, 100, 144	BGA, LFQFP, LQFP	6 x 6 x 1.38, 7 x 7 x 1.29, 10 x 10 x 1.7, 14 x 14 x 1.7, 20 x 20 x 1.7	0.5, 0.65	42, 46, 76, 110	2.7 - 3.6	Ta = -40 to 85°C, Ta = -40 to 105°C	No	Single	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	0	2	0	6	1	2	0	0	0, 1	1	0	0, 1	7, 12, 20	No	No	No	No	否	16	4	0	0	4	0	6	2	0	0	0	8, 17, 19	0	2	0	0	0	0	0	1	是	是	AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG and more...	是	是	是	JTAG/SWD			2.676
RA4T1 PDF RA4 系列 100MHz Arm Cortex-M33 电机控制微控制器	2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M33	100	128, 256	4	40	是	32, 48, 64	HWQFN, LFQFP, LQFP	5 x 5 x 0.8, 7 x 7 x 0.8, 7 x 7 x 1.7, 10 x 10 x 1.7	0.5, 0.8	16, 29, 45	2.7 - 3.6	Ta = -40 to 105°C	No	Single	DMAC&DTC	15	( 0 / 0 )	( 0 / 0 )	0	0	1	2	2	0	1	0	0	0	0	0	0	No	No	No	No	否	8, 12	0	0	4, 6	4, 6	0	2	2	0	0	0	5, 8, 12	0	1, 2	0	3	0	3	0	1	否	是	Arm TrustZone, TRNG, Unique ID	是	是	是	SWD			1.7	Motor Control
RA4W1 PDF 带有 48 MHz Bluetooth 5.0 的低功耗单芯片 32 位微控制器	探讨中	Bulk (Tray)	Arm Cortex-M4	48	512	8	96	是	56	QFN	7 x 7 x 0.9	0.4	34	1.8 - 3.6	Ta = -40 to 85°C	No	Single	DMAC&DTC	12	( 1 / 1 )	( 0 / 0 )	0	1	0	4	2	2	0	0	0	0	0	0	11	No	No	Yes	Bluetooth 5.0	否	16	4	0	0	3	0	2	2	0	0	8	0	0	1	2	0	1	0	1	1	是	是	AES, TRNG, Unique ID	是	是	是	JTAG/SWD			5.59	Asset tracking, Beacons, Connected health, Industrial and more...

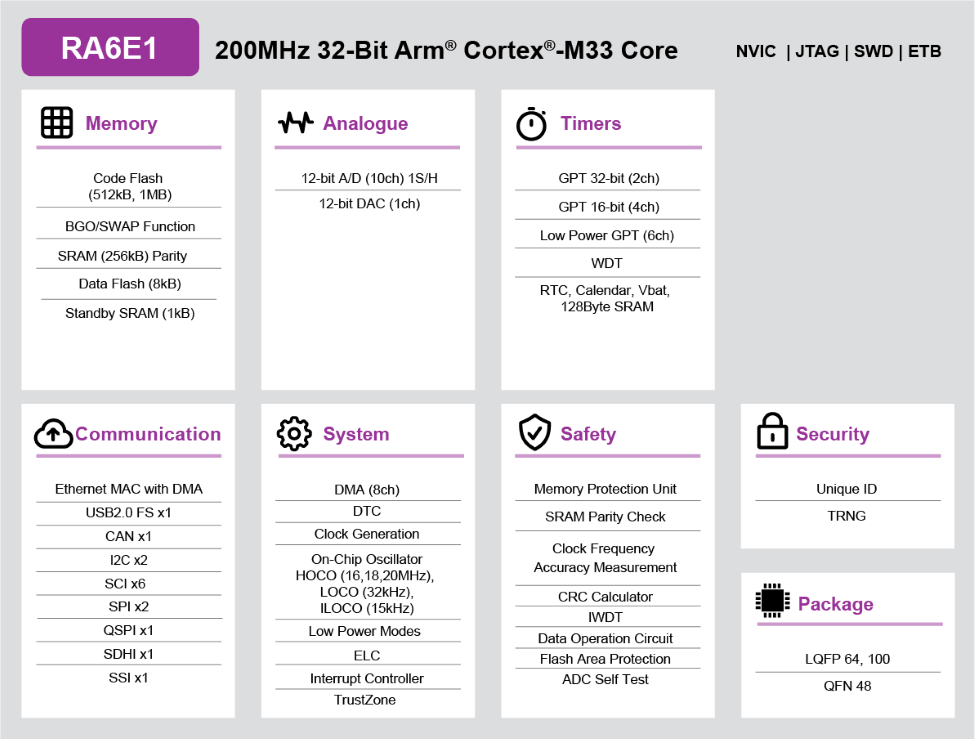

RA6E1 PDF 入门级产品 200MHz Arm Cortex-M33，具有高性能和简化连接	2034 Mar, 2037 Dec, 2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M33	200	512, 1024	8	256	是	48, 64, 100	HWQFN, LFQFP	7 x 7 x 0.8, 10 x 10 x 1.7, 14 x 14 x 1.7	0.5	28, 42, 76	2.7 - 3.6	Ta = -40 to 85°C	No	Single	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	0, 1	1	0	6	1, 2	2	0	0	0, 1	0, 1	0	0, 1	0	No	No	No	No	否	9, 12	1, 2	0	0	3, 4	0	6	2	0	0	0	5, 7, 11	0	1	0	0	0	0	0	0	是	是	Arm TrustZone, TRNG, Unique ID	是	是	是	JTAG/SWD			2.95
RA6E2 PDF 入门级200MHz Arm Cortex-M33通用微控制器	2034 Mar, 2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray)	Arm Cortex-M33	200	128, 256	4	40	是	32, 36, 48, 64	BGA, HWQFN, LFQFP	4 x 4 x 1.29, 5 x 5 x 0.8, 5 x 5 x 1.29, 7 x 7 x 0.8, 10 x 10 x 1.7	0.5	16, 20, 29, 45	2.7 - 3.6	Ta = -40 to 85°C, Ta = -40 to 105°C	No	Single	DMAC&DTC	15	( 0 / 0 ), ( 0 / 1 )	( 0 / 0 )	0	0	1	2	2	0	1	0	1	1	0	0	0	No	No	No	No	否	9, 10, 12	0	0	4, 5, 6	4, 5, 6	0	2	2	0	0	0	0, 4, 5, 8, 12	0	1, 2	0	0	0	0	0	1	是	是	Arm TrustZone, TRNG, Unique ID	是	是	是	SWD			2.237
RA6M1 PDF 带有 120 MHz RA6 系列优化切入点的 32 位微控制器	2037 Dec, 探讨中	Bulk (Tray), Full Carton (Tray)	Arm Cortex-M4	120	512	8	256	是	64, 100	HWQFN, LFQFP, TFLGA	7 x 7 x 1.05, 8 x 8 x 0.8, 10 x 10 x 1.7, 14 x 14 x 1.7	0.4, 0.5, 0.65	40, 76	2.7 - 3.6	Ta = -40 to 85°C, Ta = -40 to 105°C	8, No	Single	DMAC&DTC	14	( 1 / 1 )	( 0 / 0 )	0	2	0	7	2	2	0	0	0, 1	1	0	0, 2	7, 12	No	No	No	No	是	22, 26	11, 13	0	0	0	0	2	2	0	0	0	8, 17	0	2	0	6	0	3, 6	0	1	是	是	AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID	是	是	是	JTAG/SWD			3.87
RA6M2 PDF 带有 120 MHz 中型以太网存储器集成的 32 位微控制器	2033 Oct, 2037 Dec, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M4	120	512, 1024	32	384	是	100, 144, 145	LFQFP, TFLGA	7 x 7 x 1.05, 14 x 14 x 1.7, 20 x 20 x 1.7	0.5	76, 110	2.7 - 3.6	Ta = -40 to 85°C, Ta = -40 to 105°C	8, 8,16	Single	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	1	2	0	10	2	2, 3	0	0	1	1	0	2	12, 18	No	No	No	No	是	26, 28	13, 14	0	0	0	0	2	2	0	0	0	17, 20	0	2	0	6	0	0	0	1	是	是	AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID	是	是	是	JTAG/SWD			5.725
RA6M3 PDF 带有 USB 高速、以太网和 TFT 控制器的 120 MHz 32 位微控制器	2033 Oct, 2038 Dec, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M4	120	1024, 2048	64	640	是	100, 144, 145, 176	BGA, LFQFP, LQFP, TFLGA	7 x 7 x 1.05, 13 x 13 x 1.4, 14 x 14 x 1.7, 20 x 20 x 1.7, 24 x 24 x 1.7	0.5, 0.8	76, 110, 133	2.7 - 3.6	Ta = -40 to 85°C, Ta = -40 to 105°C	8, 8,16	Single	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 ), ( 1 / 1 )	1	2	0	10	2	2, 3	0	0	1, 2	1	0	2	12, 13, 18	RGB888	8-bit	No	No	是	26, 28	13, 14	0	0	0	0	2	2	0	0	0	17, 20, 22	0	2	0	6	0	6	0	1	是	是	AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID	是	是	是	JTAG/SWD			6.562
RA6M4 PDF 使用 200MHz Arm Cortex-M33 TrustZone 内核，并集成了以太网和 OctaSPI	2034 Mar, 2037 Dec, 2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M33	200	512, 768, 1024	8	256	是	64, 100, 144	BGA, LFQFP	6 x 6 x 1.38, 7 x 7 x 1.29, 10 x 10 x 1.7, 14 x 14 x 1.7, 20 x 20 x 1.7	0.5, 0.65	42, 46, 76, 110	2.7 - 3.6	Ta = -40 to 85°C, Ta = -40 to 105°C	8, 8,16, No	Single	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	0, 1	2	0	8, 10	2	2	0	0	0, 1	1	0	0, 1	7, 12, 20	No	No	No	No	否	20	4	0	0	6	0	6	2	0	0	0	8, 17, 19	0	2	0	0	0	0	0	1	是	是	AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG and more...	是	是	是	JTAG/SWD			4.05
RA6M5 PDF 200MHz Arm Cortex-M33 内核，支持TrustZone、以太网和 CAN FD，具有更高的集成度	2034 Mar, 2037 Dec, 2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M33	200	1024, 1536, 2048	8	512	是	100, 144, 176	BGA, LFQFP	7 x 7 x 1.29, 13 x 13 x 1.4, 14 x 14 x 1.7, 20 x 20 x 1.7, 24 x 24 x 1.7	0.5, 0.8	76, 110, 133	2.7 - 3.6	Ta = -40 to 85°C, Ta = -40 to 105°C	8, 8,16	Single	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 ), ( 1 / 1 )	1	0, 2	0, 2	10	2	2, 3	0	0	1	1	0, 1	1	12, 20	No	No	No	No	否	20	4	0	0	6	0	6	2	0	0	0	17, 19, 22, 26	0	2	0	0	0	0	0	1	是	是	AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG and more...	是	是	是	JTAG/SWD			5.325

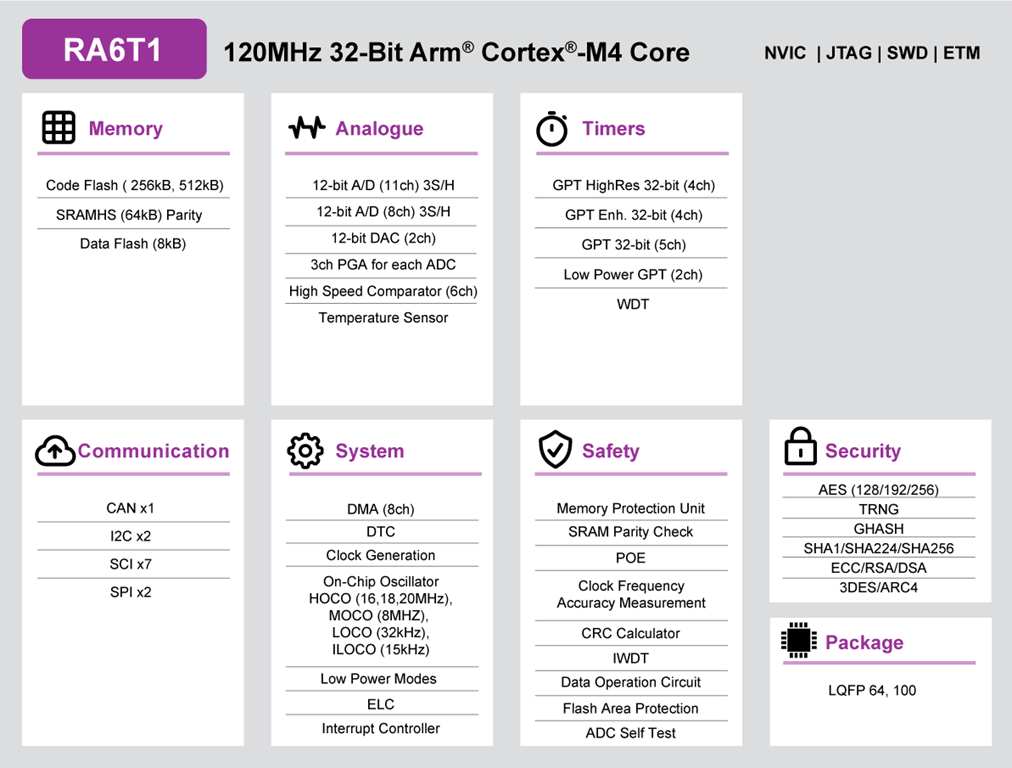

RA6T1 PDF 120MHz Arm Cortex-M4，RA6 家族用于电机控制的 ASSP	2037 Dec, 探讨中	Bulk (Tray), Full Carton (Tray), Tape & Reel	Arm Cortex-M4	120	256, 512	8	64	否	64, 100	LFQFP	10 x 10 x 1.7, 14 x 14 x 1.7	0.5	40, 76	2.7 - 3.6	Ta = -40 to 105°C	No	Single	DMAC&DTC	14	( 0 / 0 )	( 0 / 0 )	0	1	0	7	2	2	0	0	0	0	0	0	0	No	No	No	No	是	22, 26	11, 13	0	0	0	0	2	2	0	0	0	8, 17	0	2	0	6	0	3, 6	0	1	否	是	AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID	是	是	是	JTAG/SWD			2.662	Motor Control
RA6T2 PDF 240MHz Arm Cortex-M33 TrustZone，适用于电机控制的高实时引擎	2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray)	Arm Cortex-M33	240	256, 512	16	64	是	48, 64, 100	HWQFN, LFQFP	7 x 7 x 0.8, 7 x 7 x 1.7, 8 x 8 x 0.8, 10 x 10 x 1.7, 14 x 14 x 1.7	0.4, 0.5	35, 51, 84	2.7 - 3.6	Ta = -40 to 105°C	No	Single	DMAC&DTC	16	( 0 / 0 )	( 0 / 0 )	0	1	0, 1	6	2	2	0	0	0	0	0	0	0	No	No	No	No	否	16, 18, 20	10	0	0	0	0	2	2	0	0, 10, 18, 29	0	10, 18, 29	0	2, 4	0	3, 4	0	3, 4	0	1	否	是	AES, Arm TrustZone, TRNG, Unique ID	是	否	是	JTAG/SWD	R7FA6T2AB3CFL#BA1, R7FA6T2AB3CFM#BA1, R7FA6T2AB3CFP#BA1 and more...	#AA1 is a compatible product that guarantees 16-bit ADC and more...	3.5	Motor Control

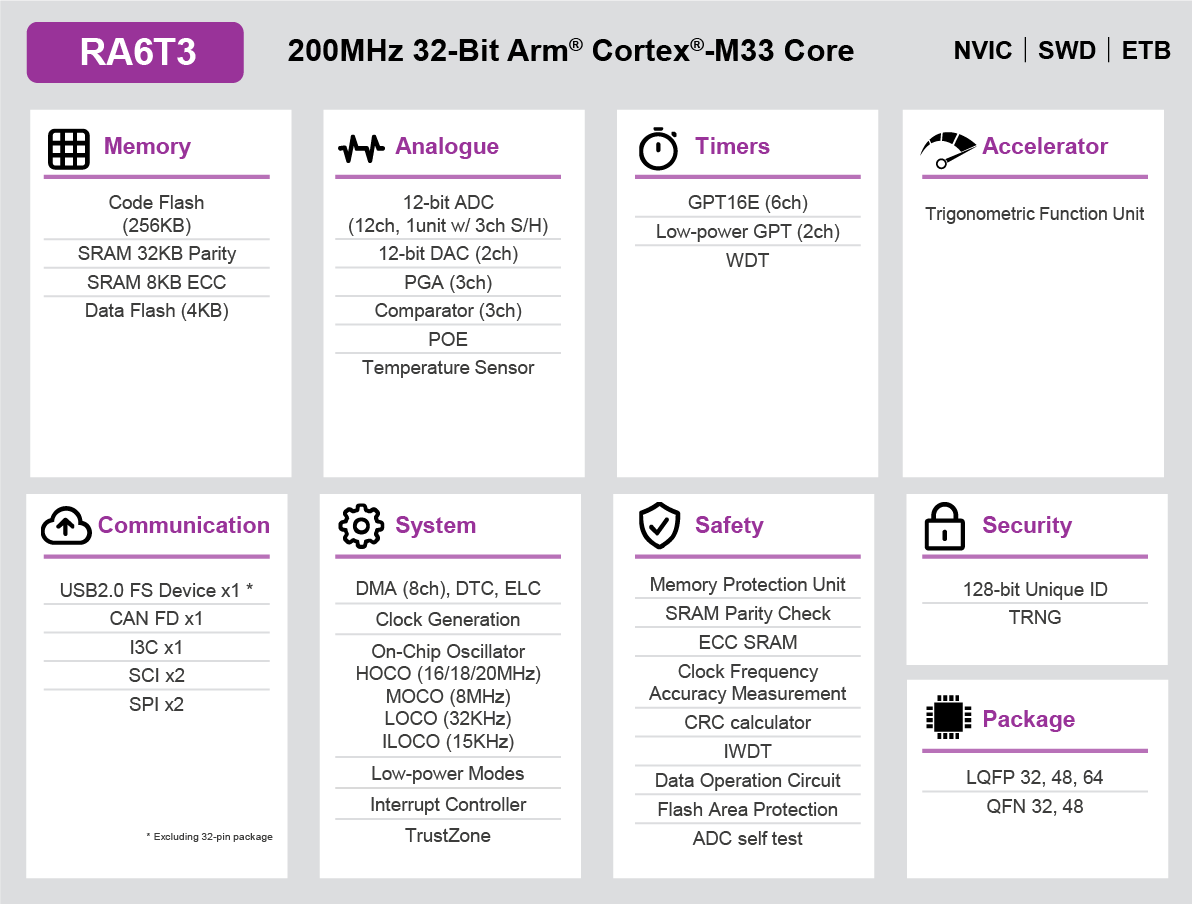

RA6T3 PDF RA6 系列 200MHz Arm Cortex-M33 电机控制微控制器	2039 Mar, 探讨中	Bulk (Tray), Full Carton (Tray)	Arm Cortex-M33	200	256	4	40	是	32, 48, 64	HWQFN, LFQFP, LQFP	5 x 5 x 0.8, 7 x 7 x 0.8, 7 x 7 x 1.7, 10 x 10 x 1.7	0.5, 0.8	16, 29, 45	2.7 - 3.6	Ta = -40 to 105°C	No	Single	DMAC&DTC	15	( 0 / 0 ), ( 0 / 1 )	( 0 / 0 )	0	0	1	2	2	0	1	0	0	0	0	0	0	No	No	No	No	否	8, 12	0	0	4, 6	4, 6	0	2	2	0	0	0	5, 8, 12	0	1, 2	0	3	0	3	0	1	否	是	Arm TrustZone, TRNG, Unique ID	是	是	是	SWD			2.112	Motor Control
RA8D1 PDF 基于 480MHz Arm Cortex-M85、搭载 Helium 和 TrustZone 的图形微控制器	探讨中	Bulk (Tray), Full Carton (Tray)	Arm Cortex-M85	400, 480	1024, 2048	12	1024	是	176, 224	BGA, LQFP	13 x 13 x 1.47, 24 x 24 x 1.4	0.5, 0.8	119, 128, 165, 174	1.68 - 3.6	Tj = -40 to 125°C	8,16, 8,16,32	Double/Single/Half	DMAC&DTC	16	( 1 / 1 )	( 1 / 1 )	1	0	2	6	2	2	1	0	2	0	1	2	0	RGB888	16-bit	No	No	否	28	10	0	0	6	0	2	2	0	0	0	24, 25	0	2	0	2	0	0	0	1	是	是	AES, Arm TrustZone, DOTF, ECC, MAC, RSA, SHA224/SHA256 and more...	是	是	是	JTAG/SWD			10.86
RA8E1 PDF 基于 360 MHz Arm Cortex-M85、搭载 Helium 和 TrustZone 的入门级微控制器	N/A	Full Carton (Tray), Full Tray (Tray)	Arm Cortex-M85	360	1024	12	544	是	100, 144	LFQFP	14 x 14 x 1.4, 20 x 20 x 1.7	0.5	70, 106	1.68 - 3.6	Tj = -40 to 105°C	No	Double/Single/Half	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	1	0	2	6	2	2	0	0	2	0	1	0	0	No	8-bit	No	No	否	0, 20	6, 8	0	0	4	0	2	2	0	0	0	13	0	1	0	2	0	0	0	1	是	是	TRNG, Unique ID	是	是	是	JTAG/SWD			7.57
RA8E2 PDF 基于 480 MHz Arm Cortex-M85、搭载 Helium 和 TrustZone 的入门级图形微控制器	N/A	Full Carton (Tray), Full Tray (Tray)	Arm Cortex-M85	480	1024	12	672	是	224	BGA	13 x 13 x 1.47	0.8	174	1.68 - 3.6	Tj = -40 to 105°C	8,16	Double/Single/Half	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	0	0	2	6	2	2	0	0	2	0	1	0	0	RGB888	No	No	No	否	0, 20	6, 8	0	0	4	0	2	2	0	0	0	13	0	1	0	2	0	0	0	1	是	是	TRNG, Unique ID	是	是	是	JTAG/SWD			9.284
RA8M1 PDF 基于 480MHz Arm Cortex-M85、搭载 Helium 和 TrustZone 的微控制器	探讨中	Bulk (Tray), Full Carton (Tray), Full Tray (Tray)	Arm Cortex-M85	360, 400, 480	1024, 2048	12	1024	是	100, 144, 176, 224	BGA, LFQFP	13 x 13 x 1.47, 14 x 14 x 1.7, 20 x 20 x 1.7, 24 x 24 x 1.7	0.5, 0.8	70, 106, 128, 174	1.68 - 3.6	Tj = -40 to 125°C	8,16, 8,16,32, No	Double/Single/Half	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 ), ( 1 / 1 )	1	0	2	6	2	2	1	0	1, 2	0	1	2	0	No	16-bit, No	No	No	否	28	10	0	0	6	0	2	2	0	0	0	10, 18, 24, 25	0	2	0	2	0	0	0	1	是	是	AES, Arm TrustZone, DOTF, ECC, MAC, RSA, SHA224/SHA256 and more...	是	是	是	JTAG/SWD			8.862
RA8T1 PDF 基于 480MHz Arm Cortex-M85、搭载 Helium 和 TrustZone 的电机控制微控制器	探讨中	Full Carton (Tray), Full Tray (Tray)	Arm Cortex-M85	360, 400, 480	1024, 2048	12	1024	是	100, 144, 176, 224	BGA, LFQFP, LQFP	13 x 13 x 1.47, 14 x 14 x 1.4, 20 x 20 x 1.7, 24 x 24 x 1.4	0.5, 0.8	70, 106, 128, 174	1.68 - 3.6	Tj = -40 to 125°C	8,16, 8,16,32, No	Double/Single/Half	DMAC&DTC	16	( 1 / 1 )	( 0 / 0 )	1	0	2	6	2	2	1	0	0	0	0	2	0	No	No	No	No	否	25, 28	10	0	0	6	0	2	2	0	0	0	11, 16, 20, 21	0	2	0	2	0	0	0	1	否	是	AES, Arm TrustZone, DOTF, ECC, MAC, RSA, SHA224/SHA256 and more...	是	是	是	JTAG/SWD			8.64	Motor Control

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product
