VersaClock® 6E Programmable Clock Generator for Automotive
跳转至页面部分：
概览
简介

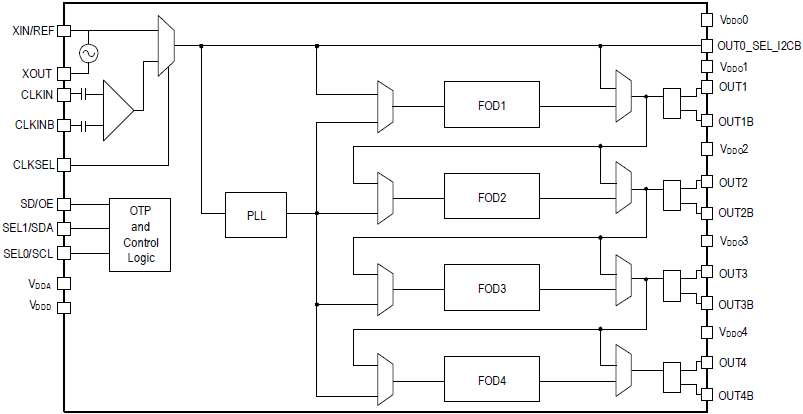

The 5P49V60 is a member of Renesas' VersaClock® 6E programmable clock generator family. The 5P49V60 is intended for automotive applications such as infotainment, dashboard, video processing, in-vehicle networking, as well as applications based on PCI-Express or USB 3. The reference clock can come from one of the two redundant clock inputs. A glitchless manual switchover function allows one of the redundant clocks to be selected during normal operation.
Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using I²C interface.
特性
- < 100mW core power (at 3.3V)
- < 0.5ps RMS phase jitter (typical)
- Meets PCIe® Gen1–4, USB 3.0, 1/10 GbE clock requirements
- Supports both crystal (8MHz–40MHz) and external clock input (1MHz–350MHz)
- 4 universal outputs pairs: LVPECL, LVDS, HCSL, or 8 LVCMOS outputs
- 4 independent frequencies with 0.001MHz–350MHz output range
- Reference output
- 1.8V / 2.5V / 3.3V core and output voltages
- 2 programmable I²C addresses allowing multiple devices to be used in same system.
- Up to 4 different configuration sets in OTP non-volatile memory
- Supported by Timing Commander™ software tool
- Quick sampling and customization process supported by online-form submission

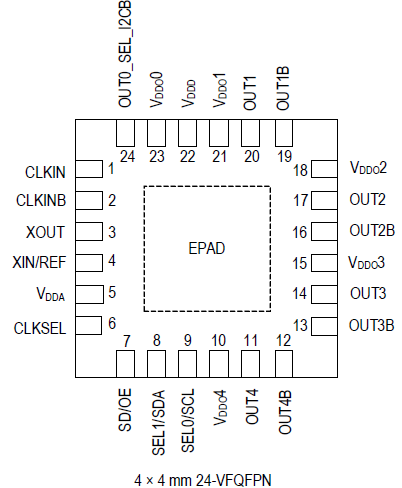

- 4 x 4 mm 24-VFQFPN wettable flank package
- AEC-Q100 qualified
- -40°C to +105°C operating temperature range
应用
文档
| Document title | Document type
|
日期 日期 | |
|---|---|---|---|
| PDF 804 KB | 数据手册 | ||
| PDF 238 KB | 产品变更通告 | ||
| PDF 686 KB | Application Brief | ||
| PDF 348 KB | 应用文档 | ||
| PDF 1.17 MB | 应用文档 | ||
| PDF 256 KB | 应用文档 | ||
| PDF 255 KB | 应用文档 | ||
| PDF 717 KB | 应用文档 | ||
| PDF 406 KB | 应用文档 | ||
| PDF 342 KB | 应用文档 | ||
| PDF 307 KB | 应用文档 | ||
| PDF 188 KB | 应用文档 | ||
| PDF 170 KB | 应用文档 | ||
| PDF 146 KB | 应用文档 | ||
| PDF 133 KB | 应用文档 | ||
| PDF 495 KB | 应用文档 | ||
| PDF 565 KB | 应用文档 | ||
| PDF 438 KB | 应用文档 | ||
| PDF 137 KB | 应用文档 | ||
| PDF 744 KB | 手册 - 开发工具 | ||
| PDF 392 KB | 概览 | ||
| PDF 1.83 MB | 概览 | ||
| PDF 5.71 MB | 产品变更通告 | ||
| PDF 5.61 MB | 产品变更通告 | ||
| PDF 256 KB | 技术摘要 | ||
| PDF 238 KB | 技术摘要 | ||
26 items
|
|||
设计和开发
软件与工具
开发板与套件
开发板与套件
Evaluation Board for 5P49V60 Automotive VersaClock® 6E
This is the evaluation board for the 5P49V60 Automotive VersaClock 6E programmable clock generator. With RMS phase jitter of less than 0.5ps over the full 12kHz to...
R-Car V4H 系统评测板套装 / White Hawk
White Hawk 是一款适用于 R-Car V4H 的评估套件，可使用 R-Car V4H 来评估系统并用来开发操作系统、设备驱动器和应用程序。 使用 White Hawk 评估套件可让开发人员高效地执行所需任务，例如评估 R-Car V4H 系统性能，从而大大缩短产品开发的周期...
特色文件:
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
产品选择
此为出厂可配置设备。试用自定义部件配置工具。
Processing table
| VFQFPN | 24 | 2 | Yes | Tray | 获取样片, | |
| VFQFPN | 24 | 2 | Yes | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filled视频和培训
VersaClock® 6E - High-performance Programmable Clock Generator
The VersaClock® 6E programmable clock generator devices offer a combination of low power, flexibility and performance for a wide range of applications. These features make it ideal for simplifying system design by replacing multiple discrete timing components and reducing bill of materials (BOM). The VersaClock 6E supports operating voltages from 1.8 to 3.3 V, differential (LVPECL/HCSL/LVDS/LP-HCSL) and LVCMOS output types, and fractional dividers to accurately generate virtually any frequency. Products satisfy system requirements from oscillator replacement to PCIe® Gen 1/2/3 and to communications applications, while consuming very little power.
For more information about VersaClock 6E, visit https://www.idt.com/versaclock.
Video List
