概览
描述

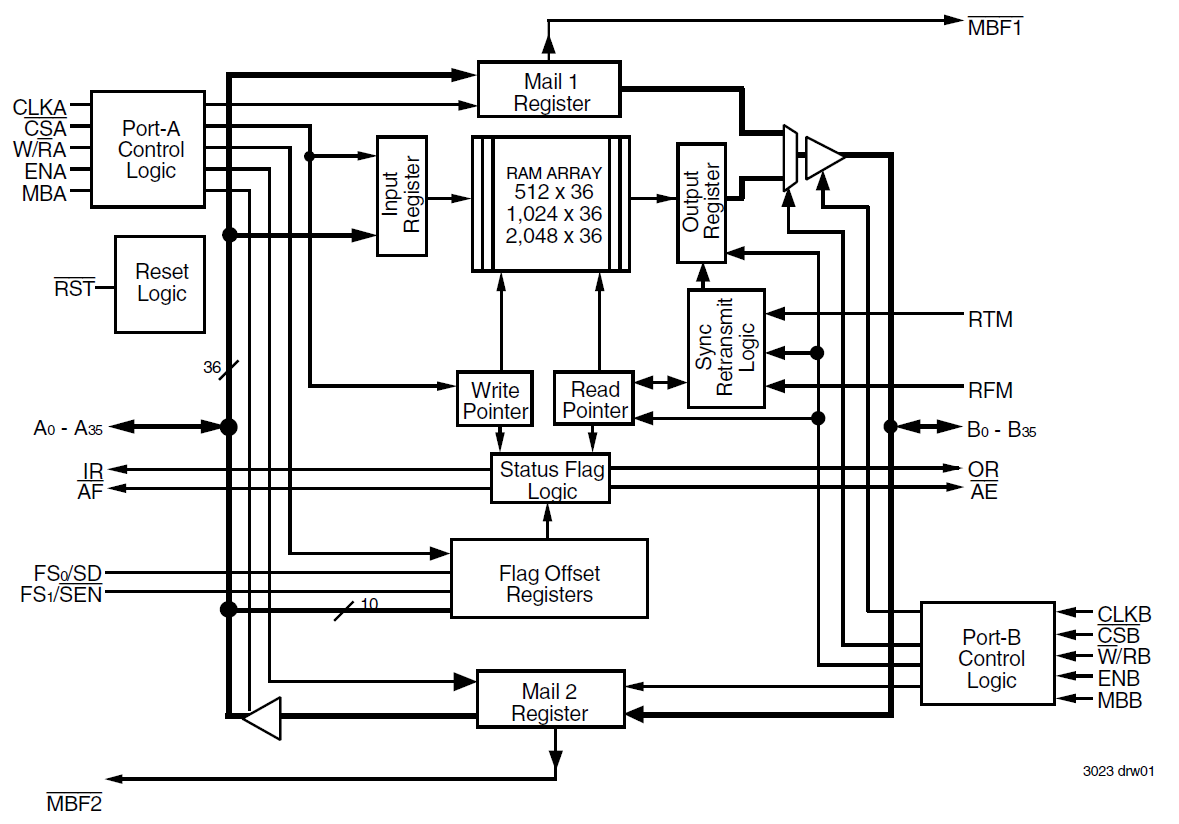

The 723641 is a 1K x 36 Sync FIFO memory that supports clock frequencies up to 67 MHz and has read access times as fast as 12ns. The FIFO memory has retransmit capability, which allows previously read data to be accessed again. Communication between each port may take place with two 36-bit mailbox registers. All data transfers through a port are gated to the LOW-to-HIGH transition of a continuous port clock by enable signals.
特性
- Free-running CLKA and CLKB can be asynchronous or coincident
- Clocked FIFO buffering data from Port A to Port B
- Synchronous read retransmit capability
- Mailbox register in each direction
- Programmable Almost-Full and Almost-Empty flags
- Microprocessor interface control logic
- Available in 132-pin PQFP and 120-pin TQFP packages
- Industrial temperature range (–40C to +85C) is available
文档
| 文档标题 | 类型 | 日期 | |
|---|---|---|---|
PDF419 KB
|
数据手册
|
||
PDF1.29 MB
|
End Of Life Notice
|
||
PDF86 KB
|
End Of Life Notice
|
||
PDF30 KB
|
End Of Life Notice
|
||
PDF24 KB
|
产品变更通告
|
||
PDF252 KB
|
产品变更通告
|
||
PDF164 KB
|
产品变更通告
|
||
PDF16 KB
|
产品变更通告
|
||
PDF290 KB
|
产品变更通告
|
||
PDF80 KB
|
产品变更通告
|
||
PDF26 KB
|
产品变更通告
|
||
PDF150 KB
|
产品变更通告
|
||
PDF65 KB
|
产品变更通告
|
||
PDF150 KB
|
产品变更通告
|
||
PDF40 KB
|
产品变更通告
|
||
PDF274 KB
|
产品变更通告
|
||
PDF44 KB
|
产品变更通告
|
设计和开发
软件与工具
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
产品选择
Processing table
器件号 |
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
购买 / 样片 |
|---|---|---|---|---|---|---|
| TQFP | 120 | C | No | Tray | ||
| TQFP | 120 | C | No | Reel | ||
| TQFP | 120 | C | Yes | Tray | ||
| TQFP | 120 | C | Yes | Reel | ||
| PQFP | 132 | C | No | Tray | ||
| PQFP | 132 | C | Yes | Tray | ||
| TQFP | 120 | C | No | Tray | ||
| TQFP | 120 | C | No | Reel | ||
| TQFP | 120 | I | No | Tray | ||
| TQFP | 120 | I | No | Reel | ||
| PQFP | 132 | C | No | Tray | ||
| PQFP | 132 | I | Yes | Tray | ||
| PQFP | 132 | I | No | Tray |
