The V850 microcontrollers can be used in various middle-range to high-end applications. The V850ES core products are affordable and can be easily incorporated into systems that use 16-bit controllers. The V850E1 core was developed to provide high performance, and its successor, the V850E2M core, is the best choice for applications requiring top-level processing power. The V850 Family has a large portfolio, including automotive-specific MCUs, motor control ASSP and general industrial MCUs.

Development Environment for the Renesas V850 Family MCUs

All products in this family are obsolete or not recommended for new designs. If you are looking for information or documentation for a specific product, please use the site search function to find information.

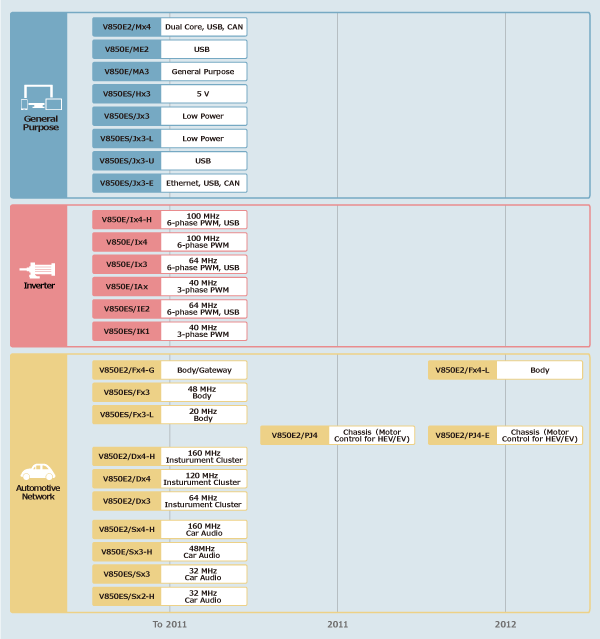

Roadmap

产品选型表

Processing table

	CPU	Bit Size	Program Memory (KB)	Data Flash (KB)	RAM (KB)	Lead Count (#)	Supply Voltage (V)	Operating Freq (Max) (MHz)	CAN (ch)	I/O Ports	Timer	ADC	RTC	DMA	Ethernet	LVD	DAC	PLP	Pkg. Type	Temp. Range
(14) 推荐产品 (0) 衍生产品	V850 V850E1 V850E2M V850ES	32	0 128 192 256 384 512 1024 1280 1536 2048	0 16 32 64		64 80 100 121 144 176 180	2.85 - 3.6 3 - 3.6 3 - 5.5 3.3 - 5.5 3.5 - 5.5 3.7 - 5.5 4.5 - 5.5	20 32 48 64 80 160	0 1 2 3 4	46 51 58 73 84 98 100 128 156	16-bit x 13-ch 16-bit x 16-ch 16-bit x 17-ch 16-bit x 22-ch 16-bit x 32-ch 16-bit x 6-ch 16-bit x 7-ch 16-bit x 72-ch 16-bit x 8-ch 16-bit x 9-ch 32-bit x 4-ch 32-bit x 8-ch	10-bit x 10-ch 10-bit x 12-ch 10-bit x 16-ch 10-bit x 24-ch 10-bit x 4-ch 10-bit x 8-ch 12-bit x 18-ch 12-bit x 22-ch 12-bit x 40-ch	否是的	No Yes	No	否是的	8-bit x 2-ch		LQFP	-40 to 105°C -40 to 110°C -40 to 125°C -40 to 85°C
器件号	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator
V850/SA1 PDF 32-bit Microcontrollers (Non Promotion)	V850	32	0			121			0				否	No	No	否		N/A
V850/SV1 PDF 32-bit Microcontrollers (Non Promotion)	V850	32	0			176, 180			0				否	No	No	否		N/A
V850E/Dx3 PDF 32-bit Microcontrollers (Non Promotion)	V850E1	32	512, 2048	0	20, 84	144	3.5 - 5.5	32, 64	2, 3	98	16-bit x 13-ch, 16-bit x 17-ch	10-bit x 12-ch, 10-bit x 16-ch	否	Yes	No	是的		N/A	LQFP	-40 to 85°C
V850E/Sx3-H PDF 32-bit Microcontrollers	V850E1	32	512, 1024, 1280, 1536	0	92, 76, 60	144, 176	2.85 - 3.6	48	1, 2	128, 156	16-bit x 13-ch	10-bit x 16-ch	是的	Yes	No	是的	8-bit x 2-ch	N/A	LQFP	-40 to 85°C
V850E2/Fx4 PDF 32-bit Microcontrollers	V850E2M	32	1536	64	112	176	3 - 5.5	80	4	128	16-bit x 72-ch, 32-bit x 8-ch	12-bit x 40-ch	是的	Yes	No	是的		N/A		-40 to 85°C
V850E2/Px4 PDF 32-bit Microcontrollers	V850E2M	32	1024	32	80	144	4.5 - 5.5	160	2	73	16-bit x 32-ch, 32-bit x 8-ch	12-bit x 22-ch	否	Yes	No	是的		N/A		-40 to 125°C
V850E2/Px4-L PDF 32-bit Microcontrollers	V850E2M	32	384	16	24	100	3 - 5.5	80	2	46	16-bit x 22-ch, 32-bit x 4-ch	12-bit x 18-ch	否	Yes	No	是的		N/A		-40 to 125°C
V850E2/Sx4-H 32-bit Microcontrollers (Non Promotion)	V850E2M	32	1024, 1536	32	160, 192	100, 144	3 - 3.6	160	0, 1, 2	58, 100	16-bit x 16-ch, 32-bit x 4-ch	10-bit x 4-ch, 10-bit x 8-ch, 10-bit x 12-ch, 10-bit x 16-ch	是的	Yes	No	是的	8-bit x 2-ch	N/A		-40 to 85°C, -40 to 105°C
V850ES/Fx3 PDF 32-bit Microcontrollers (Non Promotion)	V850ES	32	128, 256	32	8, 16	64, 100	3.3 - 5.5	32	1, 2	51, 84	16-bit x 7-ch, 16-bit x 8-ch	10-bit x 10-ch, 10-bit x 16-ch	否	Yes	No	是的		N/A	LQFP	-40 to 85°C
V850ES/Fx3-L PDF 32-bit Microcontrollers (Non Promotion)	V850ES	32	128, 192, 256	0	12, 16, 8	64, 100	3.3 - 5.5	20	1	51, 84	16-bit x 6-ch	10-bit x 10-ch, 10-bit x 16-ch	否	No	No	是的		N/A	LQFP	-40 to 85°C, -40 to 110°C
V850ES/Hx3 PDF 32-bit Microcontrollers	V850ES	32	256	0	16	144	3.7 - 5.5	32	0	128	16-bit x 9-ch	10-bit x 24-ch	否	Yes	No	是的		N/A		-40 to 85°C
V850ES/Kx1 PDF 32-bit Microcontrollers (Non Promotion)	V850ES		0			64, 80, 100, 144			0				否	No	No	否		N/A
V850ES/Kx1+ PDF 32-bit Microcontrollers (Non Promotion)	V850ES	32	0			80, 100, 144			0				否	No	No	否		N/A
V850ES/SG3 PDF 32-bit Microcontrollers	V850ES	32	256, 384, 512, 1024	0	40, 24, 60, 32	100	2.85 - 3.6	32	1	84	16-bit x 8-ch	10-bit x 12-ch	否	Yes	No	是的	8-bit x 2-ch	N/A	LQFP	-40 to 85°C
