概览
描述

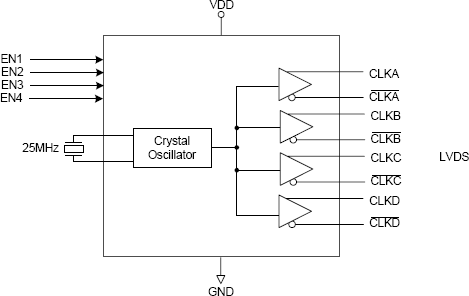

The 556-03 is a clock oscillator with quad LVDS outputs. Using a standard 25MHz crystal, no additional external components are required to generate quad LVDS outputs at 25MHz. This product is intended for clock generation. It has low output jitter (variation in the output period), but input-to-output skew and jitter are not defined nor guaranteed.
特性
- Packaged in 16-pin TSSOP, Pb-free
- Requires no external components
- Low phase jitter: <1ps from 10kHz to 10MHz
- Quad, differential LVDS outputs
- Operating voltage of 2.5V
- Advanced, low-power, sub-micron CMOS process
产品对比
应用
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
