概览
描述

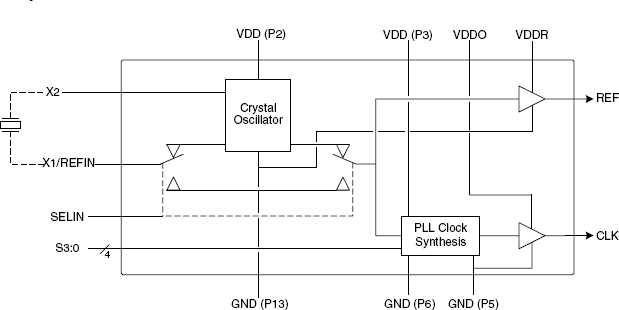

The 661 provides synchronous clock generation for audio sampling clock rates derived from an MPEG stream, or can be used as a standalone clock source with a 27 MHz crystal. The device uses the latest PLL technology to provide excellent phase noise and long term jitter performance for superior synchronization and S/N ratio. Please contact IDT if you have a requirement for an input and output frequency not included here - we can rapidly modify this product to meet special requirements.
特性
- Packaged in 16-pin TSSOP
- Pb (lead) free package, RoHS compliant
- Clock or crystal input
- Low phase noise
- Low jitter
- Exact (0 ppm) multiplication ratios
- Reference clock output available
- Support for 256, 384, 512, and 768 times sampling rate
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
---|---|---|
类型 | 文档标题 | 日期 |
数据手册 | PDF 245 KB | |
EOL 通告 | PDF 160 KB | |
产品变更通告 | PDF 611 KB | |
产品变更通告 | PDF 611 KB | |
产品变更通告 | PDF 596 KB | |
产品变更通告 | PDF 544 KB | |
产品变更通告 | PDF 663 KB | |
产品变更通告 | PDF 439 KB | |
产品变更通告 | PDF 361 KB | |
9 items
|
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

产品选项
当前筛选条件
