概览
描述

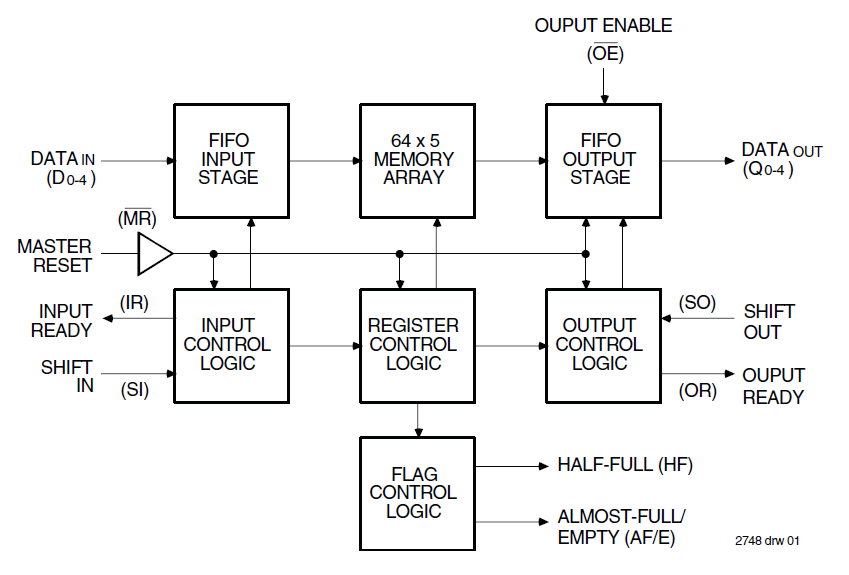

The 72413 is a 64 x 5, high-speed First-In/First-Out memory. It is expandable in bit width. All speed versions are cascadable in depth. It is ideal for use in high-speed data buffering applications. This FIFO can be used as a rate buffer, between two digital systems of varying data rates, in high-speed tape drivers, hard disk controllers, data communications controllers and graphics controllers.
特性
- First-ln/First-Out Dual-Port memory
- 45MHz Low-power consumption
- RAM-based internal structure allows for fast fall-through time Asynchronous and simultaneous read and write
- Expandable by bit width
- Cascadable by word depth
- Half-Full and Almost-Full/Empty status flags
- High-speed data communications applications
- Bidirectional and rate buffer applications
- Available in 20 pin plastic DIP and SOIC
- Industrial temperature range (–40C to +85C) is available
