概览
描述

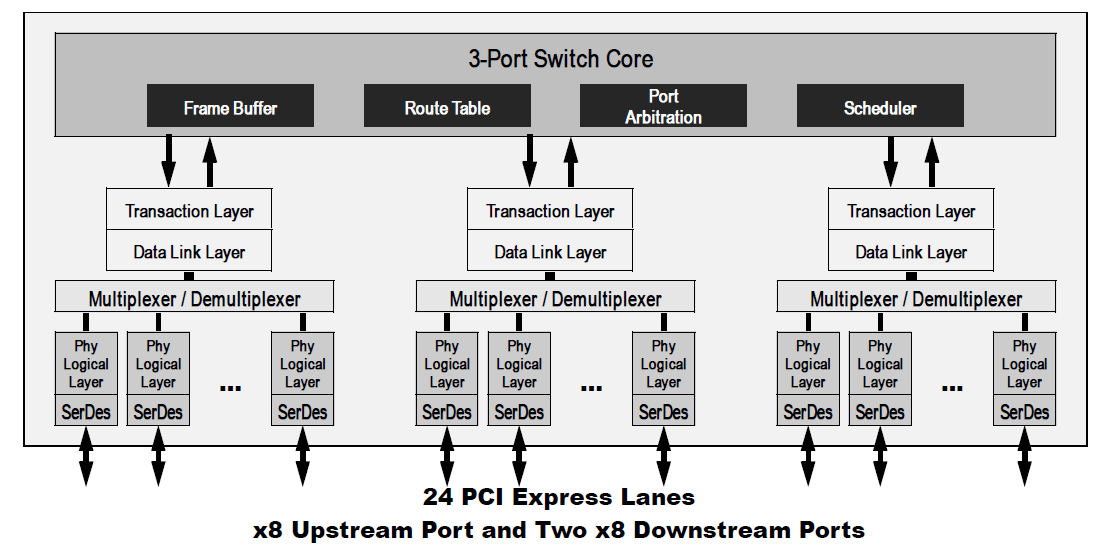

Provides high-performance I/O expansion and switching functions between a PCIe upstream port and two downstream ports or peer-to-peer switching between downstream ports.
特性
- 24 PCIe Gen1 Lanes, 3 Switch Ports
- Switch architecture optimized for I/O Expansion
- Supports root-to-peripheral (upstream-to-downstream) and peer-to-peer (downstream-to-downstream) data transfers
- Internal buffering and flow control credits optimized for maximum bandwidth and large payloads
- Low latency, Low power
产品对比
应用
设计和开发
软件与工具
开发板与套件
开发
89KTPES24N3
过时
System Development Kit for the PES24N3 PCI Express I/O Expansion Switch
Provides system design and software architects with hardware and software tools for target device evaluation, software development and system integration and prototyping.
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
