概览
描述

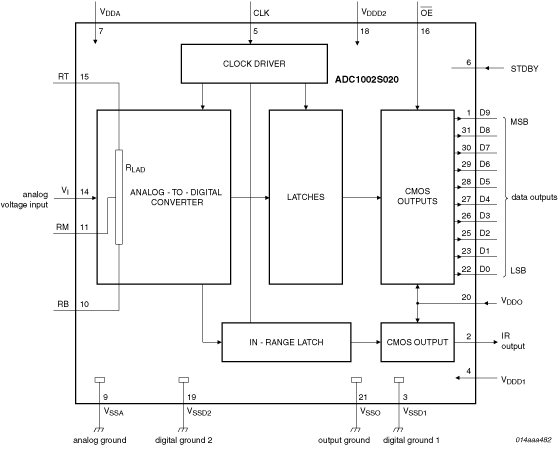

The ADC1002S020 is a 10-bit high-speed Analog-to-Digital Converter (ADC) for professional video and other applications. It converts with 3.0 V to 5.25 V operation the analog input signal into 10-bit binary-coded digital words at a maximum sampling rate of 20 MHz. All digital inputs and outputs are CMOS compatible. A standby mode allows a reduction of the device power consumption to 4 mW.
特性
- 10-bit resolution
- 3.0 V to 5.25 V operation
- CMOS/Transistor-Transistor Logic (TTL) compatible digital inputs and outputs
- DC sampling allowed
- External reference voltage regulator
- High signal-to-noise ratio over a large analog input frequency range (9.3 effective
- bits at 1.0 MHz
- full-scale input at fclk = 20 MHz)
- In-Range (IR) CMOS output
- Low analog input capacitance, no buffer amplifier required
- No sample-and-hold circuit required
- Power dissipation only 53 mW (typical value)
- Sampling rate up to 20 MHz
- Standby mode
