概览
描述

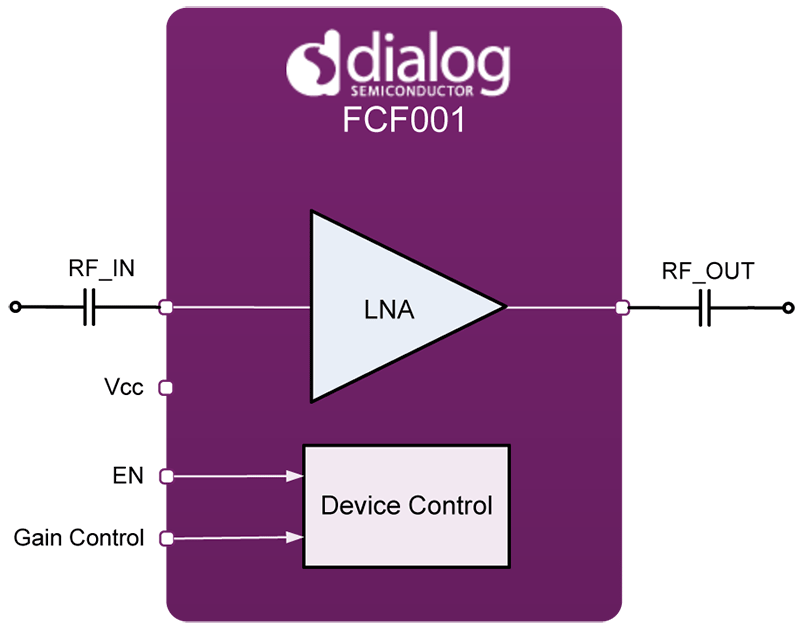

The FCF001 is primarily designed for a receiver LNA of ISDB-T and T-DMB systems. This chip provides two-step gain control to improve dynamic range and receiver performance. FCF001 is manufactured with a CMOS process and is packaged in a lead-free small package.
特性
- Frequency range:
- VHF 100MHz ~ 300MHz
- UHF 300MHz ~ 900MHz
- Noise figure: 1.45dB
- Gain control
- High gain: 12.5dBD at 470MHz
- Low gain: -3.5dB at 470MHz
- Supply voltage: 1.8V
- Current consumption
- High gain: 12.5dBD at 470MHz
- Low gain: -3.5dB at 470MHz
- Package: 1.1mm x 0.7mm 6-pin DFN
产品对比
应用
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
