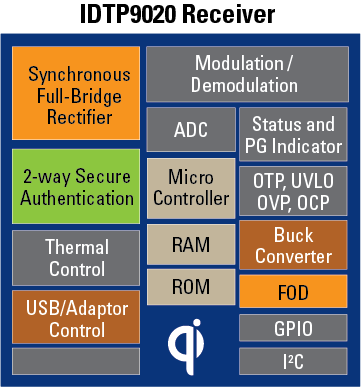

The IDT P9020 is a highly-integrated single-chip WPC-compliant wireless power receiver IC optimized for inductive power transfer. The device receives an AC power signal from a compatible wireless transmitter and converts it into a regulated 5V output voltage which can be used to power devices or supply the charger input in mobile applications (wireless battery charging). The P9020 integrates a high-efficiency synchronous full-bridge rectifier, high-efficiency synchronous buck converter, and control circuits used to modulate the load to transmit Qi-compliant message packets to the transmitter station to optimize power delivery. Power delivery is limited to 5W in accordance with the Qi specification.
The device includes over-temperature/voltage protection and a Foreign Object Detection (FOD) method to protect the base station and mobile device from over-heating in the presence of a metallic foreign object. Fault conditions associated with power transfer are managed by the embedded MCU, which also controls status LEDs to indicate operating and fault modes. IDT’s inductive power transfer / wireless battery charging solution is complemented by P9030 transmitter IC.
特性
- Single-Chip 5W (WPC) "Qi" compliant wireless power receiver
- Conforms to WPC specification version 1.0.1
- Integrated Synchronous Full-Bridge Rectifier
- Integrated Synchronous Buck Converter
- Embedded MCU, ROM, RAM, & ADC
- Integrated USB Adaptor Switches for USB Charging
- Closed-Loop Power Transfer Control between Base
- Security and Encryption up to 64 bit
- Foreign Object Detection (FOD)
- Over-Temperature, Voltage Protection
- Compatible with all WPC Receiver Coils including Proprietary and PCB-based Coils
- Open-Drain LED Indicator Outputs
- I2C Interface
产品对比
应用
文档
|
|
|
---|---|---|
类型 | 文档标题 | 日期 |
数据手册 | PDF 1.87 MB | |
应用说明 | PDF 3.74 MB | |
EOL 通告 | PDF 552 KB | |
产品简述 | PDF 860 KB | |
4 items
|
设计和开发
开发板与套件
Evaluation Board for QFN Wireless Power Receiver P9020
The P9020 QFN evaluation board serves to demonstrate the features and performance of the P9020 wireless power receiver solution for the WPC mobile device with RX-A Coil. The intuitive top-level layout and control simplifies the user experience to emphasize the impressive level of integration and...
Evaluation Board for Wireless Power Transmitter P9030
The P9030 “Qi” evaluation board serves to demonstrate the features and performance of the 9030 wireless power charging solution for base stations with a TX-A1 coil transmitter. The board has been certified by an independent WPC testing facility for “Qi” compliance. The intuitive top-level layout...
