P9242-R

The P9242-R is a highly-integrated 15W magnetic induction wireless power transmitter compliant to the WPC-1.2 specification. The product is designed to withstand a wide input voltage range of 4.25V to 21V, while consuming very low power in standby mode.

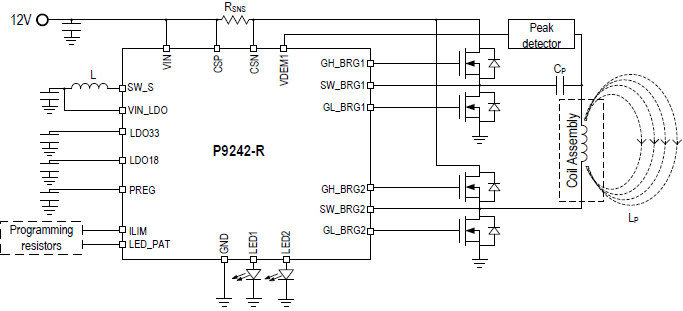

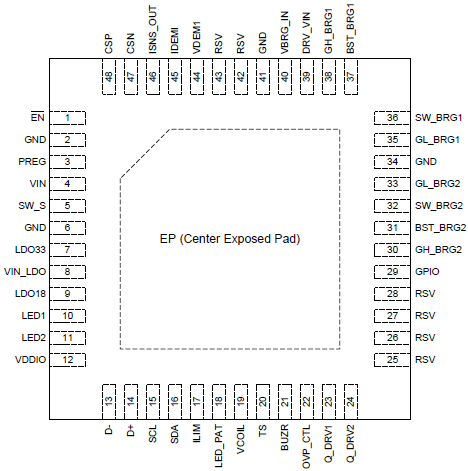

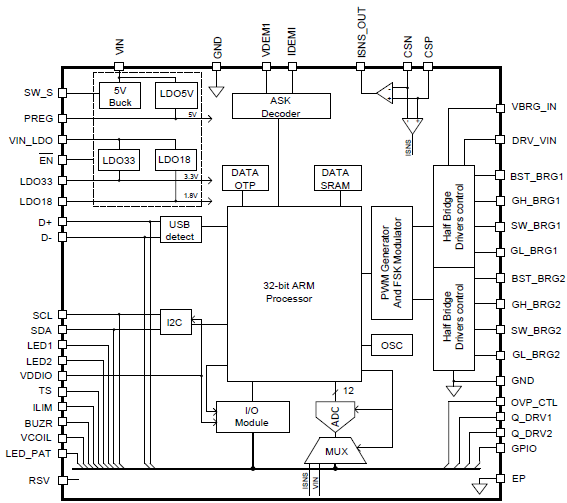

The transmitter includes a 32-bit ARM Cortex®-M0 processor, foreign object detection (FOD), full bridge drivers and on-chip simultaneous voltage and current demodulation. The device features a programmable current, programmable LED pattern; and I2C serial interface protocol to read back information such as voltage, current and fault conditions. Together with P9221-R receiver, the P9242-R is a complete wireless power system solution for 15W applications. The P9242-R is available in a , space-saving 6 x 6 mm 48-VFQFPN package. It is rated for -40ºC to +85ºC ambient operating temperature range.
