概览
描述

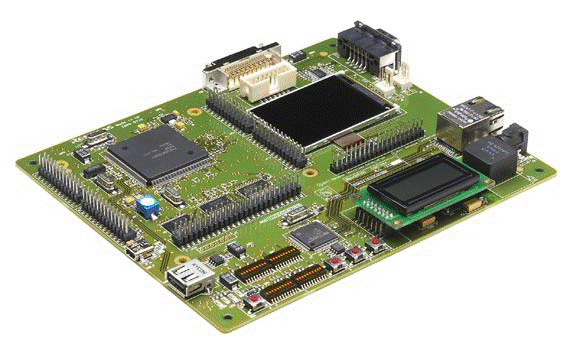

The Renesas Starter Kit+ for SH7203 has been developed speed up code development and reduce time to market. An Renesas Starter Kit+, as the name suggests, is a complete development kit for Renesas microcontrollers.
Configuration
- CPU Board
- Detachable LCD Display Module
- Detachable AD Adjustment Shaft
- USB Host & Function Connection
- SMSC Ethernet Interface
- Hitachi 2.2” QVGA TFT Display
- E10A-USB for Starter Kit ( a special emulator for only Renesas Starter Kit+ products.)
- Connection Cable (USB Cable, User Interface Cable)
- 128 MB USB FLASH Memory Stick
- Ethernet cross-wired cable
- Multi region 12 V power supply
- Quick Start Guide
- CD-ROM
- Documents: User Manual, Tutorial and more
- IDE: High-performance Embedded Workshop
- C/C++ Compiler: C/C++ Compiler Package for SuperH Family Evaluation Version
- Debugger: E10A-USB Emulator Debugger
Notes
Evaluation versions differ from their full-versions in functionality and performance. And technical support services are NOT available.
Learn More (Evaluation Software Tools) >>
Ordering Information
This product can be purchased through the normal sales channels.
Product Name | Debugger Supplied | Part Number (Ordering Number) |
---|---|---|
Renesas Starter Kit+ for SH7203 | E10A | R0K572030S000BE |

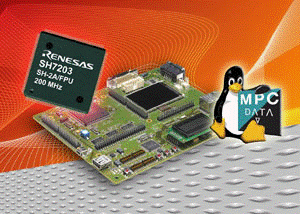

uCLinux SH7203 Board Support Package
Due to the very high level of peripheral integration on the SH7203 it is imperative that an operating system is used for most embedded designs.
Because of this Renesas have in conjunction with our Platinum Alliance Partner MPC Data ported uCLinux to the Renesas Starter Kit+ for SH7203.
The BSP includes the following items
- Drivers for most on chip peripherals
- USB Host mass storage class application
- USB device mass storage class application
- Ethernet driver (LAN9118 type)
- TCP/IP stack an file system (included in uCLinux)
- Boa HTTP web server
- All peripheral and uCLinux source code

At power up the uCLinux application will start and display a range of high definition bitmap pictures stored in FLASH on the TFT display. Remote control of the Renesas Starter Kit+ can then be achieved using the embedded web server and a standard PC browser.
Both USB Function and Host capabilities can be tested using the supplied USB FLASH memory stick.
特性
- CPU Board
- Detachable LCD Display Module
- Detachable AD Adjustment Shaft
- USB Host & Function Connection
- SMSC Ethernet Interface
- Hitachi 2.2" QVGA TFT Display
- E10A-USB for Starter Kit (a special emulator for only Renesas Starter Kit+ products.)
- Connection Cable (USB Cable, User Interface Cable)
- 128 MB USB FLASH Memory Stick
- Ethernet cross-wired cable
- Multi region 12 V power supply
- Quick Start Guide
- CD-ROM
- Documents: User Manual, Tutorial and more
- IDE: High-performance Embedded Workshop
- C/C++ Compiler: C/C++ Compiler Package for SuperH Family Evaluation Version
- Debugger: E10A-USB Emulator Debugger
应用
文档
|
|
|
---|---|---|
类型 | 文档标题 | 日期 |
手册 - 开发工具 | PDF 185 KB | |
快速入门指南 | PDF 547 KB | |
手册 - 开发工具 | PDF 495 KB | |
手册 - 开发工具 | PDF 231 KB | |
指南 | PDF 421 KB | |
快速入门指南 | PDF 301 KB | |
快速入门指南 | PDF 75 KB | |
应用笔记 | PDF 386 KB English , 日本語 | |
8 items
|
