概览

描述

The HFA1135 is a High-Speed, low power current feedback amplifier build with Intersil's proprietary complementary bipolar UHF-1 process. This amplifier features user programmable output limiting, via the VH and VL pins. The HFA1135 is the ideal choice for High-Speed, low power applications requiring output limiting (e. g. flash A/D drivers), especially those requiring fast overdrive recovery times. The limiting function allows the designer to set the maximum and minimum output levels to protect downstream stages from damage or input saturation. The sub-nanosecond overdrive recovery time ensures a quick return to linear operation following an overdrive condition. Component and composite video systems also benefit from this operational amplifier's performance, as indicated by the gain flatness, and differential gain and phase specifications. The HFA1135 is a low power, high performance upgrade for the CLC501 and CLC502.

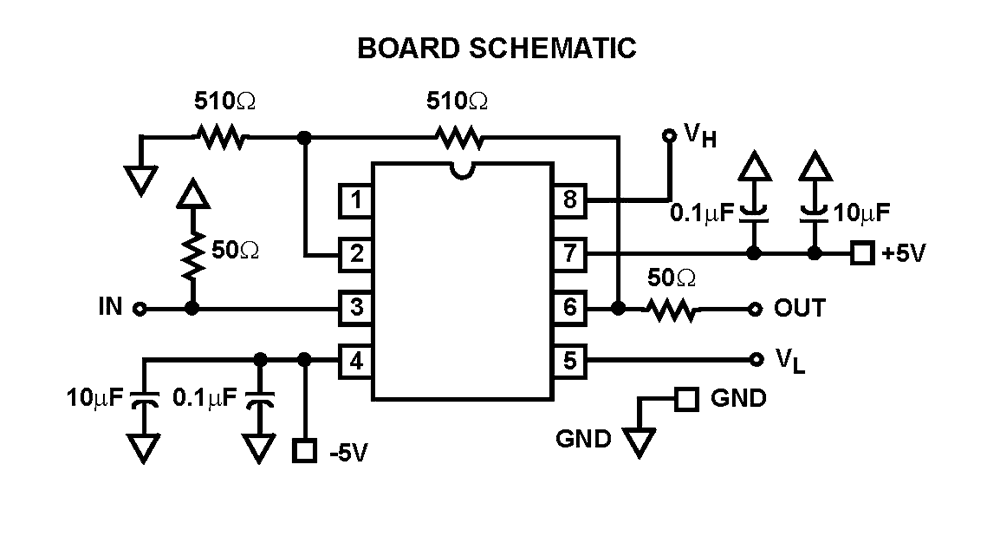

特性

  • User Programmable Output Voltage Limiting
  • Fast Overdrive Recovery <1ns
  • Low Supply Current 6.8mA
  • High Input Impedance 2MΩ
  • Wide -3dB Bandwidth 360MHz
  • Very Fast Slew Rate 1200V/µs
  • Gain Flatness (to 50MHz) ±0.07dB
  • Differential Gain 0.02%
  • Differential Phase 0.04 Degrees
  • Pin Compatible Upgrade to CLC501 and CLC502
  • Pb-Free Plus Anneal Available (RoHS Compliant)

产品对比

应用

文档

设计和开发

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - SPICE TXT 5 KB
1 item
