概览
描述

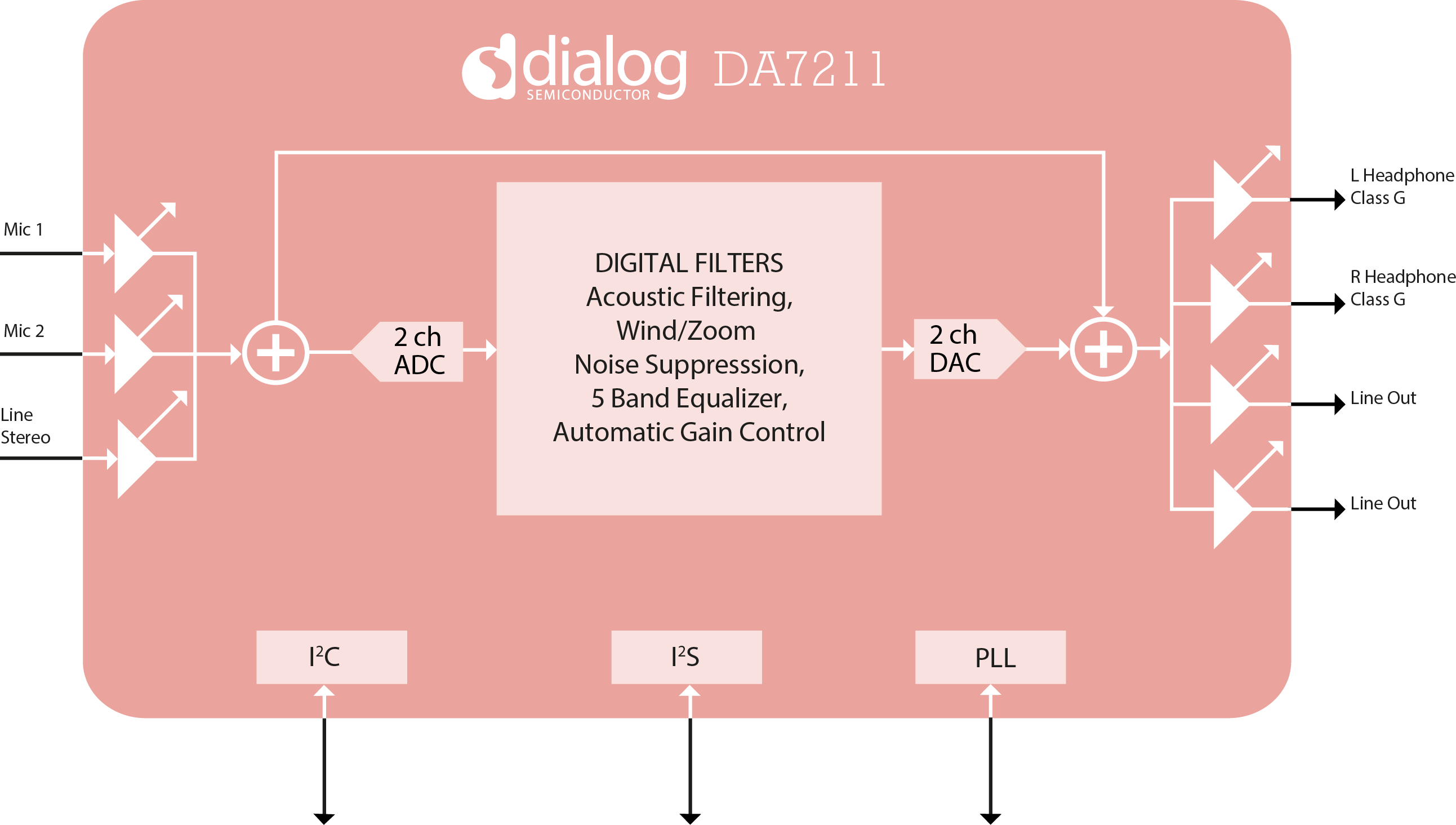

The DA7211 is a high-definition audio codec in a 3mm x 3mm footprint with an integrated true-ground (True-GND) capless headphone driver suitable for a variety of low power, digital portable audio products.
Featuring a high efficiency but powerful 40mW/channel headphone amplifier the device may be operated from a single 1.8V supply to simplify interfacing to digital processors.
Benefits
- High-performance audio codec with integrated PLL
- True-GND capless Class G 40mW headphone driver with integrated charge pump
- Flexible clocking capability to minimize master clock circuit board routing
- Pop & Click suppression circuitry
- Multi-mode audio routing, mixing and volume control
特性
- Stereo Playback/Record: 2.5mW and 3mW at 1.8V (into stereo headphone load)
- Audio performance at 2.5V
- DAC: 100dB/-85db THD
- ADC: 95db SNR/-86dB THD
- Sample rates up to 96kHz supported via multi-slot I2S/PCM interface
- Stereo fully-differential microphone amplifiers with 5µV input noise and bias
- Package: 36 bump WLCSP on 0.5mm ball pitch
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1.41 MB | |
| 手册 - 开发工具 | PDF 4.23 MB | |
| 白皮书 | PDF 1.28 MB | |
| 白皮书 | PDF 546 KB | |
| 其他 | ZIP 1.21 MB | |
| 其他 | ZIP 1.33 MB | |
| 原理图 | ZIP 797 KB | |
| 产品简述 | PDF 1.55 MB | |
8 items
|
||
设计和开发
软件与工具
开发板与套件
评估
DA7211-EVAL2
有效
Ultra-Low Power 1.8V Audio Codec with True-GND Headphone Driver Evaluation Kit
The DA7210/11 evaluation board has been produced to allow measurement, evaluation, and programming of the DA7210/11 ultra-low power audio codec evaluation board and control software. The evaluation PCB is supplied together with a DVD-ROM containing documentation and driver files.
The driver...
