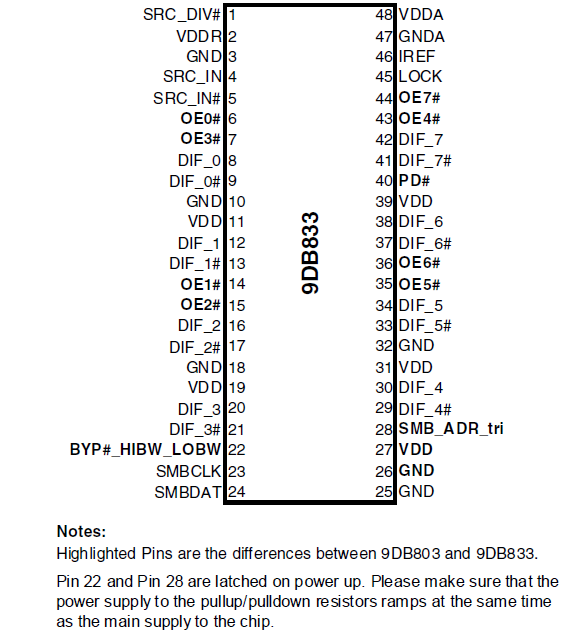

The 9DB833 zero delay buffer (ZDB) supports PCIe Gen3 requirements while being backward compatible with PCIe Gen2 and Gen1. The 9DB833 is driven by a differential SRC output pair from a 932S421 or 932SQ420 or equivalent main clock generator.

特性

  • Eight 0.7V HCSL differential output pairs
  • Phase jitter: PCIe Gen3 < 1ps rms
  • Phase jitter: PCIe Gen2 < 3.1ps rms
  • Phase jitter: PCIe Gen1 < 86ps peak-to-peak
  • Supports Zero Delay Buffer mode and Fanout mode
  • Bandwidth programming available
  • 3 selectable SMBus Addresses
  • 50MHz to 110MHz operation in PLL mode
  • 5MHz to 166MHz operation in Bypass mode
