概览

描述

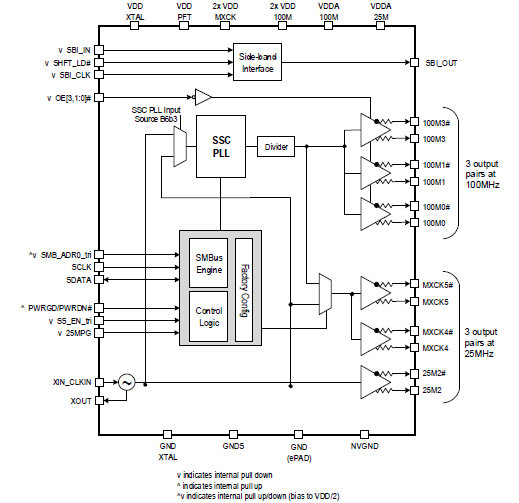

The 9SQ445 is a CK440Q Lite clock synthesizer for newer Intel-based server platforms. The 9SQ445 is a single-chip, PCIe Gen6 compliant device. It is designed to work as a complete clock solution, or in combination, with DB2000Q-compliant or other clock buffers to provide point-to-point clocks to multiple receiving agents.

特性

  • PCIe Gen5 phase jitter < 50fs rms
  • PCIe Gen6 phase jitter < 40fs rms
  • 3.3V operation
  • Three 100MHz dedicated output pairs with individual OE# pins
  • Two MXCLK output pairs multiplexable between 100MHz and 25MHz
  • One 25MHz dedicated output pair
  • 85Ω differential Low-Power HCSL (LP-HCSL) outputs eliminate 24 resistors, saving 39mm2 of area
  • Three selectable SMBus addresses
  • Supports 0%, -0.3% and -0.5% spread-spectrum amounts
  • Side-Band Interface allows real-time hardware control of all output enables

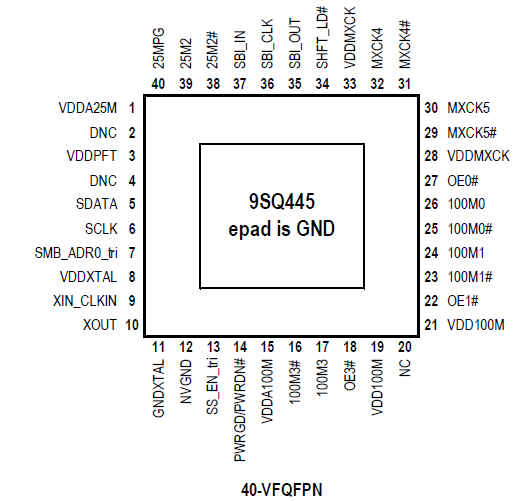

  • 5 × 5 mm, 40-VFQFPN
  • -40°C to +85°C operating temperature range

产品对比

应用

文档

设计和开发

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - IBIS ZIP 65 KB
1 item

产品选项

当前筛选条件

视频和培训

Comparing PCI Express Gen3-7 Jitter Filters to a 12k-20M Jitter Filter

A brief comparison of PCI Express (PCIe) Gen3-7 common clock jitter filters vs. a typical 12k to 20MHz plot. Presented by Ron Wade, System Architect at Renesas.

For more information, visit the PCI Express Clocks page.
