9ZX21901D

有效

Enhanced DB1900Z Compliant 19-Output Buffer

立即订购
9ZX21901D Datasheet

概览

The 9ZX21901D is a second-generation DB1900Z differential buffer for Intel Purley and newer platforms. The part is backward compatible with the 9ZX21901C while offering much-improved phase jitter performance. Fixed external feedback maintains low drift for critical QPI/UPI applications. In bypass mode, the 9ZX21901D can provide outputs up to 400MHz.

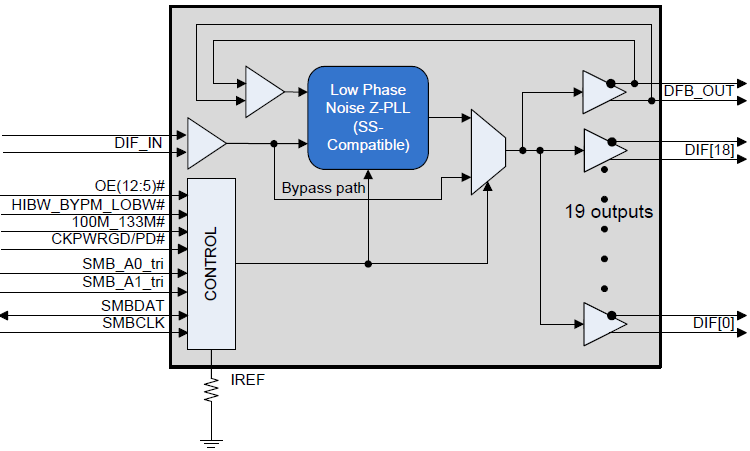

9ZX21901D - Block Diagram

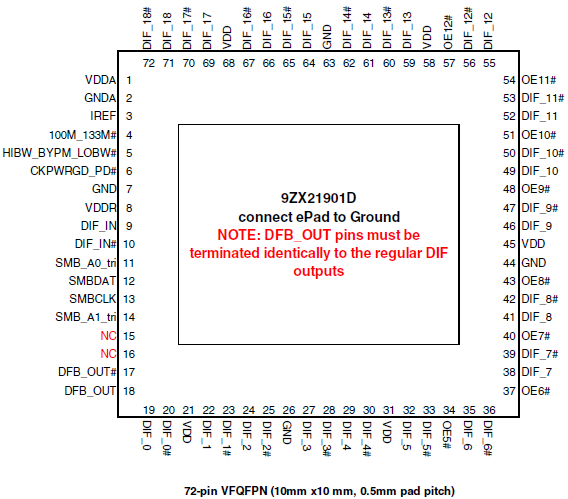

9ZX21901D - Pinout
9ZX21901D - Block Diagram
9ZX21901D - Pinout
  • 19 HCSL output pairs
  • Fixed feedback path
  • Phase jitter: PCIe Gen 4 < 0.5ps rms
  • Phase jitter: UPI 9.6GT/s < 0.1ps rms
  • PLL or bypass mode; PLL can de-jitter incoming clock
  • 9 selectable SMBus Addresses
  • 8 dedicated OE# pins
  • 100MHz or 133MHz PLL mode; legacy QPI support
  • Selectable PLL bandwidth; minimizes jitter peaking in downstream PLLs
  • Spread spectrum compatible
  • SMBus interface
  • 10mm × 10mm 72-QFN package
