概览
描述

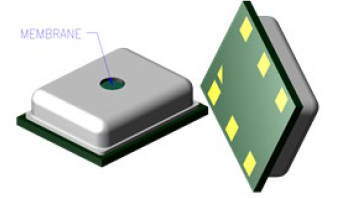

The HS3101 is a highly accurate, fully calibrated relative humidity and temperature sensor. The MEMS sensor features a proprietary sensor-level protection ensuring high reliability and long-term stability. The hydrophobic membrane covering the lid inlet port prevents particles and liquids from entering the sensor and compromising the performance.
特性
- RH accuracy: ±1.5%RH, typical (10 to 90%RH, 25°C)
- Hydrophobic membrane, IP67 rating
- 14-bit resolution: 0.01%RH, typical
- Fast RH response time: 4 seconds, typical
- Temperature sensor accuracy: ±0.2°C, typical (-10 to +80°C)
- Low current consumption: 1.0µA average (8-bit resolution, 1.8V supply), 24.4µA average (14-bit resolution, 3.3V supply), one RH and temperature measurement per second
- Excellent stability against aging
- Very low power consumption
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 592 KB | |
| EOL 通告 | PDF 748 KB | |
| 应用说明 | PDF 1.81 MB | |
| 应用说明 | PDF 131 KB | |
| 产品变更通告 | PDF 368 KB | |
| 产品变更通告 | PDF 99 KB | |
6 items
|
||
设计和开发
开发板与套件
评估
SDAH01
过时
Relative Humidity Sensor Evaluation Kit
The SDAH01 evaluation kit is used to assess the HS300x high performance humidity and temperature sensor chip. The hardware allows users to carry out data logging experiments, and can communicate with the Renesas software on a PC through a standard USB interface. This software makes it possible...
Recommended Documents:
评估
SDAH02
过时
Portable Relative Humidity and Temperature Sensing System
IDT’s SDAH02 LCD evaluation board allows for easy monitoring of the ambient relative humidity and temperature. The system combines the HS300x relative humidity and temperature sensor with an LCD display for fast and accurate environmental measurements. The system takes a measurement every...
Recommended Documents:
评估
HS3000-EVK
过时
HS3001 相对湿度和温度传感器评估套件
HS3000-EVK 简化了 HS3001 相对湿度和温度传感器的评估。 HS3001 是一款高精度、超低功耗、完全校准的相对湿度和温度传感器，具有专有的传感器级保护，可确保高可靠性和长期稳定性。 要启动传感器，只需通过 USB 将 EVK 连接到 Windows PC，然后使用提供的评估软件即可。
HS3000-EVK 由以下部分组成：
- HS3001 和 ZMOD4510 传感器子板
- 环境传感器通信 （ESCom） 板
- USB 连接线
- 快速入门指南
评估套件软件（GUI）可从本页的软件下载部分下载。
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
