概览
描述

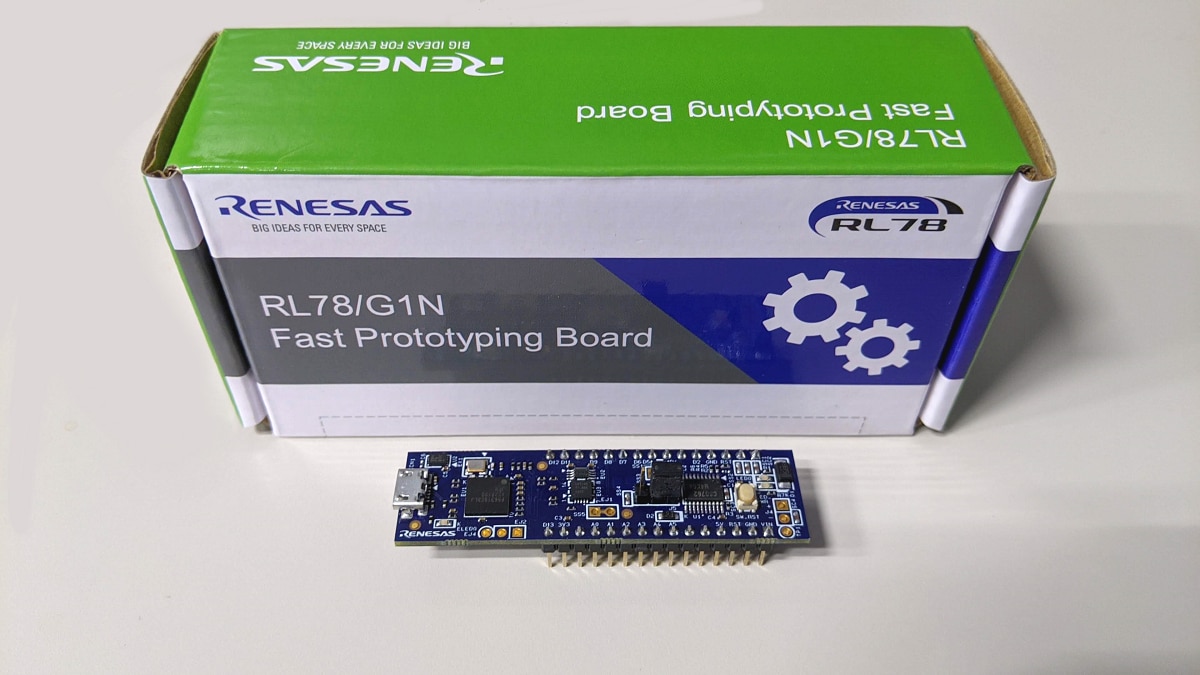

The RL78/G1N Fast Prototyping Board is an evaluation board that is equipped with an RL78/G1N microcontroller, a new product in the RL78 microcontroller family that specializes in application prototyping. There is a built-in emulator circuit that is equivalent to an E2 emulator Lite so you can write/debug programs without additional tools. Since it comes standard equipped with an Arduino Nano header, you can use the interface without modifying the hardware. In addition, debugging is easy with the Arduino Nano header and combined use function which provides access to all pins of the target microcontroller.
特性
- Equipped with an 8-bit RL78/G1N microcontroller (20-pin, ROM: 8KB, RAM: 1.0KB)
- No additional tools are required for program debugging/writing with the built-in emulator circuit equivalent to an E2 emulator Lite

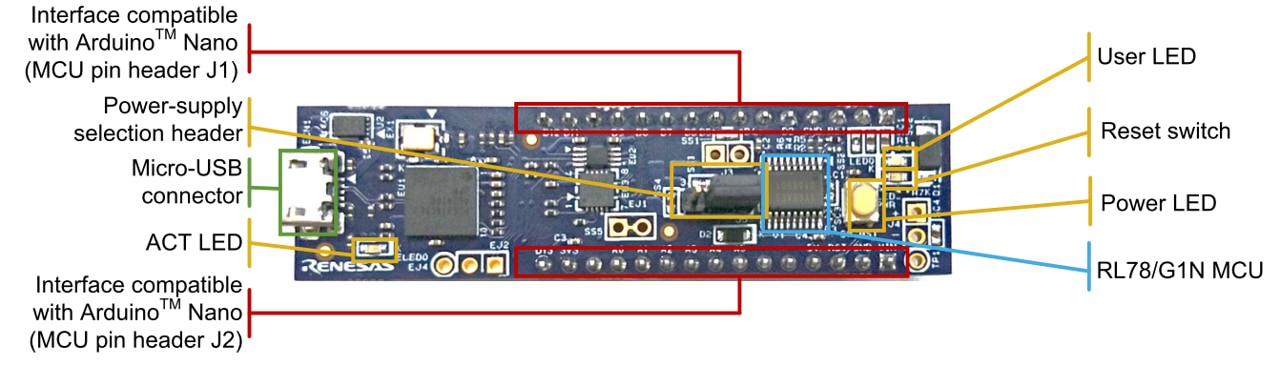

- Able to access all the microcontroller pins
- Arduino Nano header comes standard
- Support for various RL78 software and tools
应用
- Home and office applications
- Small appliances
- Simple lighting fixtures
- LED displays for portable batteries
文档
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 快速入门指南 | PDF 653 KB | |
| 手册 - 软件 | PDF 342 KB | |
| 手册 - 硬件 | PDF 1.30 MB 日本語 | |
| 手册 - 开发工具 | PDF 167 KB | |
| 手册 - 开发工具 | PDF 208 KB | |
| 手册 - 开发工具 | PDF 872 KB 日本語 | |
| 数据手册 | PDF 225 KB | |
| 手册 - 硬件 | PDF 3.00 MB 日本語 | |
| 可靠性资料 | PDF 14.70 MB 日本語 | |
|
9 items
|
||
产品选项
当前筛选条件
视频和培训
This video will guide you through the development process using FPB, covering three key steps: installing the IDE, generating a project with the sample code, and verifying its operation.
To learn more, visit the RL78-Family-Fast-Prototyping-Board page.
