概览

描述

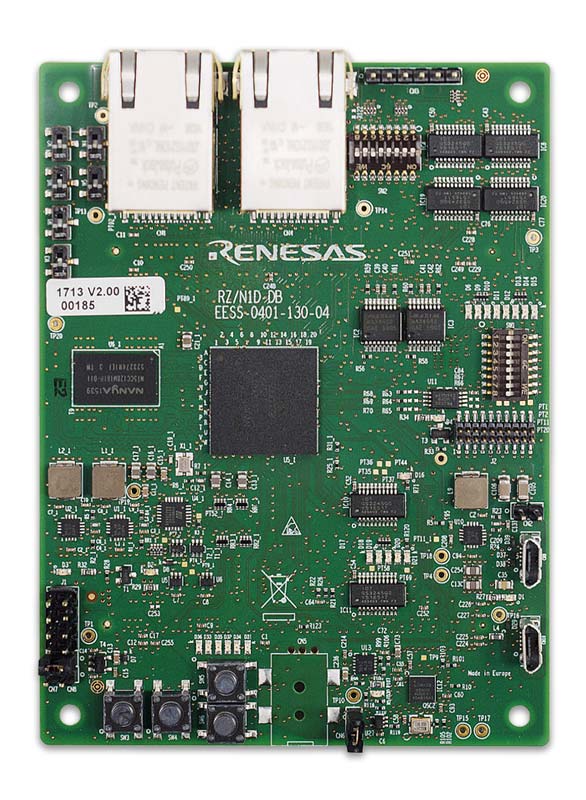

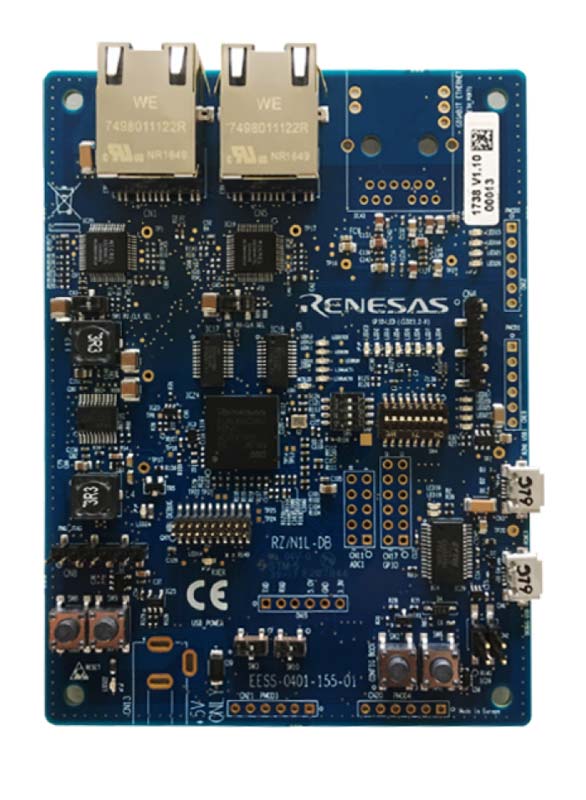

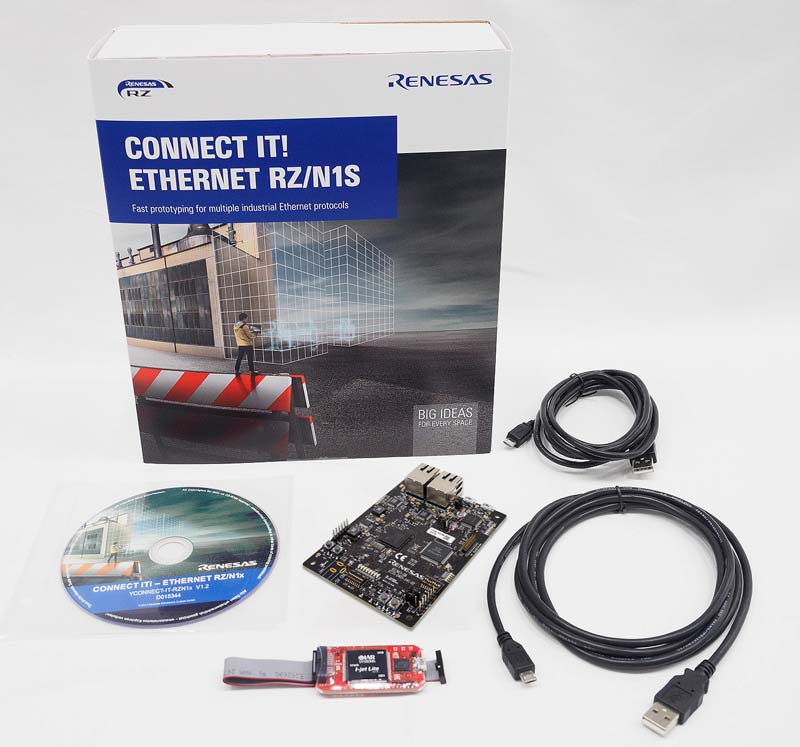

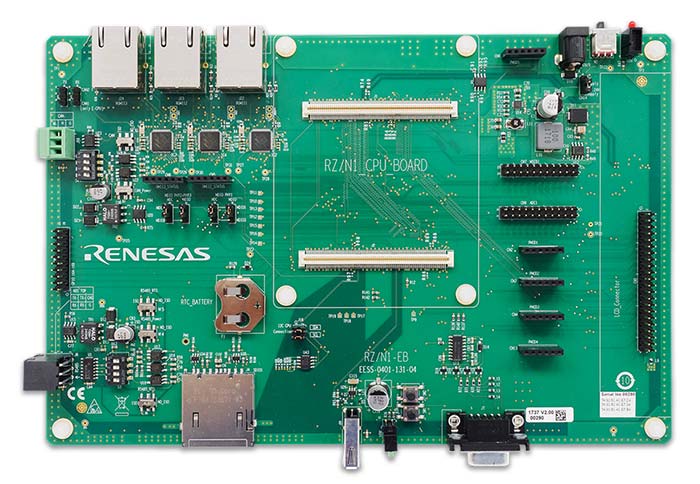

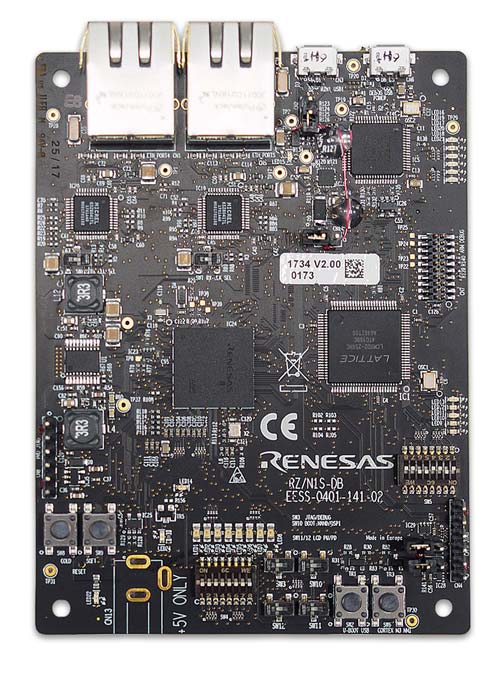

Connect It! Ethernet RZ/N 是一款非常适合刚开始使用 RZ/N1 进行开发的开发人员的解决方案套件。 该套件不仅配有评估板,还配有 JTAG 仿真器和各种示例软件。 根据启动手册设置评估板之后,您便可以评估 Linux 操作系统或瑞萨电子 R-IN 引擎(“R-IN 引擎”),或者使用 EtherCAT 或其他各种协议进行主站和从站通信。该套件不仅配备三块 CPU 板(RZ/N1D、RZ/N1S 和 RZ/N1L),还有一块能够评估各种外设功能的扩展板;您可以根据自己的应用选择使用哪块评估板。 使用该款 Connect It! Ethernet RZ/N 套件,体验 RZ/N1 的性能和功能。

特性

  • JTAG 仿真器
    • IAR I-jet Lite (20 引脚扁平带状电缆 / USB 电缆)
  • 2 根 USB 电缆
  • 启动手册
  • 引脚设置工具
  • RZ/N 解决方案套件 DVD
    • 用户手册
    • 操作系统(Linux、ThreadX®(评估版)、HW-RTOS)
    • 软件 PLC Codesys
    • 协议栈
      • EtherCAT®
      • Modbus
      • PROFINET®
      • Ethernet/IP
      • 等等。

应用

文档

类型 文档标题 日期
快速入门指南 PDF 698 KB
快速入门指南 PDF 1.23 MB
快速入门指南 PDF 997 KB
快速入门指南 PDF 1.05 MB
4 items

设计和开发

软件与工具

软件下载

类型 文档标题 日期
软件和工具 - 其他 登录后下载 ISO 2,590.15 MB
1 item

产品选项

当前筛选条件

视频和培训

RZ/N1 Solution Kit – Fast prototyping for Multi-protocol Industrial Ethernet

The RZ/N1D solution kit is an all-in-the-box package for fast evaluation and rapid prototyping of multiple industrial Ethernet protocols.

RZ/N1 is a family of scalable Arm® based industrial Ethernet switches. The performant Arm® Cortex®-A7 CPU on board, makes them an ideal choice for building Programmable Logic Controllers (PLC), industrial switches, gateways or operator terminals. Due to the unique combination of hardware and software, developers can easily exchange various industrial Ethernet protocols and focus only on developing the application software.
