概览

描述

The SLG46536-EV provides a small, low-power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG46536-EV. This highly versatile device allows for a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.

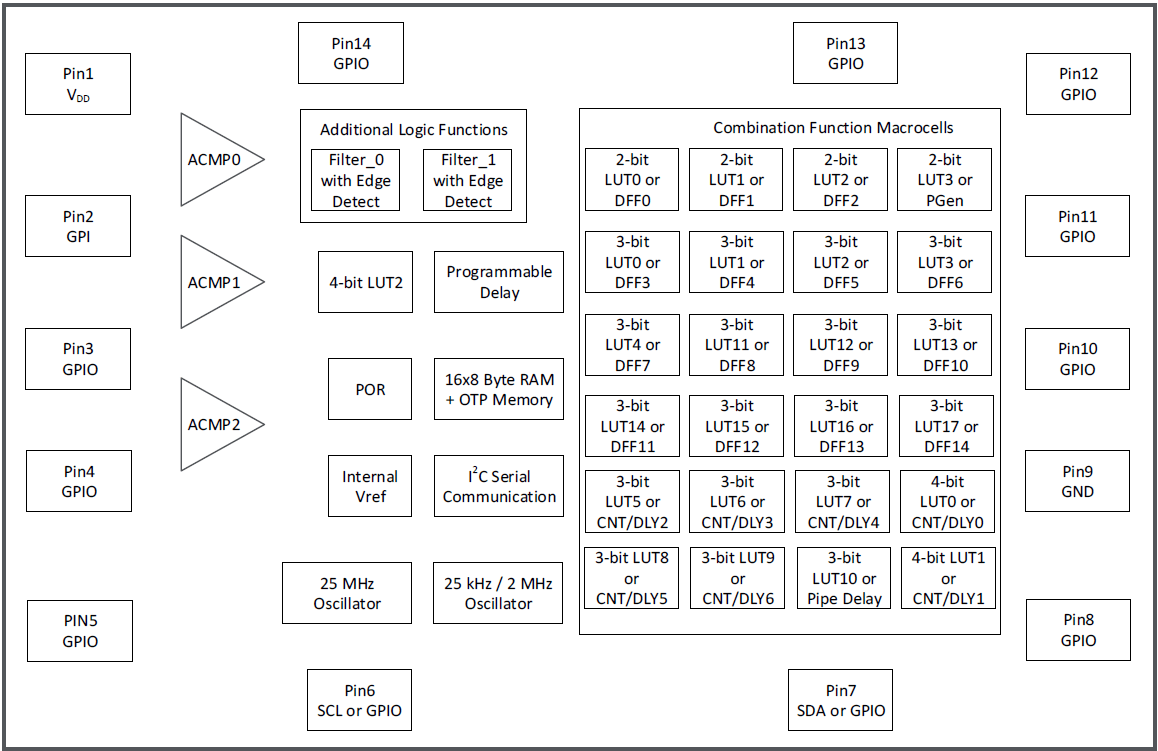

特性

  • Three Analog Comparators (ACMP)
  • Twenty-six Combination Function Macrocells
    • Three Selectable DFF/LATCH or 2-bit LUTs
    • One Selectable Continuous DFF/LATCH or 3-bit LUT
    • Eleven Selectable DFF/LATCH or 3-bit LUTs
    • One Selectable Pipe Delay or 3-bit LUT
    • One Selectable Programmable Function Generator or 2-bit LUT
    • Five 8-bit Delays/Counters or 3-bit LUTs
    • Two 16-bit Delays/Counters or 4-bit LUTs
    • Two Deglitch Filters with Edge Detectors
  • Combinatorial Logic
    • One 4-bit LUT
  • Serial Communications
    • I2C Protocol Compliant
  • Pipe Delay – 16 Stage/3 Output (Part of Combination Function Macrocell)
  • Programmable Delay
  • Two Oscillators (OSC)
    • Configurable 25kHz or 2MHz
    • 25MHz Oscillator
  • Power-On Reset
  • 16x8 RAM + OTP User Memory
    • User-Defined Initial Values Transferred from OTP
  • Logic and Mixed-Signal Circuits
  • Highly Versatile Macrocells
  • Read Back Protection (Read Lock)
  • Power Supply
    • 1.8V (±5%) to 5.0V (±10%) VDD
  • Ambient Operating Temperature Range: -40 °C to +105 °C
  • RoHS-Compliant/Halogen-Free
  • Available Package: 14-pin STQFN: 2.0mm x 2.2mm x 0.55mm, 0.4mm pitch

产品对比

应用

  • Outdoors Electronics
  • Factory Automation
  • Servers and Networking Equipment
  • Chargers
