The SLG47512 provides a small, low-voltage, and low-power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG47512. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low-power single integrated circuit.
特性
- Read Back Protection (Read Lock)
- Power Supply: 1.0V to 1.65V
- Operating Temperature Range: -40 °C to 85 °C
- RoHS-Compliant/Halogen-Free

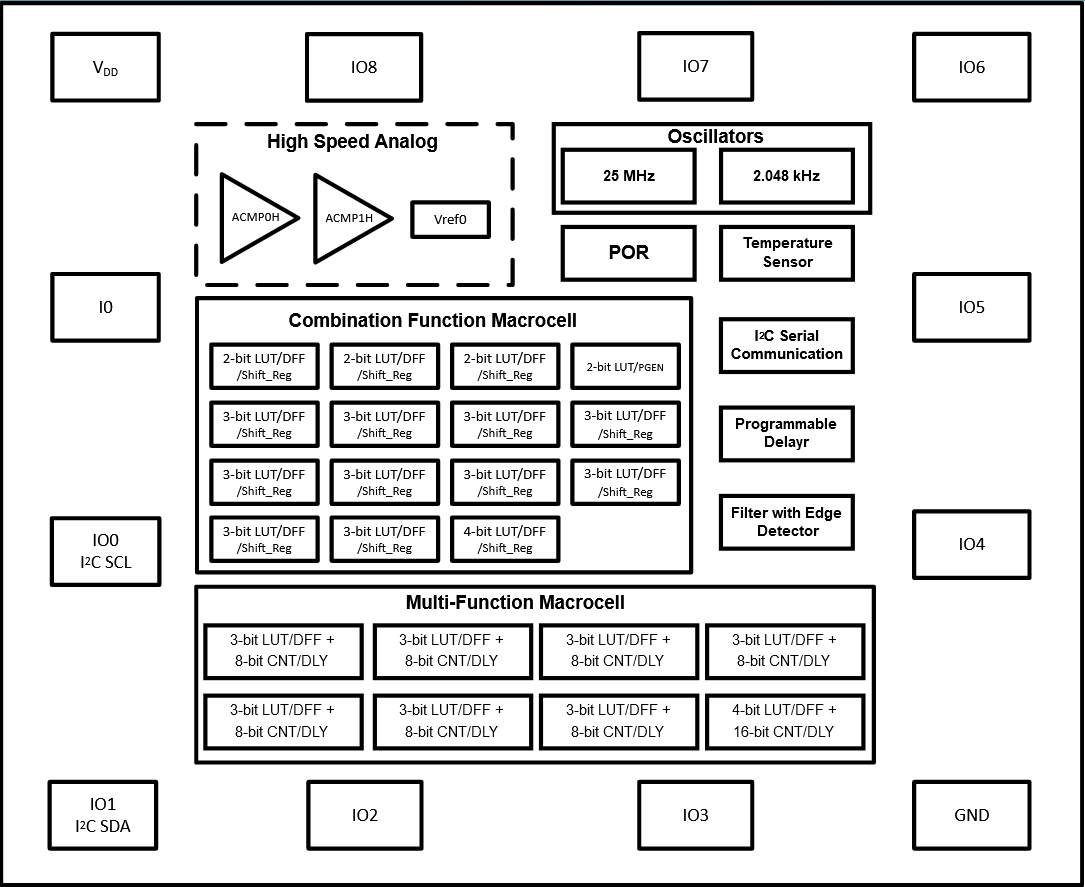

- Macrocells Overview
- Two High-Speed General-Purpose Analog Comparators (ACMPxH)
- Integrated Voltage Reference
- Fifteen Combination Function Macrocells
- Three 2-bit LUT or (DFF/LATCH) or Shift Register
- One Selectable Programmable Pattern Generator or 2-bit LUT
- Ten 3-bit LUT or (DFF/LATCH) with Set/Reset or Shift Register
- One 4-bit LUT or (DFF/LATCH) with Set/Reset or Shift Register
- Eight Multi-Function Macrocells
- Seven Selectable DFF/Latch or 3-bit LUTs + 8-bit Delay/Counters
- One Selectable DFF/Latch or 4-bit LUT + 16-bit Delay/Counter/FSM
- I²C Communication
- Programmable Delay with Edge Detector Output
- Deglitch Filter or Edge Detector
- Two Oscillators (OSC)
- 2.048kHz Oscillator
- 25MHz Oscillator
- Analog Temperature Sensor
- Power-On Reset (POR) with CRC
