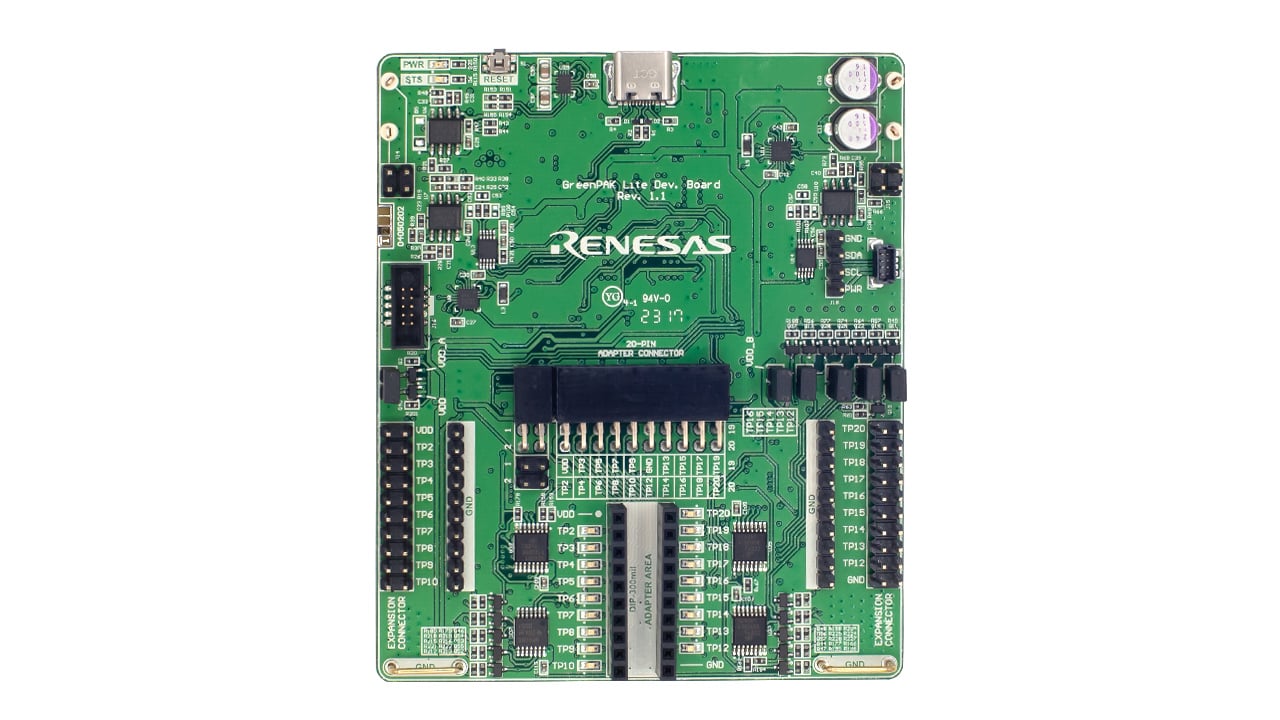

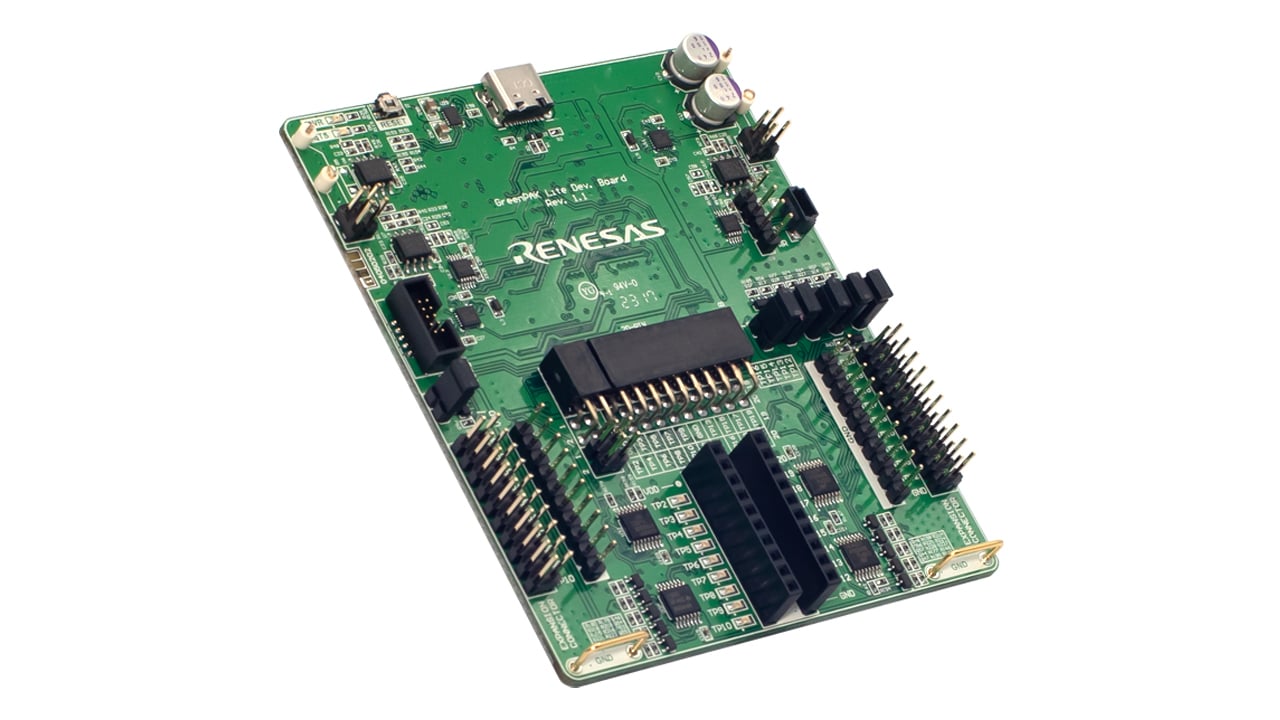

GreenPAK Lite 开发板

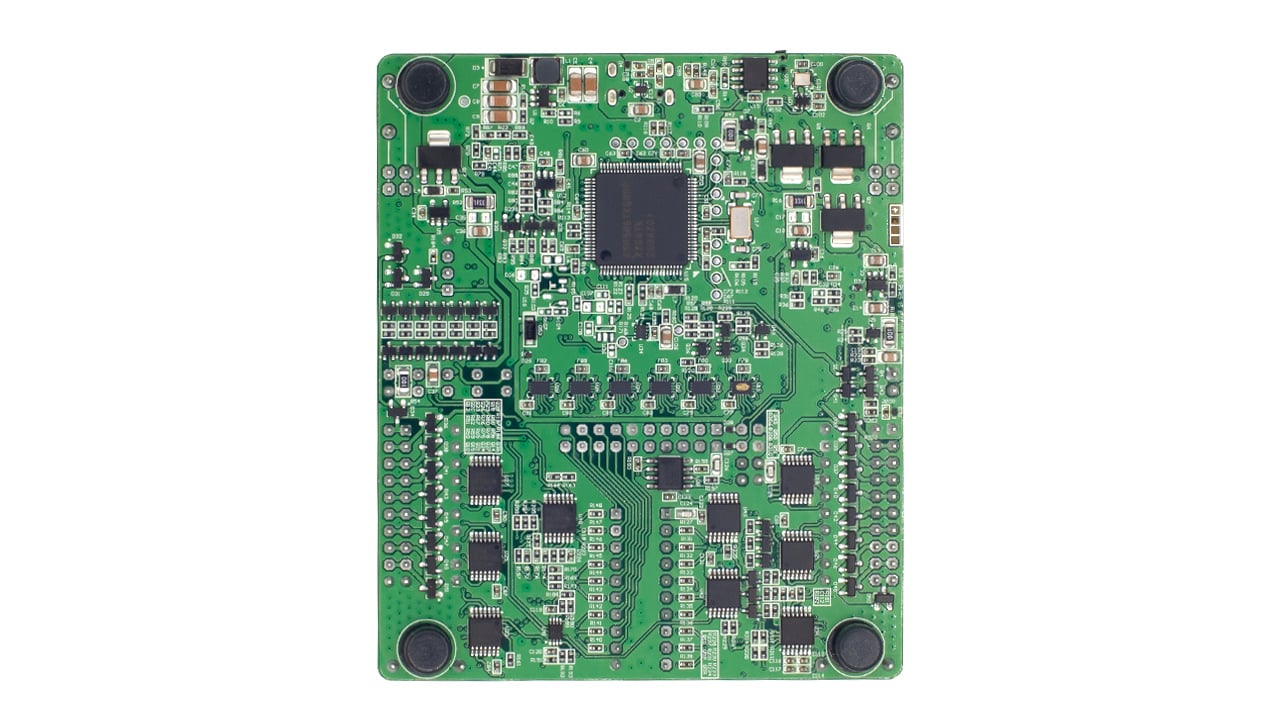

GreenPAK Lite 开发板为 GreenPAK 设备提供完整的编程、仿真和测试功能，与 Go Configure™ 软件中心配对工作。 板卡功能由瑞萨电子的 RX66T MCU 提供。
概览
描述

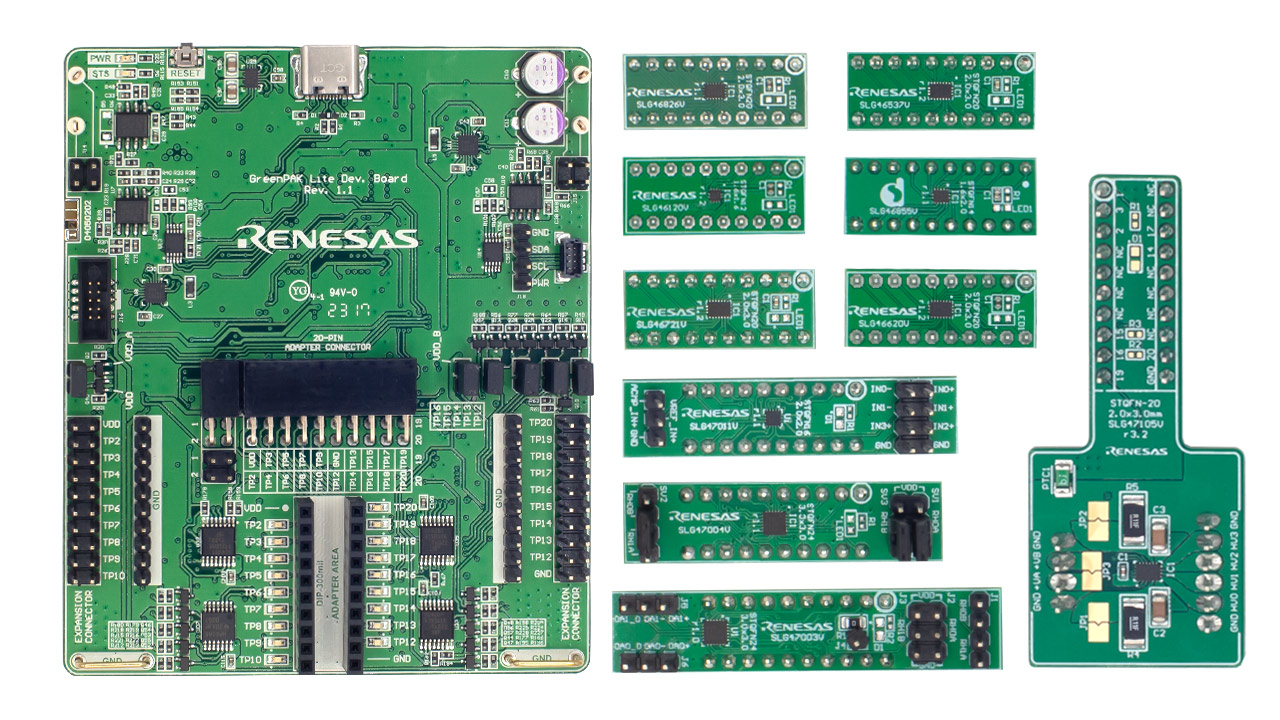

SLG4DVKLITEINTRO GreenPAK™ 入门套件是非常适合给使用 GreenPAK 可编程混合信号产品的客户去启动新的开发。
GreenPAK 入门套件包括：
- 附有 USB 数据线的SLG4DVKLITE
- SLG46120V-DIP
- SLG46721V-DIP
- SLG46620V-DIP
- SLG46537V-DIP
- SLG46826V-DIP
- SLG47105V-DIP
- SLG47004V-DIP
- SLG47003V-DIP
- SLG47011V-DIP
- SLG46855V-DIP
特性
- USB 2.0 板电源和通信
- 支持DIP 和插座适配器
- 双 VDD IC 支持
- 内置电流表，用于两个 IC VDD 源
- USB I²C 桥接功能
- 18 个可单独配置的测试点 （TP）：
- 板载 LED 状态指示
- 上拉、下拉、GND、VDD、Hi-Z、VDD2
- 可编程软件按钮
- 可配置的双引脚接头，用于用户原理图集成和信号监控（扩展连接器）
- 四个测试端子，用于连接示波器
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| Go Configure Software Hub Go Configure Software Hub 为各种产品提供开发支持，包括 GreenPAK 可配置混合信号矩阵和 ForgeFPGA™ 器件。
|
Software Package | 瑞萨电子 |
1 item
|
||
