Evaluation Board for F1951 6-bit Digital Step Attenuator
The F1951EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1951 digital step attenuator. Attenuation may be set using either...
特色文件:
概览
描述

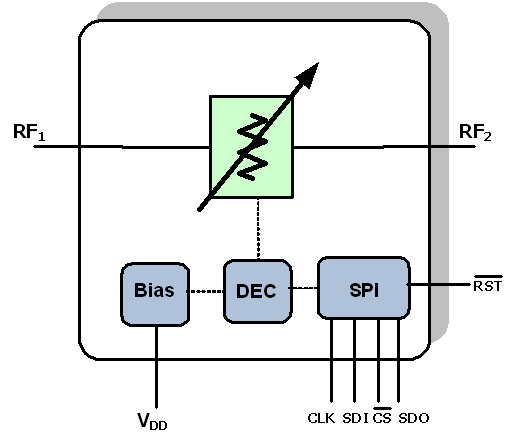

The F1951 Digital Step Attenuator (DSA) featuring Glitch-Free™ technology improves system reliability and settling time. It has an attenuation range of 31.5dB with excellent accuracy and very low distortion.
特性
- Glitch-Free, < 0.6dB transient overshoot
- 100MHz to 5000MHz frequency range
- Spurious free design
- 3V to 5V supply
- Attenuation error < 0.2dB at 2GHz
- Low insertion loss < 1.2dB at 2GHz
- Excellent linearity +68dBm IP3I
- Fast settling time, < 400nsec
- Class 2 JEDEC ESD (> 2kV HBM)
- Serial interface 31.5dB range

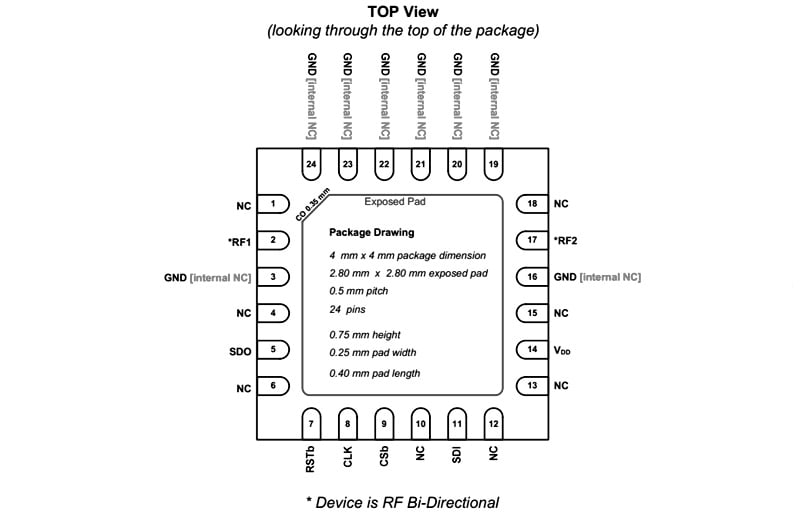

- 4mm x 4mm thin VFQFPN 24-pin package
产品对比
应用
- Base Station 2G, 3G, 4G, TDD radio cards
- Repeaters and E911 systems
- Digital pre-distortion
- Point-to-Point infrastructure
- Public safety infrastructure
- WiMAX receivers and transmitters
- Military systems, JTRS radios
- RFID handheld and portable readers
- Cable infrastructure
