Evaluation Board for F1953 6-bit Digital Step Attenuator
The F1953EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1953 digital step attenuator. Attenuation may be set using either...
特色文件:
概览
描述
The F1953 digital step attenuator featuring Glitch-Free™ technology improves system reliability and settling time. It has an attenuation range of 31.5dB with excellent accuracy and very low distortion. In addition, it features internal DC-blocking capacitors to reduce the system's bill of materials (BOM).
特性
- Glitch-Free, < 0.6dB transient overshoot
- Spurious free design
- 2.7V to 3.3V supply
- Attenuation error < 0.5dB at 2GHz
- Low insertion loss < 1.4dB at 2GHz
- Excellent linearity > +63dBm IP3I
- Fast settling time, < 400nsec
- Class 2 JEDEC ESD (> 2kV HBM)

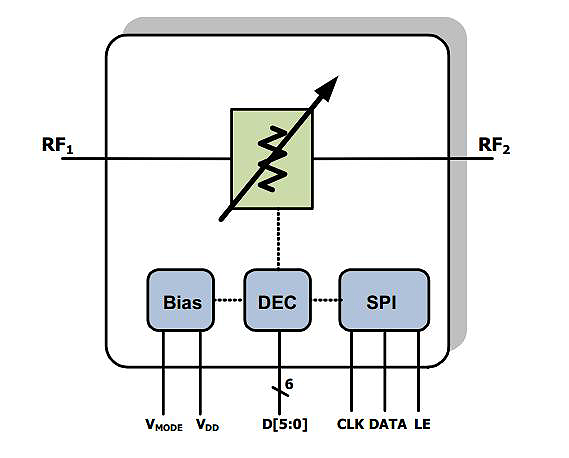

- Serial or parallel interface 31.5dB range
- Stable integral non-linearity over temperature
- Low power consumption < 200µA
- Integrated DC-blocking capacitors
- Drop-in replacement

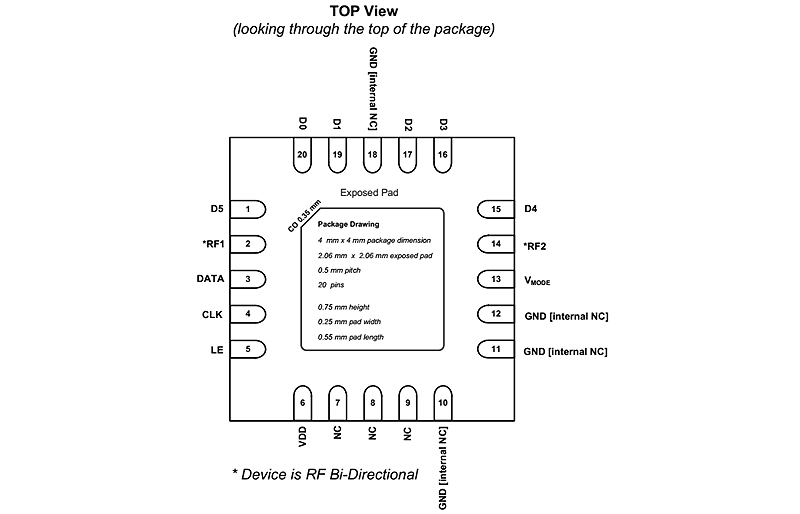

- 4mm x 4mm thin VFQFPN 20-pin package
产品对比
应用
- Base Station 2G, 3G, 4G, TDD radio cards
- Repeaters and E911 systems
- Digital Pre-Distortion
- Point-to-Point Infrastructure
- Public Safety Infrastructure
- WiMAX Receivers and Transmitters
- Military Systems, JTRS radios
- RFID handheld and portable readers
- Cable Infrastructure
