概览
描述

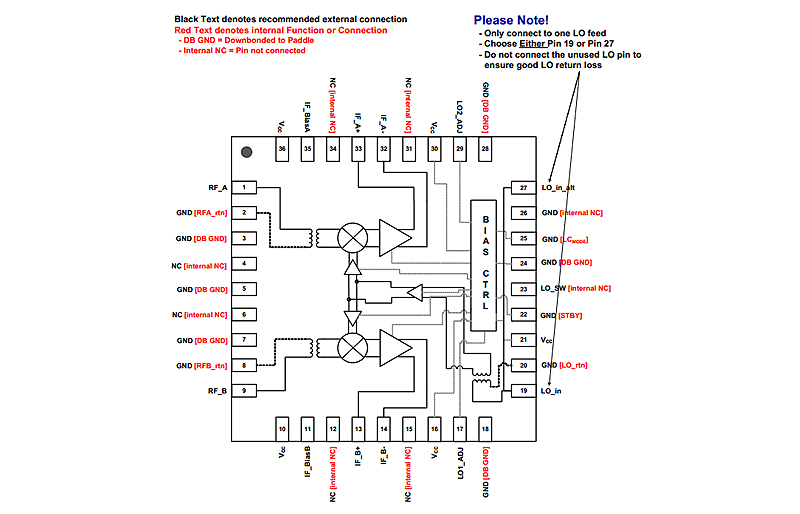

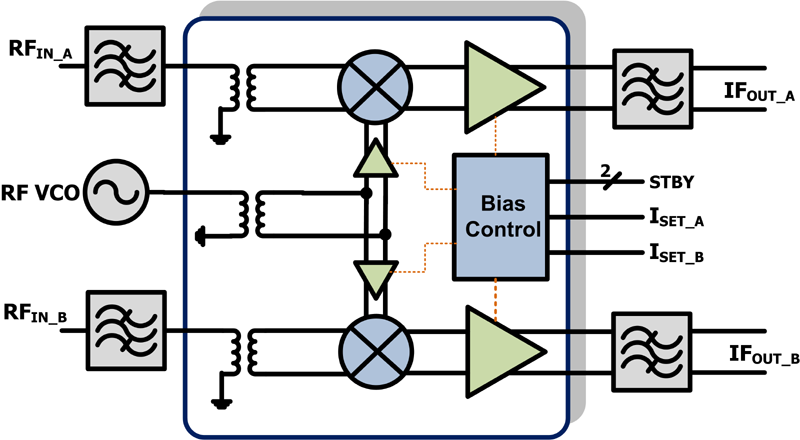

The IDT F1162 dual channel device is designed to operate with a single 5V supply. It is optimized for operation in a Multi-carrier BaseStation Receiver for LTE and TDD RF bands from 2300 - 2700 MHz with either Side Injection. IF frequencies from 50 to 500 MHz are supported. Nominally, the device offers +43 dBm Output IP3 with 335 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the device in low current mode with +38 dBm Output IP3 and 230 mA of ICC.
A member of IDT’s Zero-Distortion™ family, this RF to IF mixer reduces distortion for improved SNR while simultaneously reducing power consumption.
特性
- Zero-DistortionTM technology for LTE/TDD bands
- 2300 to 2700 MHz freq range\Ideal for Multi-Carrier Systems
- 8.9 dB Gain
- Ultra linear +43 dBm IP3O
- Low NF < 10 dB
- 200 Ω output impedance
- Ultra high +13 dBm P1dBI
- Pin Compatible w/existing solutions
- 6x6mm 36-pin package
- Power Down mode
- ~ 150 nsec settling from Power Down
- Constant LO Port Z in STBY mode
- Low Current Mode : ICC = 230 mA
- Standard Mode: ICC = 330 mA
- Can use with Low Side or High Side Injection
