The IDT F1178 dual channel device operates with a single 5 V supply. It is optimized for operation in a Multicarrier BaseStation Receiver for RF bands from 3300 to 3800 MHz with High or Low Side Injection. IF frequencies from 20 to 550 MHz are supported. matching modifications. Nominally, the device offers +39 dBm Output IP3 with 290 mA of ICC.
A member of IDT’s Zero-Distortion™ family, this RF to IF mixer reduces distortion for improved SNR while simultaneously reducing power consumption.
特性
- Dual path for MIMO systems
- 9.0 dB Gain; ultra linear
- +39 dBm IP3O
- Low NF ~ 9 dB
- Extended LO level range for MIMO (-6 dBm)
- 200 ohm output impedance
- Very high +11 dBm P1dBI
- Pin compatible with IDT's Zero-Distortion family

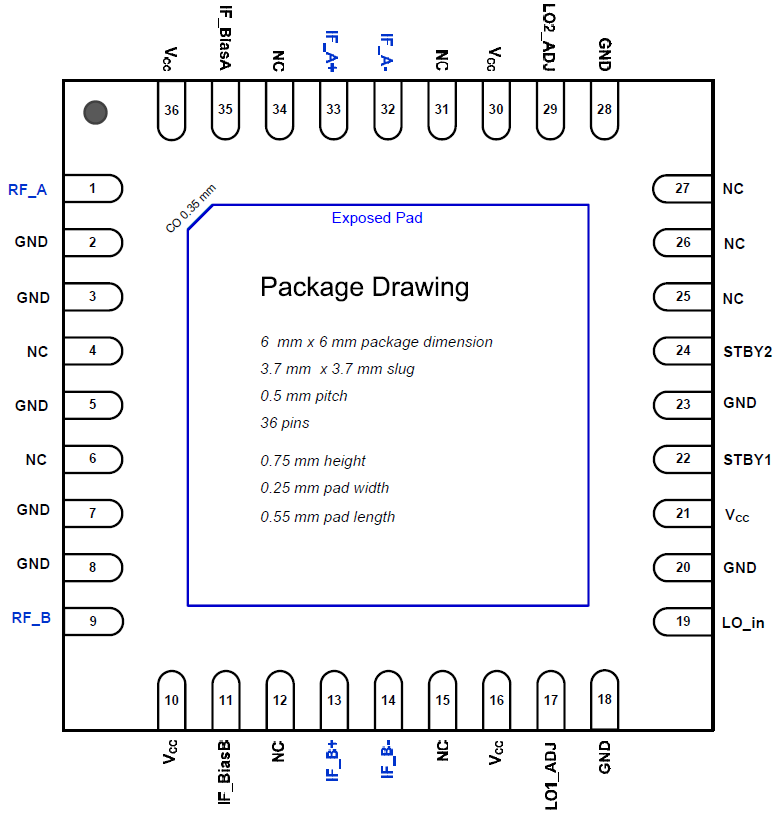

- 6x6 mm 36-pin package
- Individual path power down mode
- < 200 nsec settling from power down
- Minimizes synthesizer pulling in standby mode
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 4.34 MB | |
| 产品变更通告 | PDF 674 KB | |
| 指南 | PDF 2.24 MB | |
| 产品简述 | PDF 1.12 MB | |
4 items
|
||
设计和开发
开发板与套件
评估
F1178EVBI
有效
Evaluation Board for F1178 Dual 3.5 GHz Downconverting Mixer
The F1178EVBI is a fully populated evaluation board that allows the customer to easily evaluate the F1178 Dual Mixers. Header pins on the evaluation board allow for choosing the bias resistor configuration and also for individually enabling the two channels.
