概览
描述
The IDT F1240 IF VGA featuring FlatNoise™ technology improves system SNR, especially at lower gain settings. By keeping both IP3O & NF flat while gain is backed off, the system SNR is improved significantly under high level interferer conditions, especially when considering alias noise in an IF sampling receiver. The fast-settling, parallel mode gain step of 0.50 dB coupled with the excellent differential non-linearity allow for SNR to be maximized further by targeting the minimum necessary gain in small, accurate increments. The matched output does not require a terminating resistor, thus the gain and distortion performance are preserved when driving Bandpass Anti-Alias filters.
特性
- Ideal for systems with high SNR requirements
- 20 dB typical Maximum Gain
- 31 dB gain control range
- 6 bit control
- 0.50 dB Gain Steps
- Excellent Noise Figure ~ 4.0 dB

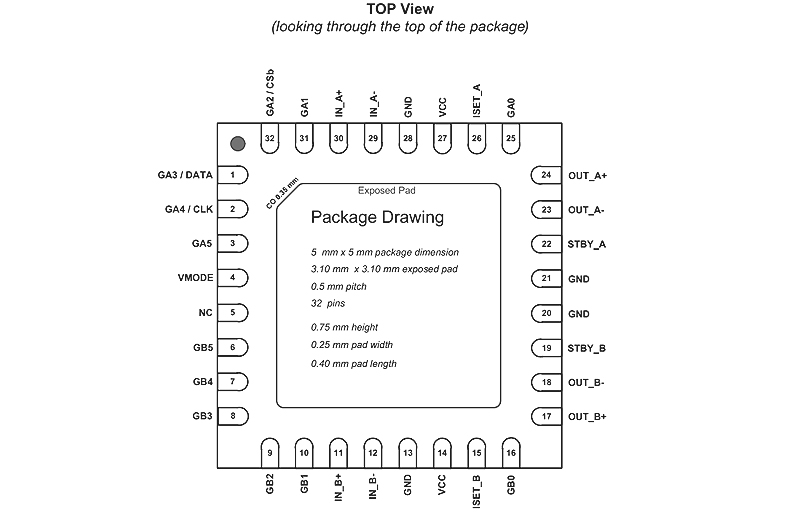

- 5mm x 5mm 32 pin package
- 200 ohm Differential Matched Input
- 200 ohm Differential Matched Output
- No termination resistor required
- NF degrades < 2dB @ 10 dB reduced gain
- 10 MHz – 500 MHz frequency range
- Ultra-Linear: IP3O +47 dBm typical
- Excellent 2nd Harmonic Rejection
- Parallel / Serial Control
- External current setting resistors
- Very fast settling < 15 nsec
- Individual Power Down Modes
- Extremely low power consumption: 79 mA / Ch
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 15.44 MB | |
| 指南 | PDF 2.24 MB | |
| 指南 | PDF 2.83 MB | |
| 产品变更通告 | PDF 39 KB | |
| 产品变更通告 | PDF 35 KB | |
| 产品变更通告 | PDF 33 KB | |
| 产品变更通告 | PDF 950 KB | |
7 items
|
||
设计和开发
软件与工具
开发板与套件
评估
F1240EVBI
有效
Evaluation Board for F1240 Dual Intermediate Frequency Digital Variable Gain Amplifier
The F1240EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1240 Dual Intermediate Frequency Digital Variable Gain Amplifier. Attenuation may be set using either the F1240’s parallel control input or its serial control input by setting Vmode to the...
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
