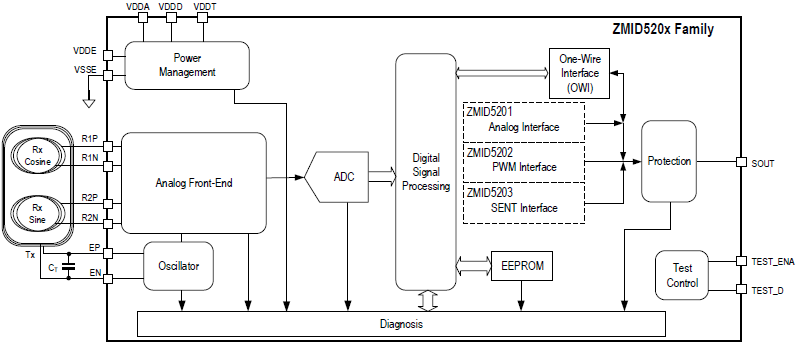

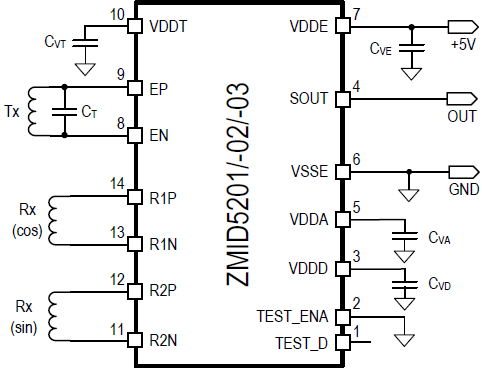

The ZMID5203 is an inductive position sensor IC with SENT output, used for absolute rotary and linear motion sensing in automotive applications. The ZMID5203 uses the physical principles of induction in a wire loop and Eddy currents to detect the position of a metallic target that is sliding or rotating above a set of coils, consisting of one transmitter coil and two receiver coils. The three coils are typically printed as copper traces on a printed circuit board (PCB). They are arranged such that the transmitter coil induces a secondary voltage in the receiver coils which depends on the position of the metallic target above the coils. After demodulating and processing the secondary voltages from the receiver coils, a signal representative of the metallic target’s position over the coils is obtained. The ZMID5203 is fully qualified to automotive standards AEC-Q100, grade 0 up to 150°C ambient temperature.
特性
- Inductive principle
- Rotation sensing up to a full turn of 360º
- SENT output with programmable limits
- Overvoltage, reverse polarity, ESD and short circuit protection
- 12-bit resolution
- Power or ground loss detection
- Facilitates redundant design requirements
- Programmable linearity correction
- Adaptive gain control supporting a wide range of coil designs
- Diagnostic features supporting ISO26262
- Supporting up to ASIL-B
- Overvoltage and reverse polarity protection up to ±18V
- Small 14-TSSOP package
产品对比
应用
设计和开发
软件与工具
开发板与套件
评估
ZMID5203MARC
有效
ZMID5203 Inductive Arc Application Module with SENT Output
The ZMID5203MARC is an inductive arc position sensor module including sensor PCB, target and target holder.
NOTE: This module is pre-programmed and characterized. For changing programming options, such as motion range or diagnostic settings, the ZMID communication board (ZMID-COMBOARD) is...
Recommended Documents:
评估
ZMID5203MROT
有效
ZMID5203 Inductive Rotary Application Module with SENT Output
The ZMID5203MROT is an inductive rotary position sensor module including sensor PCB, target and target holder.
NOTE: This module is pre-programmed and characterized. For changing programming options, such as motion range or diagnostic settings, the ZMID communication board (ZMID-COMBOARD) is...
Recommended Documents:
评估
ZMID5203MLIN
有效
ZMID5203 Inductive Linear Application Module with SENT Output
The ZMID5203MLIN is an inductive linear position sensor module including sensor PCB, target and target holder.
NOTE: This module is pre-programmed and characterized. For changing programming options, such as motion range or diagnostic settings, the ZMID communication board (ZMID-COMBOARD) is...
Recommended Documents:
评估
USB Communication and Programming Board for ZMID Application Modules
USB communication and programming board for ZMID inductive application modules. An application module (e.g. ZMID5201MROT; not included, available as a separate item) can be connected to the ZMID-COMBOARD. The AID EVKIT GUI allows programming and sensor data readout after connecting it to a...
Recommended Documents:
