RAA2S425XKIT Evaluation Kit
The evaluation kit provides an entry point to evaluate RAA2S425X product family.
概览
描述

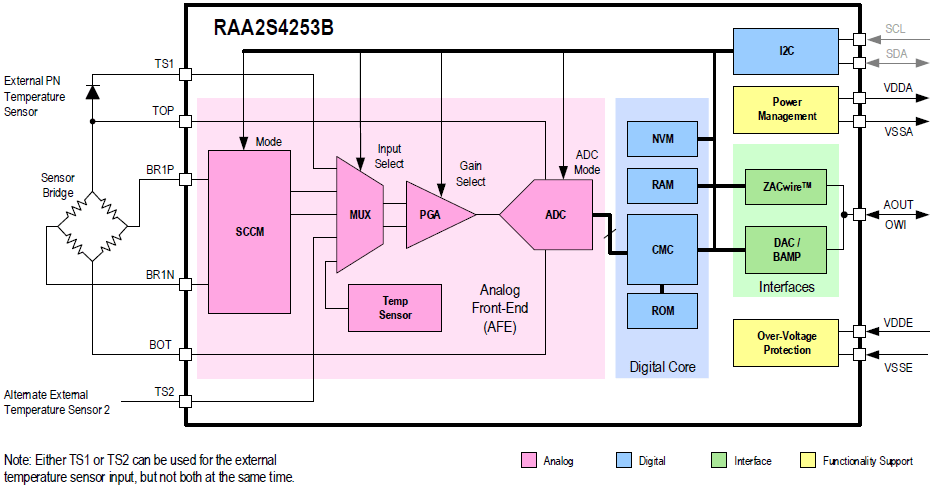

The RAA2S4253B is a member of Renesas’ family of CMOS integrated circuits for highly accurate amplification and sensor-specific correction of differential bridge sensor signals. Featuring a maximum analog pre-amplification of 900 with analog sensor offset correction (XSOC), the RAA2S4253B is adjustable to nearly all resistive bridges.
Conditioning calculation is accomplished via a 16-bit RISC microcontroller. Calibration coefficients and configuration data are stored in the nonvolatile memory (NVM), which is reliable in automotive applications.
Measured values are provided via a ratio-metric analog output signal. End-of-line calibration is also supported through this output pin via a One-Wire Interface (OWI). Digital calibration helps keep assembly costs low as no trimming by external devices or lasers is needed. The RAA2S4253B is optimized for harsh automotive environments by over-voltage and reverse polarity protection circuitry, excellent electromagnetic compatibility, and multiple diagnostic features.
特性
- Product developed in compliance with ISO 26262:2018 ASIL B
- Capable of measuring one full resistive bridge sensor signals
- Temperature measurement using external diode/PTC/TCR or internal (PTAT) sensor
- Large sensor offset correction using analog offset compensation and digital zooming with up to 18-bit resolution
- Higher digital resolution, fast OUR output update rate by ADC and sharp roll-off by digital LPF
- Ability to cover a large sensor span and high accuracy (0.35% - 1.0%) over the entire temp. range (-40 °C to 150 °C)
- Qualified according to AEC-Q100 Grade 0
- Optimized for harsh automotive environment
- Over-voltage and reverse polarity protection ±40V, robust EMC performance, and multiple diagnostic features
- Minimal EOL (end-of-life) production costs during mass production

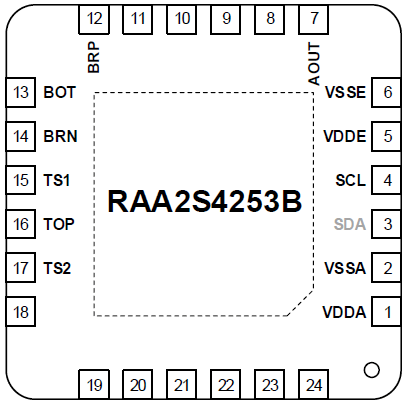

- QFN-24 package
- Analog output
产品对比
应用
- Pressure sensing in braking, transmission, and HVAC applications
- xEV
- Plug-in hybrid electric vehicle (PHEV)
- Battery electric vehicle (BEV)
- Fuel-cell electric vehicle (FCEV)
