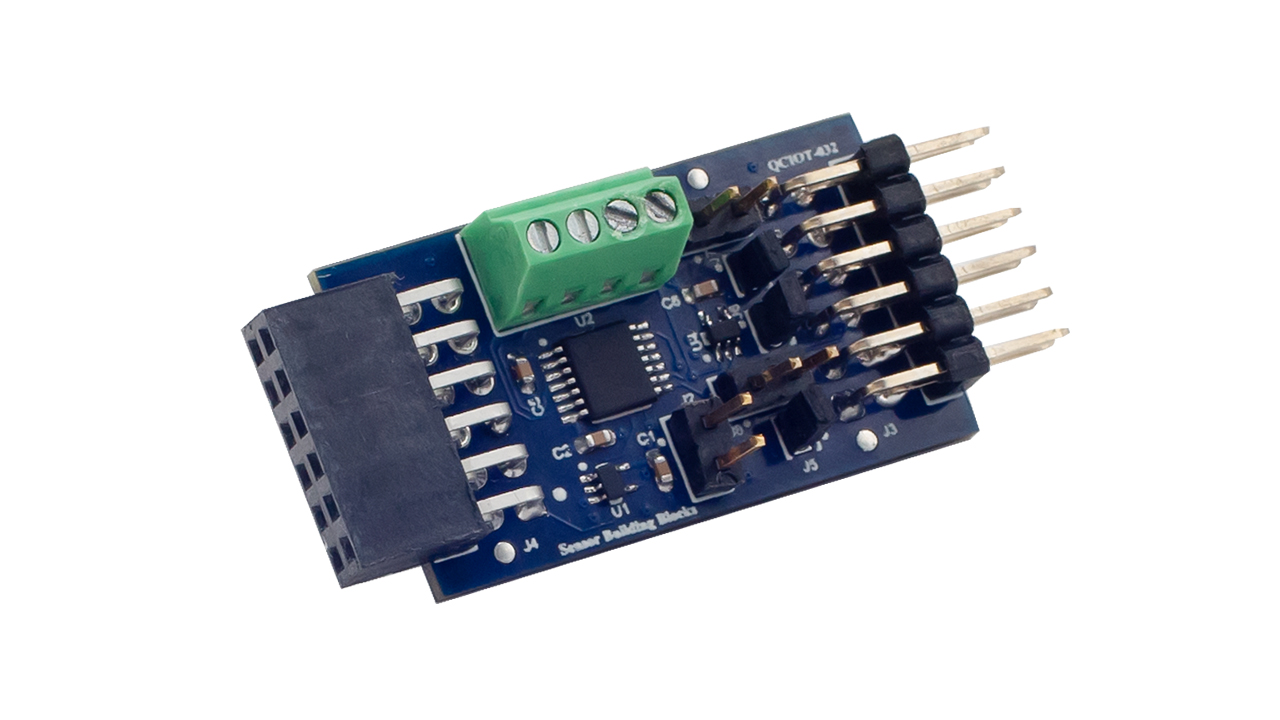

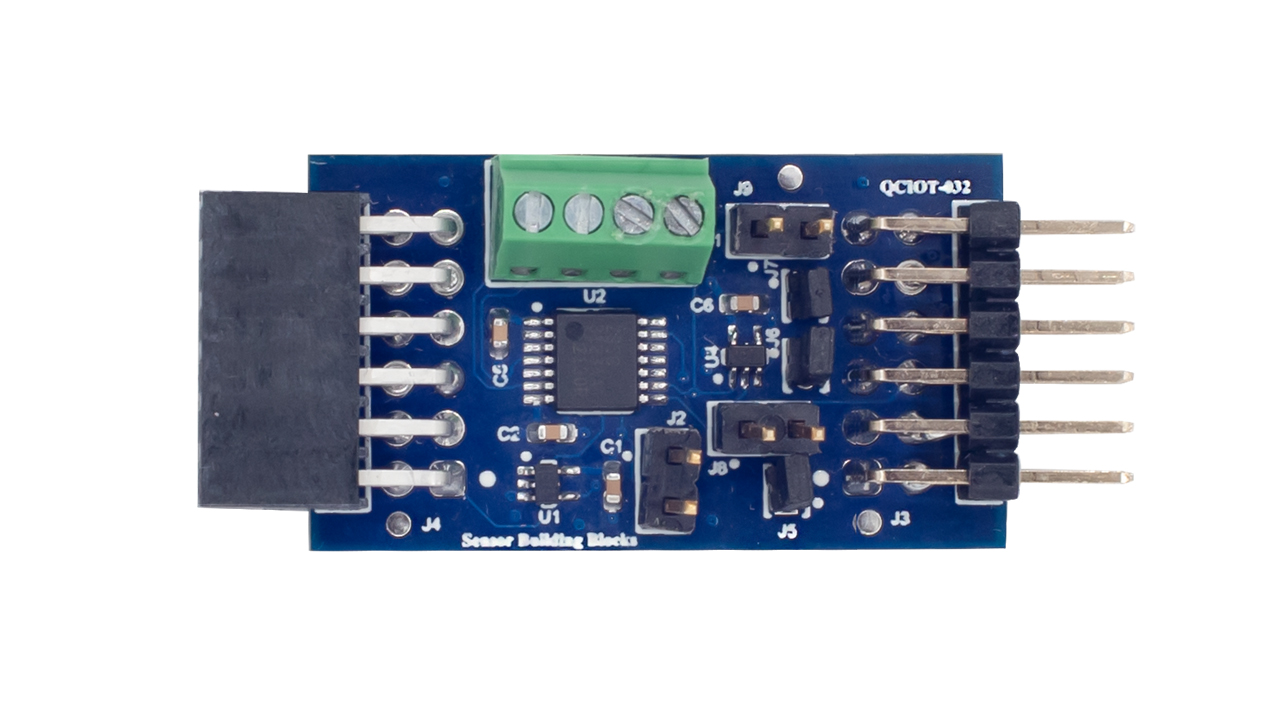

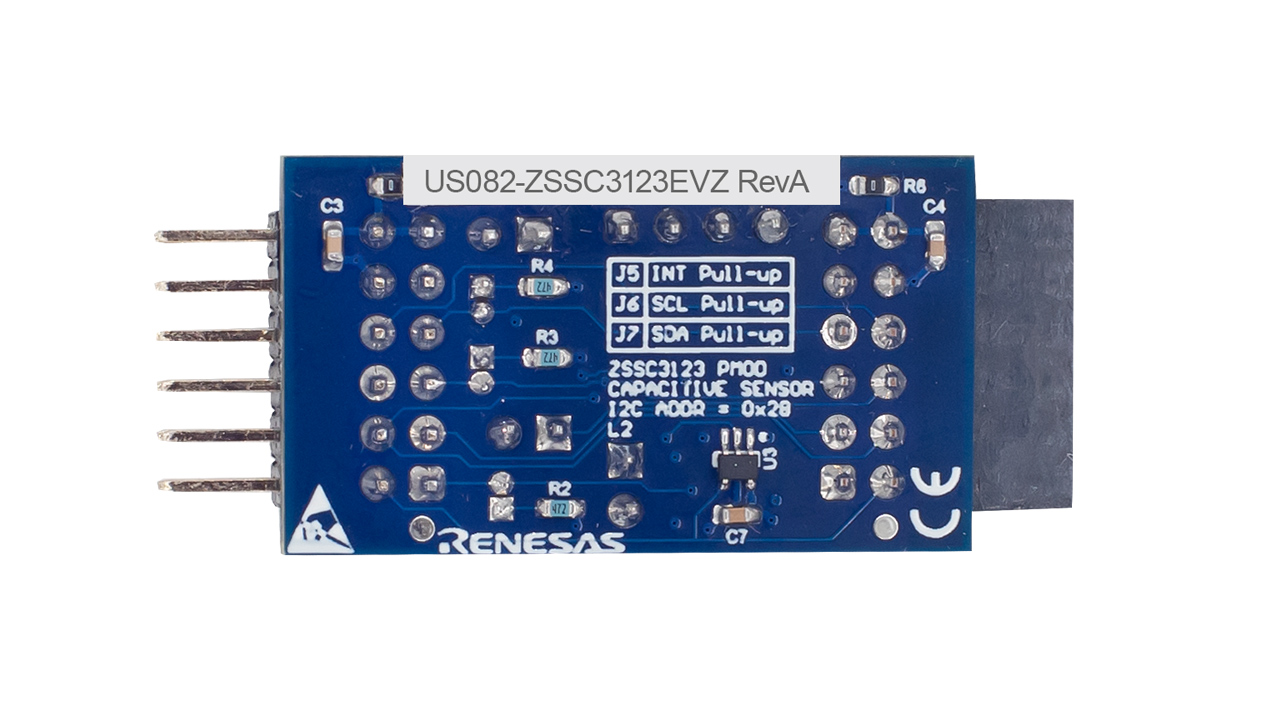

The US082-ZSSC3123EVZ board demonstrates the functionality and performance of the ZSSC3123 wide capacitive sensor. The board provides a standard Pmod™ Type 6A (extended I2C) connection for the onboard sensor to plug into any required MCU evaluation kit with a matching connector. The US082-ZSSC3123EVZ features Pmod connectors on both sides of the board to allow additional Type 6/6A boards to connect in a daisy-chained solution with multiple devices on the same MCU Pmod connector. With its standard connector and software support, the US082-ZSSC3123EVZ is ideal for rapidly creating an IoT system using the Renesas QuickConnect tools.

特性

  • Maximum target input capacitance: 260pF
  • Sampling rates are as fast as 0.7ms @ 8-bit, 1.6ms @ 10-bit, 5.0ms @ 12-bit, 18.5ms @ 14-bit
  • Digital compensation of sensor: piece-wise 1st and 2nd order sensor compensation or up to 3rd order single-region sensor compensation
  • Digital compensation of 1st and 2nd order temperature gain and offset drift
  • Internal temperature compensation reference (no external components)
  • Programmable capacitance span and offset
  • Layout customized for die-die bonding with sensor for low-cost, high-density chip-on-board assembly
  • Accuracy as high as ±0.25% full-scale output @ -40°C to 125°C, 3V, 5V, Vsupply ±10% (see data sheet section 1.3 for restrictions)

应用

文档

类型 文档标题 日期
手册 - 硬件 PDF 1.18 MB
原理图 PDF 2.07 MB
