The ZSSC3122 Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSSC3122 Capacitive Sensor Signal Conditioner (SSC) ICs. The user's PC can communicate via the SSC Communication Board with multiple ZSSC3122 ICs (DUTs) mounted on either the user's modules or ZSSC3122 Mass Calibration Reference Boards, which are connected through the Mass Calibration Board (MCB). Each MCB allows connection of up to 24 DUTs. The system can operate with up to 8 MCBs, allowing connection of up to 192 DUTs. The Evaluation Kit Software is available on-line for free download.
For further information and support for the SSC Communication Board, visit the SSC-CB product page.
Additional boards can be ordered separately. To enable product comparisons, this modular kit is compatible with other select IDT devices. Contact your local sales representative for more information.
特性
- 4 Mass Calibration Boards
- SSC Communication Board
- 4 ZSSC3122 Mass Calibration Reference Boards with 1 sample ZSSC3122 mounted
- USB Cable
- SSC Flat Cable (30m of 10-wire flat cable and 100 connectors)
应用
设计和开发
相关评估板和套件
评估
Evaluation Kit for ZSSC3122 and ZSSC3123
The ZSSC3122-3123KIT SSC Evaluation Kit contains the hardware needed for configuration, calibration and evaluation of the ZSSC3122 and ZSSC3123 capacitive sensor signal conditioning (SSC) ICs. The user's computer can communicate with the ZSSC3122 or ZSSC3123 IC socketed on the cLite SSC...
Recommended Documents:
评估
SSC-MCB
有效
SSC Mass Calibration Board

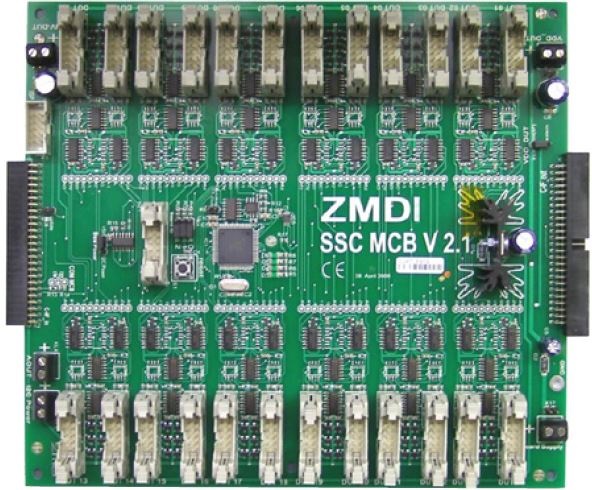

The SSC Mass Calibration Board (MCB) is included in the SSC Mass Calibration System (includes 4 MCBs), which provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple sensor signal conditioner (SSC) ICs (DUTs). It enables communication via the SSC...
Recommended Documents:
评估
SSC-CB
有效
SSC Communication Board

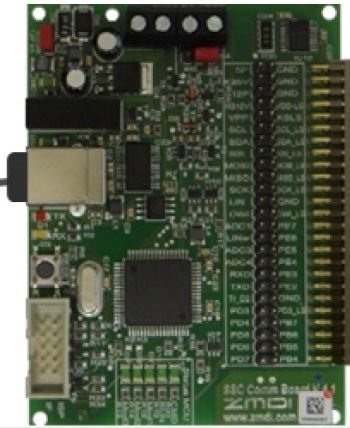

The SSC Communication Board is included in Renesas' modular SSC Evaluation Kits for select sensor signal conditioner (SSC) ICs. It is also part of the modular SSC Mass Calibration System for SSC ICs. It provides communication between the user's computer and the SSC IC mounted on the SSC...
