概览
描述

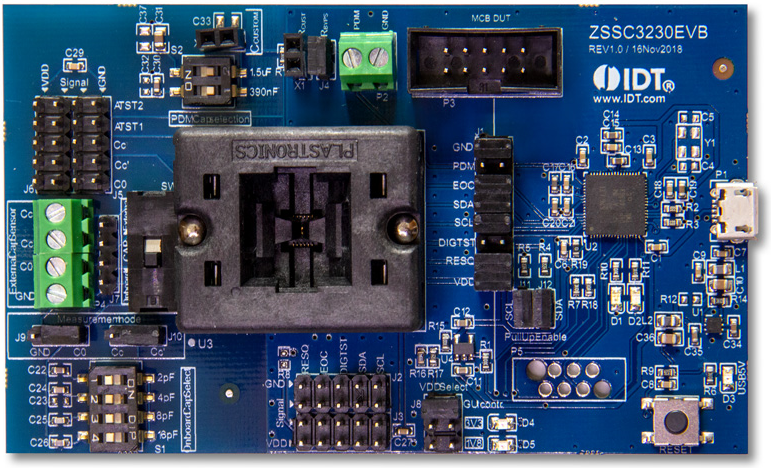

The ZSSC3230 SSC Evaluation Kit contains the hardware needed for configuration, calibration and evaluation of the ZSSC3230 capacitive sensor signal conditioning (SSC) ICs. The user's computer can communicate with the ZSSC3230 IC socketed on the Evaluation hardware through an USB connection. The Evaluation Kit Software is available on-line for free download.
The ZSSC3230 SSC Evaluation Kit can connect to the user's capacitive sensor or provide on-board capacitors for simulating input from a capacitive sensor.
特性
- SSC Evaluation Board hardware
- 5 ZSSC3230 samples
- USB Cable
应用
设计和开发
软件与工具
相关评估板和套件
评估
SSC-CB
有效
SSC Communication Board
The SSC Communication Board is included in Renesas' modular SSC Evaluation Kits for select sensor signal conditioner (SSC) ICs. It is also part of the modular SSC Mass Calibration System for SSC ICs. It provides communication between the user's computer and the SSC IC mounted on the SSC...
Recommended Documents:
评估
SSC Test Board
The SSC Test Board is a small unpopulated circuit board laid out for mounting select Renesas sensor signal conditioner (SSC) ICs with an SSOP/TSSOP package for user applications. It is included in select SSC Evaluation Kits and can be ordered separately.
Recommended Documents:
产品选项
当前筛选条件
视频和培训
IDT Sensor Signal Conditioner (SSC) Evaluation Kit Overview
A brief introduction and overview of IDT's (acquire by Renesas) sensor signal conditioner evaluation kits. Evaluation kits generally consist of three parts: a communication interface board, a device board, and a sensor simulator board - all connected together. A sophisticated software GUI accompanies the kit, enabling an engineer to learn how to use the part rapidly, do quick prototyping, and practice calibrations.
Presented by David Grice, applications engineer at IDT. For more information about IDT's sensor signal conditioner products, visit the Sensor Signal Conditioner page.
