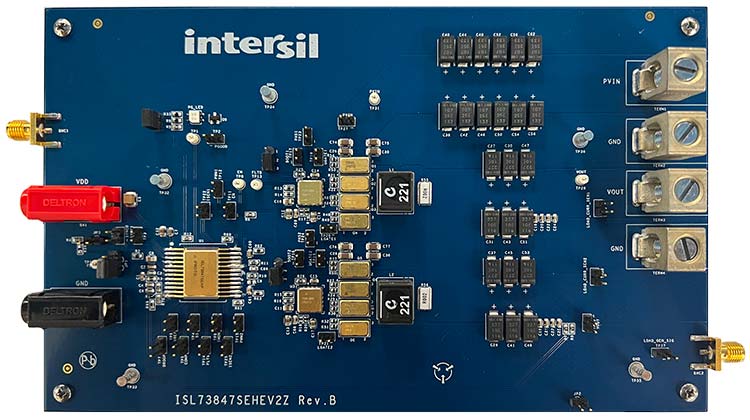

The ISL73847SEHEV2Z evaluation board benchmarks the performance of the ISL73847SEH dual-phase buck controller. The evaluation board is optimized for a 4.5V to 15V input operation to generate a 50A max, 1V output. Input and output connections, test points and jumper settings on the board provide customers with an easy-to-use evaluation platform for point-of-load power applications.

特性

  • Power-Good LED indicator
  • On-board transient load current generator
  • Integrated LDO (VCC)
  • External clock synchronization (SYNCI and SYNCO)
  • Droop regulation set by a single resistor

应用

  • FPGA core power supply
  • General-purpose power supply
