描述

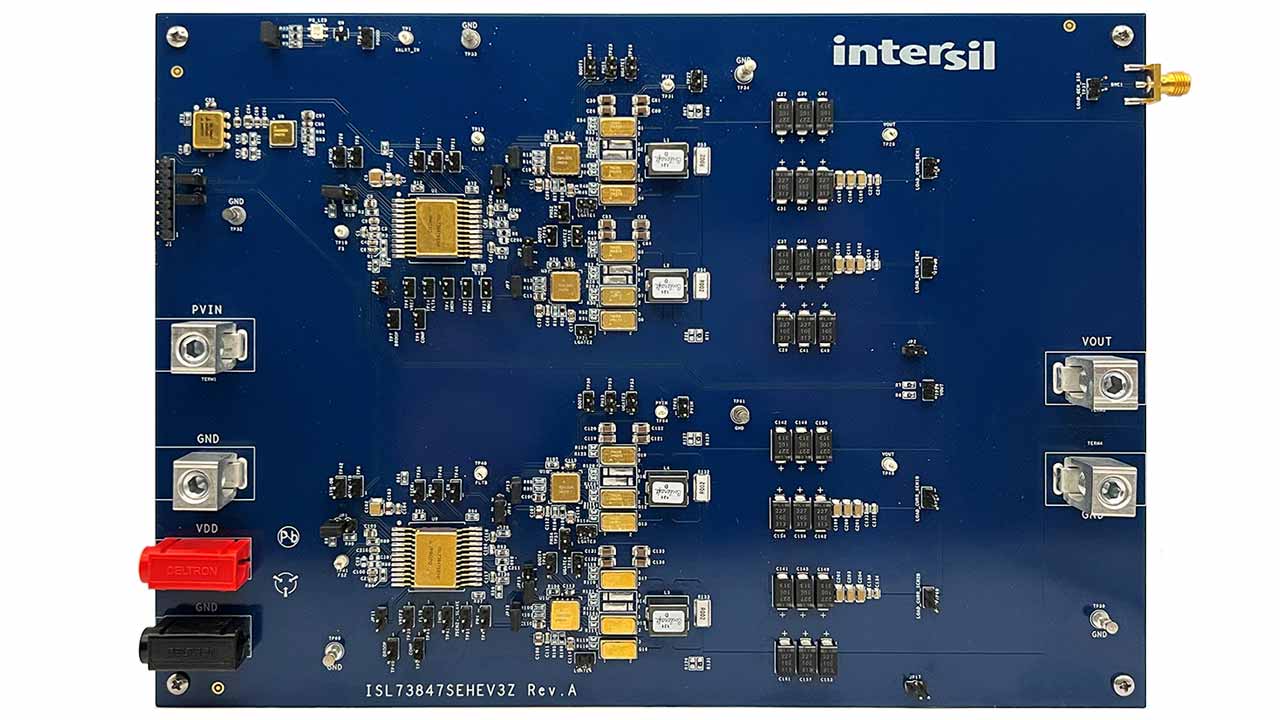

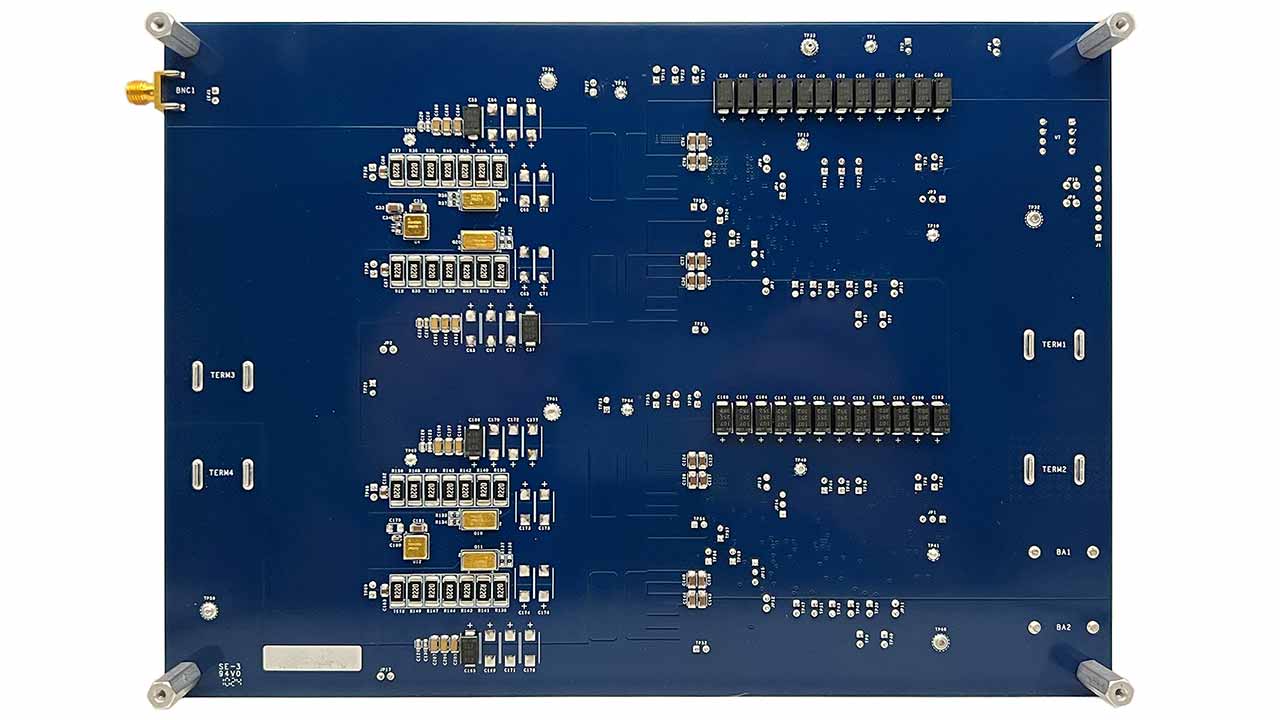

The ISL73847SEHEV3Z evaluation board benchmarks the performance of two ISL73847SEH dual-phase buck controllers, four ISL73041SEH GaN half-bridge drivers, and twelve ISL70020SEH 40V GaN FETs in a 4-phase, 100A configuration. It is designed for the VERSAL VC1902 VCCINT core rail.

特性

  • On-board 2MHz clock generator for synchronization
  • On-board 100A transient load current generator
  • Power Good (PG) LED indicator
  • Integrated LDO (VCC)
  • Load-line DROOP regulation
  • Differential remote sensing

应用

  • FPGA core power supply
  • General-purpose power supply

文档

类型 文档标题 日期
手册 - 开发工具 PDF 3.26 MB
1 item

设计和开发

软件与工具

软件下载

类型 文档标题 日期
软件和工具 - 其他 XLSX 306 KB
PCB 设计文件 ZIP 3.16 MB
软件和工具 - 其他 XLSX 742 KB
3 items
