ISL78840ASEH

有效

Radiation Hardened, High Performance Industry Standard Single-Ended Current Mode PWM Controller

立即订购
ISL78840ASEH, ISL78841ASEH, ISL78843ASEH, ISL78845ASEH ISL78840ASRH, ISL78841ASRH, ISL78843ASRH, ISL78845ASRH, ISL738840ASEH, ISL738841ASEH, ISL738843ASEH, ISL738845ASEH Datasheet

概览

The ISL78840ASEH, ISL78841ASEH, ISL78843ASEH, ISL78845ASEH, ISL78840ASRH, ISL78841ASRH, ISL78843ASRH, ISL78845ASRH are high-performance, radiation hardened drop-in replacements for the popular 28C4x and 18C4x PWM controllers suitable for a wide range of power conversion applications including boost, flyback and isolated output configurations. Fast signal propagation and output switching characteristics make these ideal products for existing and new designs. Features include up to 13.2V operation, low operating current, 90μA typical start-up current, adjustable operating frequency to 1MHz, and high peak current drive capability with 50ns rise and fall times.

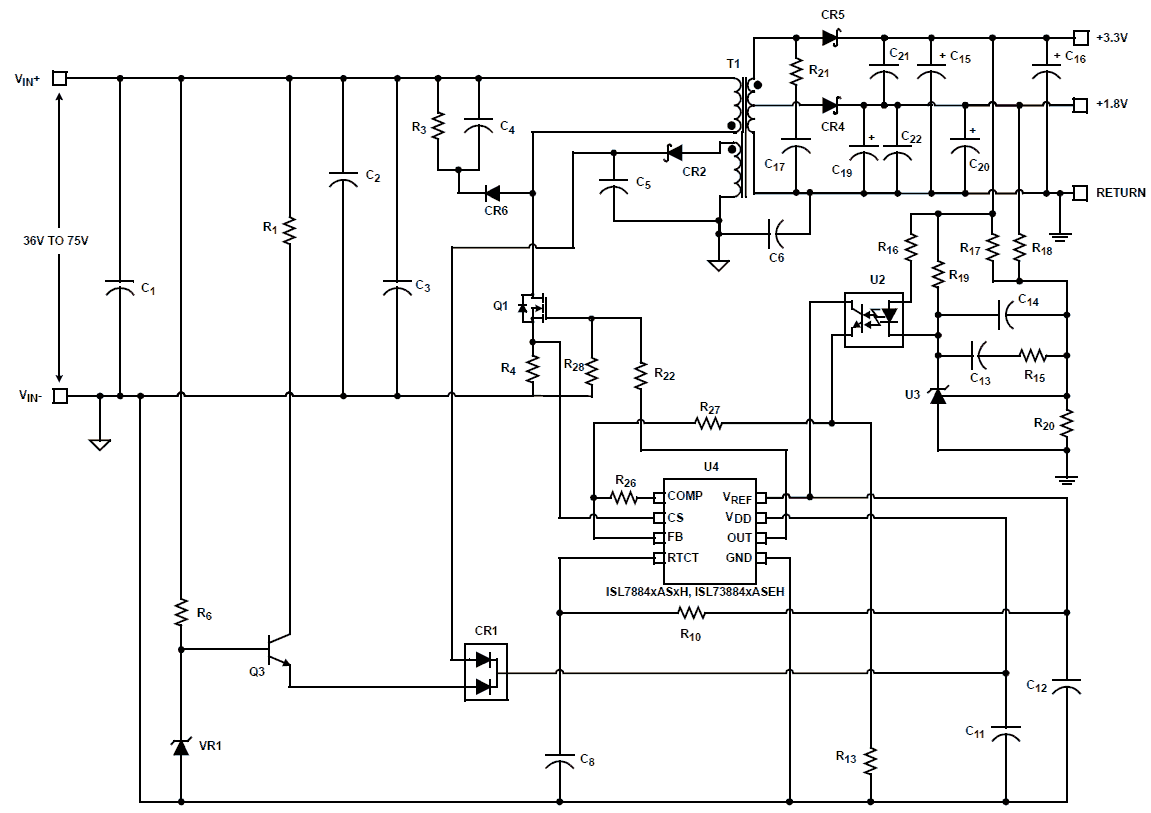

ISL73884xASEH_ISL7884xASxH Functional Diagram
ISL73884xASEH_ISL7884xASxH Functional Diagram
  • Electrically screened to DLA SMD # 5962-07249
  • QML qualified per MIL-PRF-38535 requirements
  • 1A MOSFET gate driver
  • 90μA typical start-up current, 125μA maximum
  • 35ns propagation delay current sense to output
  • Fast transient response with peak current-mode control
  • 9V to 13.2V operation
  • Adjustable switching frequency to 1MHz
  • 50ns rise and fall times with 1nF output load
  • Trimmed timing capacitor discharge current for accurate dead time/maximum duty cycle control
  • 1.5MHz bandwidth error amplifier
  • Tight tolerance voltage reference over line, load, and temperature
  • ±3% current limit threshold
  • Pb-free available (RoHS compliant)
  • Radiation environment:
  • High dose rate (50 - 300rad(Si)/s): 100krad(Si)
  • Low dose rate (0.01rad(Si)/s): 100krad(Si)*
    * Product capability established by initial characterization. The "EH" version is acceptance tested on a wafer-by-wafer basis to 50krad(Si) at low dose rate. (Applies to ISL7884xASEH only)
  • Current mode switching power supplies
  • Isolated buck and flyback regulators
  • Boost regulators
  • Direction and speed control in motors
  • Control of high current FET drivers

设计和开发

软件与工具
iSim:PE 离线模拟工具
iSim Personal Edition（iSim:PE ）可加快设计周期并降低项目早期风险，确定可用于当前和下一代设计的部件。
下载
iSim:PE Software v9.1ISL7884xASRH, ISL7884xASEH, ISL73884xASEH & ISL71043M Flyback Application iSim:PE Model
 Simulator 瑞萨电子
1 item

软件下载
类型 文档标题 日期
软件和工具 - 其他
ISL7884x, ISL71041, ISL71043 RTCT Design Tool
XLSX 53 KB
软件和工具 - 软件
iSim:PE Software v9.1
登录后下载 ZIP 145.10 MB
2 items

ECAD 模块

点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。

扩展 ECAD 模块
Diagram of ECAD Models

模型
类型 文档标题 日期
模型 - SPICE
ISL7884xASRH, ISL7884xASEH, ISL73884xASEH & ISL71043M PSPICE Models
ZIP 30.70 MB
模型 - iSim
ISL7884xASRH, ISL7884xASEH, ISL73884xASEH & ISL71043M Flyback Application iSim:PE Model
登录后下载 SXSCH 161 KB
2 items
