Cordless Voice Module Development Kit
The SC14CVMDECTDEVKT is a complete wireless system development kit that includes two development boards with modules and pre-loaded firmware to support Co-Located...
概览
描述

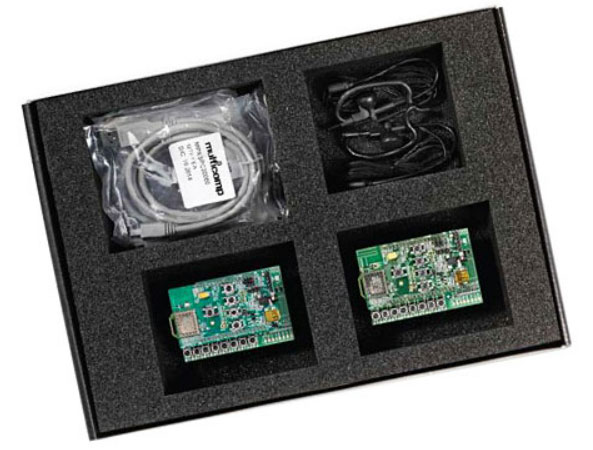

The SC14CVMDECT Cordless Voice Module (CVM) Development Kit consists of two development boards with headsets, enabling voice connection setup. It enables the easy and cost-effective development of cordless applications and significantly reduces the time-to-market.
All the features of the module are accessible through the pins on the development board, while buttons and LED statuses can be changed and checked. The CVM kit comes with the Athena development environment, an Eclipse-based IDE that provides a development environment for the CR16C+ series of microcontrollers, and a GNU cross compiler/linker for CR16 – removing the need for an external microcontroller.
特性
- Flash on the module, makes upgrading easy
- ETSI DECT (GAP) compliant

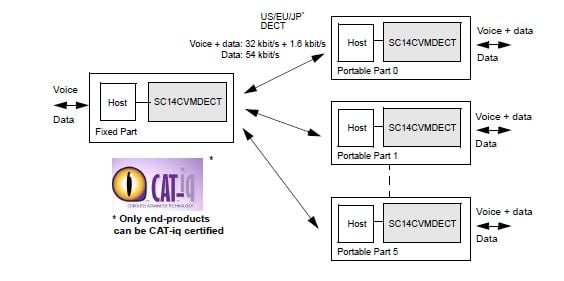

- Connects with up to six portable units
- UART interface for an external host
- Software support for embedded solutions
- Supports voice and low-speed data
- Power management support
- A one-fits-all module running on an ETSI standardized protocol in an interference-free band, supporting
- DECT
- DECT 6.0
- J-DECT
- CAT-iq
- Operates as fixed part or portable part
- Contains the complete protocol stack
- Fully TBR6, FCC approved and J-DECT pre-certified
- Works simply with an API interface set
- Fully tested module, eliminates the need for RF testing
- A complete set of software examples included
产品对比
应用
- Hosted or embedded cordless intercom
- Hosted or embedded cordless baby phone monitor
- Hosted wireless data applications up to 1.6Kbit/s (e.g., point-of-sales (PoS) terminals) or use the new CAT-iq LU-10 feature of 54kbit/sec
- Set-top boxes
- Routers and wireless xDSL/cable modems
- Industrial control systems
- Burglar alarms
- Wireless local loop (WLL)
- Pendant applications
- All other point-to-point connections
设计和开发
开发板与套件
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
Audio Data Stack (AVD Module) vs. Wireless Audio Module (WAM)
| Audio Data Stack | WAM | |
|---|---|---|
| Data Rate | 1.6kb/s | 1.6kb/s |
| Number of PP in a conference | N/A | N/A |
| Number of PP in PA/TG | 1024 | 128 |
| Full duplex/return channels | 1 | 0 |
| Voice/Audio bandwidth | 20kHz | 11.3kHz |
| Latency | 10ms | 10ms |
| Battery charging | NiMH/Li-ion batteries | 2 Cell NiMH |
| Programmability | Flexible API interface | None |
