Renesas' broad portfolio of analog switches and multiplexers (MUX) provides excellent performance across a wide input voltage range. Products include 40V operation down to low voltage USB switching.
Switches & Multiplexers
跳转至页面部分：
分类
Analog Signal Switches
Renesas' switches provide excellent performance across a wide Vin range.
Audio Switches
Highly integrated audio switches with low distortion, click/pop suppression
Crosspoint Switches
Switches for directing video signal from multiple input sources to any output.
Signal Switching Multiplexers
Multiplexing amplifiers designed primarily for video signal switching
USB Switches
USB 2.0 high and full-speed switches and multiplexers (MUXs)
产品选型表
Processing table
Channels (#) |
Switch or MUX |
Configuration |
Type of Switch |
RDS (ON) (Ohms) |
Leakage (nA) |
Source Cap (pf) |
IS (mA) |
VCC (Single) (V) |
Qualification Level |
TON (ns) |
TOFF (ns) |
Charge Injection (pC) |
Drain Capacitance |
Dual Supply Range (V) |
Supply Voltage Vcc Range |
Switch Control |
BW USB High-Speed (MHz) |
BW USB Full-Speed (MHz) |
Supply Voltage Vdd (V) |
VDD Range (V) (V) |
|

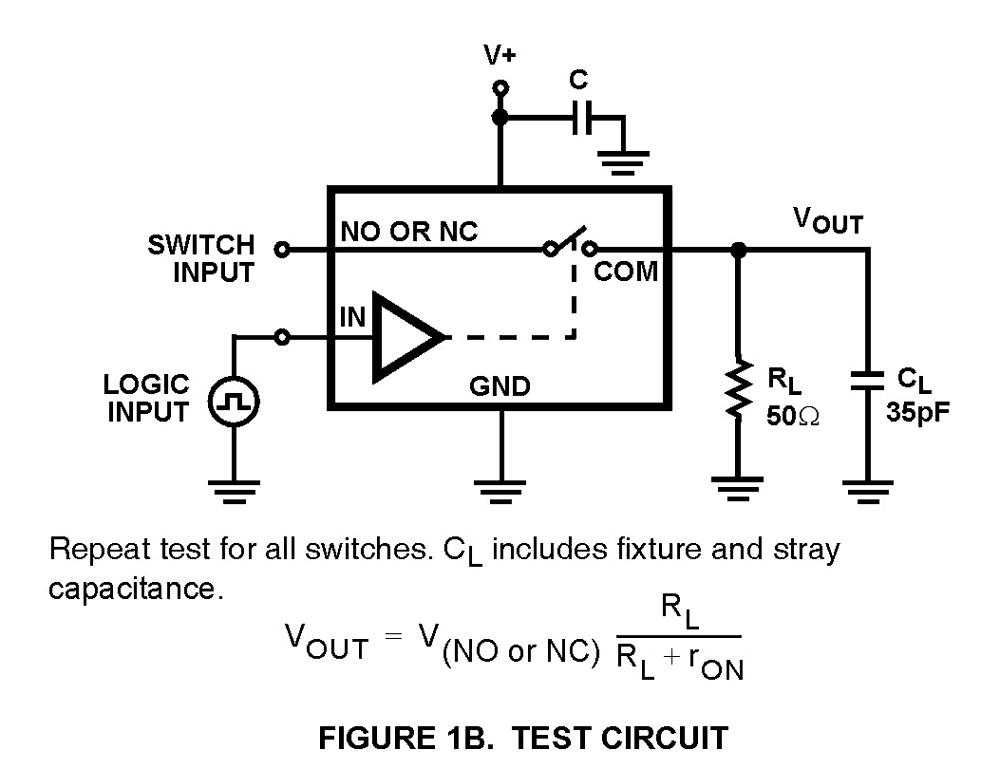

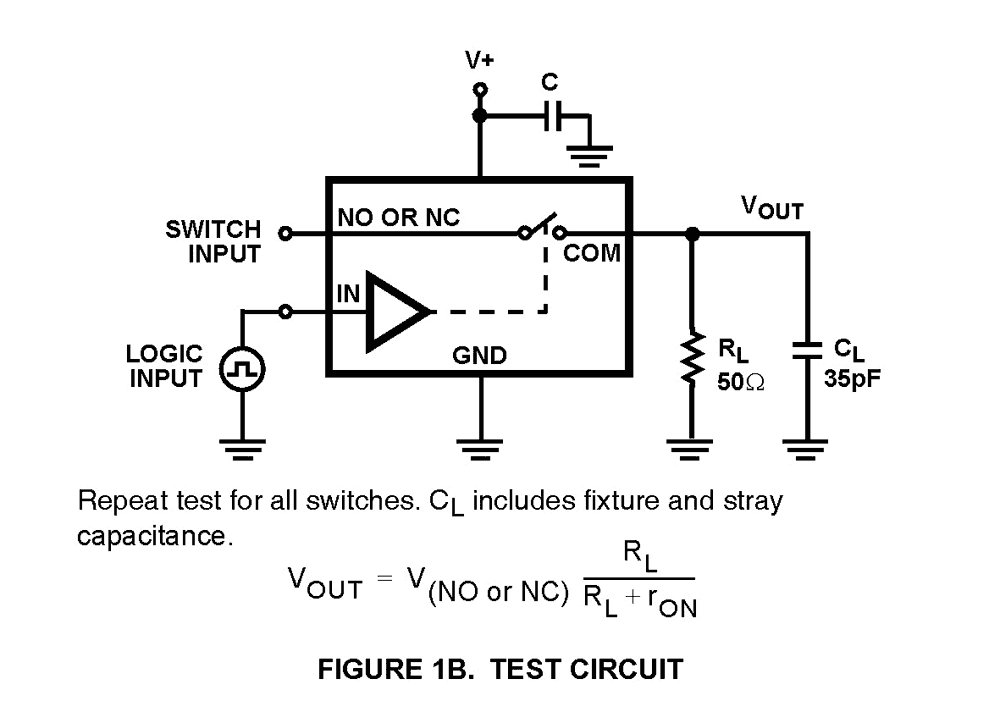

|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | |||||||||||||||||||||
| Monolithic CMOS Analog Switches | 2 | Switch | MIX | DPST | 20 | 0.04 | 12 | 1E-05 | 5 - 34 | Standard | 100 | 60 | 60 | 39 pF | 5 to 34, ±5 to ±20 | ||||||
| Single 16-Channel/Differential 8-Channel, CMOS Analog Multiplexers | 16 | MUX | 1 x 16:1 | 50 | 0.04 | 8 | 0.08 | 5 - 34 | Standard | 150 | 70 | 40 | 180 pF | 5 to 34, ±5 to ±20 | |||||||
| Single 16-Channel/Differential 8-Channel, CMOS Analog Multiplexers | 16 | MUX | 2 x 8:1 | 50 | 0.04 | 8 | 0.08 | 5 - 34 | Standard | 150 | 70 | 40 | 90 pF | 5 to 34, ±5 to ±20 | |||||||
| Single 8-Channel/Differential 4-Channel, CMOS Analog Multiplexers | 8 | MUX | 1 x 8:1 | 40 | 1 | 3 | 0.2 | 5 - 34 | Standard | 115 | 105 | 20 | 37 pF | 5 to 34, ±5 to ±20 | |||||||
| Single 8-Channel/Differential 4-Channel, CMOS Analog Multiplexers | 8 | MUX | 2 x 4:1 | 40 | 1 | 3 | 0.2 | 5 - 34 | Standard | 115 | 105 | 20 | 25 pF | 5 to 34, ±5 to ±20 | |||||||
| Monolithic Quad SPST, CMOS Analog Switches | 4 | Switch | NC | SPST | 25 | 0.1 | 9 | 1E-07 | 5 - 34 | Standard | 110 | 100 | 5 | 35 pF | 5 to 34, ±5 to ±20 | ||||||
| Monolithic Quad SPST, CMOS Analog Switches | 4 | Switch | NO | SPST | 25 | 0.1 | 9 | 1E-07 | 5 - 34 | Standard | 110 | 100 | 5 | 35 pF | 5 to 34, ±5 to ±20 | ||||||
| Monolithic Quad SPST, CMOS Analog Switches | 4 | Switch | MIX | SPST | 25 | 0.1 | 9 | 1E-07 | 5 - 34 | Standard | 110 | 100 | 5 | 35 pF | 5 to 34, ±5 to ±20 | ||||||
| Monolithic, Quad SPST, CMOS Analog Switches | 4 | Switch | NC | SPST | 50 | 0.08 | 4 | 0.015 | 5 - 34 | Standard | 150 | 90 | 1 | 16 pF | 5 to 34, ±5 to ±20 | ||||||
| Monolithic, Quad SPST, CMOS Analog Switches | 4 | Switch | NO | SPST | 50 | 0.08 | 4 | 0.015 | 5 - 34 | Standard | 150 | 110 | 1 | 16 pF | 5 to 34, ±5 to ±20 | ||||||
| Monolithic, Quad SPST, CMOS Analog Switches | 4 | Switch | NC | SPST | 50 | 0.08 | 4 | 1E-06 | 5 - 34 | Standard | 120 | 110 | 1 | 16 pF | 5 to 34, ±5 to ±20 | ||||||
| Monolithic, Quad SPST, CMOS Analog Switches | 4 | Switch | NO | SPST | 50 | 0.08 | 4 | 1E-06 | 5 - 34 | Standard | 120 | 160 | 1 | 16 pF | 5 to 34, ±5 to ±20 | ||||||
| 500MHz Triple, Multiplexing Amplifier | Triple 2 to 1 | 30 | Standard | ||||||||||||||||||
| Dual/Quad SPST, CMOS Analog Switches | 4 | Switch | NC | SPST | 55 | 2 | 5.5 | 0.5 | 0 - 15 | Standard | 185 | 220 | 10 | 11 pF | ±15 (Typ) | ||||||
| High Speed, Quad SPST, CMOS Analog Switch | 4 | Switch | NC | SPST | 30 | 0.3 | 10 | 4.5 | 0 - 15 | Standard | 30 | 40 | 10 | 30 pF | ±15 (Typ) | ||||||
| CMOS Analog Switches | 4 | Switch | MIX | SPDT | 35 | 0.04 | 16 | 0.09 | 5 - 34 | Standard | 210 | 160 | 30 | 35 pF | 5 to 34, ±5 to ±20 | ||||||
| CMOS Analog Switches | 2 | Switch | MIX | SPDT | 50 | 0.8 | 11 | 0.1 | 0 - 15 | Standard | 370 | 280 | 50 | 22 pF | ±15 (Typ) | ||||||
| CMOS Analog Switches | 2 | Switch | MIX | DPST | 50 | 0.8 | 11 | 0.1 | 0 - 15 | Standard | 370 | 280 | 50 | 22 pF | ±15 (Typ) | ||||||
| CMOS Analog Switches | 2 | Switch | MIX | DPST | 25 | 0.8 | 11 | 0.1 | 0 - 15 | Standard | 370 | 280 | 50 | 22 pF | ±15 (Typ) | ||||||
| Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers | 16 | MUX | 1 x 16:1 | 180 | 0.3 | 10 | 1.5 | 20 | Standard | 250 | 250 | 15 | 52 pF | ±15 (Typ) | |||||||
| 16-Channel, 8-Channel, Differential 8-Channel and Differential 4-Channel, CMOS Analog MUXs with Active Overvoltage Protection | 16 | MUX | 1 x 16:1 | 1200 | 0.1 | 10 | 0.5 | 0 - 15 | QML Class Q (military) | 300 | 300 | 4 | 52 pF | ±15 (Typ) | |||||||
| Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers | 8 | MUX | 1 x 8:1 | 180 | 0.3 | 10 | 1.5 | 20 | QML Class Q (military) | 250 | 250 | 15 | 17 pF | ±15 (Typ) | |||||||
| 16-Channel, 8-Channel, Differential 8-Channel and Differential 4-Channel, CMOS Analog MUXs with Active Overvoltage Protection | 8 | MUX | 1 x 8:1 | 1200 | 0.1 | 10 | 0.5 | 0 - 15 | QML Class Q (military) | 300 | 300 | 4 | 25 pF | ±15 (Typ) | |||||||
| Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers | 8 | MUX | 2 x 4:1 | 180 | 0.3 | 10 | 1.5 | 20 | Standard | 250 | 250 | 15 | 12 pF | ±15 (Typ) | |||||||
| 16-Channel, 8-Channel, Differential 8-Channel and Differential 4-Channel, CMOS Analog MUXs with Active Overvoltage Protection | 8 | MUX | 2 x 4:1 | 1200 | 0.1 | 10 | 0.5 | 0 - 15 | QML Class Q (military) | 300 | 300 | 4 | 12 pF | ±15 (Typ) | |||||||
| Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with Active Overvoltage Protection | 16 | MUX | 1 x 16:1 | 1200 | 0.1 | 10 | 0.5 | 0 - 18 | QML Class Q (military) | 300 | 300 | 4 | 52 pF | ±5 to ±18 | |||||||
| Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with Active Overvoltage Protection | 16 | MUX | 2 x 8:1 | 1200 | 0.1 | 10 | 0.5 | 0 - 18 | Standard | 300 | 300 | 4 | 30 pF | ±5 to ±18 | |||||||
| Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with Active Overvoltage Protection | 8 | MUX | 1 x 8:1 | 1200 | 0.1 | 10 | 0.5 | 0 - 18 | Standard | 300 | 300 | 4 | 25 pF | ±5 to ±18 | |||||||
| Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with Active Overvoltage Protection | 8 | MUX | 2 x 4:1 | 1200 | 0.1 | 10 | 0.5 | 0 - 18 | QML Class Q (military) | 300 | 300 | 4 | 12 pF | ±5 to ±18 | |||||||
| Low-Voltage, Single Supply, SPST, High Performance Analog Switches | 1 | Switch | NC | SPST | 7 | 0.01 | 15 | 0.001 | 2.4 - 12 | Standard | 37 | 21 | 8 | 40 pF | 2.4 to 12 | ||||||
| Low-Voltage, Dual Supply, SPST, High Performance Analog Switches | 1 | Switch | NO | SPST | 15 | 0.01 | 13 | 0.015 | 0 - 6 | Standard | 42 | 25 | 7 | 30 pF | ±1.5 to ±6 | ||||||
| Low-Voltage, Dual Supply, SPST, High Performance Analog Switches | 1 | Switch | NC | SPST | 15 | 0.01 | 13 | 0.015 | 0 - 6 | Standard | 42 | 25 | 7 | 30 pF | ±1.5 to ±6 | ||||||
| Low-Voltage, Single Supply, Dual SPST, SPDT Analog Switches | 2 | Switch | NO | SPST | 11 | 0.01 | 8 | 5E-05 | 2.7 - 12 | Standard | 25 | 17 | 5 | 21 pF | 2.7 to 12 | ||||||
| Low-Voltage, Single and Dual Supply, Quad SPST, High Performance Analog Switches | 4 | Switch | NO | SPST | 18 | 0.2 | 10 | 1E-05 | 2 - 12 | Standard | 52 | 40 | 5 | 34 pF | 2 to 12, ±2 to ±6 | ||||||
| Low-Voltage, Single Supply, Single SPDT Analog Switch | 2 | Switch/MUX | 1 x 2:1 | SPDT | 11 | 0.01 | 8 | 5E-05 | 2.7 - 12 | Standard | 28 | 20 | 5 | 28 pF | 2.7 to 12 | ||||||
| Medium-Voltage, Single Supply, Single SPDT Analog Switch | 2 | Switch/MUX | 1 x 2:1 | SPDT | 11 | 0.01 | 8 | 5E-05 | 2.7 - 15 | Standard | 25 | 17 | 5 | 28 pF | 2.7 to 15 | ||||||
| Low-Voltage, Single and Dual Supply, Quad SPDT, Analog Switches | 8 | Switch/MUX | 4 x 2:1 | SPDT | 18 | 0.4 | 10 | 1E-05 | 2 - 12 | Standard | 52 | 40 | 5 | 30 pF | 2 to 12, ±2 to ±6 | ||||||
| Low-Voltage, Single Supply, 4 to 1 Multiplexer, High Performance Analog Switch | 4 | Switch/MUX | Single | 45 | 1 | 4 | 1E-07 | 2 - 12 | Standard | 25 | 24 | 1.2 | 20 pF | 2 to 12 | |||||||
| Ultra Low ON-Resistance, +1.1V to +4.5V Single Supply, SPST Analog Switches | 1 | Switch | NO | SPST | 0.24 | 30 | 68 | 5E-05 | 1.1 - 4.5 | Standard | 8 | 5 | 89 | 160 pF | 1.1 to 4.5 | ||||||
| Ultra Low ON-Resistance, +1.1V to +4.5V Single Supply, SPDT Analog Switch | 1 | Switch | MIX | SPDT | 0.38 | 30 | 40 | 5E-05 | 1.1 - 4.5 | Standard | 7 | 3 | 25 | 110 pF | 1.1 to 4.5 | ||||||
| Ultra Low ON-Resistance, Low-Voltage, Single Supply, Dual 4 to 1 Analog Multiplexer | 8 | MUX | 2 x 4:1 | 0.43 | 8 | 44 | 5E-05 | 1.6 - 3.6 | Standard | 29 | 29 | 201 pF | 1.6 to 3.6 | ||||||||
| Negative Signal Swing, Sub-Ohm, Dual SPDT Single Supply Switch | 2 | Switch/MUX | MIX | SPDT | 0.52 | 8.13 | 36 | 0.0001 | 1.8 - 6.5 | Standard | 43 | 23 | 170 | 100 pF | 1.8 to 6.5 | ||||||
| Negative Signal Swing, Sub-Ohm, Dual SPST Single Supply Switch | 1 | Switch | NO | SPST | 0.52 | 8.13 | 36 | 0.0001 | 1.8 - 6.5 | Standard | 43 | 23 | 170 | 100 pF | 1.8 to 6.5 | ||||||
| Negative Signal Swing, Sub-ohm, Dual SPST Single Supply Switch | 1 | Switch | NC | SPST | 0.52 | 8.13 | 36 | 0.0001 | 1.8 - 6.5 | Standard | 43 | 23 | 170 | 100 pF | 1.8 to 6.5 | ||||||
| USB 2.0 High/Full-Speed Multiplexer | HS/FS | 2E-05 | Standard | Logic Level | 880 | 550 | 5.5 | 2.7 - 5.5 | |||||||||||||
| USB 2.0 High-Speed x 2 Channels/Stereo Audio Dual SP3T (Dual 3-to-1 Multiplexer) | USB/USB/MP3 | 0.0062 | Standard | Logic Level | 700 | 4.6 | 2.7 - 4.6 | ||||||||||||||
| USB 2.0 High-Speed/UART Dual SP3T (Dual 3 to 1 Multiplexer) | HS/FS | 0.0065 | Standard | Logic Level | 800 | 800 | 4.6 | 2.7 - 4.6 | |||||||||||||
| Wideband Differential 3:1 Multiplexer | HS/FS | 0.0065 | Standard | Logic Level | 1600 | 1600 | 4.6 | 2.7 - 4.6 | |||||||||||||
| Low Voltage, Single and Dual Supply, 8-to-1 Multiplexer, Dual 4-to-1 Multiplexer and a Triple SPDT Analog Switch | 8 | MUX | 1 x 8:1 | 60 | 0.002 | 3 | 0.0001 | 2 - 12 | Standard | 50 | 40 | 2 | 26 pF | 2 to 12, ±2 to ±6 | |||||||
| Low Voltage, Single and Dual Supply, 8-to-1 Multiplexer, Dual 4-to-1 Multiplexer and a Triple SPDT Analog Switch | 8 | MUX | 2 x 4:1 | 60 | 0.002 | 3 | 0.0001 | 2 - 12 | Standard | 50 | 40 | 2 | 18 pF | 2 to 12, ±2 to ±6 |
